Forward Lift 40247 1/2"-13NC x 3" HHCS Grade 8 Bolt for OR14 14K 4-Post Lift Runways

Description

Forward Lift 40247 1/2"-13NC x 3" HHCS Grade 8 Bolt for OR14 14K 4-Post Lift Runways

Replace missing, worn, or damaged lift hardware with the 40247 1/2"-13NC x 3" HHCS Grade 8 Bolt, listed for use on OR14 14K 4-Post Lift Runways. This hardware is used when servicing the specified Forward Lift assembly. Match the part number, size or description, and listed application before ordering.

Product Information

• Brand / Equipment: Forward Lift
• Manufacturer / Reference Part Number: 40247
• Store SKU: FOD0247
• Component: 1/2"-13NC x 3" HHCS Grade 8 Bolt
• Listed Application: OR14 14K 4-Post Lift Runways

Fitment & Ordering Notes

Automotive lift manufacturers may use different parts across model years, production runs, or equipment revisions. Before ordering, compare the reference part number and the model/application information in this listing with the identification tag, parts manual, or original component on your lift. If your equipment uses a different part number, verify interchange before installation.

Additional Existing Product / Fitment Information

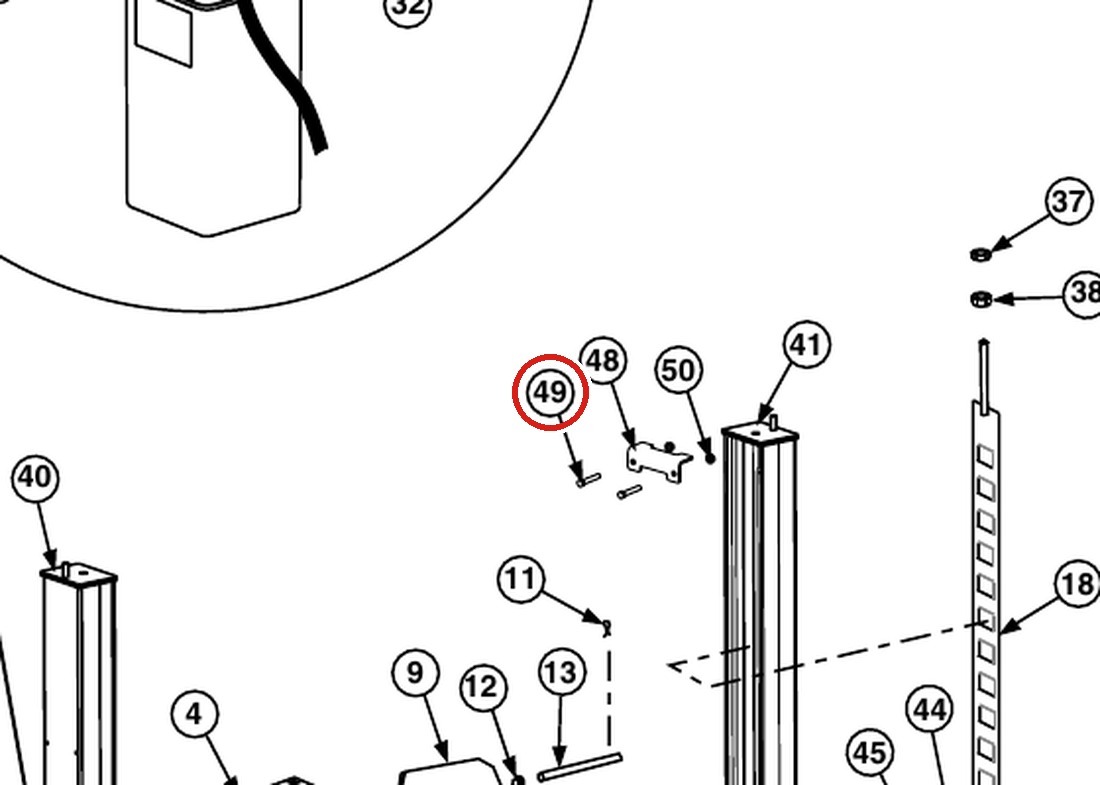

This is part number 49 in the drawing image above.

The Rotary Lift 40247 is a 1/2″-13NC x 3″ long hex head cap screw (HHCS), Grade 8 (catalog ref. 1086909), from Rotary’s light-duty parts family.

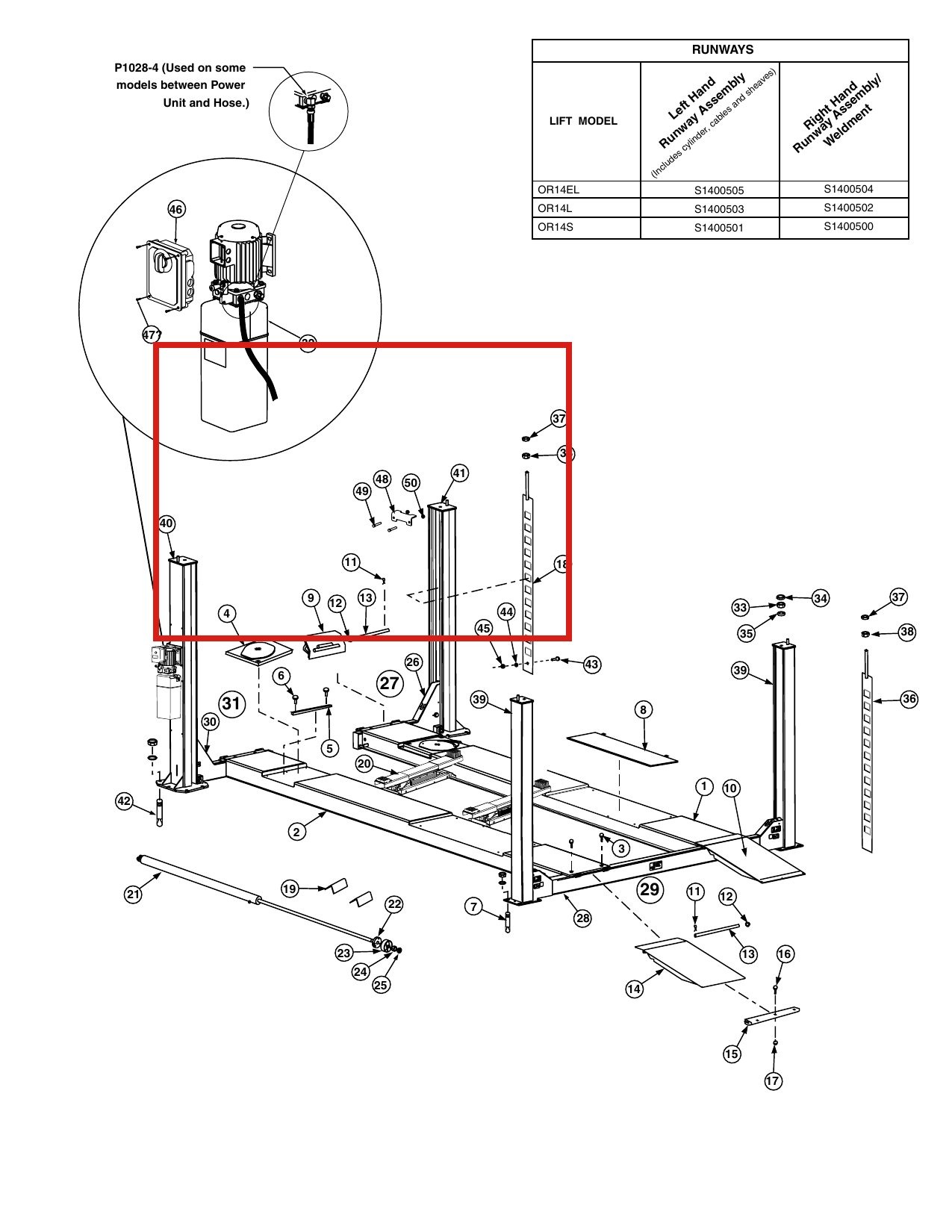

It is called out in the OR14 14K four-post lift parts breakdown under the Runways section (Main Assembly / OR14 parts), where a high-strength Grade 8 bolt is specified for runway hardware.

OEM-spec replacement. Because this is a Grade 8 structural fastener, do not substitute lower-grade hardware; replace like for like per the parts breakdown.

Cross-check part number: Forward Lift 40247. This is a Forward Lift replacement part.
