Rotary Lift G3T-4001 (FJ7444-8) Sheave Shaft for DL9, DP10 & I10 2-Post Lifts

Description

Rotary Lift G3T-4001 (FJ7444-8) Sheave Shaft for DL9, DP10 & I10 2-Post Lifts

Keep the lift cable and movement system operating correctly with the G3T-4001 (FJ7444-8) Sheave Shaft, listed for use on DL9, DP10 & I10 2-Post Lifts. Use this part when servicing the corresponding Rotary Lift assembly and verify the reference part number and application before ordering.

Product Information

• Brand / Equipment: Rotary Lift
• Manufacturer / Reference Part Number: G3T-4001
• Store SKU: ROY4001AMS
• Component: (FJ7444-8) Sheave Shaft
• Listed Application: DL9, DP10 & I10 2-Post Lifts

Fitment & Ordering Notes

Automotive lift manufacturers may use different parts across model years, production runs, or equipment revisions. Before ordering, compare the reference part number and the model/application information in this listing with the identification tag, parts manual, or original component on your lift. If your equipment uses a different part number, verify interchange before installation.

Additional Existing Product / Fitment Information

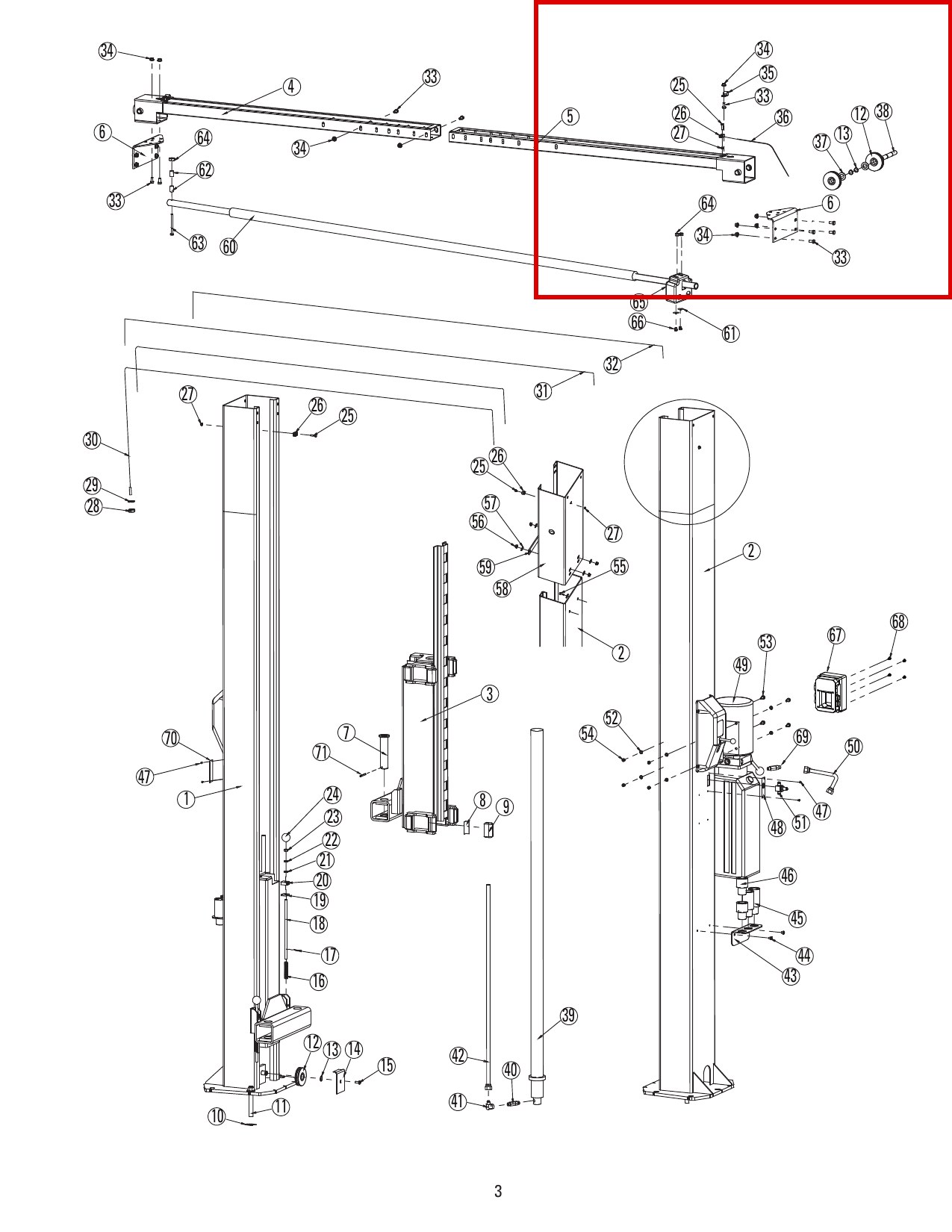

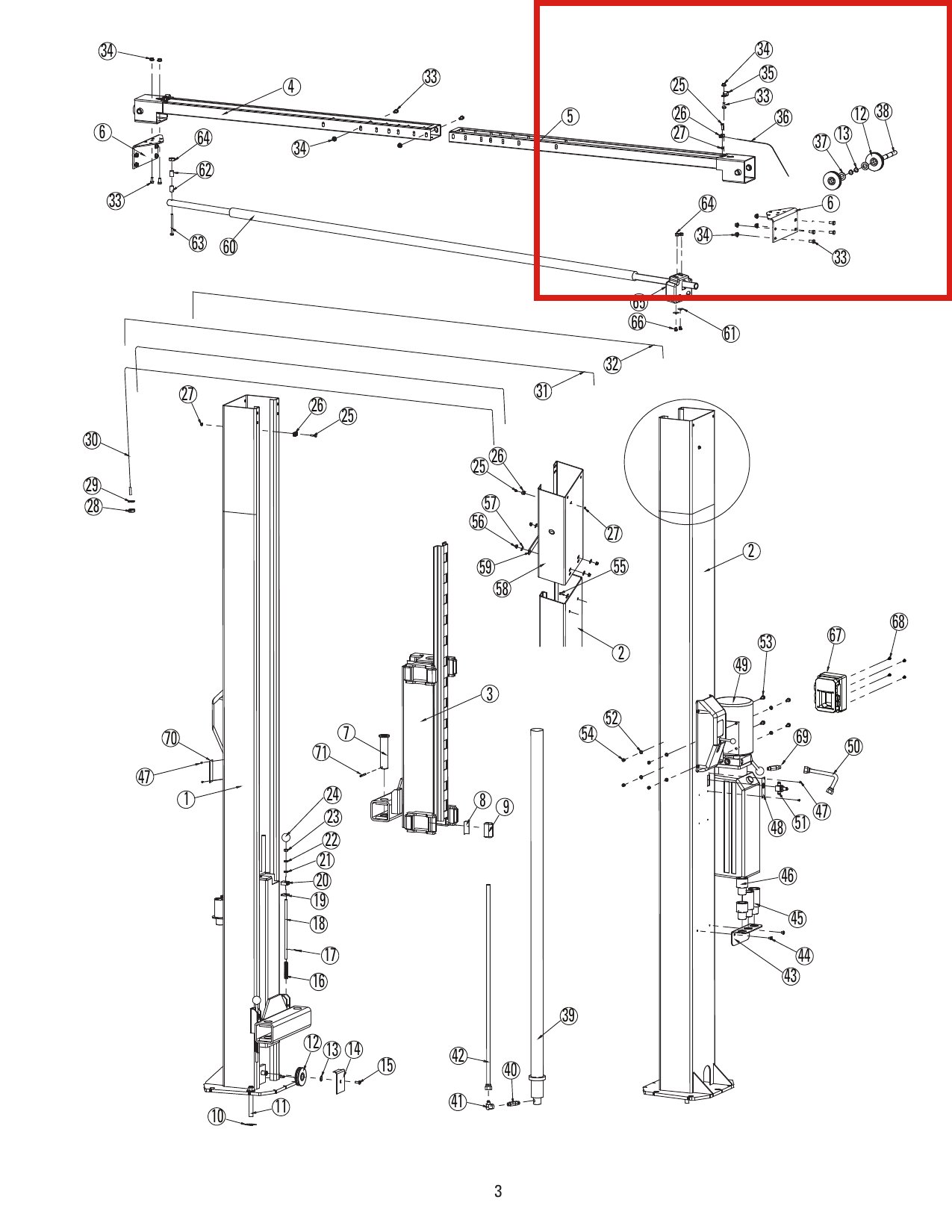

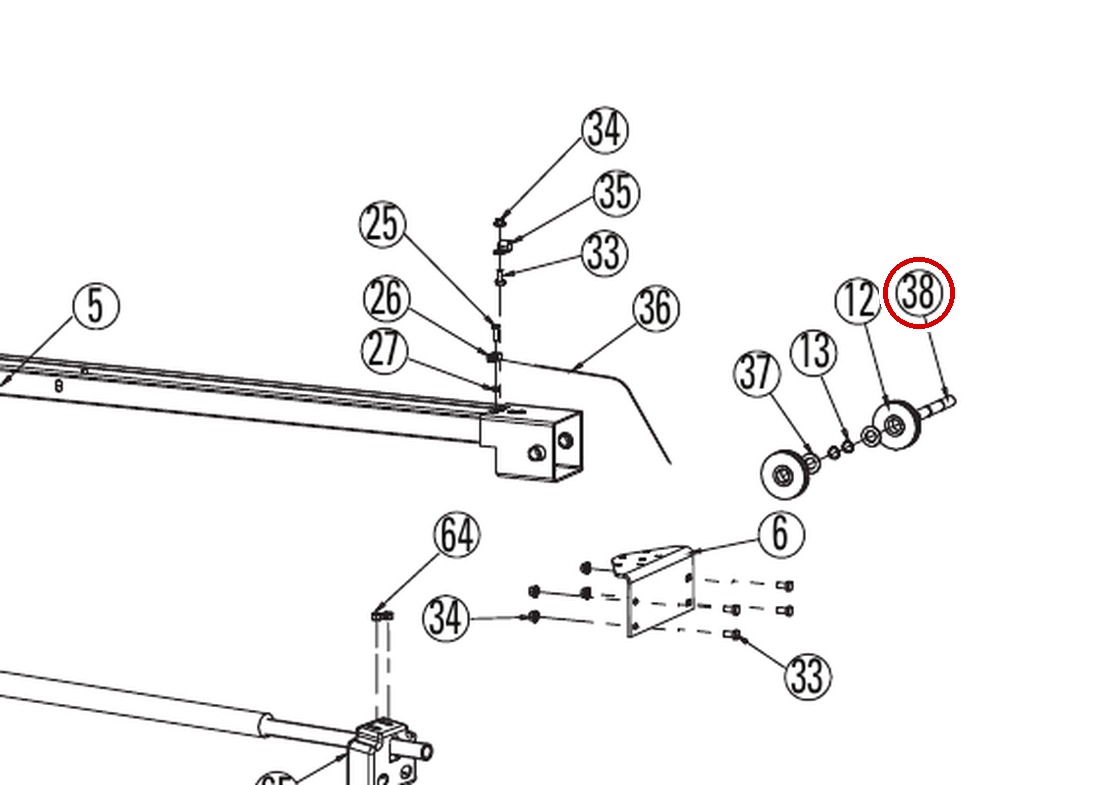

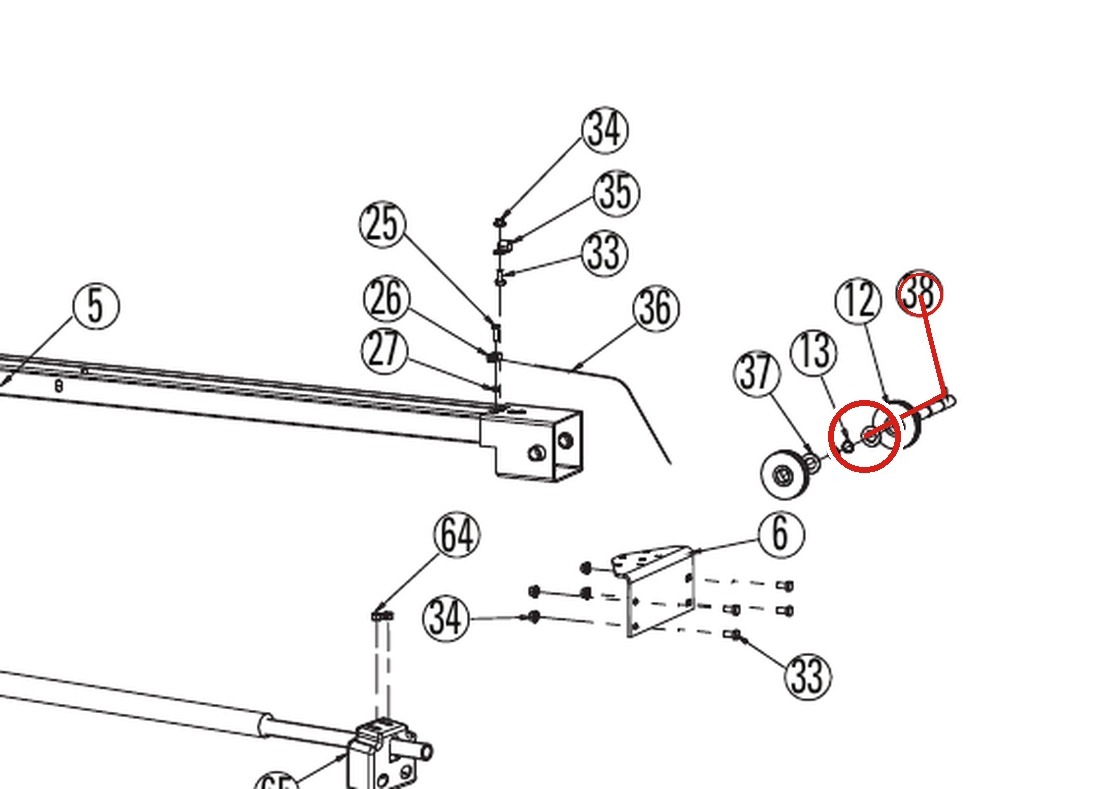

In the drawing images above this is part number 38 in the DL9 parts drawing and part number 32 in the DP10-Parts new style w lock covers drawing and part number 32 in the I10N000M drawing.

Fits the following lift models — part number G3T-4001 (FJ7444-8) appears in the parts breakdown of each of these lifts: Rotary Lift DL9, DP10 (new style with lock covers), I10N000M.

Item: G3T-4001 (FJ7444-8) Sheave Shaft | Fits DL9, DP10 (new style with lock covers) and I10N000M lifts. Referenced in the main lift assembly parts breakdowns for these models (columns, overhead, carriage and power unit sections).

The sheave shaft is the axle that the cable sheave (pulley) rotates on, routing the equalizer cables through the lift’s columns and overhead assembly. A grooved or worn sheave shaft causes cable wear and uneven carriage travel and should be replaced during cable or sheave service.

OEM-compatible replacement matching the factory parts listing. Verify your lift model and serial range against the parts breakdown before ordering.

Cross-check part number: Rotary G3T-4001 (FJ7444-8). This is a Rotary replacement part.

Fits these lifts:

• Direct Lift — DL9 (9,000 lb two-post)
• Hanmecson (VSG) — DL9
• Forward Lift — DP10 (new style with lock covers); I10 (I10N000M)
• Rotary Lift — interchange P/N G3T-4001
