Bendpak lift air bag / spring for Rolling jack / bridge jacks 6-9 k capacity Magnum lift (Copy)

$316.20

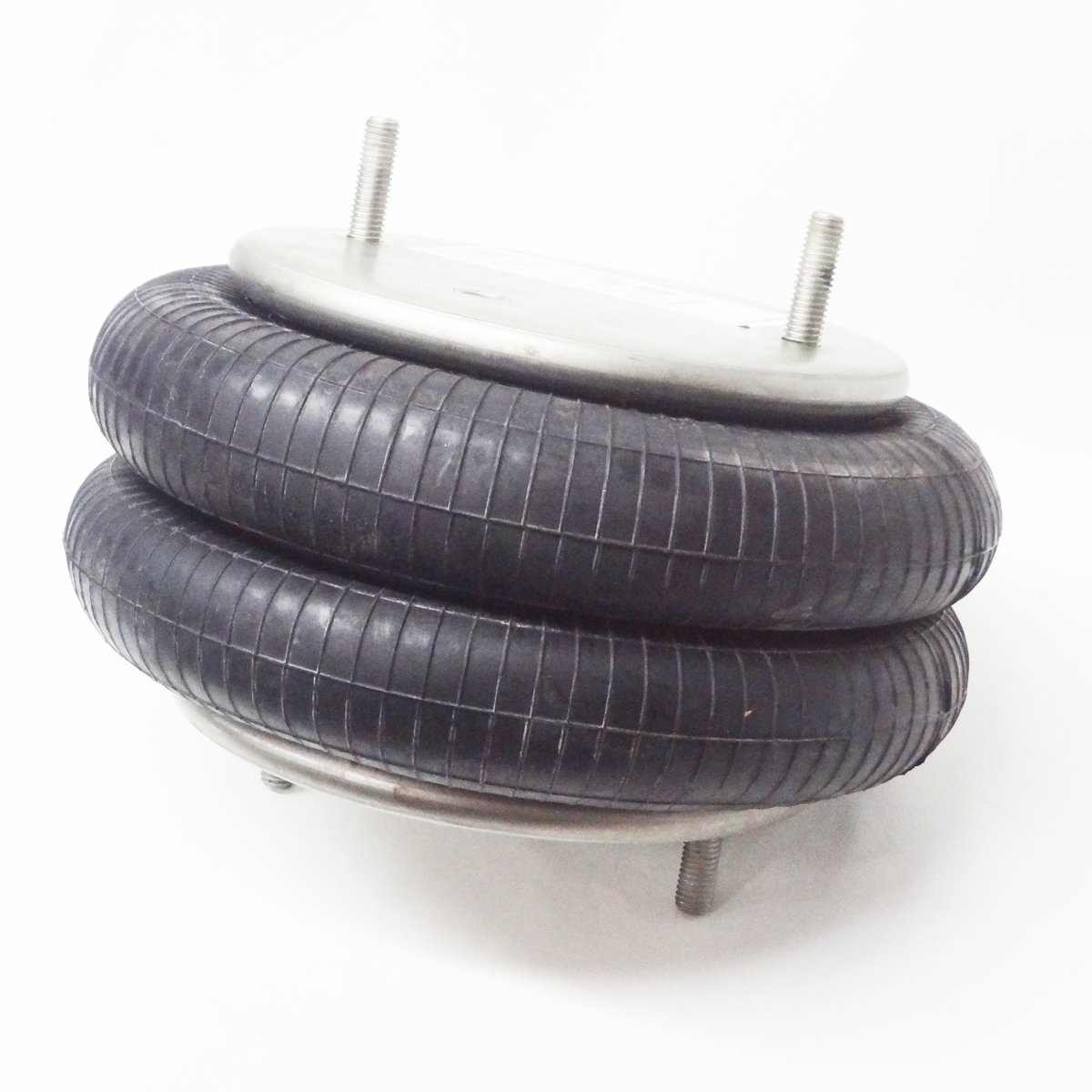

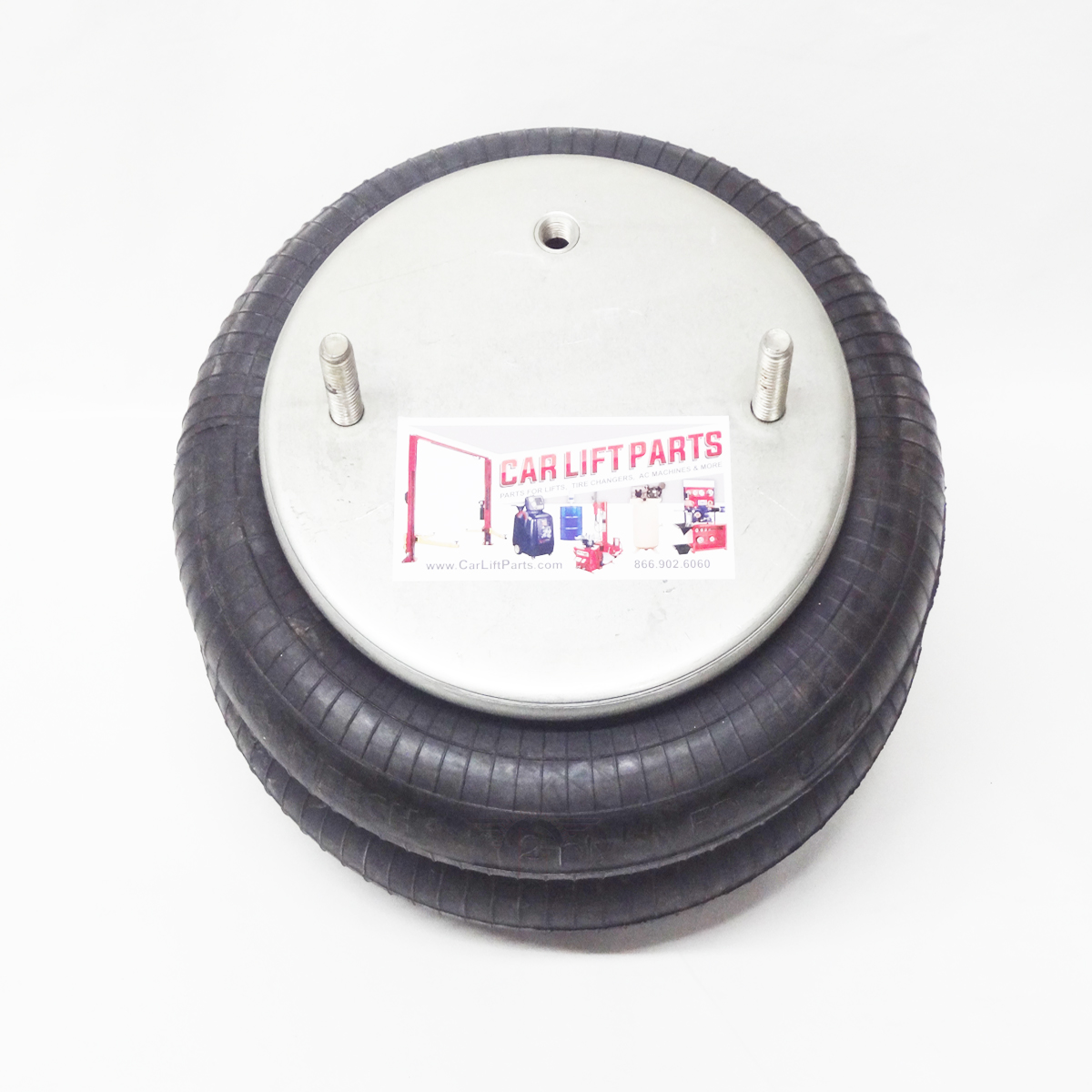

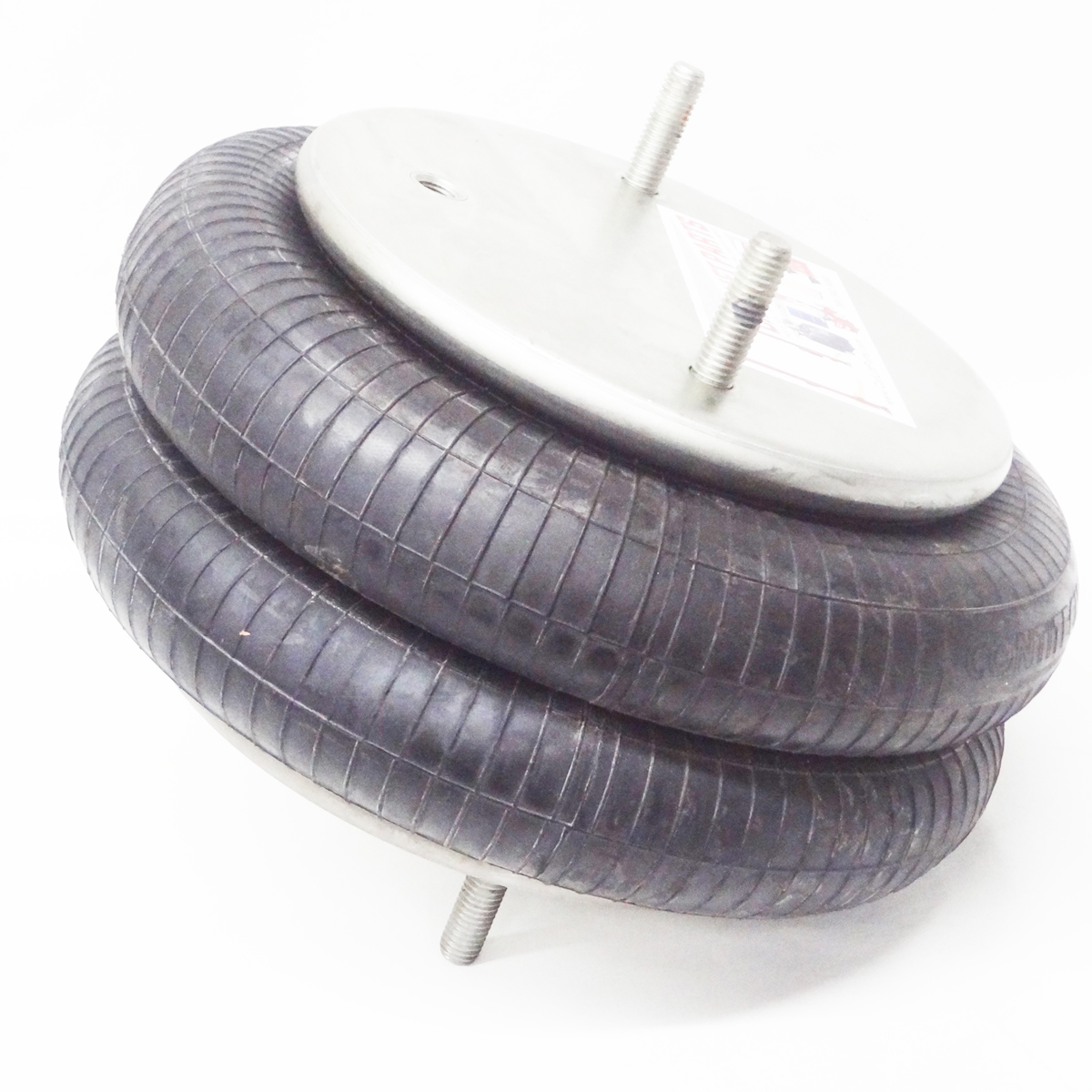

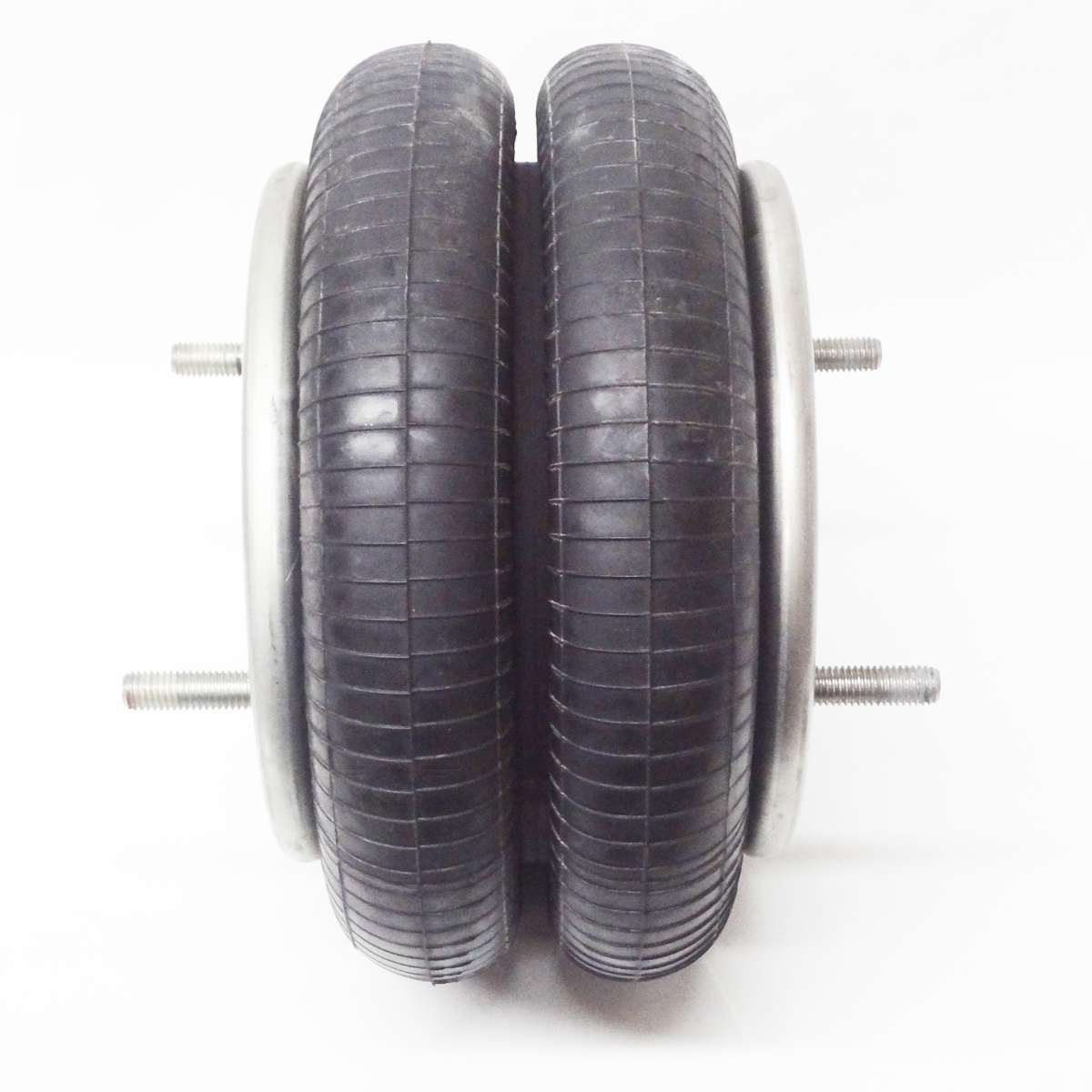

Air Bag / Air Spring for Bendpak Rolling Jack / Magnum Bridge Jack

Found on Bendpak Magnum 4 Post Chain Lifts Model- BP12 BP-12LS BP-12LSX BP-12 chain 4 post lift

On Rolling Jack Model AJ6 AJ7 AJ9 AJ6000

See Product Description Below for more Details on this item



SKU: FOD1270-1 Categories: ,

Product Description

This is a replacement air bag for many rolling air jack / bridge jacks made by Bendpak & Magnum lifts. This is for jacks with 1 single main air bag in the center of the jack and is rated between 6-9k capacity depending on the jack. This is a 2 stage air spring that is made by continental rubber company. It has 2 studs on top and bottom of the jack that secure it in the rolling jack.
This bag fits many manufactorer jacks including

-Bend pak & magnum lift bp6000 AJ6 AJ7 AJ6000 AJ7000 AJ4000 and others
FITS MANY OTHER MANUFACTURERS MODELS AS WELL!

SPECS OF THIS AIR SPRING:
-approximately diameter -11″ with rubber bag down

-stud diameter- 1/2″ -stud to stud distance- 6.25″ from center of stud to center of stud (bolt hole to bolt hole)

When choosing a replacement air bag for your rolling jack, the most important measurement is the stud to stud bolt hole to bolt hole) distance. Measure from the center of each hole in the top or bottom of your jack if it measure 6 1/4 ” this bag should fit. Your original bag may have bolts instead of studs but this replaces both styles. Note: you may have to drill your holes in your jack to 1/2″ size if they are smaller

Air Bag / Air Spring for Bendpak Rolling Jack / Magnum Bridge Jack

Found on Bendpak Magnum 4 Post Chain Lifts Model- BP12 BP-12LS BP-12LSX BP-12 chain 4 post lift

On Rolling Jack Model AJ6 AJ7 AJ9 AJ6000

Additional information

Weight 176 oz
Dimensions 10 × 10 × 10 in
