Description

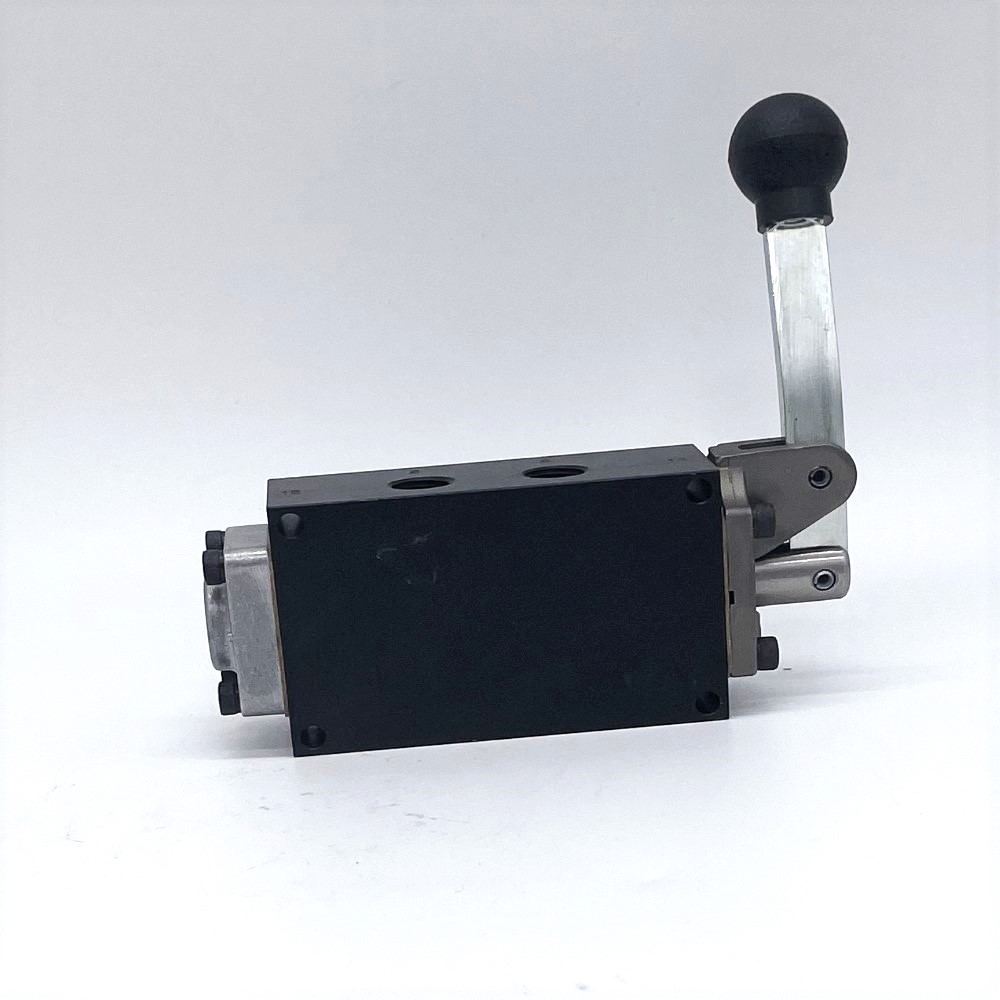

Coats 8185585 Hand Control Air Valve – Robo Arm / Bead Press Arm for Coats Tire Changers
This is a USA-made 4-way air control valve (part number 8185585, also referenced as 185585) for Coats tire changers. This is the hand control valve mounted on the robo arm that controls the robo arm and bead press arm – it lifts and presses down on tires when mounting and demounting. The valve uses a 4-way, 5-port, 3-position configuration with a closed port spring return center position and a left-hand 1-inch diameter ball-end lever for manual actuation. Common failure symptoms include loss of robo arm pressure or erratic arm movement. Because there are variations in valve design across Coats models and years, carefully compare photos of this valve with the existing valve on your machine before ordering.
Product Information
- Brand / Equipment: Coats (Hennessy Industries)
- Manufacturer / Reference Part Number: 8185585 (also 185585)
- Store SKU: COS5585
- Component: Hand Control Air Valve – Robo Arm / Bead Press Arm
- Configuration: 4-way, 5-port, 3-position, closed port spring return center, LH 1-inch ball-end lever
- Listed Application: Coats tire changer models 70x EH1, 70x EH2, 70x AH1, 70x AH3, APX80, APX80A, APX80E, APX90, APX90A, APX90E, 50x EH1, 50x EH2, 50x AH1, 50x AH2, 50x AH3, 60x EH1, 60x EH2, 60x AH1, 60x AH2, 60x AH3, 90x EH1, 90x EH2, 90x AH1, 90x AH2, 90x AH3, Coats 550 Tire Lift
Compatible Makes / Verified Fitment Models
- Coats APX Tire Changers (APX80, APX80A, APX80E, APX90, APX90A, APX90E)
- Coats Baseline Tire Changers
- Coats 550 Heavy Duty Tire Lift
Replacement / Cross-Reference Numbers
- 185585
- 8185585
- 442VC
- 635VC
- BW-1255-85
- 81855851
- 183642 / 8183642
Fitment & Ordering Notes
There are variations in valve design across Coats models and production years. Compare photos of this valve carefully with the valve currently on your machine before ordering. Contact the seller with your model and serial number if you are uncertain about fitment. COATS is a registered trademark of Hennessy Industries, Inc. This is an aftermarket replacement part and is not sourced from Hennessy Industries, Inc.
