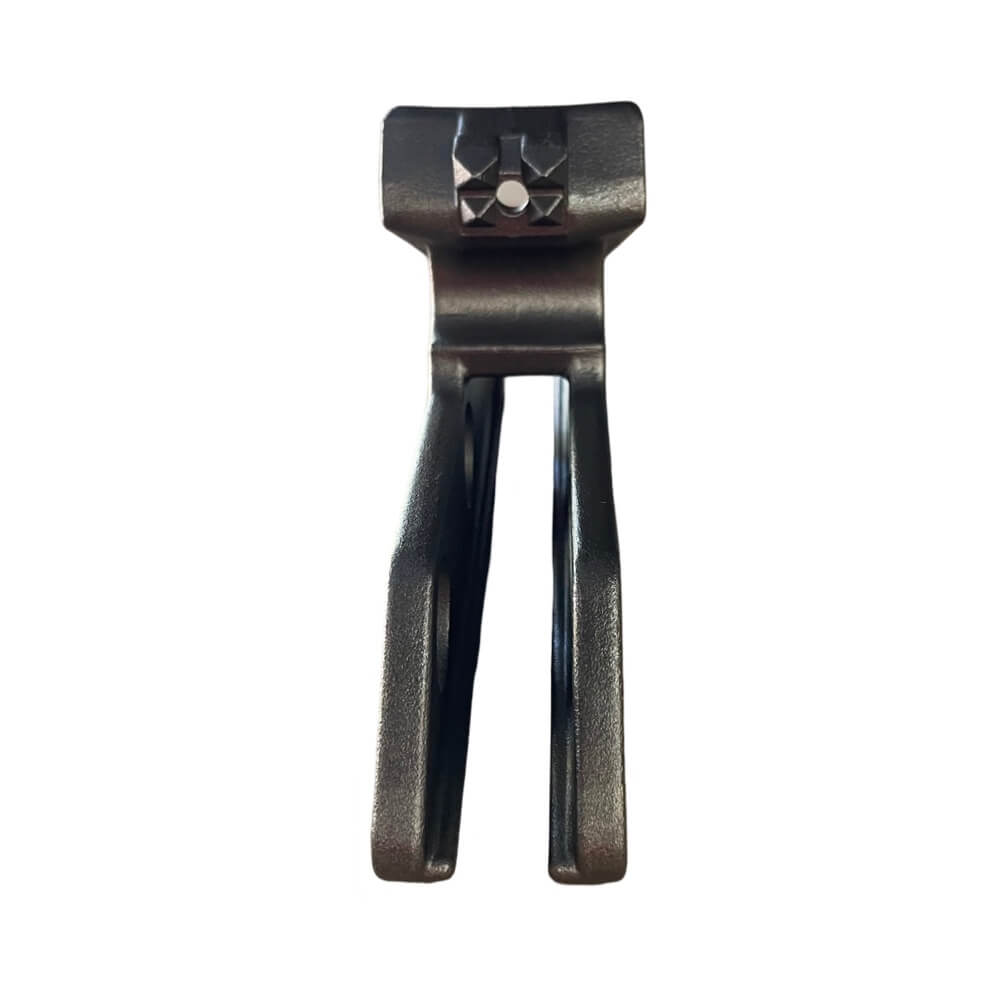

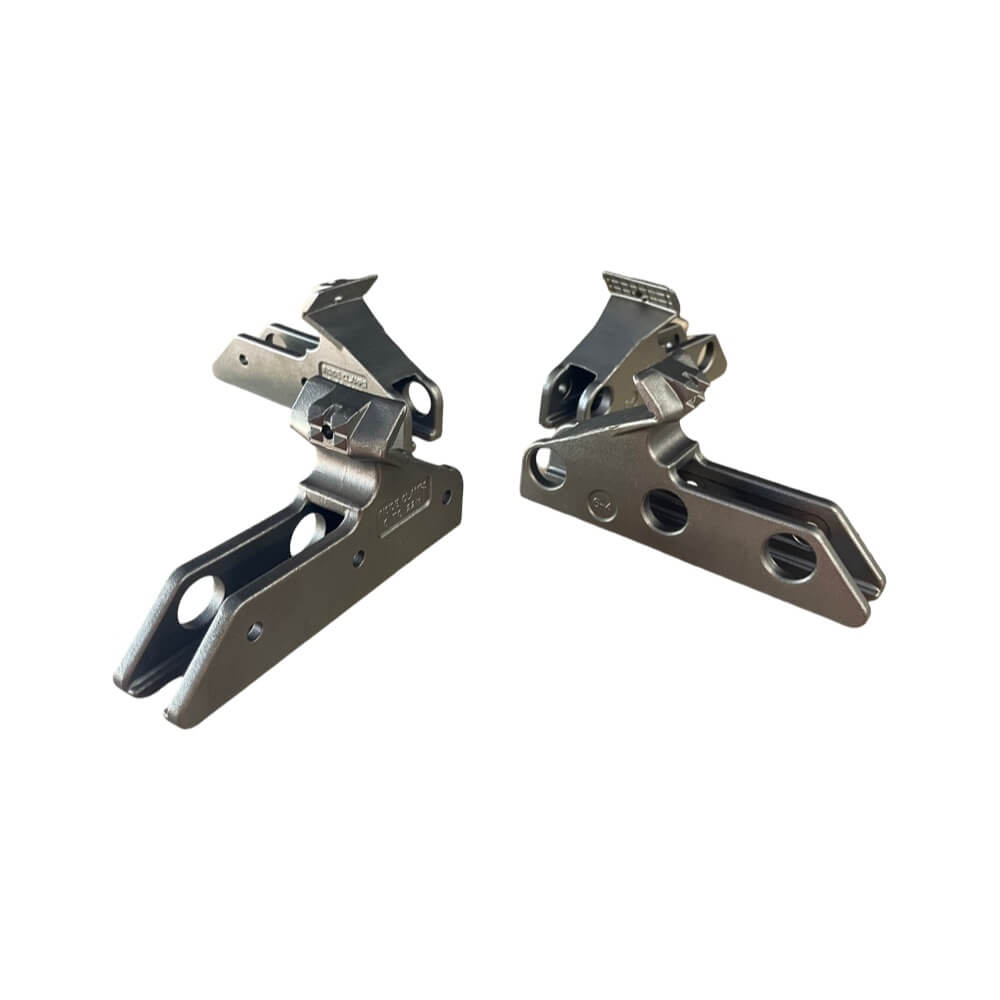

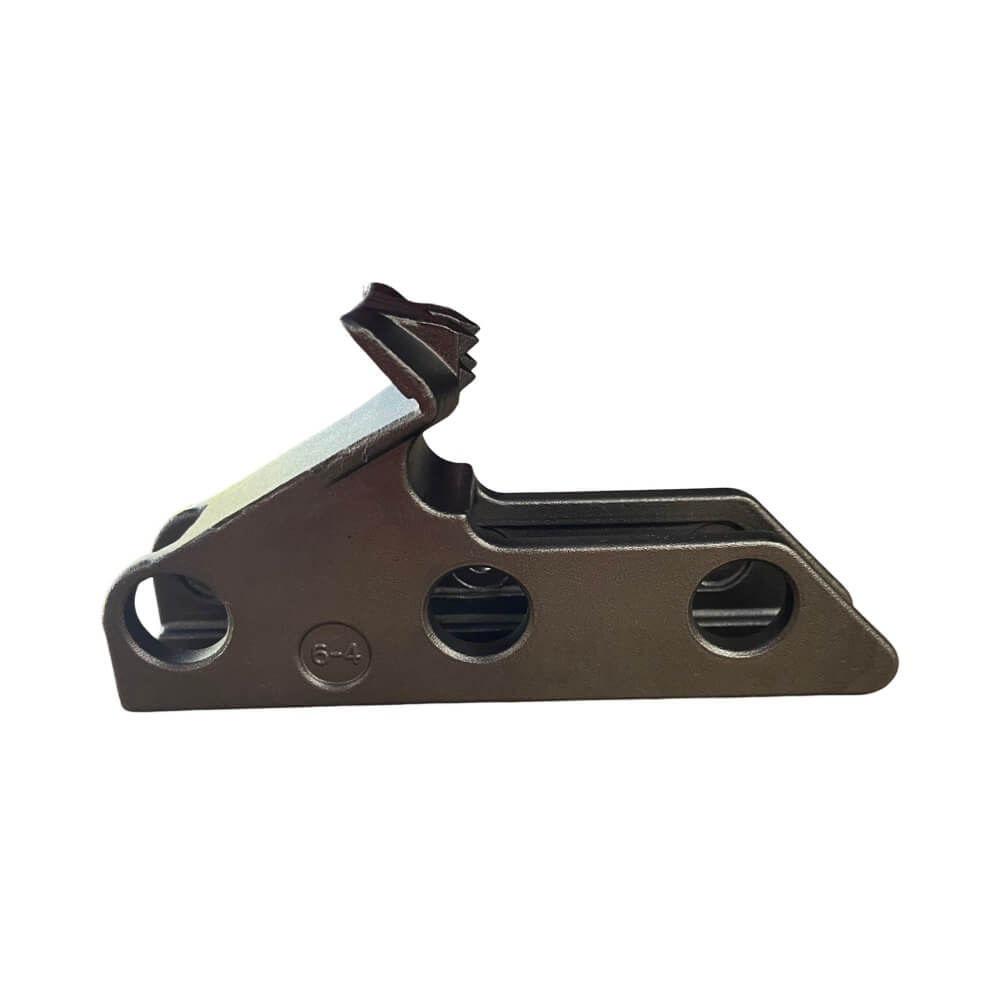

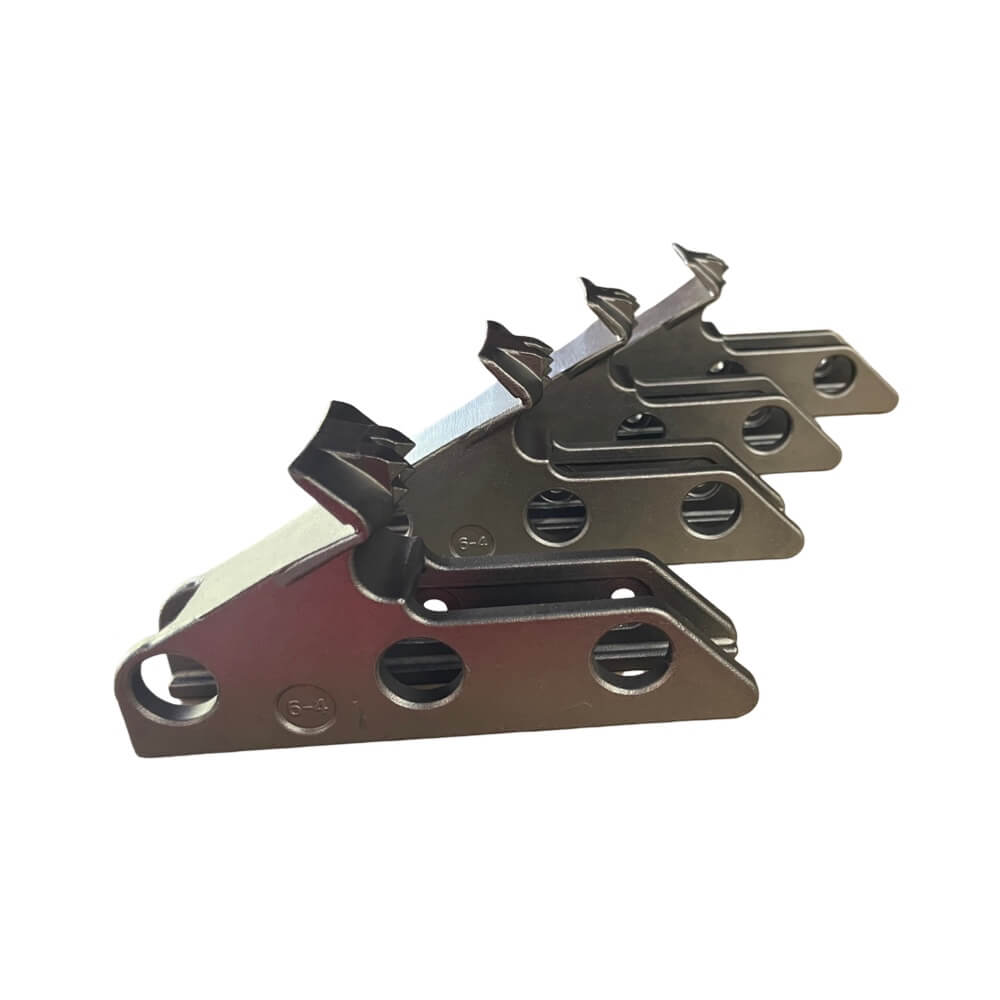

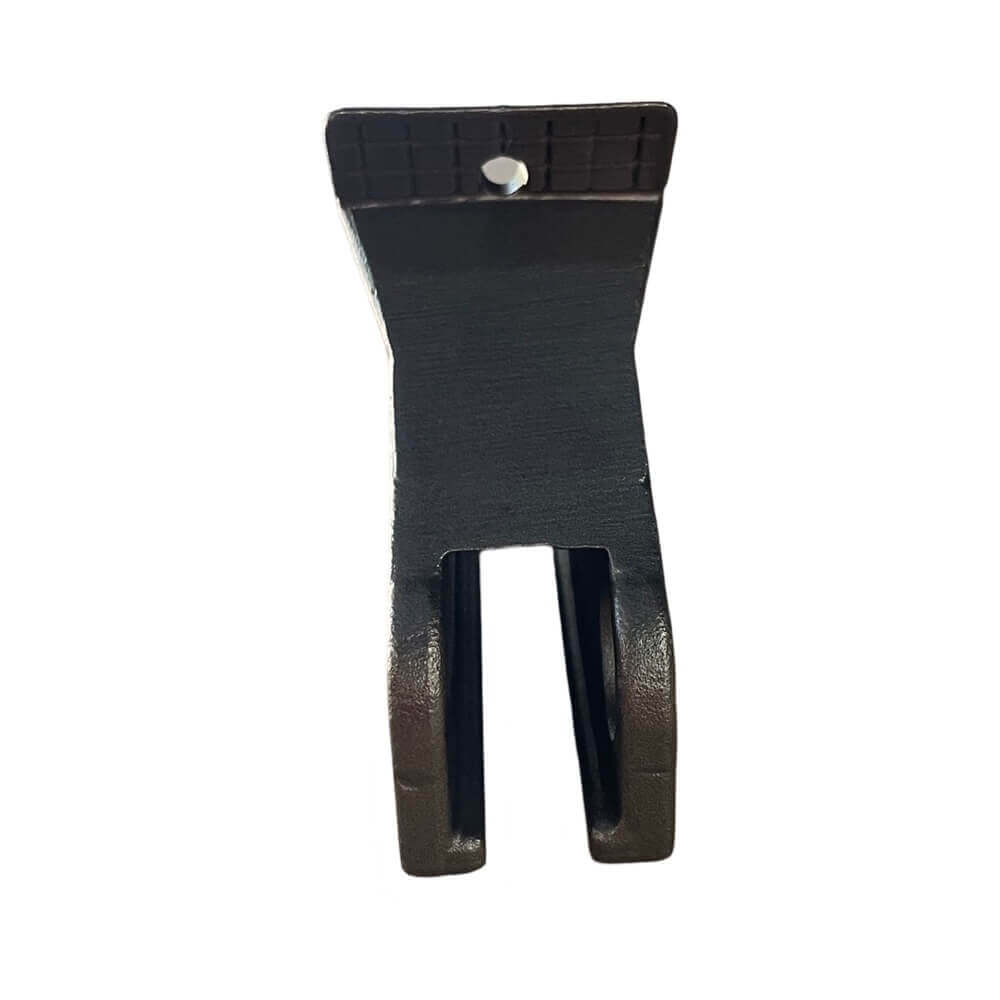

Coats 8184926 Metal 3-Position Rim Clamp Jaw Set of 4 – 6 to 22 in. Wheel Range
The rim clamp jaws grip the wheel during tire mounting and demounting. This set of four 3-position metal jaws extends the machine’s clamping range to handle wheels from 6 to 22 inches, including oversized and ATV wheels. The machine must already have adjustable multi-position jaws (with the adjustment button on the side) for these to work.
Product Information
- Brand / Equipment: Coats
- Manufacturer / Reference Part Number: 8184926
- Store SKU: COS4926
- Component: 3-position rim clamp jaw set
- Quantity: Set of 4 jaws
- Wheel Range: 6 to 22 in.
- Listed Application: Coats EX-series rim clamp tire changers – 5030a, 5030e, 5040, 5040a, 5040e, 5050, 5050ax, 5050ex, 5060ax, 5060ex, 5065ax, 5065ex, 5070ax, 5070ex, 6050ax, 6050ex, 6060ax, 6060ex, 6065ax, 6065ex, 7050ax, 7050ex, 7055ax, 7055ex, 7060ax, 7060ex, 7065ax, 7065ex, 7655ax, 7655ex, 7660ax, 7660ex, 7665ax, 7665ex, 70x EH1, 70x EH2, 70x AH1, 70x AH2, APX80, APX80a, APX80e, APX90, APX90a, APX90e
Replacement / Cross-Reference Numbers
- Replaces Coats 818412-4, Coats 18412-4, Coats 184926-4, TC8184926-4
Fitment and Ordering Notes
The machine must already have multi-position adjustable jaws (with the adjustment button on the side) for this kit to work. Verify your tire changer model is listed above before ordering. If your wheel range needs do not exceed 20 inches, the 2-position jaw set (8182247-4) is also available.
