Description

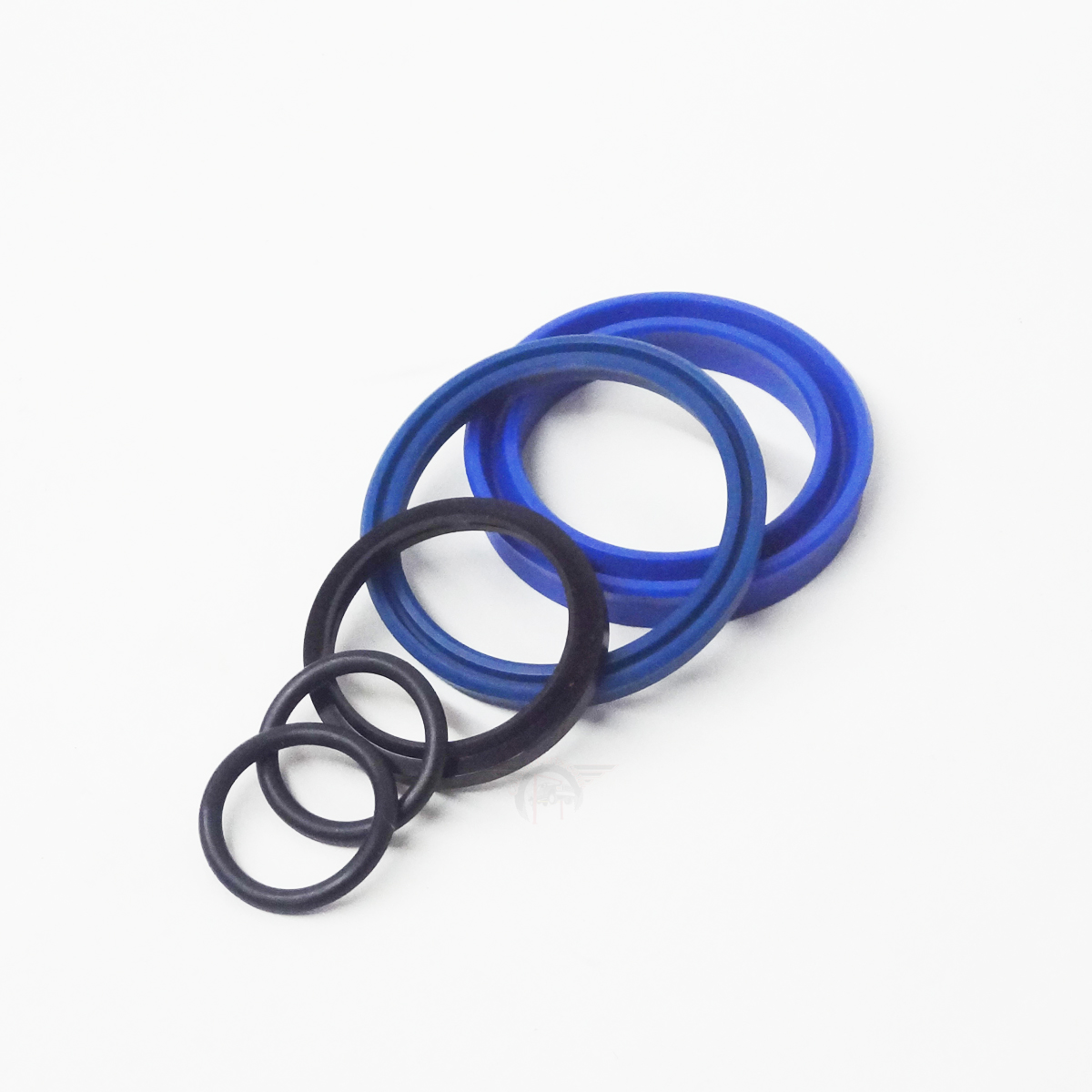

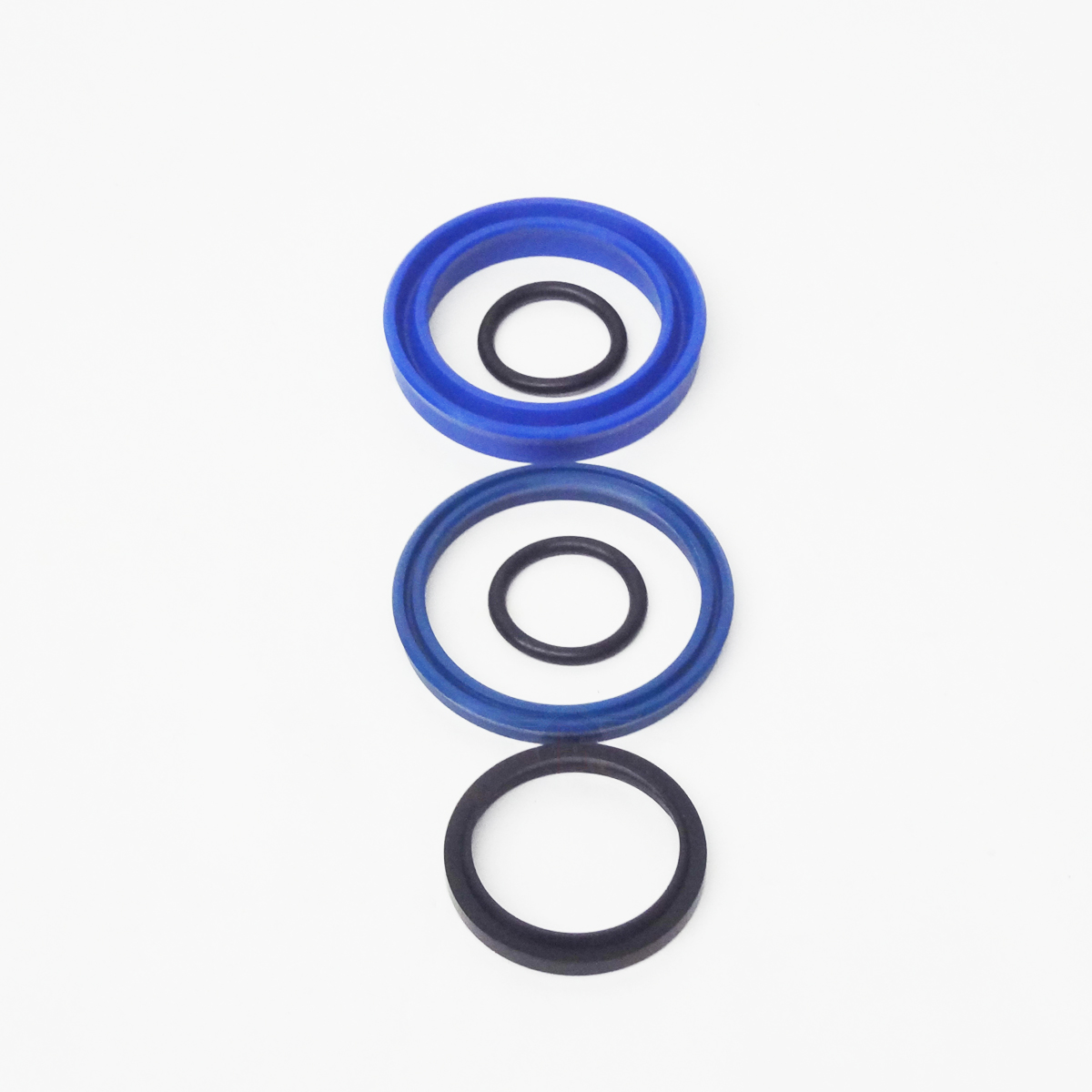

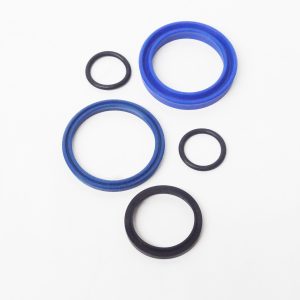

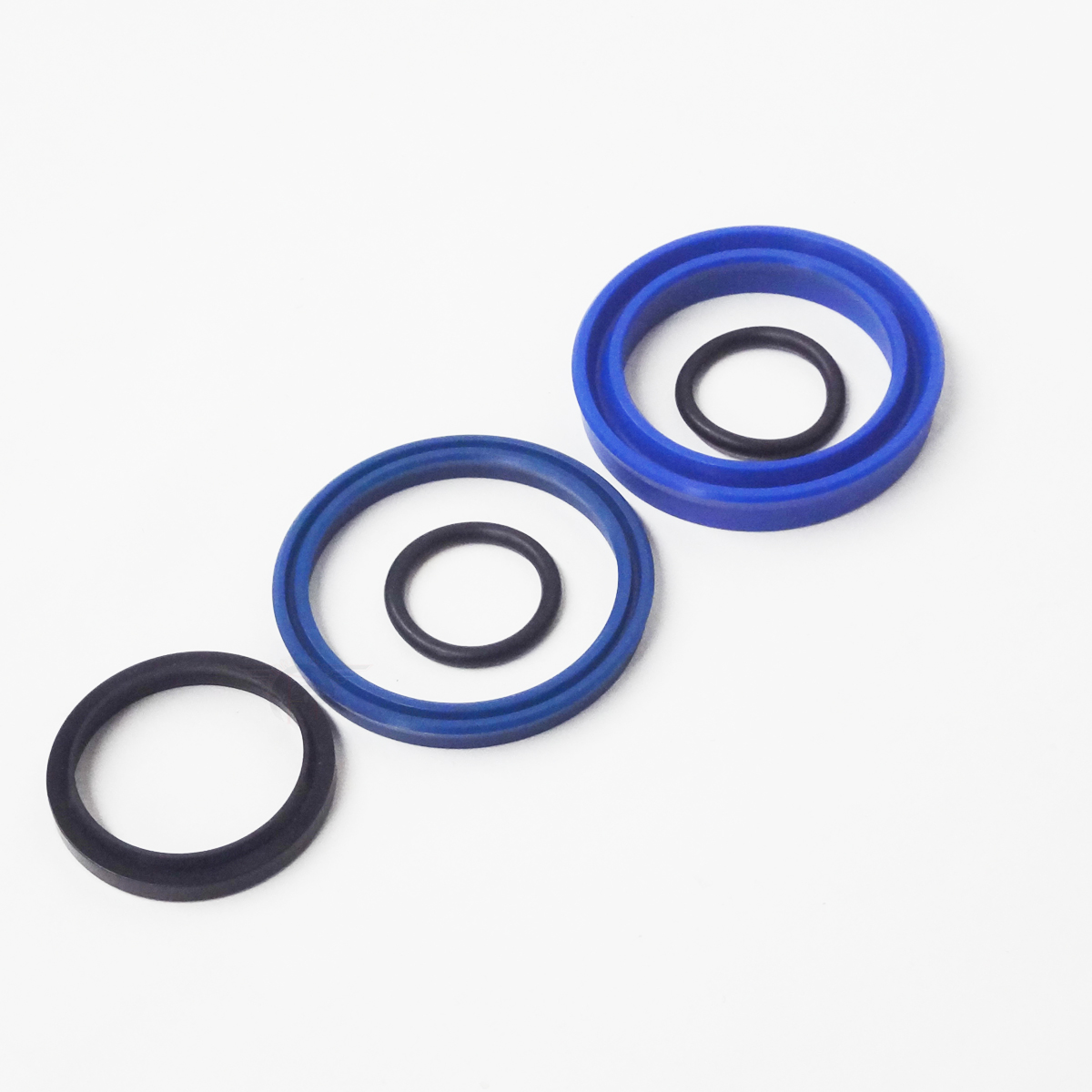

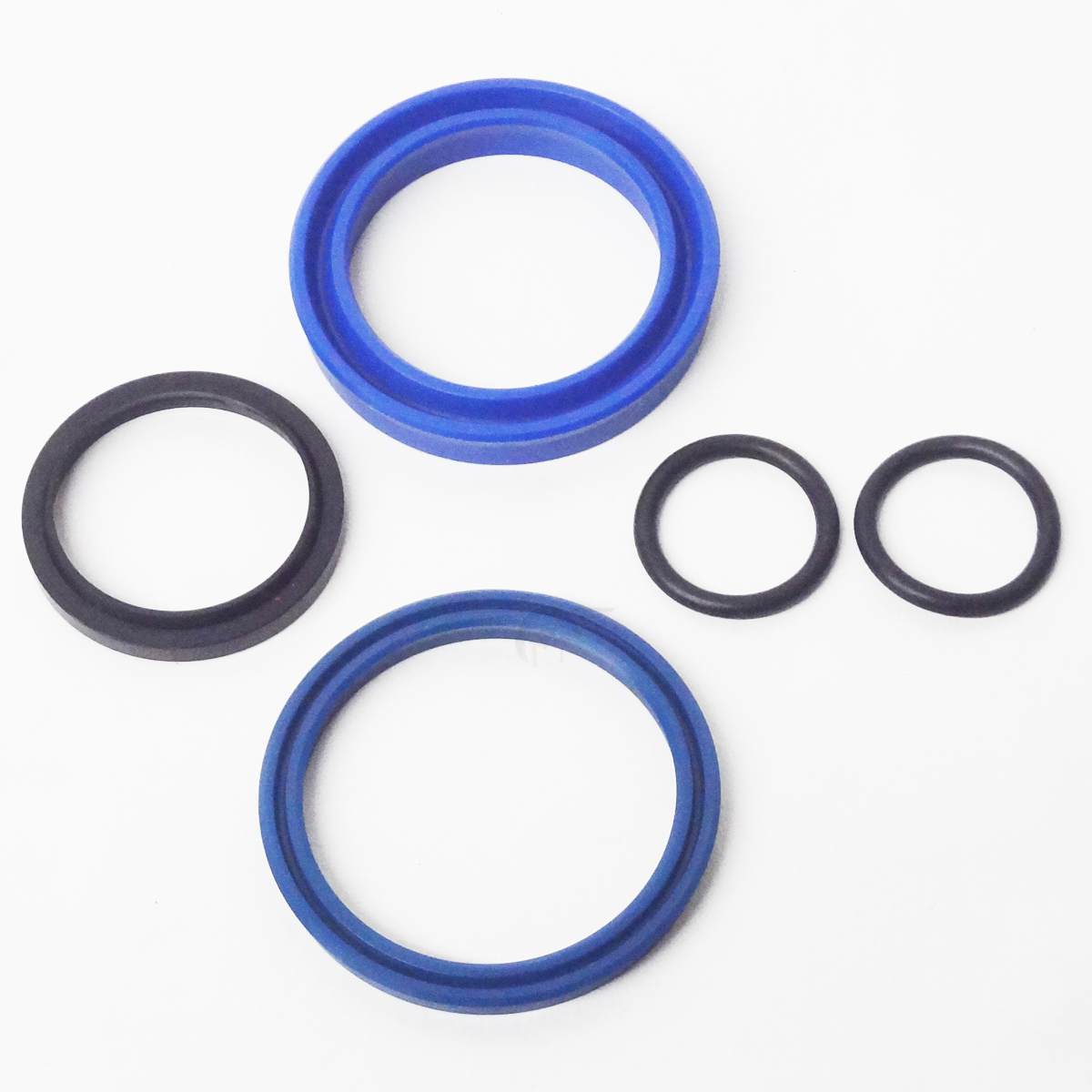

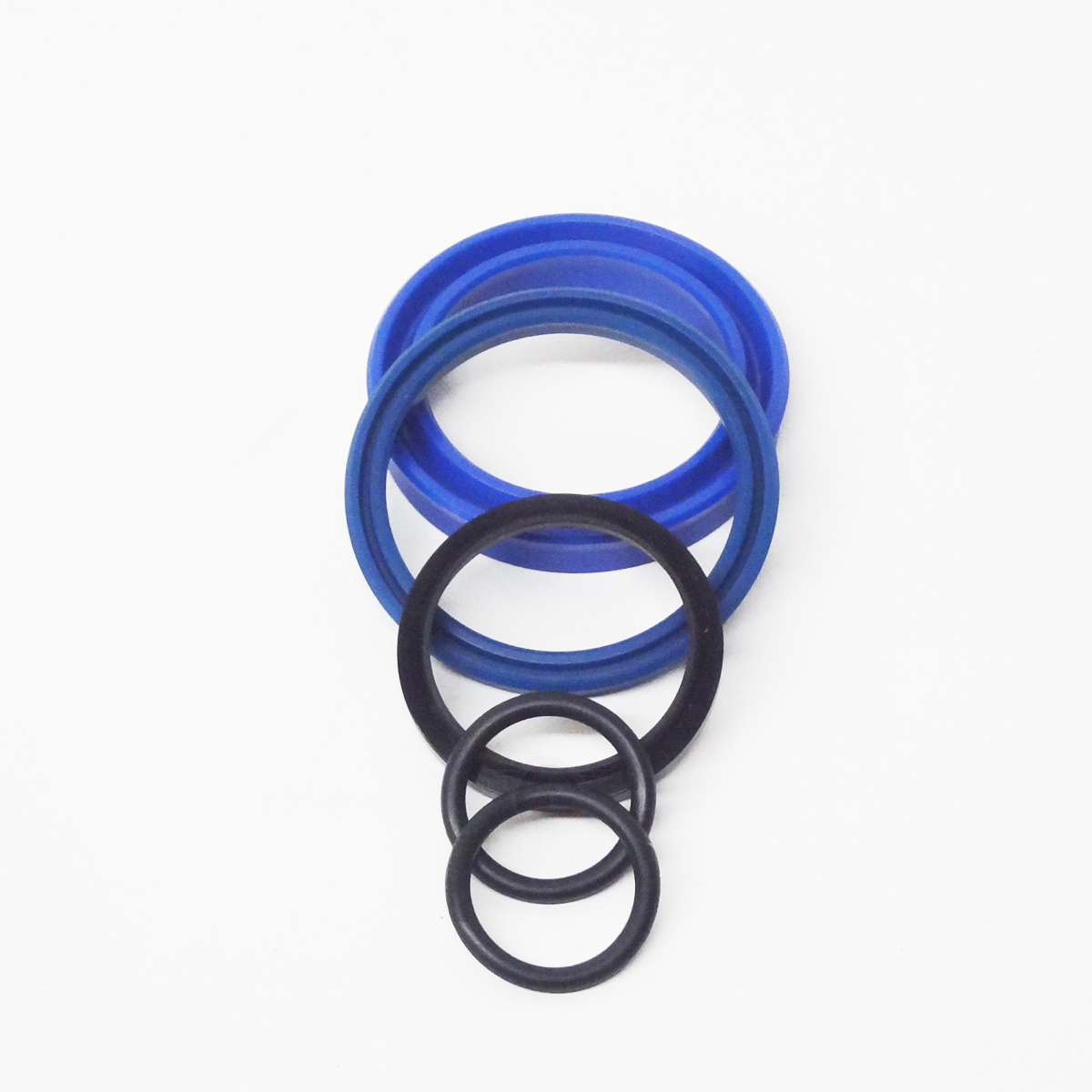

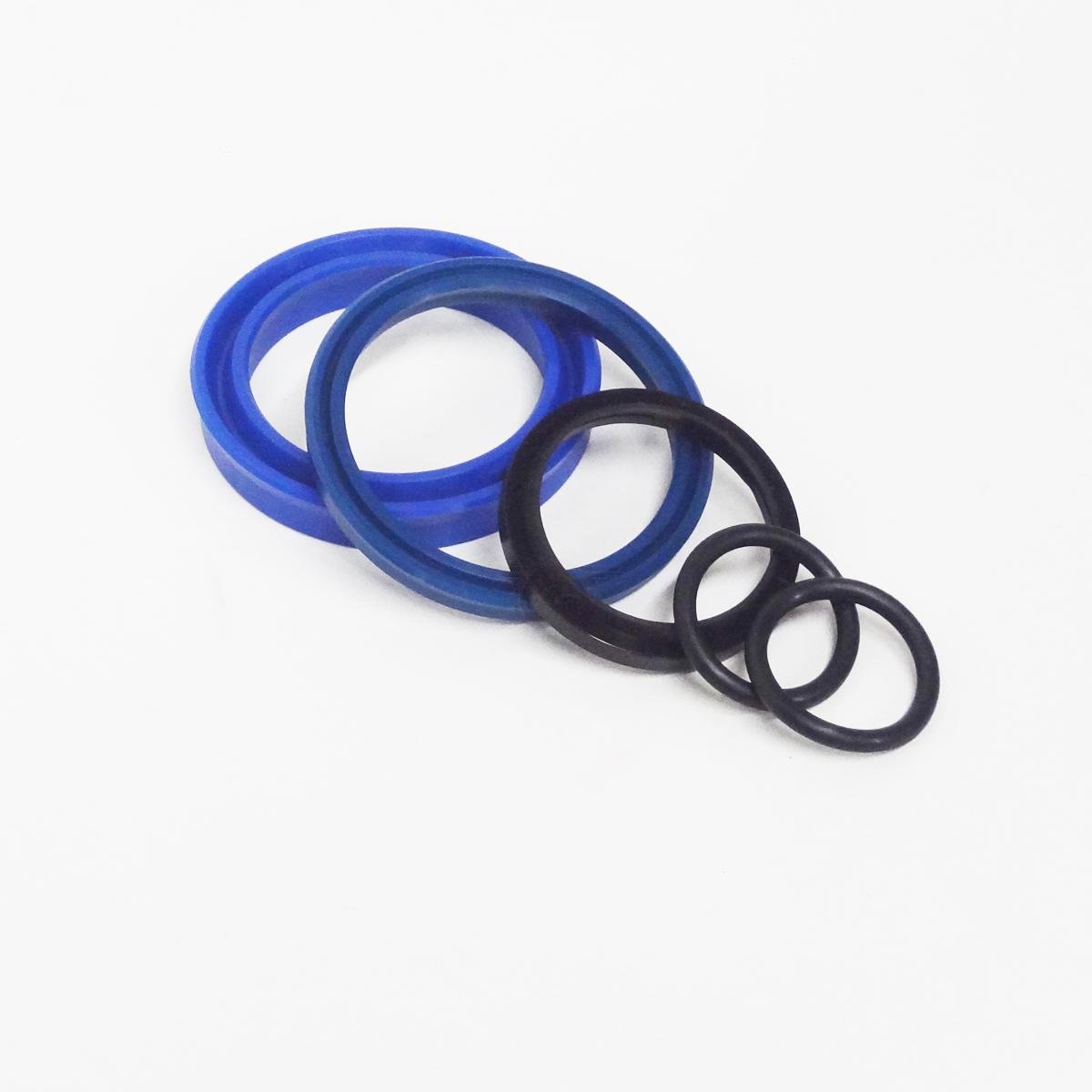

Tuxedo Duro Cylinder Seal Kit TP9-1057 – Chainover Style
This seal kit rebuilds the chainover-style hydraulic cylinder found in many Tuxedo, Duro, Eagle, and Auto Lift 2-post above-ground lifts rated at 7,000, 9,000, or 11,000 lb capacity. It fits both base plate and overhead models. Before ordering, confirm your cylinder has a welded U-shaped yoke at the top housing the chain roller, hose fittings at the bottom, and a large brass breather port at the top of the barrel. Cylinders may be painted blue or black. Leaking from the brass breather port is a common sign the seals need replacement. One kit rebuilds ONE cylinder; order two kits to rebuild both cylinders in a two-post lift.
Product Information
- Brand / Equipment: Tuxedo Lift, Duro Lift, Eagle Lift, Auto Lift (Duro power unit)
- Manufacturer / Reference Part Number: TP9-1057
- Store SKU: TUO1057
- Component: Hydraulic cylinder seal kit – chainover style
- Capacity: 7,000 lb, 9,000 lb, and 11,000 lb chainover cylinders
- Listed Application: 2-post above-ground lifts with Duro power units, chainover style, base plate and overhead models
Compatible Makes / Verified Fitment Models
- Tuxedo Lift – TP9, TP9KAC, TP9KAF
- Auto Lift – AL2-9K
- Duro Lift – MTP-9, MTP-9-DURO
Fitment & Ordering Notes
Verify before ordering: your cylinder must have the welded U-shaped yoke at the top housing the chain roller, hose fittings at the bottom, and a large brass breather port at the top of the barrel. If your cylinder shows the words PANNI or YANTI, a different seal kit is required. Do not open the bag until you have disassembled the cylinder and can compare new seals side by side with the old seals to confirm sizing. Installation typically takes less than one hour with a vice, pipe wrench, and basic hand tools.
