Rolling jack / bridge jacks fits Forward lift 991270 air bag / spring for 6-9 k capacity
$400.20
Air Spring / Air Bag for Forward Lift Rolling Jack on Forward 4 Post Lift 991270
Forward # 991270
Fits Forward Rolling Jack Models – AJ6 AJ7 AJ6000 AJ7000
Found on Fordward 4 Post Lifts – 1200EWT 12000 12000lr 12000lrm 12000LA
See Product Description Area for Full Details About This Product
Product Description

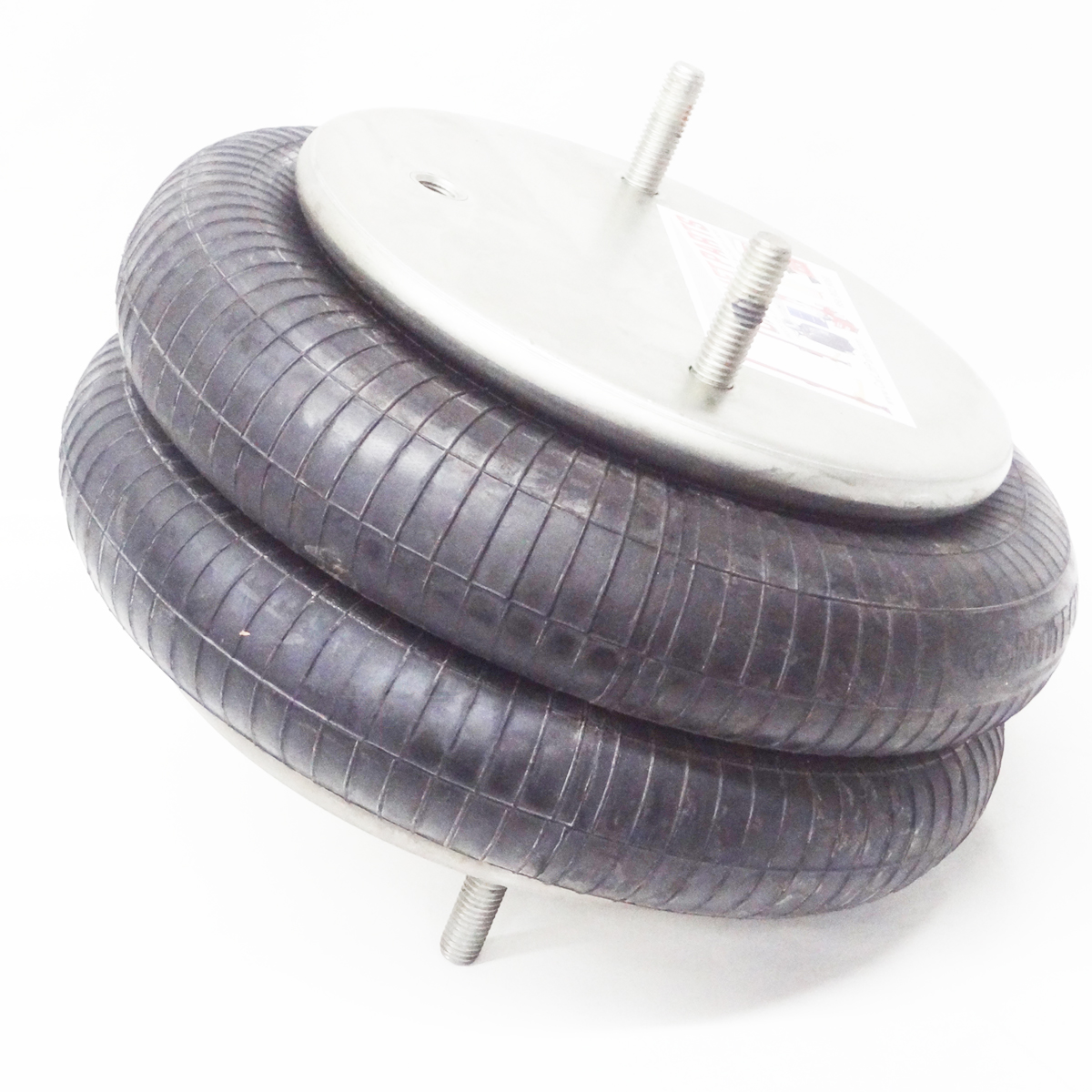

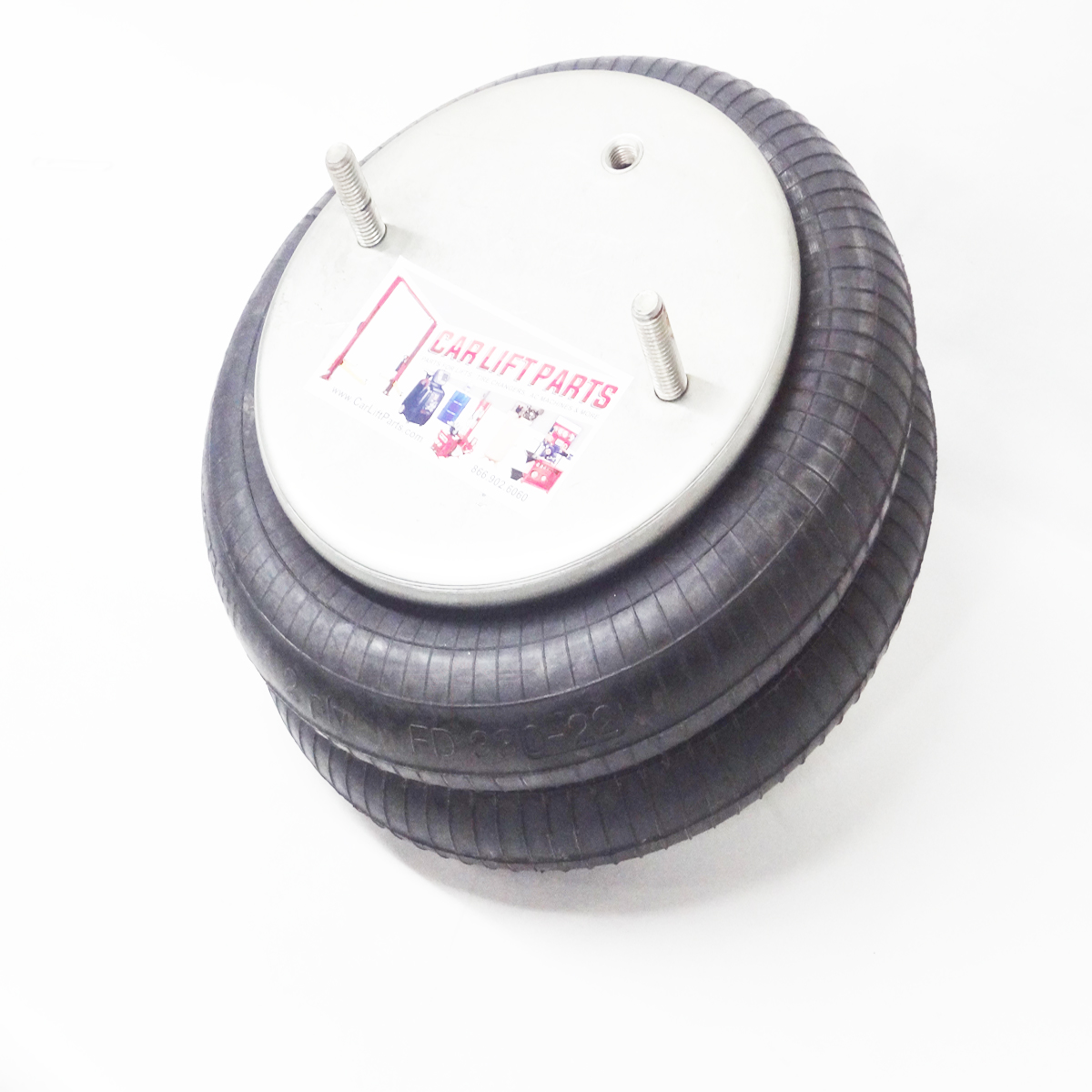

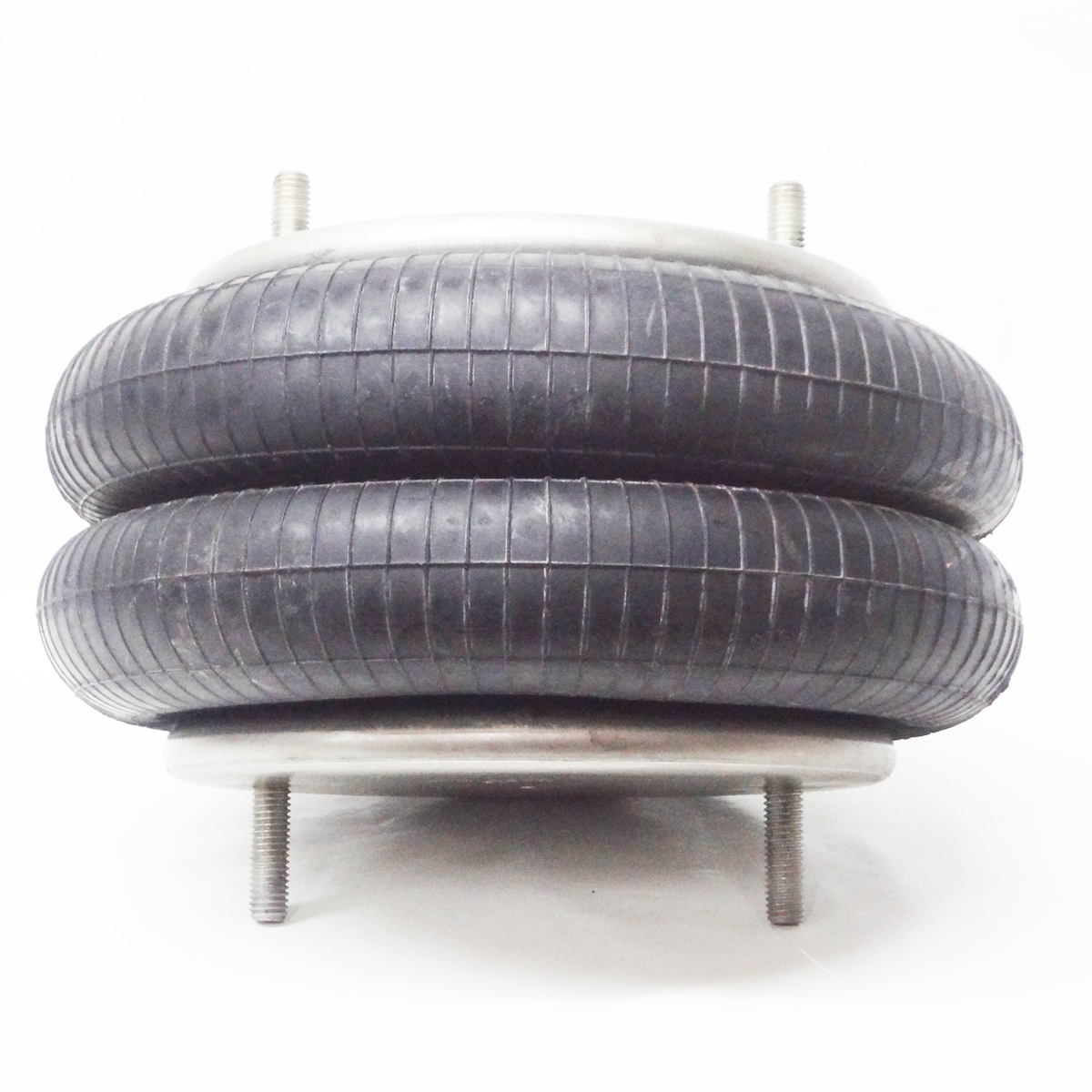

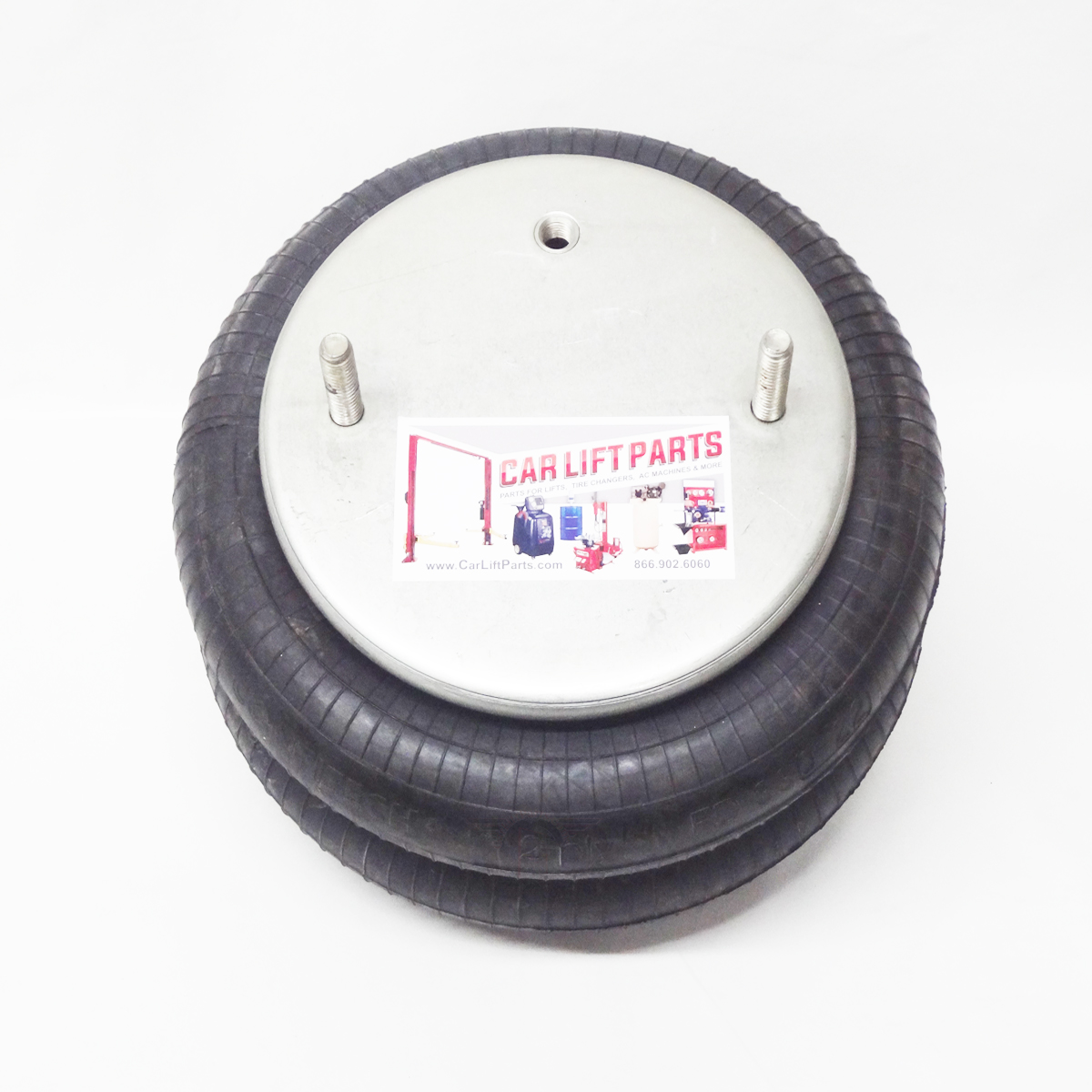

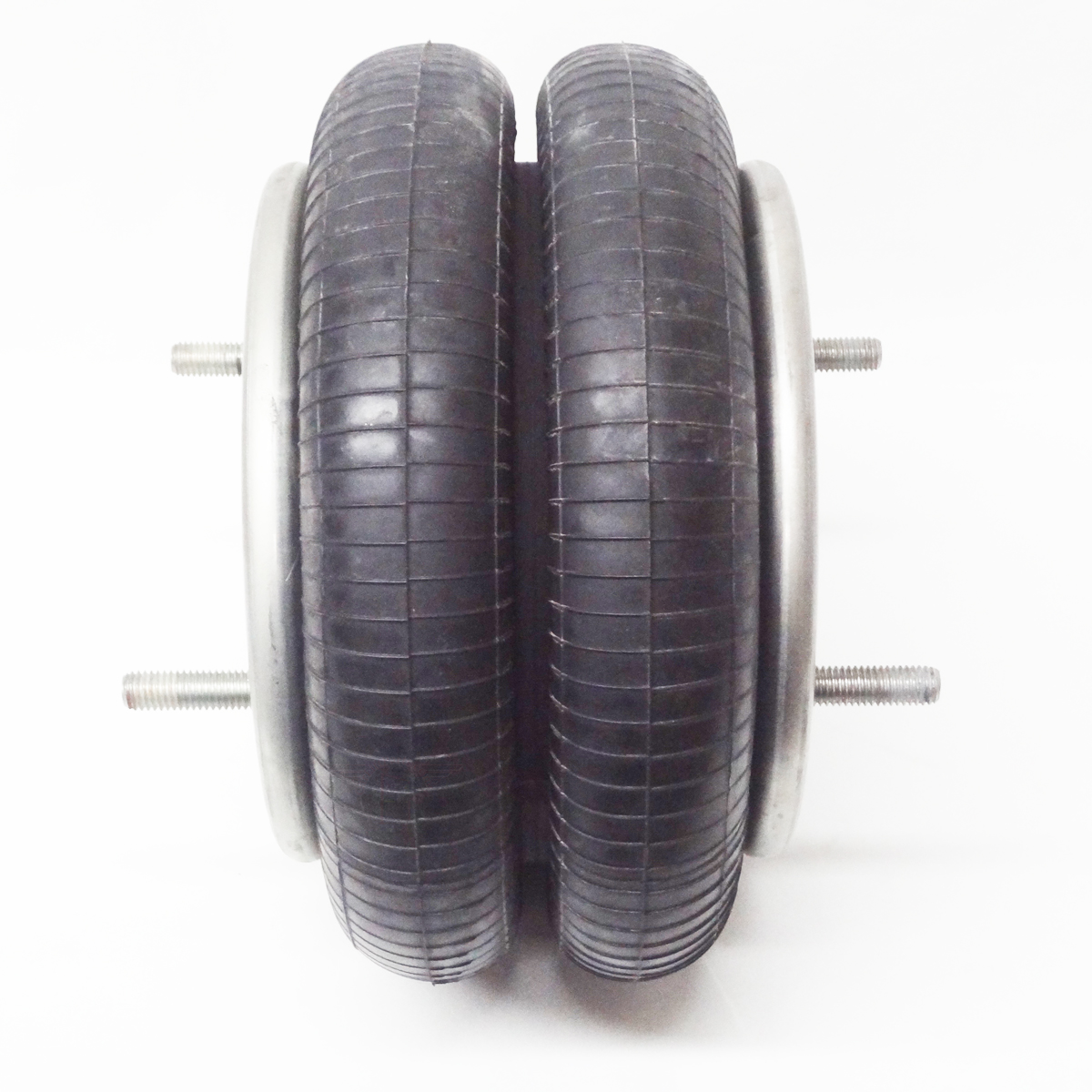

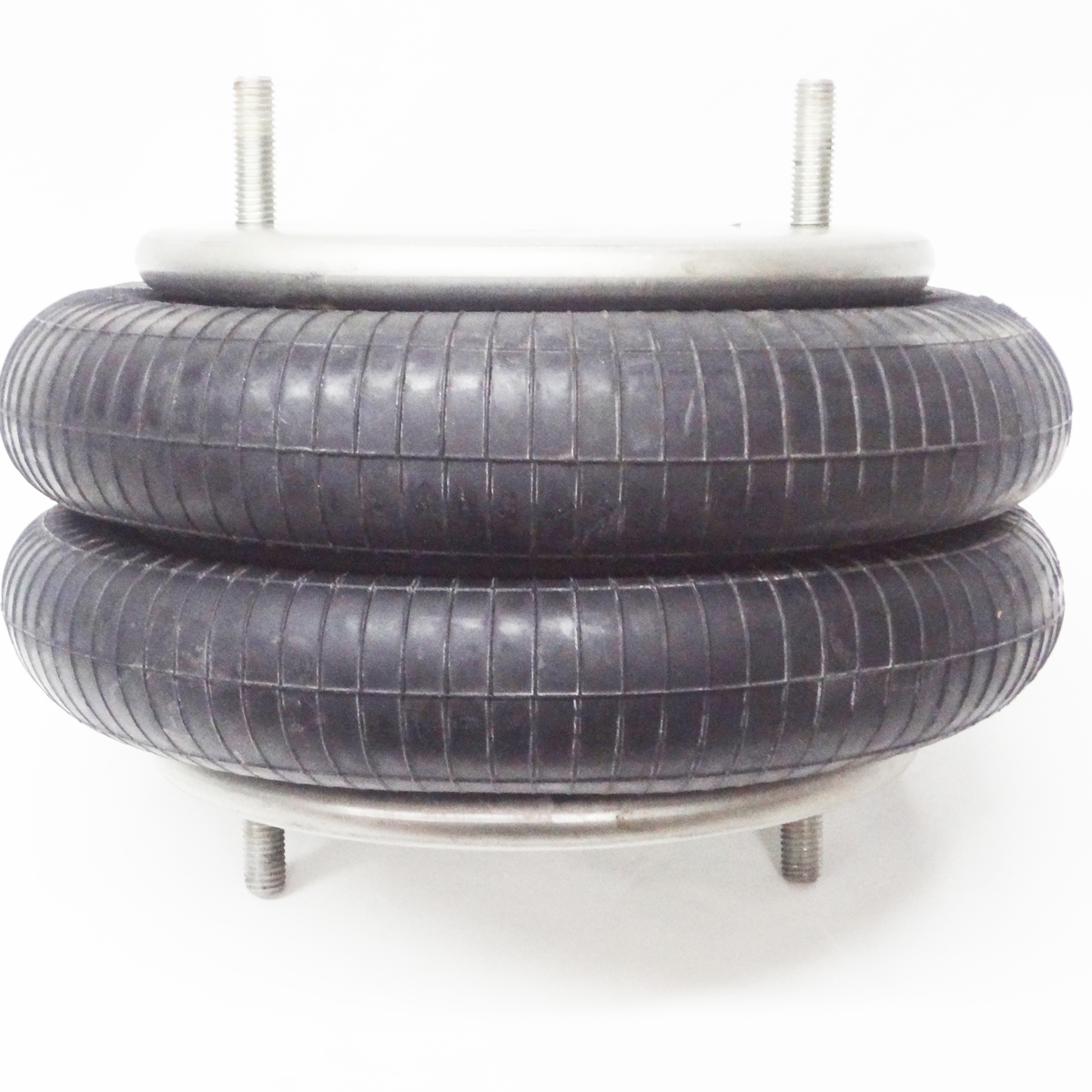

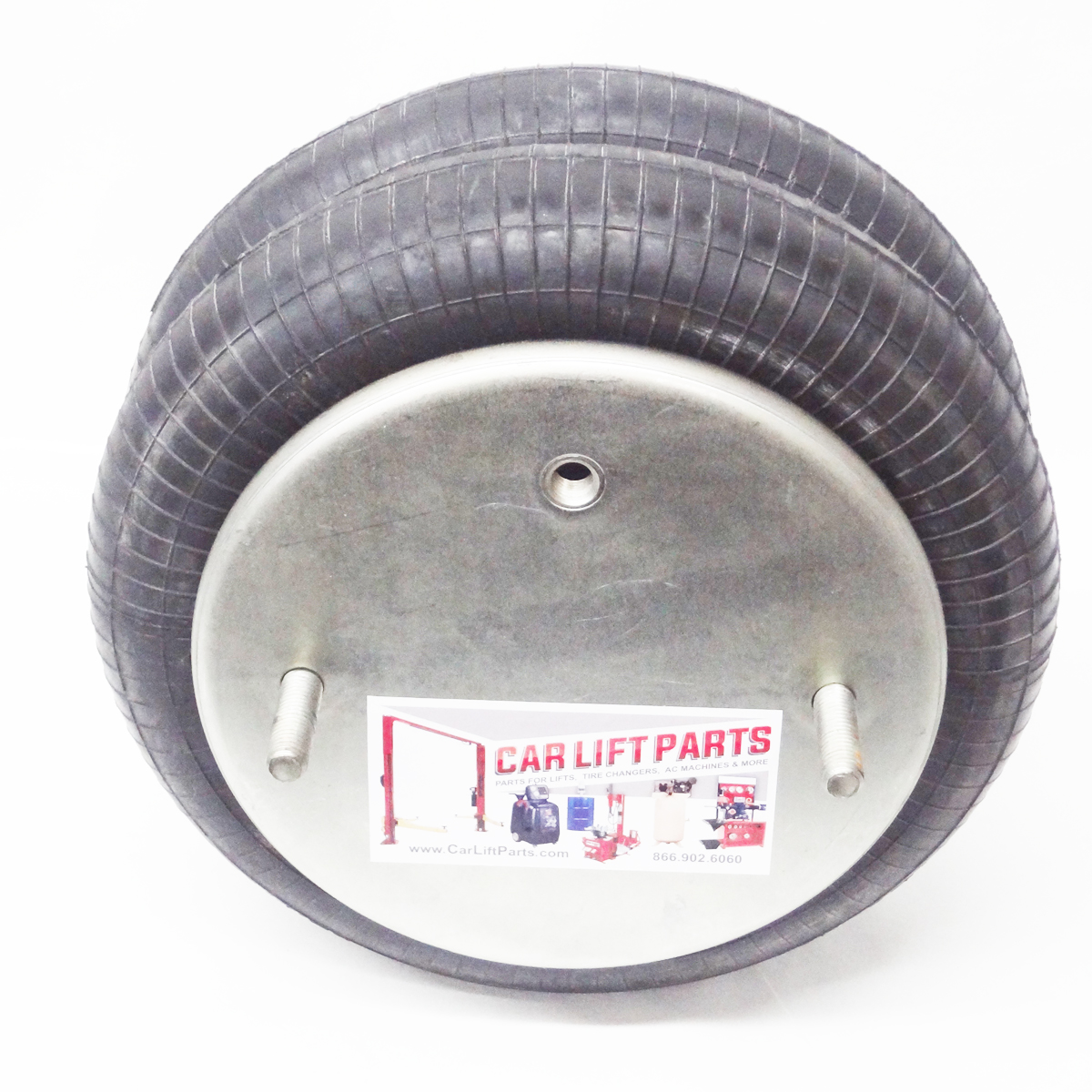

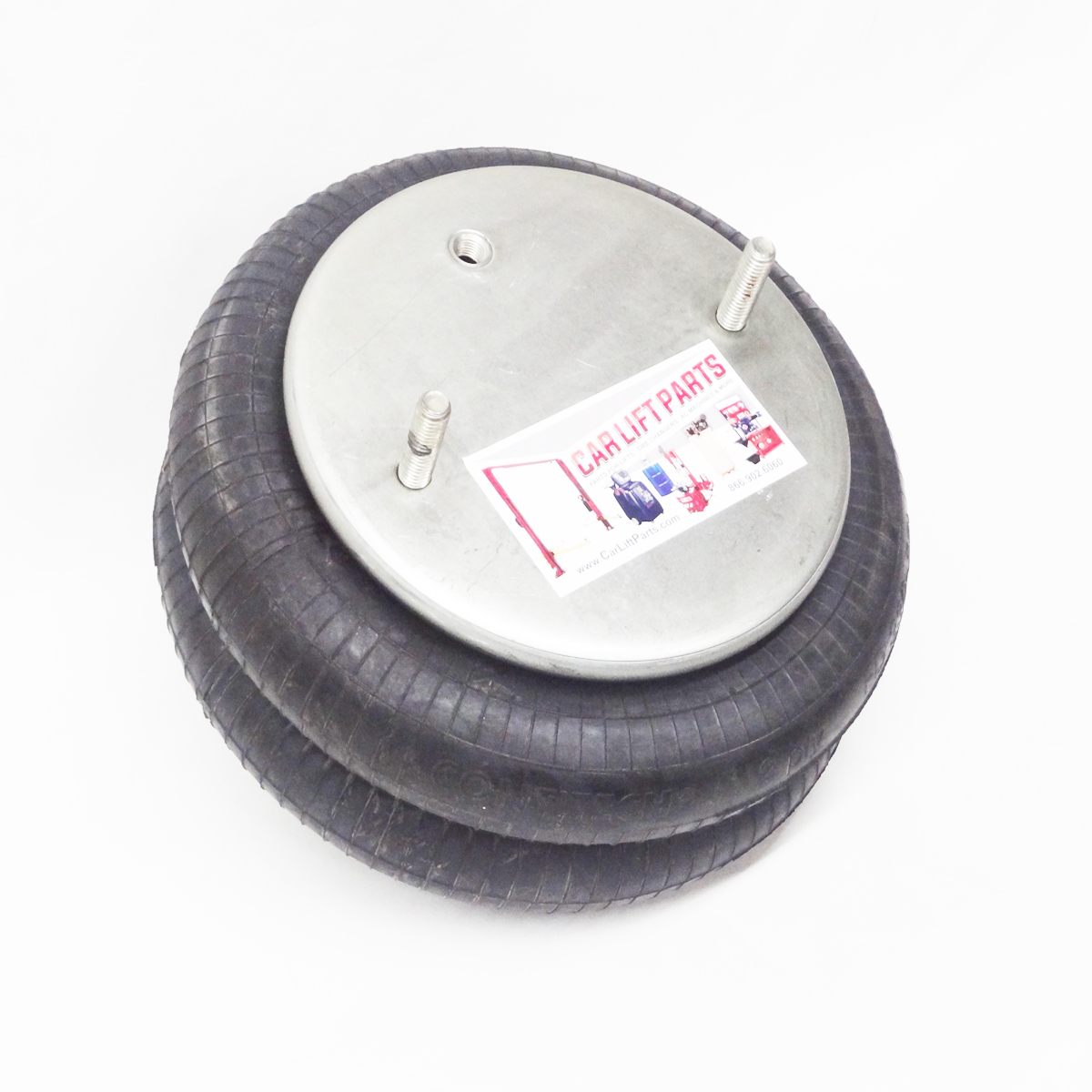

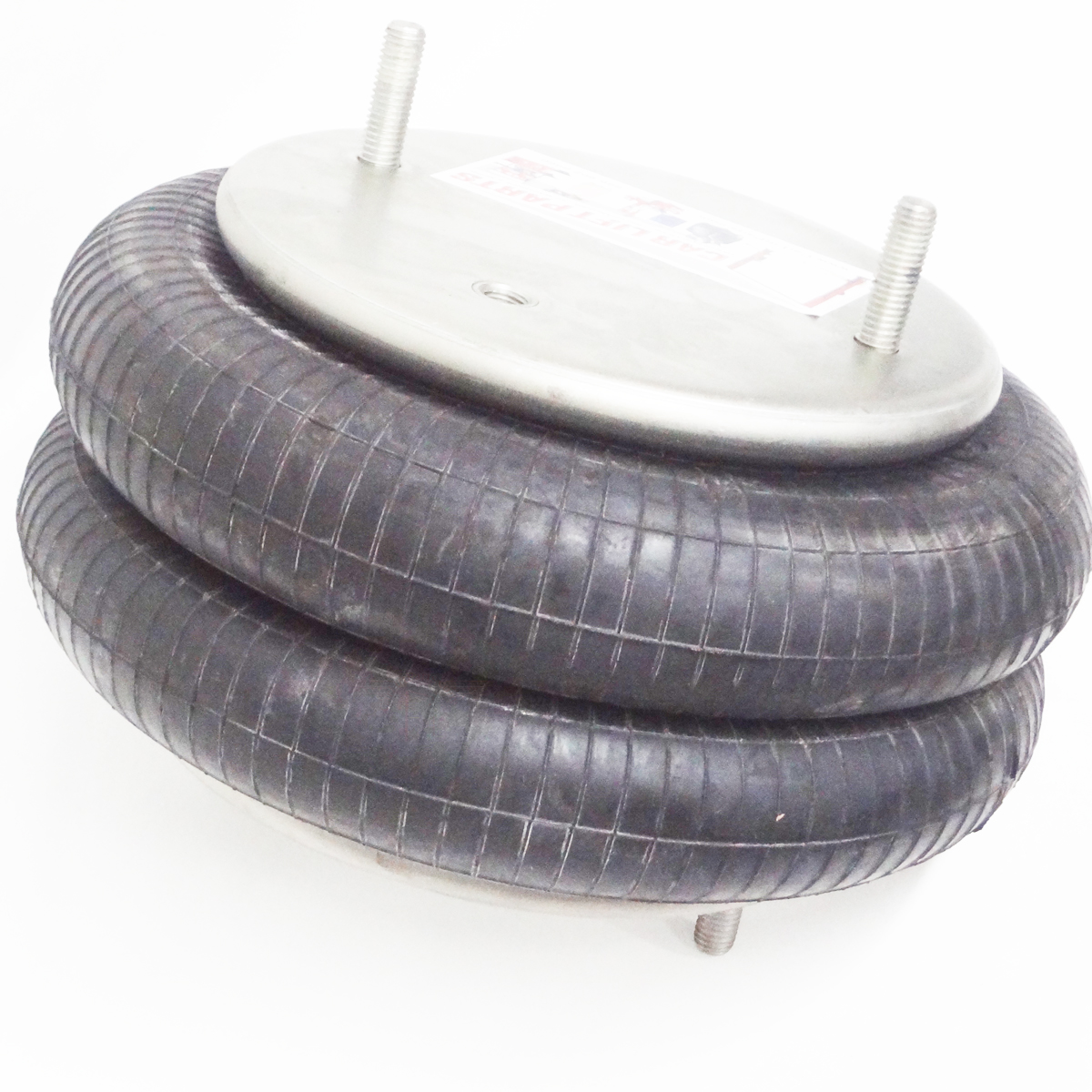

This is a replacement air bag for many rolling air jack / bridge jacks made by Forward lift mfg. This is for jacks with 1 single main air bag in the center of the jack and is rated between 6-9k capacity depending on the jack. This is a 2 stage air spring that is made by continental rubber company. It has 2 studs on top and bottom of the jack that secure it in the rolling jack.
This bag fits many manufacturer jacks including
-forward lift AJ6 AJ7 AJ6000 AJ7000 AJ4000 and others
Replaces Forward # 991270
Found on Fordward 4 Post Lifts – 1200EWT 12000 12000lr 12000lrm 12000LA
FITS MANY OTHER MANUFACTURERS MODELS AS WELL!
SPECS OF THIS AIR SPRING:
-apprx diameter -11″ with rubber bag down
-stud diameter- 1/2″ -stud to stud distance- 6.25″ from center of stud to center of stud (bolt hole to bolt hole)
When choosing a replacement air bag for your rolling jack, the most important measurement is the stud to stud bolt hole to bolt hole) distance. Measure from the center of each hole in the top or bottom of your jack if it measure 6 1/4 ” this bag should fit. Your original bag may have bolts instead of studs but this replaces both styles. Note: you may have to drill your holes in your jack to 1/2″ size if they are smaller
Air Spring / Air Bag for Forward Lift Rolling Jack on Forward 4 Post Lift 991270
Additional information
Weight | 176 oz |
---|---|
Dimensions | 10 × 10 × 10 in |
