Gemini lift air bag / spring for Rolling jack / bridge jacks 6-9 k capacity 991270

$316.20

Gemini Rolling Jack / Bridge Jack for  Gemini 4 Post Lifts

Found on

  • Gemini Rolling jack Model-AJ6 RJ6 AJ9 RJ9
  •  Gemini Lift- GR-12 GR12W GR12L GR12LW GR15L GR15LW GR-15 Gr-18

See Description area for more specifics about this product

SKU: FOD1270 Categories: ,

Product Description

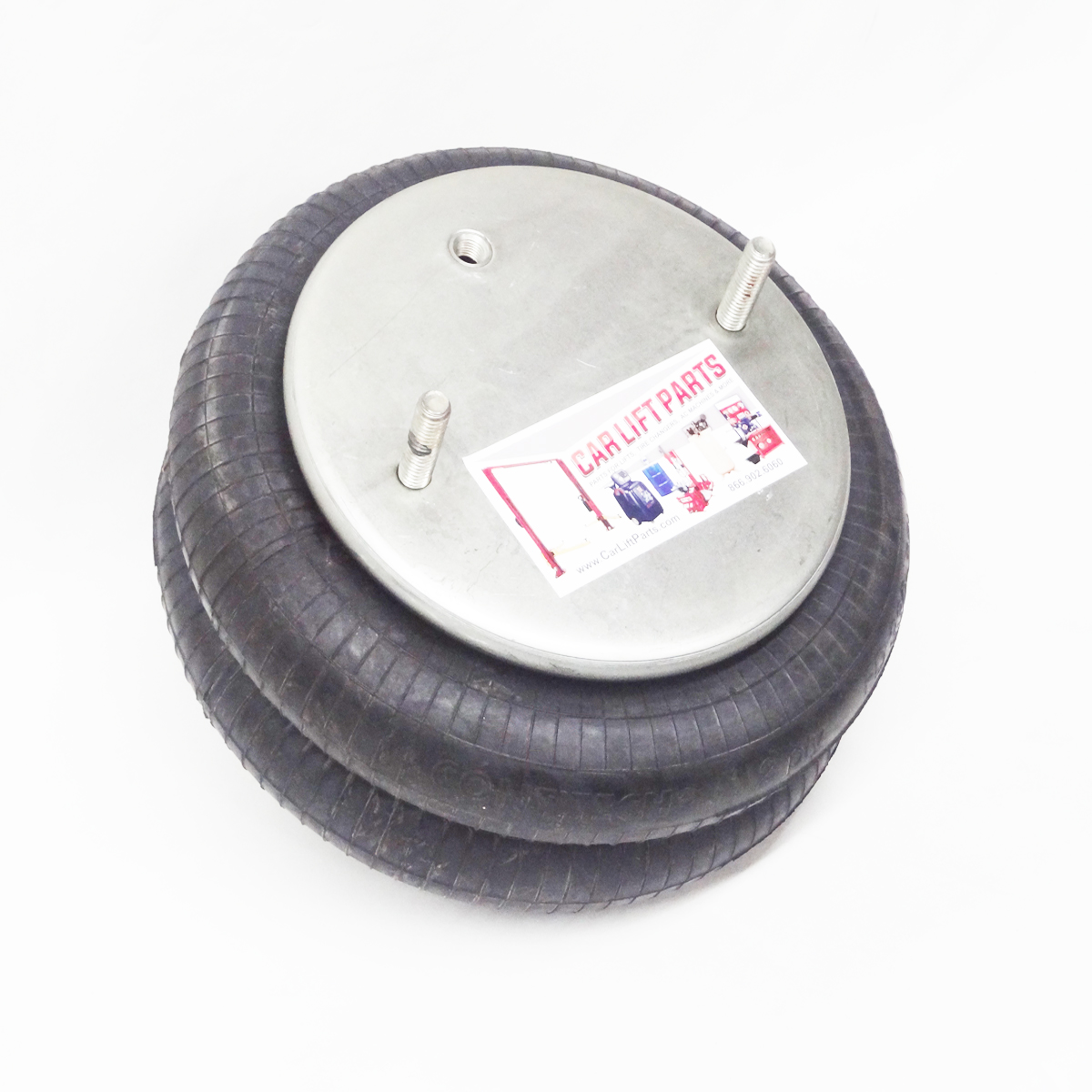

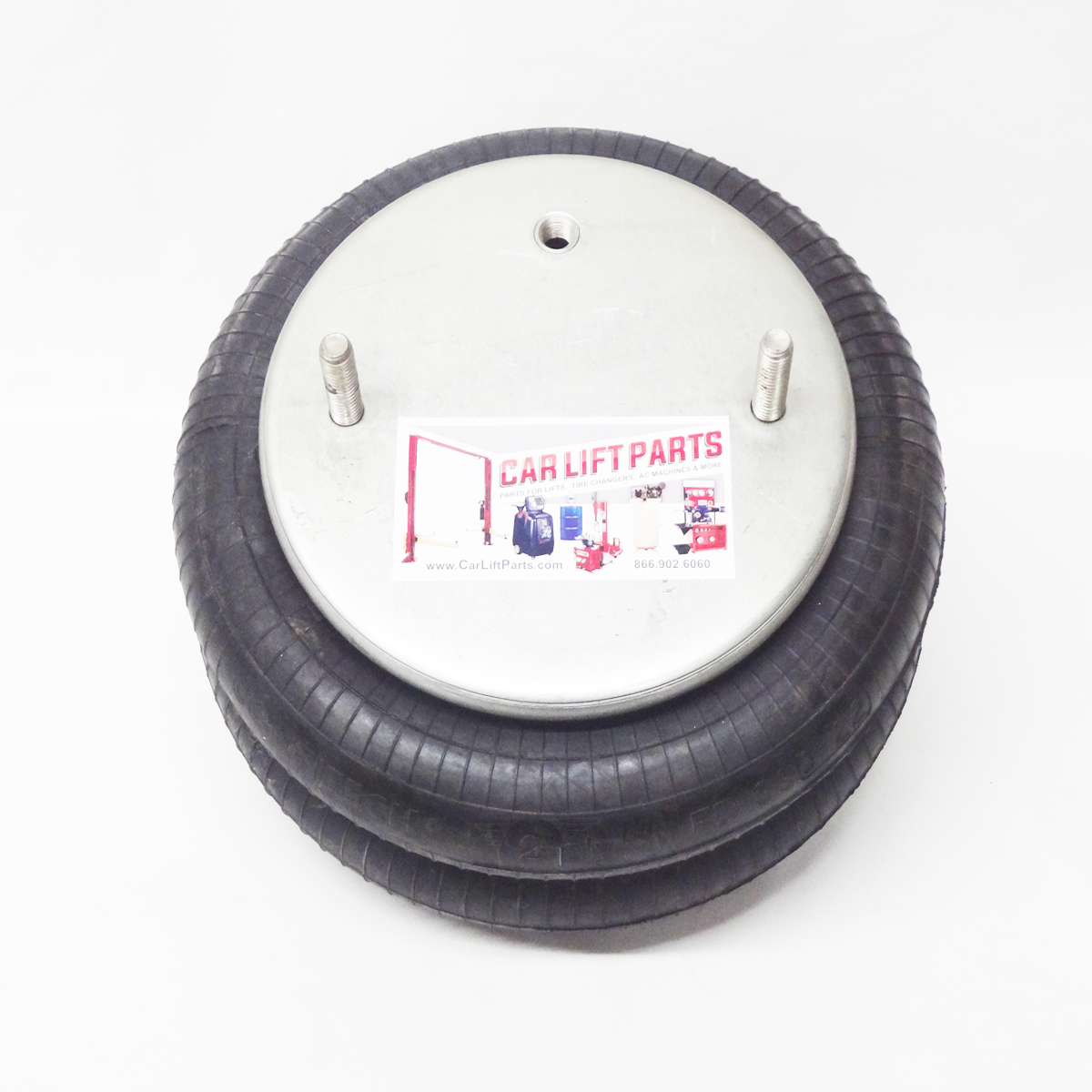

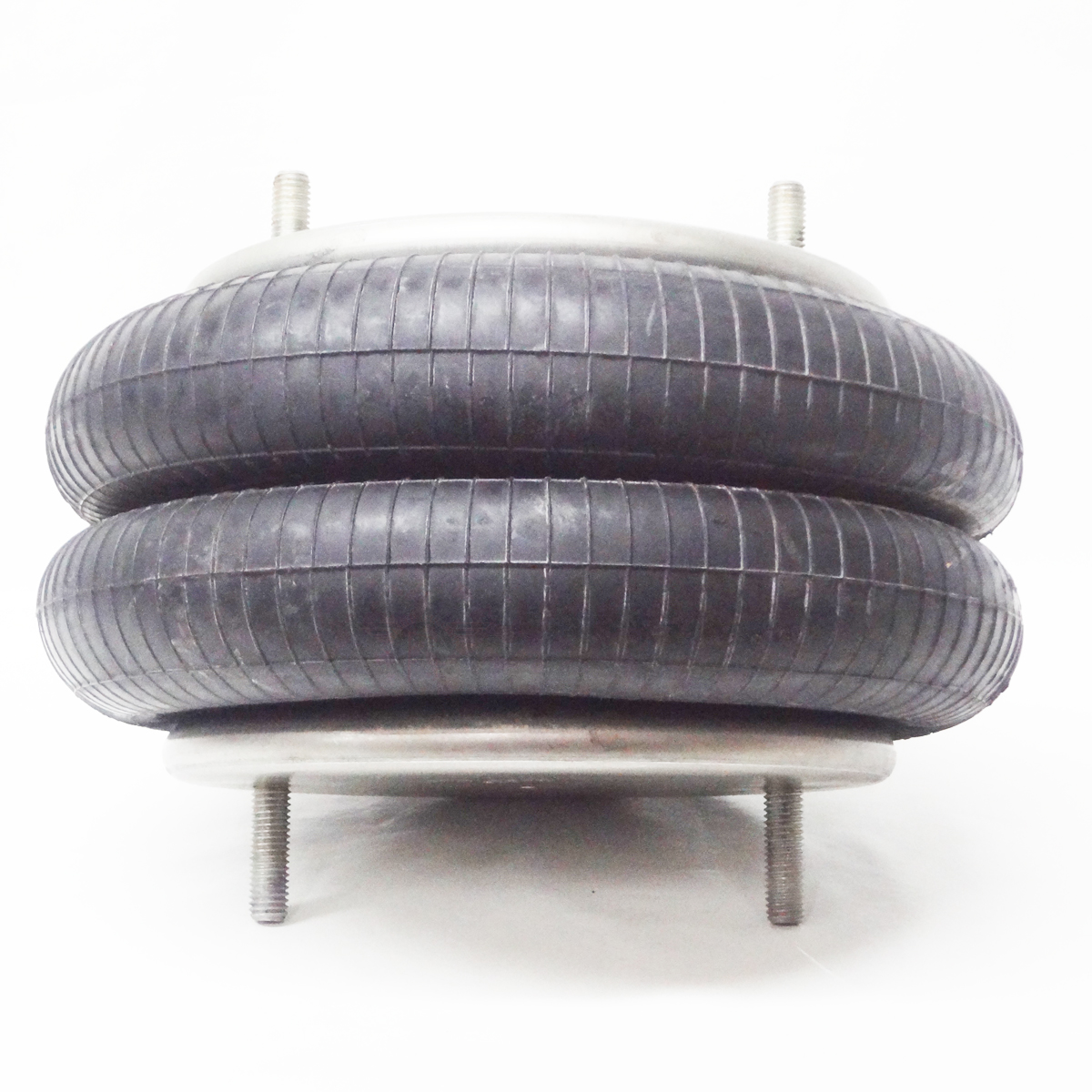

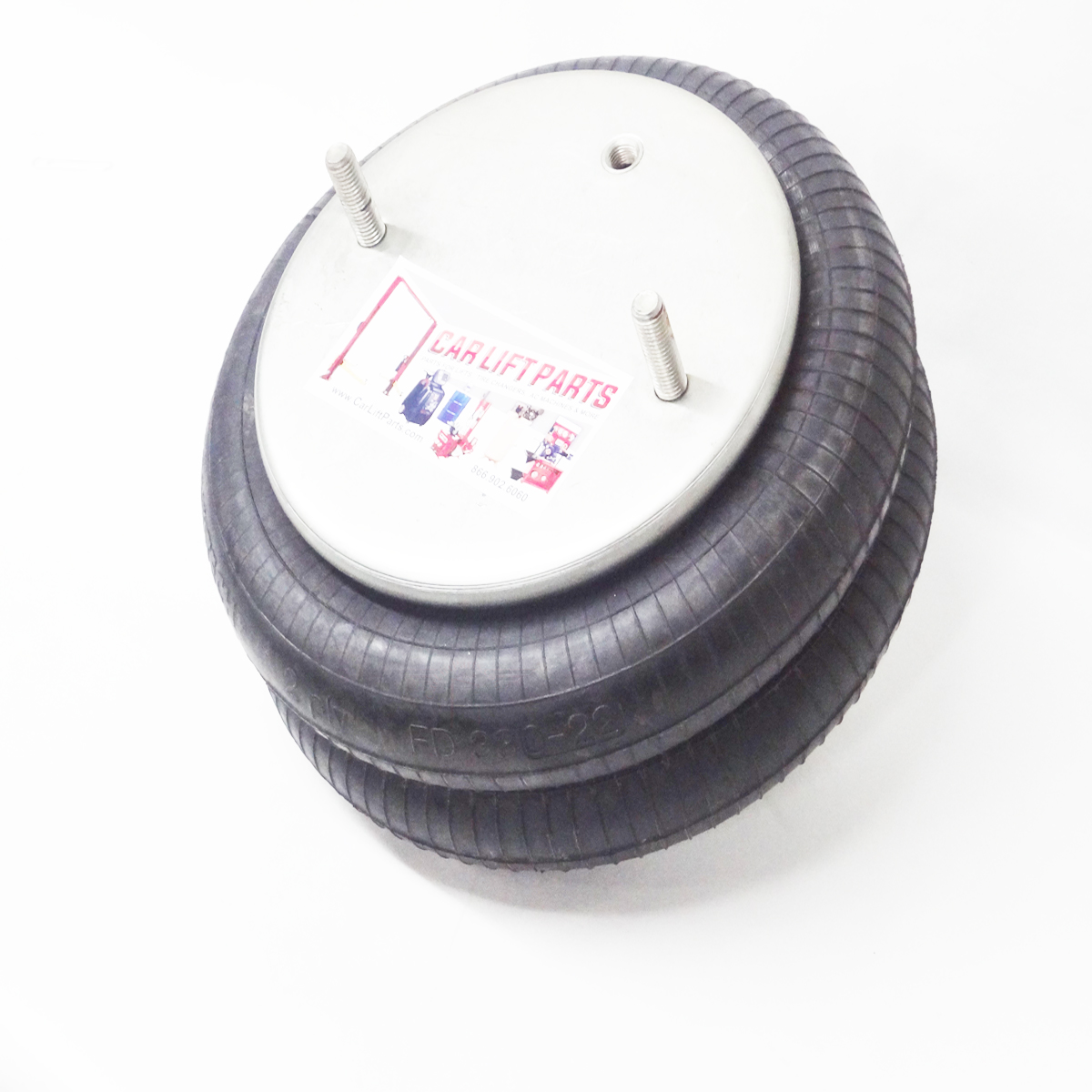

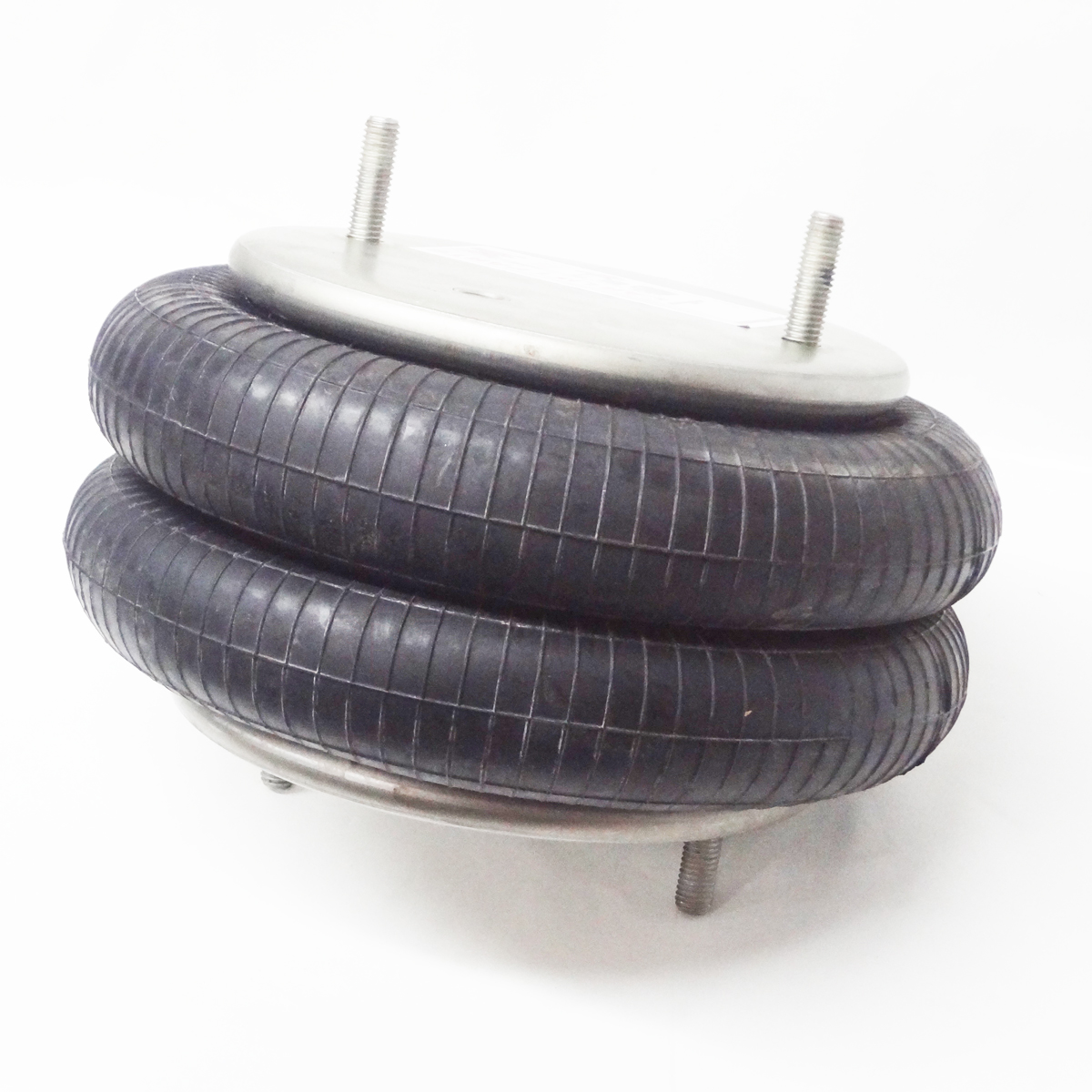

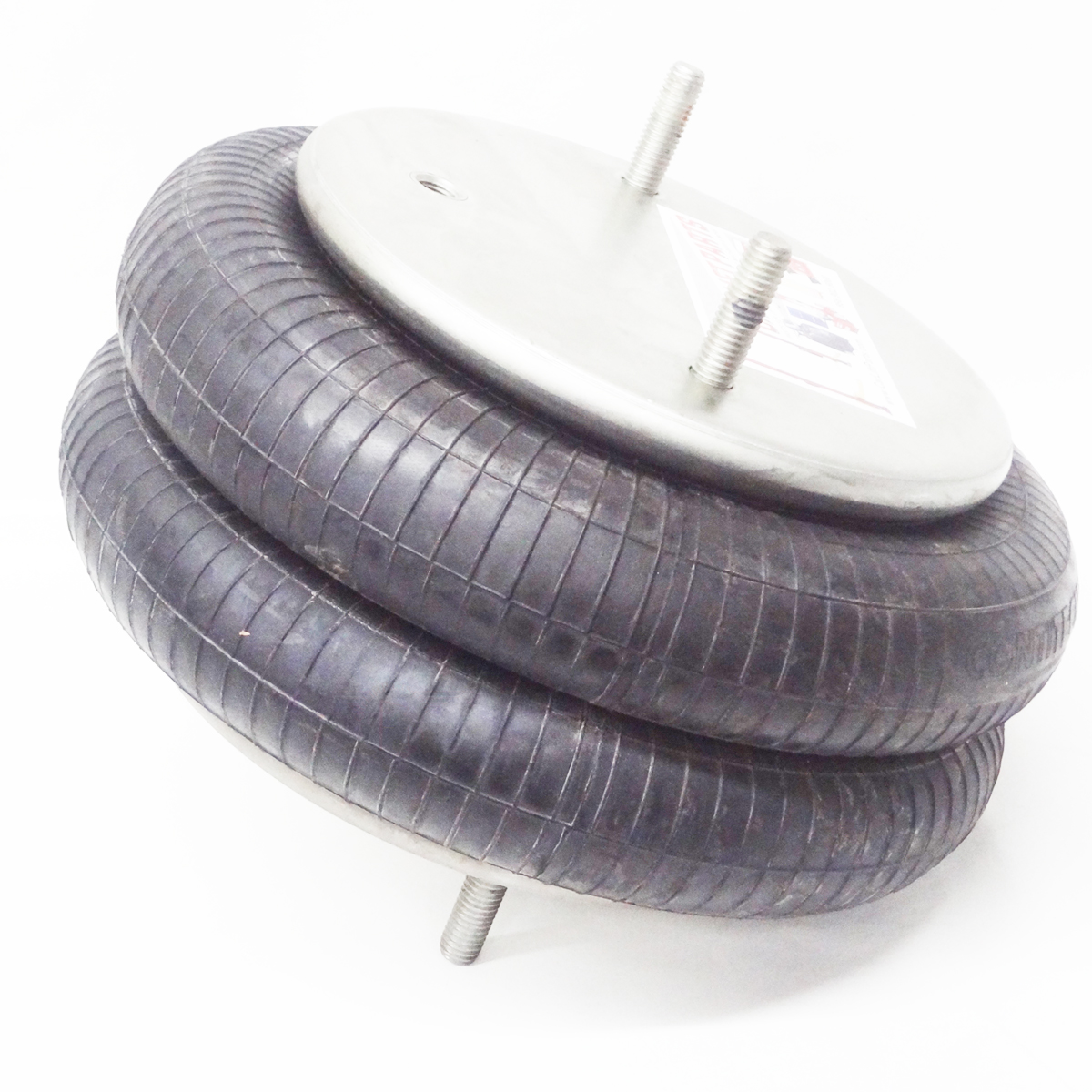

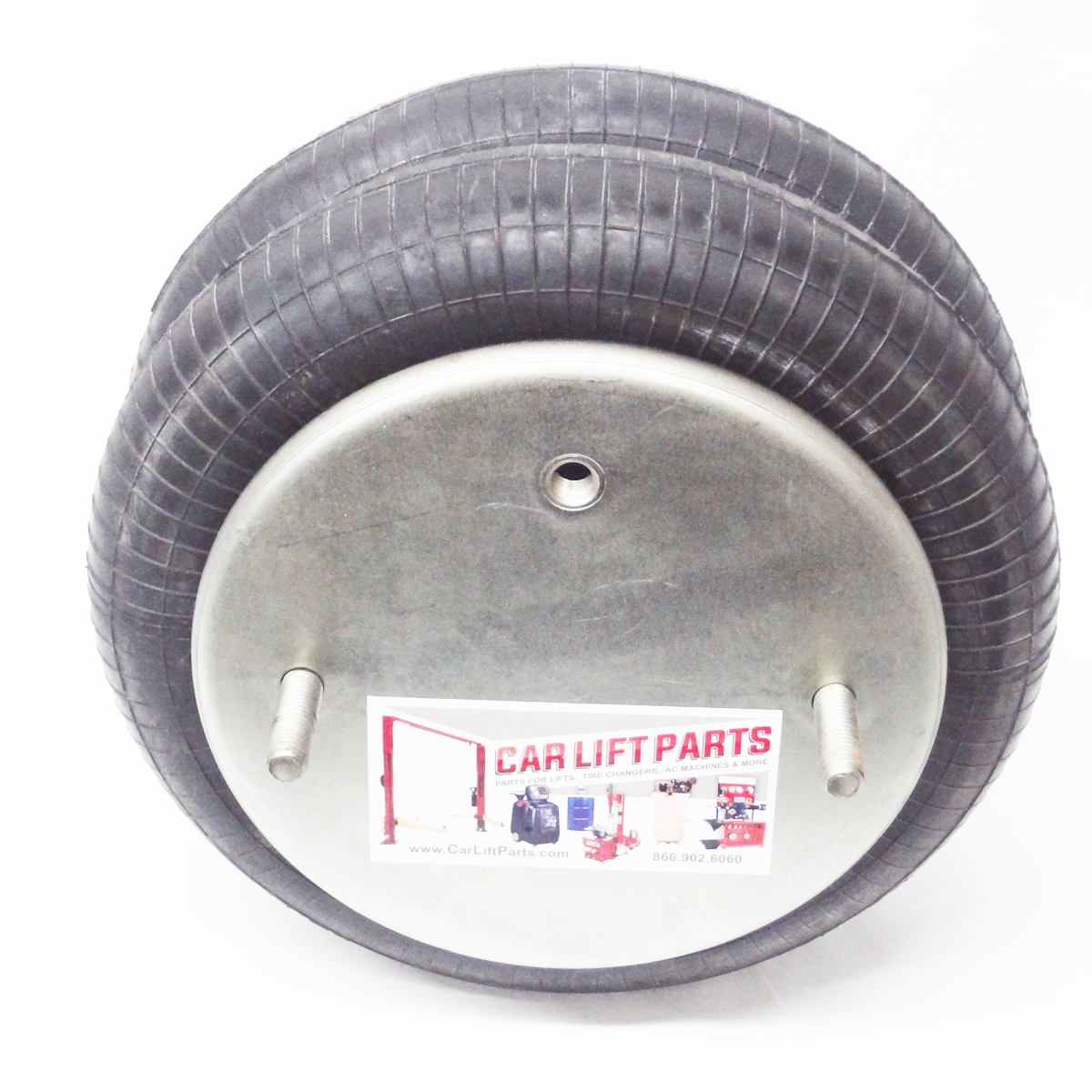

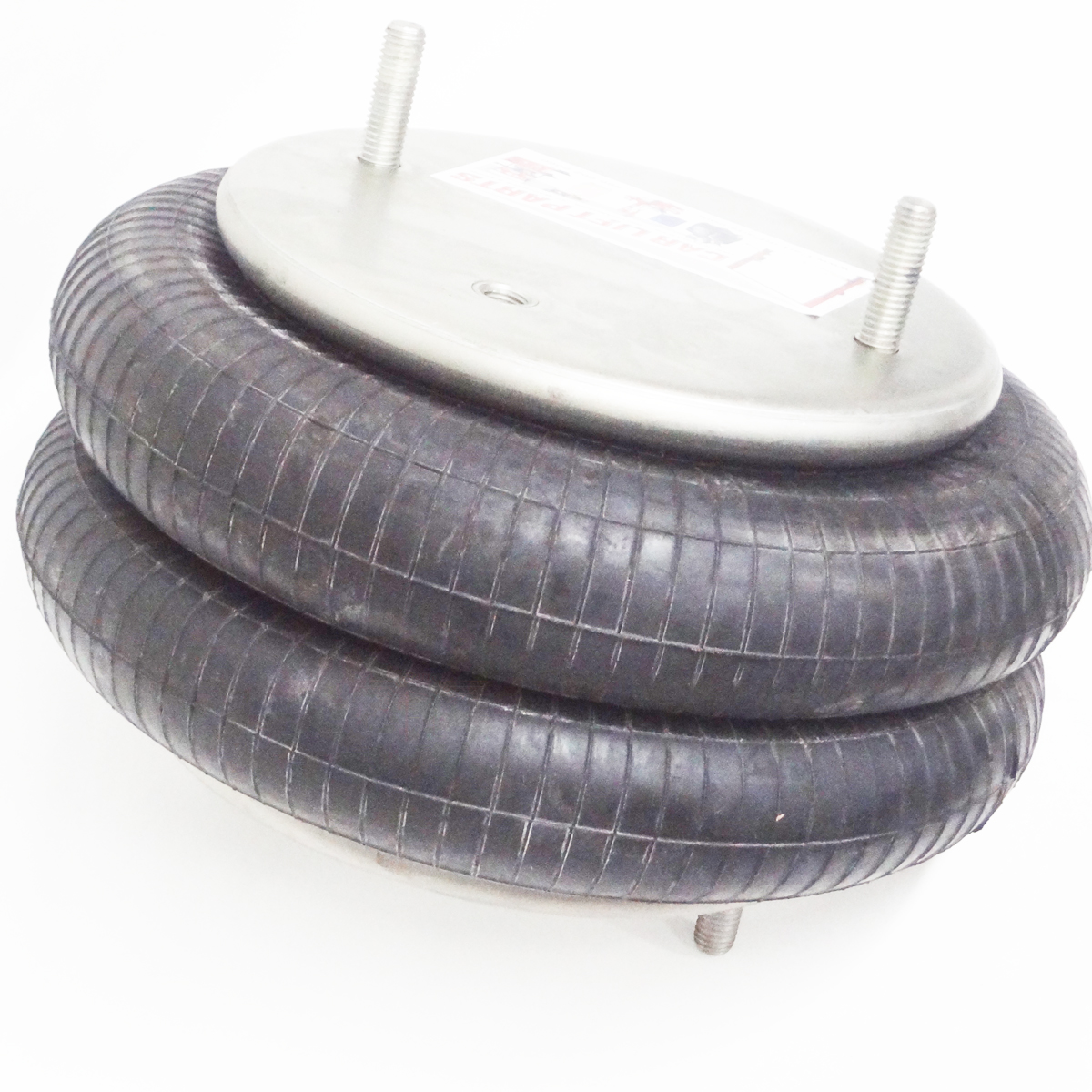

This is a replacement air bag for many rolling air jack / bridge jacks made by Gemini lift. This is for jacks with 1 single main air bag in the center of the jack and is rated between 6-9k capacity depending on the jack. This is a 2 stage air spring that is made by continental rubber company. It has 2 studs on top and bottom of the jack that secure it in the rolling jack.

This bag fits many manufacturer jacks made by GEMINI LIFTS
FITS MANY OTHER MANUFACTURERS MODELS AS WELL!
SPECS OF THIS AIR SPRING:
-approximately diameter -11″ with rubber bag down
-stud diameter- 1/2″ -stud to stud distance- 6.25″ from center of stud to center of stud (bolt hole to bolt hole)
When choosing a replacement air bag for your rolling jack, the most important measurement is the stud to stud bolt hole to bolt hole) distance. Measure from the center of each hole in the top or bottom of your jack if it measure 6 1/4 ” this bag should fit. Your original bag may have bolts instead of studs but this replaces both styles. Note: you may have to drill your holes in your jack to 1/2″ size if they are smaller

Gemini Rolling Jack / Bridge Jack for  Gemini 4 Post Lifts

Found on

  • Gemini Rolling jack Model-AJ6 RJ6 AJ9 RJ9
  •  Gemini Lift- GR-12 GR12W GR12L GR12LW GR15L GR15LW GR-15 Gr-18

Additional information

Weight 176 oz
Dimensions 10 × 10 × 10 in
