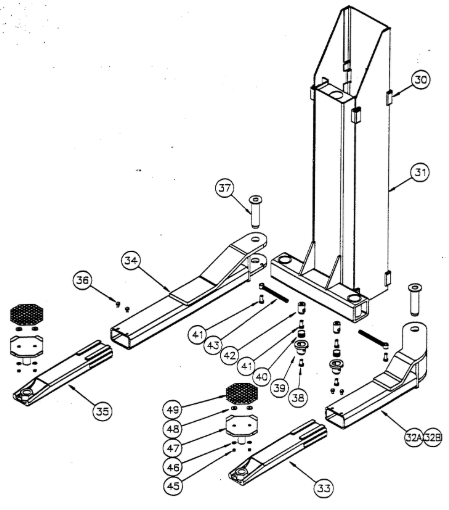

36000 37000 Carriage Arm Assembly
Drawing Number
Parts Description
12 Available Parts
WHITE SOLID SLIDE BLOCK USED PRIOR TO 8/5/1996 CHALLENGER / VBM SPIRIT 36011
SOLID SLIDE BLOCK (PRODUCTION PRIOR TO 8/5/96)
Challenger Lift 31107 Arm Restraint Sleeve Weldment for 39000 / 36000 / 37000
SLEEVE WELD-ARM RESTRAINT
Challenger Lift 31109 Arm Restraint Compression Spring for CL9 / CLFP9 / CL12
COMPRESSION SPRING-ARM RESTRAINT
Challenger Lift 31110 Link Weld-threaded Rod for arm Restraints 6 1/2 Long #43 – Fits 39000
LINK WELDMENT (6-1/2")
Challenger Lift 31115 2 Post Lift - - 1/4 Flat Washer for 39000 / 36000 / 37000
FLAT WASHER 1/4"
Shop specialized parts breakdowns for the Challenger 36000 and 37000 series 2-post lift Carriage Arm Assembly. This category includes carriage weldments, arm assemblies, arm restraints/locks, rubber arm pads, slider blocks/rub blocks, guide bearings, pivot pins, and all related hardware.
Organized by the factory diagrams for these models, these components ensure smooth carriage movement, secure vehicle support, and reliable arm operation. Perfect for replacing worn sliders, pads, or performing full carriage and arm maintenance on your Challenger 36000/37000 lift.
