OR14 14K 4-Post Hydraulic Hose Detail

Drawing Number

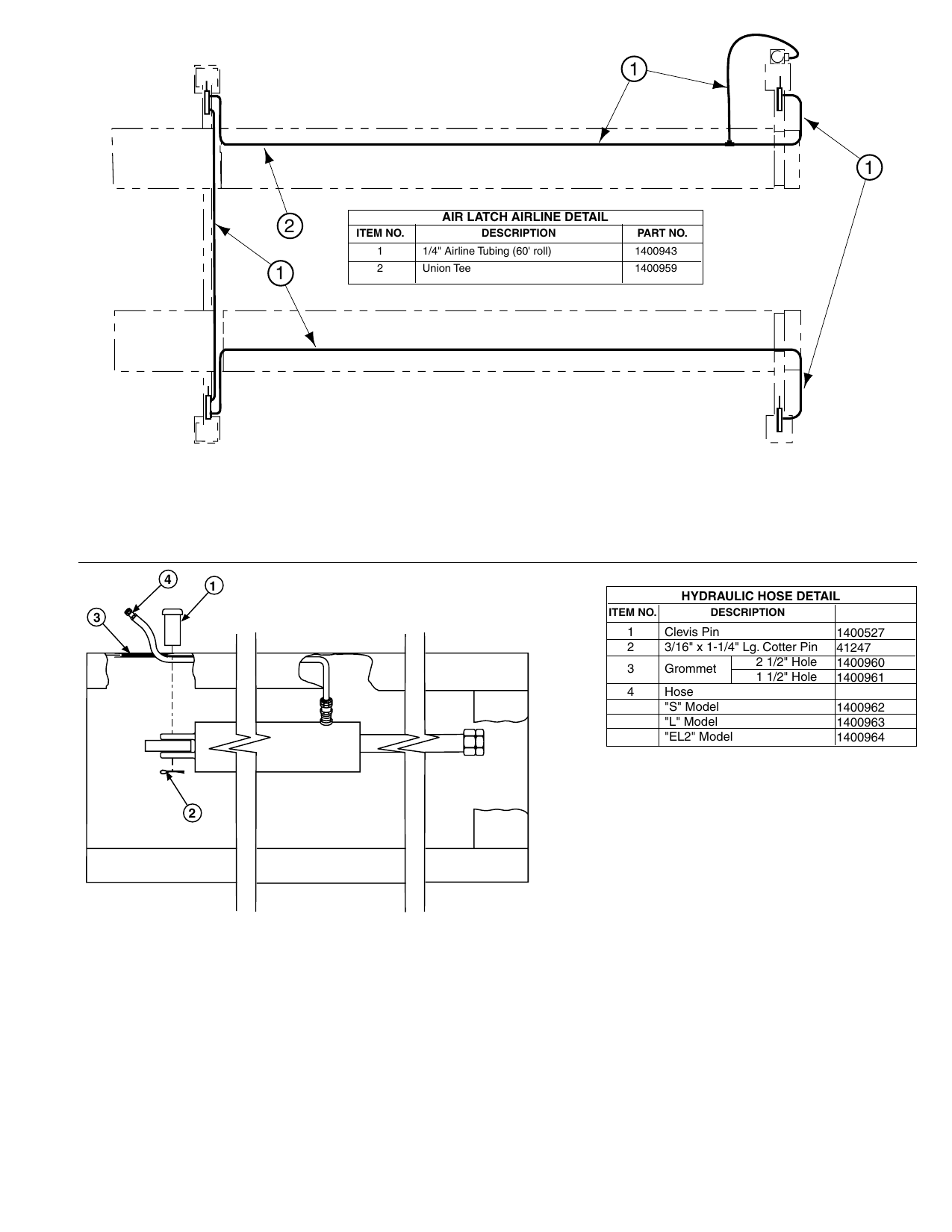

OR14 14K 4-Post Hydraulic Hose Detail parts breakdown drawing

Parts Description

7 Available Parts

1

Clevis Pin

Clevis Pin

2

3/16" x 1-1/4" Lg. Cotter Pin

3/16" x 1-1/4" Lg. Cotter Pin

$14.53

3

Grommet 2 1/2" Hole

Grommet 2 1/2" Hole

3

Grommet 1 1/2" Hole

Grommet 1 1/2" Hole

4

Hose — "S" Model

Hose — "S" Model

4

Hose — "L" Model

Hose — "L" Model

4

Hose — "EL2" Model

Hose — "EL2" Model

Factory parts breakdown for the OR14 14,000 lb four-post lift Hydraulic Hose Detail. Covers the clevis pin, cotter pin, grommets and hose by model.

Match the numbered callouts in the drawing to the parts list below to find the exact replacement hydraulic component for your OR14.
