OR14 14K 4-Post Sheave Detail

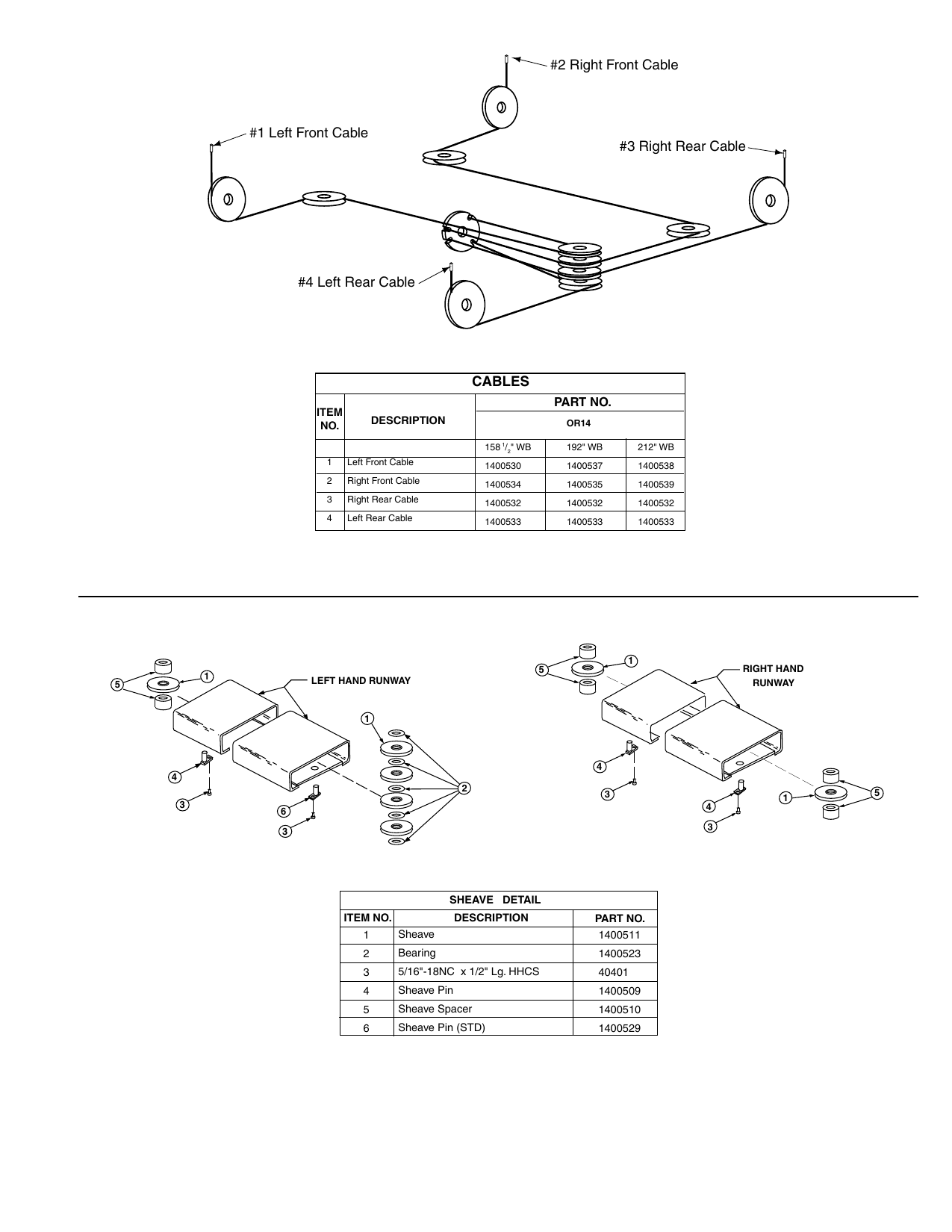

Drawing Number

OR14 14K 4-Post Sheave Detail parts breakdown drawing

Parts Description

6 Available Parts

1

Sheave

Sheave

2

Bearing

Bearing

3

5/16"-18NC x 1/2" Lg. HHCS

5/16"-18NC x 1/2" Lg. HHCS

$14.53

4

Sheave Pin

Sheave Pin

5

Sheave Spacer

Sheave Spacer

6

Sheave Pin (STD)

Sheave Pin (STD)

Factory parts breakdown for the OR14 14,000 lb four-post lift Sheave Detail. Covers the sheave, bearing, sheave pins, spacer and hardware.

Match the numbered callouts in the drawing to the parts list below to find the exact replacement sheave component for your OR14.
