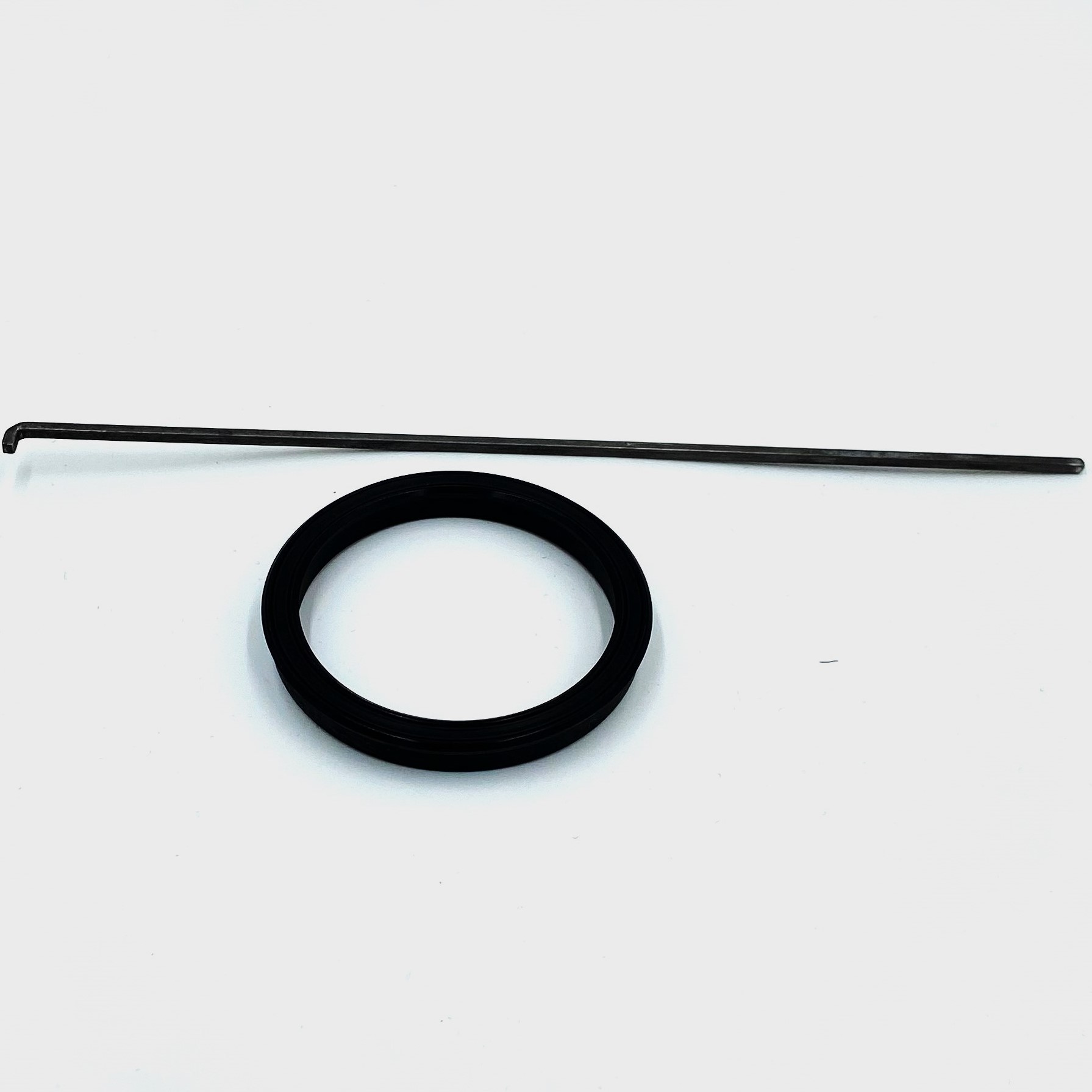

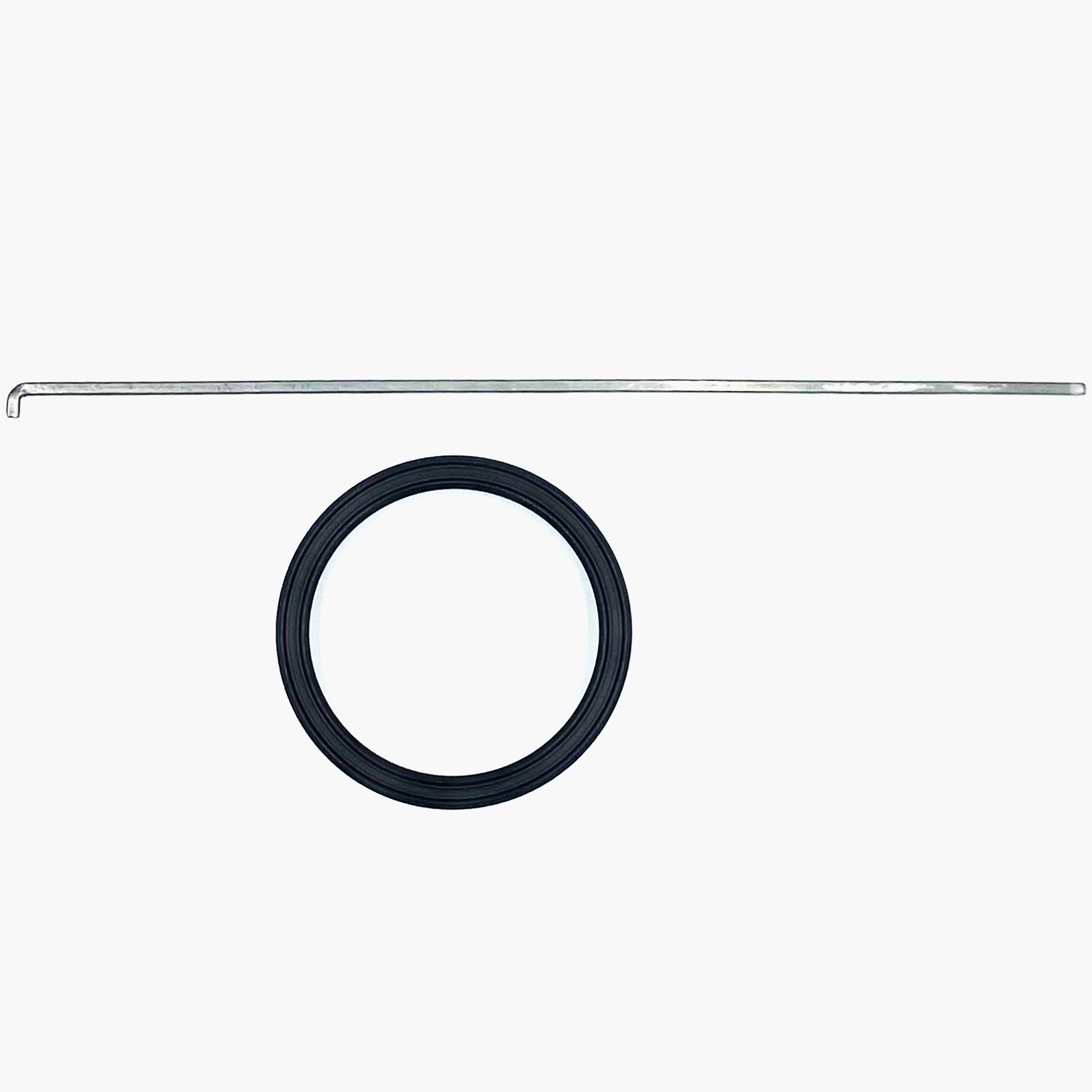

Challenger / VBM Marion Chain-Over Cylinder Rebuild Seal Kit – 2 Post Lift
This seal kit rebuilds the Marion-brand chain-over hydraulic cylinder used in Challenger and VBM 2-post lifts. The Marion cylinder is the only chain-over cylinder with a 3 in. inside bore (outside diameter over 3.25 in.) on the listed models. The cap is at the top, held by a square wire retainer, with a breather below and about 1/4 in. protrusion. Stroke is 36.5 in. Verify cylinder measurements and identity marks before ordering.
Product Information
- Brand / Equipment: Challenger / VBM, 2-Post Lift
- Manufacturer / Reference Part Number: 11075
- Store SKU: CHR1075
- Component: Hydraulic Cylinder Rebuild Seal Kit – Marion Chain-Over (one kit per cylinder)
- Cylinder Specs: 3 in. bore x 36.5 in. stroke
- Listed Application: Challenger / VBM 20000, 21000, 26000, 27000, 28000, 30000, 31000, 33000, 35000 (Marion cylinder)
Replacement / Cross-Reference Numbers
- Challenger PN: 11075
- Challenger PN: 200067
- CHA11075
Fitment & Ordering Notes
This kit fits only the Marion chain-over cylinder. Does not fit stick cylinders or other chain-over brands (Arlington, Holmac, Pacoma). The Marion cylinder has a 3 in. inside bore – confirm the outside diameter of the barrel is over 3.25 in. This is the only way to distinguish the Marion from other chain-over cylinders used in the same models. Call 866-902-6060 for identification help.
