Description

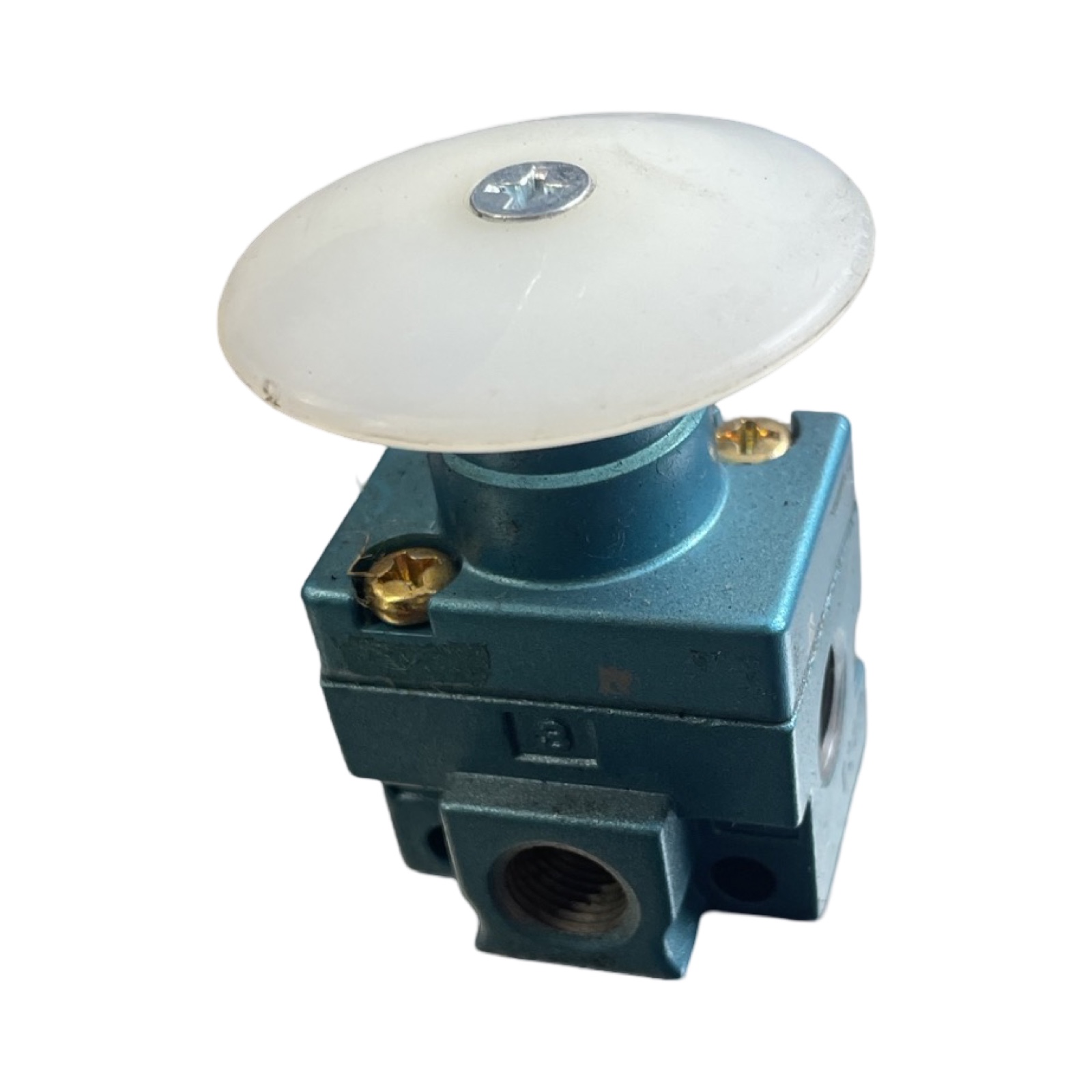

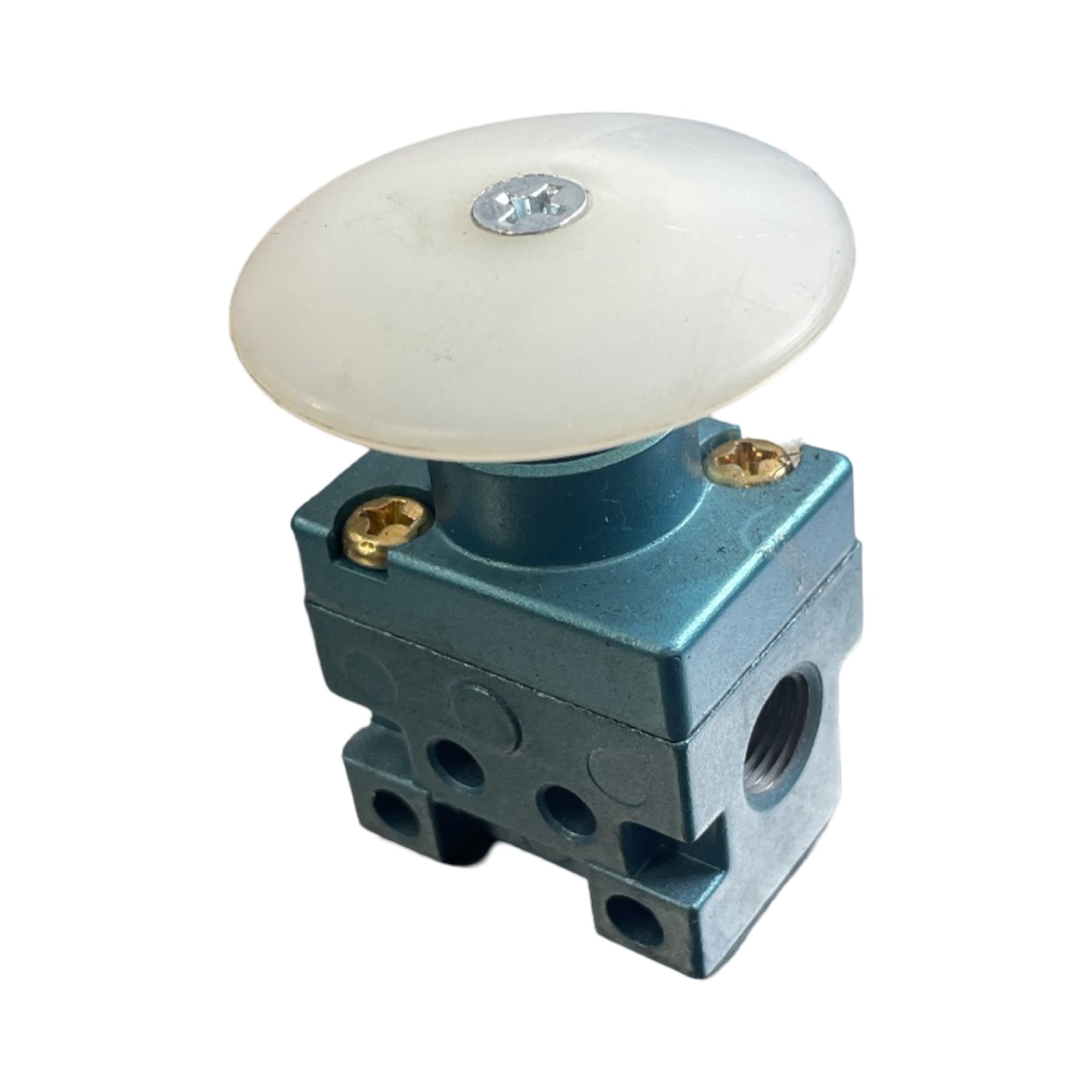

Challenger 37016 Air Lock Release Valve (White Button)
If the safety locks on your Challenger or Ammco 2-post lift will not release, the lock release air valve is a common point of failure. This is the pneumatic push-button valve – identified by its white button – that sends air to the lock release cylinders in each column, pulling the safety latches open so the lift can lower. Replace this valve when the locks will not disengage, the button is broken or cracked, or the valve leaks air and will not build sufficient pressure to release the locks. Before ordering, confirm your lift uses the white-button style; a blue-button variant is also available and the two are not interchangeable. Note that this is the valve (37016), not the lock release cylinder actuator (37026).
Product Information
- Brand: Challenger / VBM
- Manufacturer Part Number: 37016
- Store SKU: CHR7016
- Component: Air Lock Release Valve, White Push Button
- Style: Push Button, 1/8″ Thread Air Line
- Listed Application: Older Challenger and VBM 2-post lifts, Ammco hoists, Magnum truck lifts with pneumatic lock release systems
Compatible Makes / Verified Fitment Models
- Challenger 37000, 38000, 39000
- Challenger 70000, 71000, 12000
- Ammco B2900, B29000
- Magnum Truck Lift
Replacement / Cross-Reference Numbers
- 37016 (Challenger / VBM OEM)
- 4B37016
- CHL-37016
Fitment & Ordering Notes
- This is the white button style valve. A separate blue-button variant exists – check your existing valve before ordering.
- This is the air lock release valve (37016), not the cylinder actuator (37026). If your cylinders are seized or leaking, the actuator is the correct part.
- Verify your lift has a pneumatic (air-operated) lock release system before ordering.
