$58.80
Seal Kit / Hydraulic Cylinder Rebuild for Forward Car Lift with Arlington Hydraulic Rams
Replaces part number
Forward # 992317SKAA
Alternate # BH-7235-15A
Fits Forward Models : dp07a , dpo7 , dp09 , dpo9a , dpo9a2 , dpo9s , dpo9s2 dp97 , dp97a, DP97A2 , dp97s , dp97s2 9000a , 9000an , 10000a , 10000a2 , 10000an , dp10 , dp10a , dp10an , dp10a2 , INT9 , ISP9S , I10 , I10111000
SEE BELOW FOR FULL DESCRIPTION AND FITMENT INFORMATION

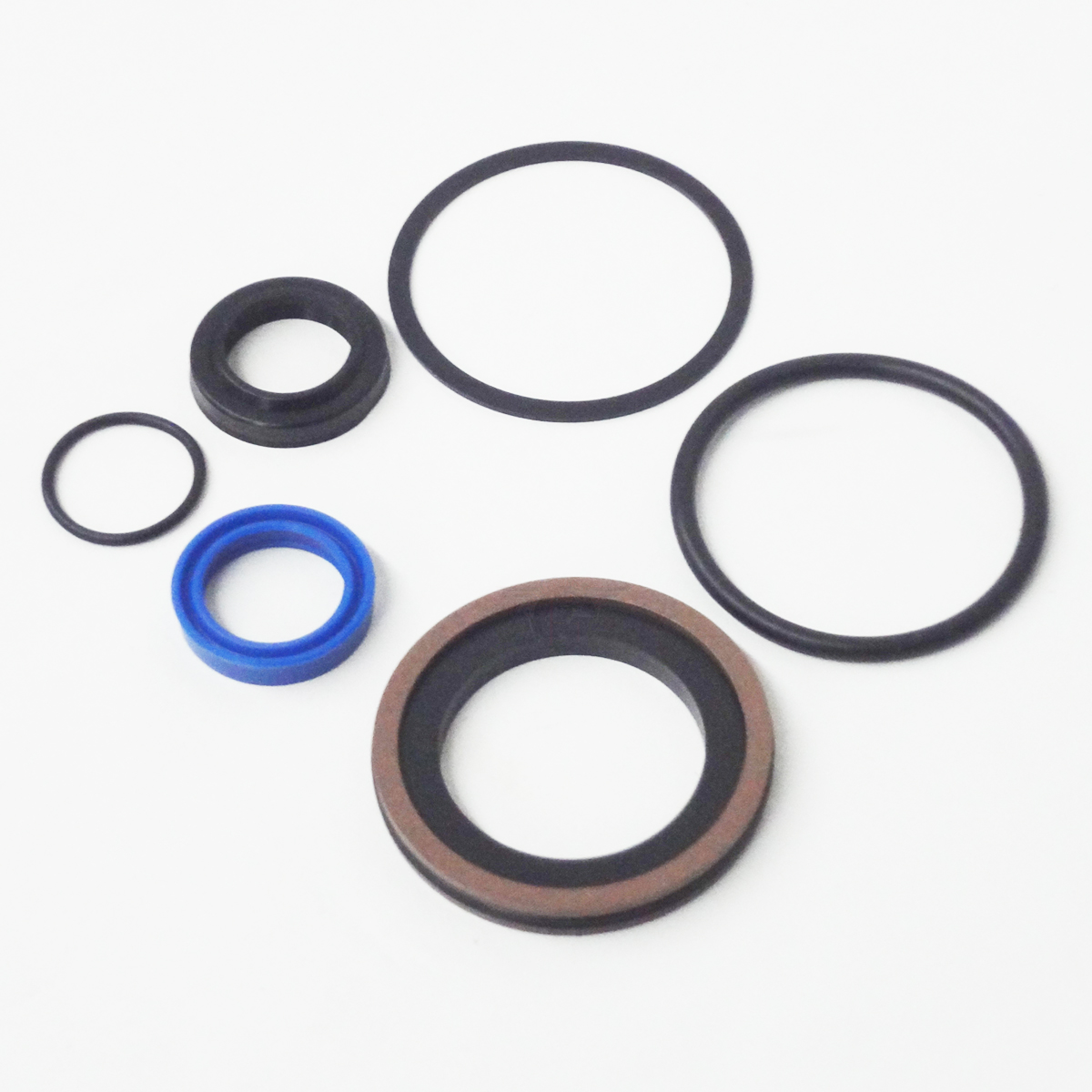

This is 1 seal kit for the hydraulic cylinders found in forward 2 post lifts. It meets or exceeds factory sepcs. It fits lifts with capacity between 7,000 & 10000 pounds. This kit rebuilds ARLINGTON cylinders that forward used through many years of production. This seal kit will rebuild ONE cylinder if you need to rebuild both cylinders in your lift you will need TWO seal kits.
–HOW TO IDENTIFY YOUR CYLINDER IS AN ARLINGTON
If your lift has a arlington cylinder in it, it will be approximately 72.5″ tall and hang from the top of your lift with a chrome shaft coming out of the bottom of the barrel. Look approximately 6″ above the pressure port of the cylinder (hydraulic port that is eye level when cylinder is in lift see pic 5) If it reads “AA” followed by numbers this is the proper seal kit for your lift. Also compare the gland /end cap of your cylinder to the one pictured on the left. The gland on an arlington cylinder has 1 hole on the outer edge of it for a spanner wrench. It protrudes about an close to a 1/4” out of the barrel of the cylinder and is stepped down slightly from the barrel’s outside diameter (see pics # 10 & 11). If you have your cylinder apart already, compare your piston seal with the one pictured to the left. ARLINGTON cylinders have distinctive bronze and black seals on the piston (picture #1-9). If you are still unsure if this seal kit will work for you, call our help hotline above and we will be glad to determine what seal kit you need.
This kit came in the following model lifts and may fit others as well
dp07a , dpo7 , dp09 , dpo9a , dpo9a2 , dpo9s , dpo9s2 dp97 , dp97a, DP97A2 , dp97s , dp97s2 9000a , 9000an , 10000a , 10000a2 , 10000an , dp10 , dp10a , dp10an , dp10a2 , INT9 , ISP9S , I10 , I10111000
-HOW LONG DOES IT TAKE??
This kit usually takes less than an hour to install and can be done with a vice, pipe wrench and a few hand tools.
–WHAT THIS KIT WONT’ FIT!
If you see the letters “PRINCE”, “T” or “TX” followed by #s or your gland is not the same design as the one pictured then your cylinder is not a ARLINGTON and this seal kit will NOT work with your lift, but we offers those seal kits as well SO BE SURE TO CALL US AT 866-902-6060. WE SELL CYLINDER REBUILD KITS FOR MANY DIFFERENT BRAND AUTO LIFTS AND MANY OTHER PARTS AS WELL.
Seal Kit / Hydraulic Cylinder Rebuild for Forward Car Lift with Arlington Hydraulic Rams
Replaces Part Numbers
Forward # 992317SKAA
Alternate # BH-7235-15A
SEE BELOW FOR FULL DESCRIPTION AND FITMENT INFORMATION
| Weight | 2 oz |
|---|---|
| Dimensions | 1 × 1 × .6 in |
