Challenger Lift 40053 Thick Bearing for 4P14

Description

Challenger Lift 40053 Thick Bearing for 4P14

Service a worn, seized, grooved, or damaged moving component with the 40053 Thick Bearing. Match the original diameter, bore, groove, mounting arrangement, and lift application where specified. Listed applications include 4P14, CL12A, CL12A-DPC.

Product Details

• Brand / Equipment: Challenger Lift
• Manufacturer / Reference Part Number: 40053
• Store SKU: CHR40053
• Component: Thick Bearing

Compatible / Referenced Equipment Models

• 4P14: 14,000 lb four-post lift
• CL12A: 12,000 lb adjustable-width two-post lift
• CL12A-DPC: 12,000 lb dual-pendant-control two-post lift

Parts Diagram & Manual Reference

• Official Challenger CL12A parts breakdown (Fig D. Synchronizer) identifies this as Item #67 with the description 1/8” THICK BEARING on page 21.
• Official Challenger CL12A-DPC parts breakdown (Fig D. Synchronizer) identifies this as Item #67 with the description 1/8” THICK BEARING on page 23.

Verified Product Information

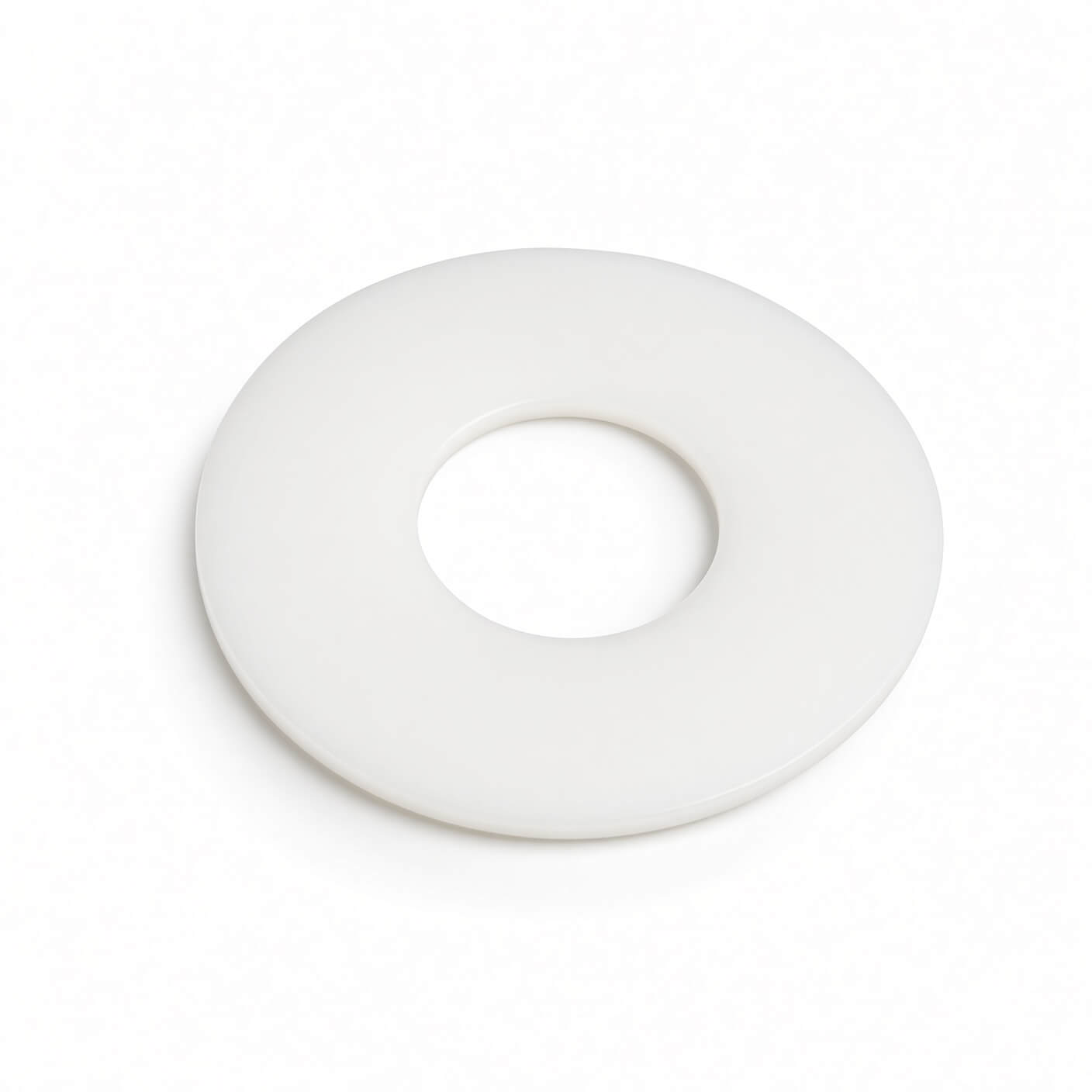

• Plastic spacer bearing / wear ring listed at 4 inches OD, 1 inch ID, and 1/8 inch thick.
• Used as a spacer with B40050 and B40650 pulley sheaves on Challenger four-post lifts; the source also references old part number 40050.

Verified Part-Number Fitment

The exact part number 40053 appears in verified Challenger parts documentation for the applications below:

• 4115EAO / 4115XAO / 4115EFO / 4115XFO — Item #22, page 20: 1/8” THICK BEARING; Item #29, page 22: SHEAVE THRUST BEARING (1/8” THICK)
• 4P14EFX / 4P14XFX — Item #2, page 15: 1/8” THICK BEARING; Item #16, page 16: 1/8” THICK BEARING
• CL12A — Item #67, page 21: 1/8” THICK BEARING
• CL12ADPC — Item #67, page 23: 1/8” THICK BEARING
• CL16-0-3S / CL16-2-3S — Item #70, page 21: 1/8” THICK BEARING
• CL20-0 / CL20-2 — Item #70, page 21: 1/8” THICK BEARING

Compatible Makes & Models

Compatible makes / equipment brands:

• Challenger

Verified fitment models include:

• 4P14
• CL12A
• CL12A-DPC
• CL12-LC
• 4115EAO
• 4115XAO
• 4115EFO
• 4115XFO
• 4P14EFX
• 4P14XFX
• CL16-0-3S
• CL16-2-3S
• CL20-0
• CL20-2

Fitment can vary by production date, serial range, lift configuration, and equipment revision. Match the manufacturer/reference part number and your specific model before ordering.

Fitment & Ordering Notes

Challenger Lift components can vary by model, serial-number range, production date, lift height, side or orientation, color, power-unit configuration, and equipment revision. Before ordering, compare the manufacturer part number, specifications, diagram callout, model information, and original component. A similar appearance alone does not confirm interchangeability.
