Challenger Lift a1070 Arm Restraint Inner Gear CL-9/10 Old for 2-Post Car Hoist CL-9/CL-10 Old

Challenger Lift a1070 Arm Restraint Inner Gear CL-9/10 Old for 2-Post Car Hoist CL-9/CL-10 Old - Image 3

$91.80

Availability: In Stock

SKU: CHR1070AMS

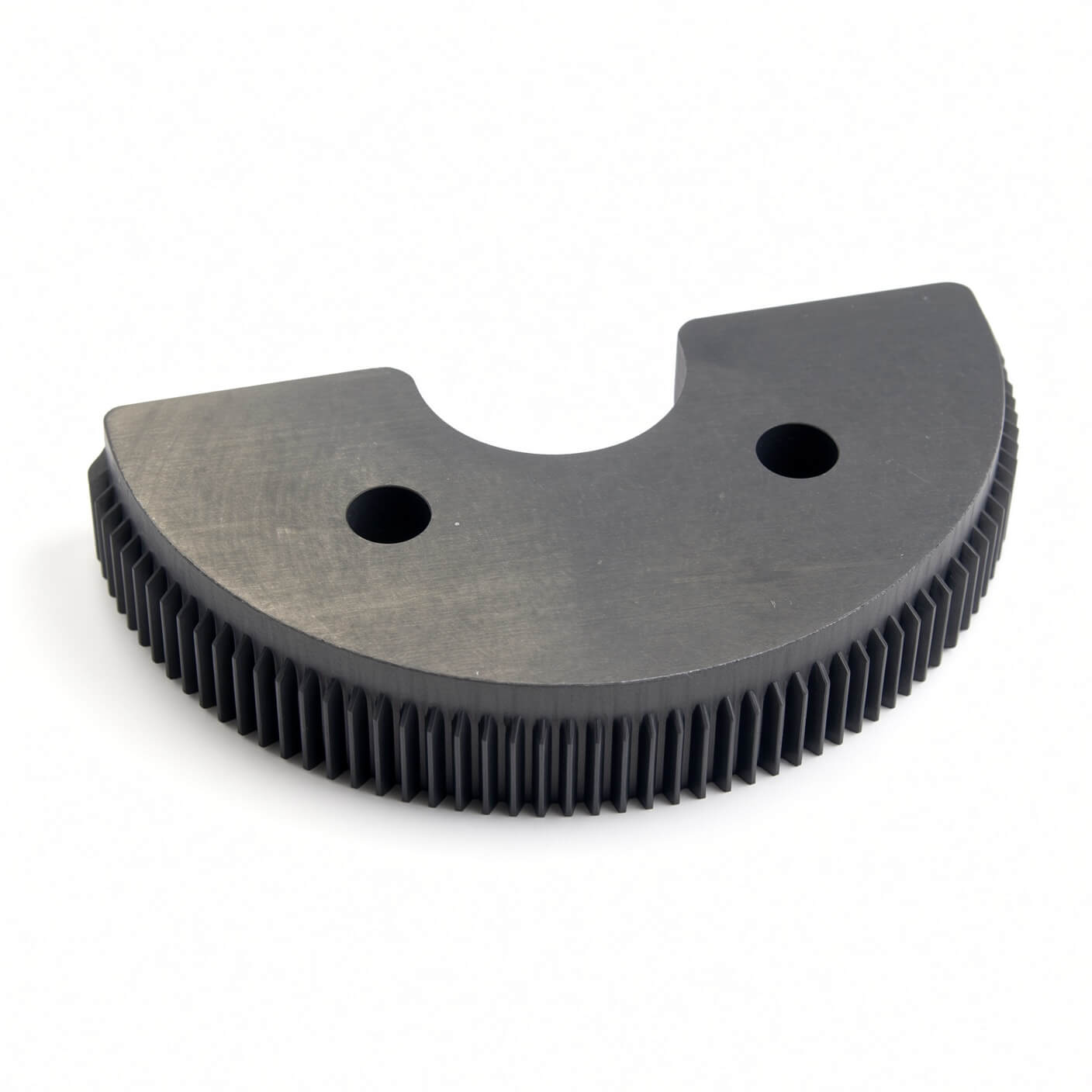

Challenger Lift A1070 inner arm restraint gear (old style, straight-tooth) for CL-9 and CL-10 2-post lifts. Locks swing arms in place during lifting. Must match the outer gear (A1072) tooth style - verify old-style designation against lift serial number or parts diagram before ordering. Four gears required per lift.

Availability may vary depending on vendor stock.

Description

Challenger Lift A1070 Arm Restraint Inner Gear (Old Style) for CL-9/CL-10 2-Post Car Hoist

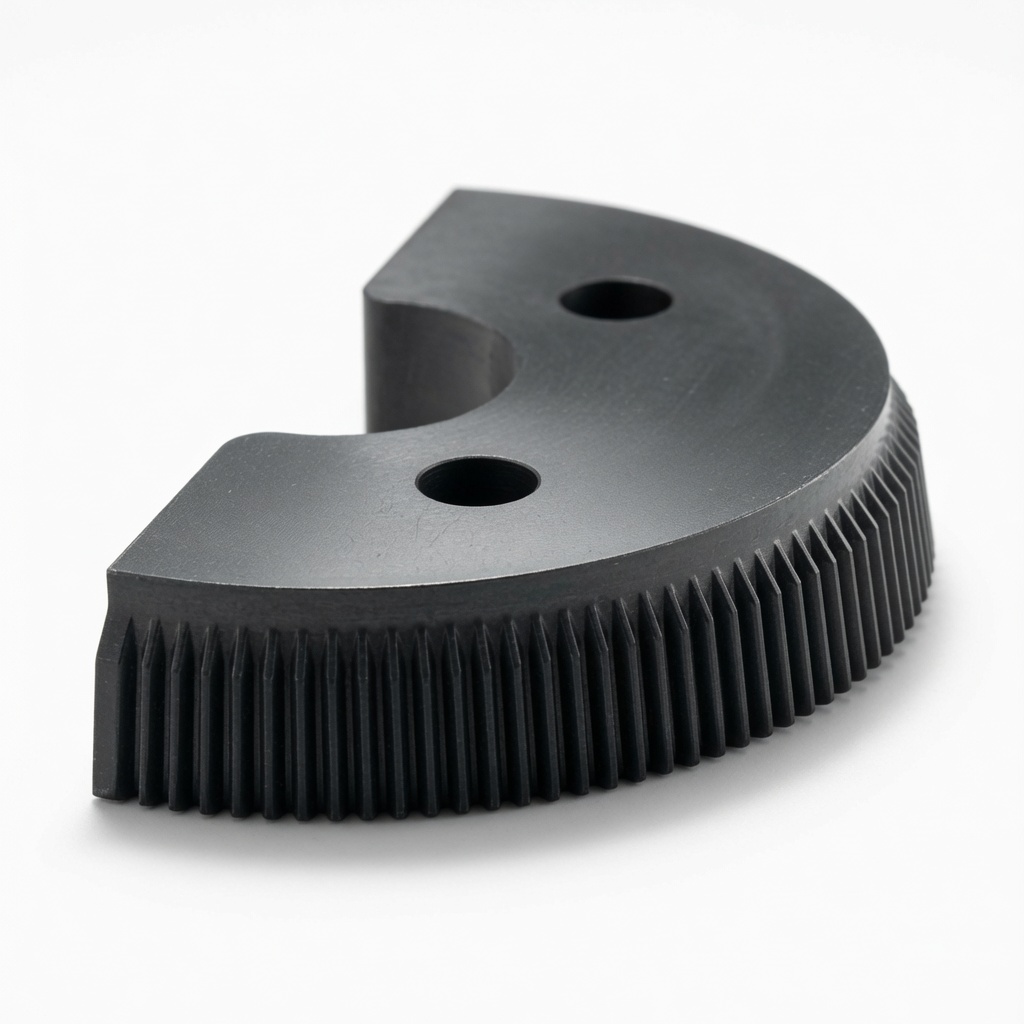

The Challenger Lift A1070 is the inner arm restraint gear (also called a moon gear) for CL-series 2-post lifts. This inner gear meshes with the outer plunger gear (A1072) to lock the swing arms in position under a vehicle during lifting, preventing arm rotation once engaged. The A1070 is the original straight-tooth design, designated “old style” to distinguish it from the later A1070TC which features beveled (angled) teeth. The straight-tooth and beveled designs are not interchangeable – the inner and outer gears must match in tooth style. A total of four inner gears (one per arm) are needed to replace all arm positions on a single lift.

Product Information

Brand/Equipment: Challenger Lifts
Manufacturer PN: A1070
Store SKU: CHR1070AMS
Component: Arm Restraint Inner Gear (old style, straight-tooth)
Material: Cast steel
Bore Size: 1 inch
Listed Application: CL-9/CL-10 Old Style 2-Post Lift

Compatible Makes / Verified Fitment Models

Challenger CL9 (old style)
Challenger CL10 (old style)

Replacement / Cross-Reference Numbers

A1070 (Challenger OEM)
A1070T
332070T
19A-N

Fitment and Ordering Notes

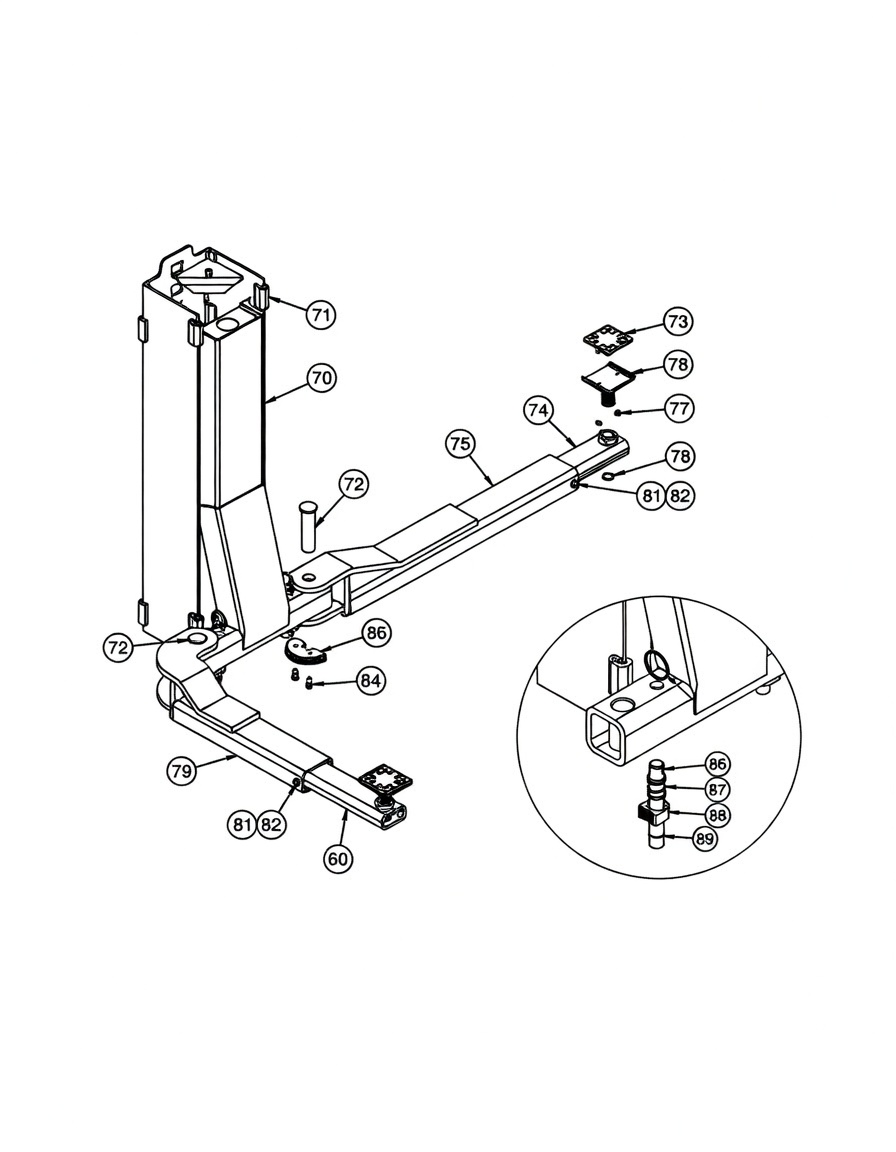

The “old style” designation is critical – this straight-tooth gear is not compatible with the beveled-tooth A1070TC gear set. Before ordering, verify whether your CL-9 or CL-10 lift has the original straight-tooth arm restraint gears by consulting your serial number and the applicable parts diagram. If your outer gear (A1072) is also straight-tooth, order A1070 for the inner position. If you are upgrading to the beveled A1070TC, the outer gear must also be replaced with A1072TC as a matched set.
