COATS 82006297 Foot-Controlled Air Valve for Tire Changer Pedal Assembly
This is a foot-controlled 5-port air valve used on COATS tire changers. It is typically found on the clamping jaw pedal, tilt tower pedal, and bead breaker pedal on the models listed below, and may also be used on the bead blast or tire fill valve. Replace when the valve leaks, sticks, or fails to actuate the cylinder when the pedal is pressed. Compare the mounting leg pattern and valve appearance to your existing valve before ordering.
Product Information
- Brand / Equipment: COATS (aftermarket replacement)
- Manufacturer / Reference Part Number: 2006297 (also 82006297)
- Store SKU: COS6297

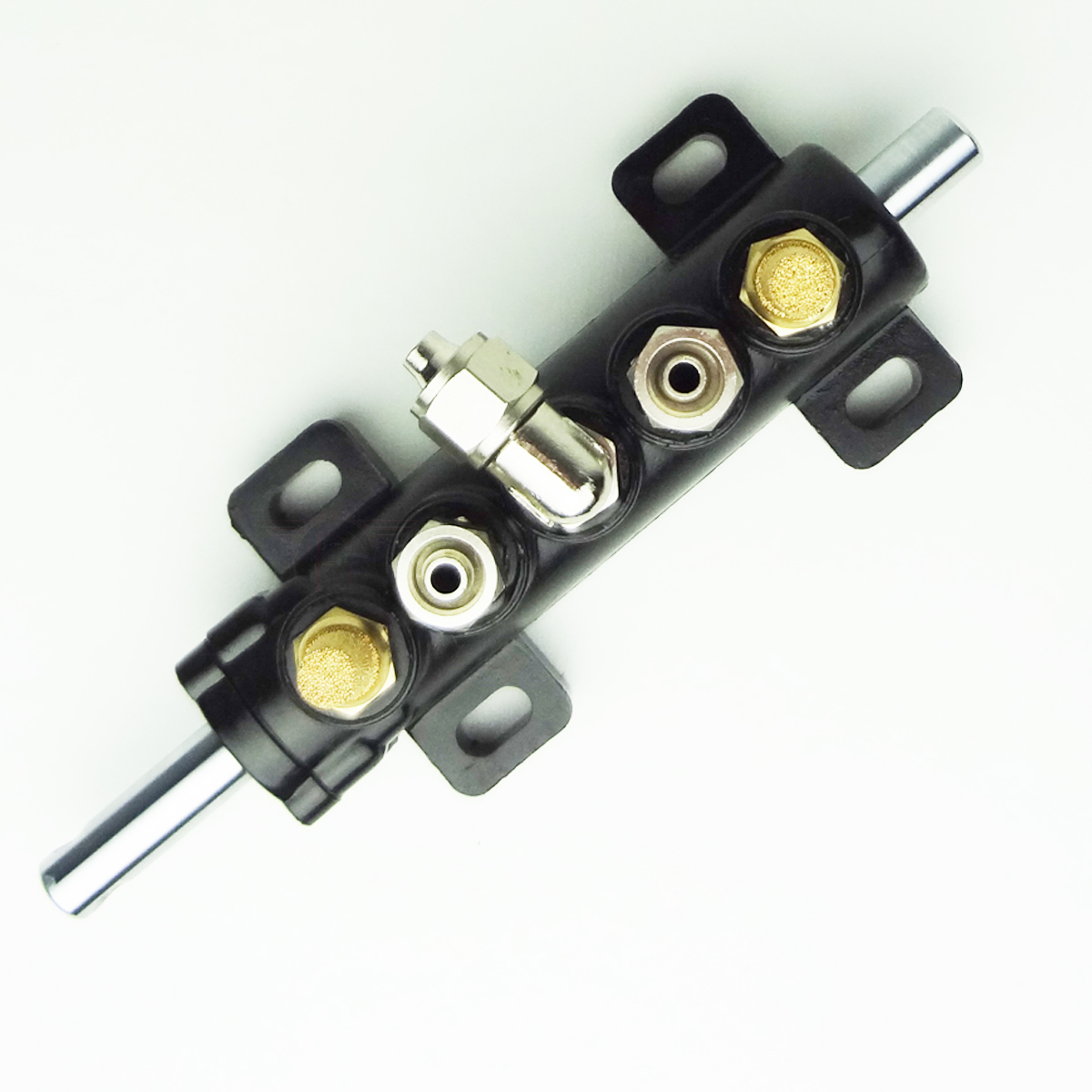

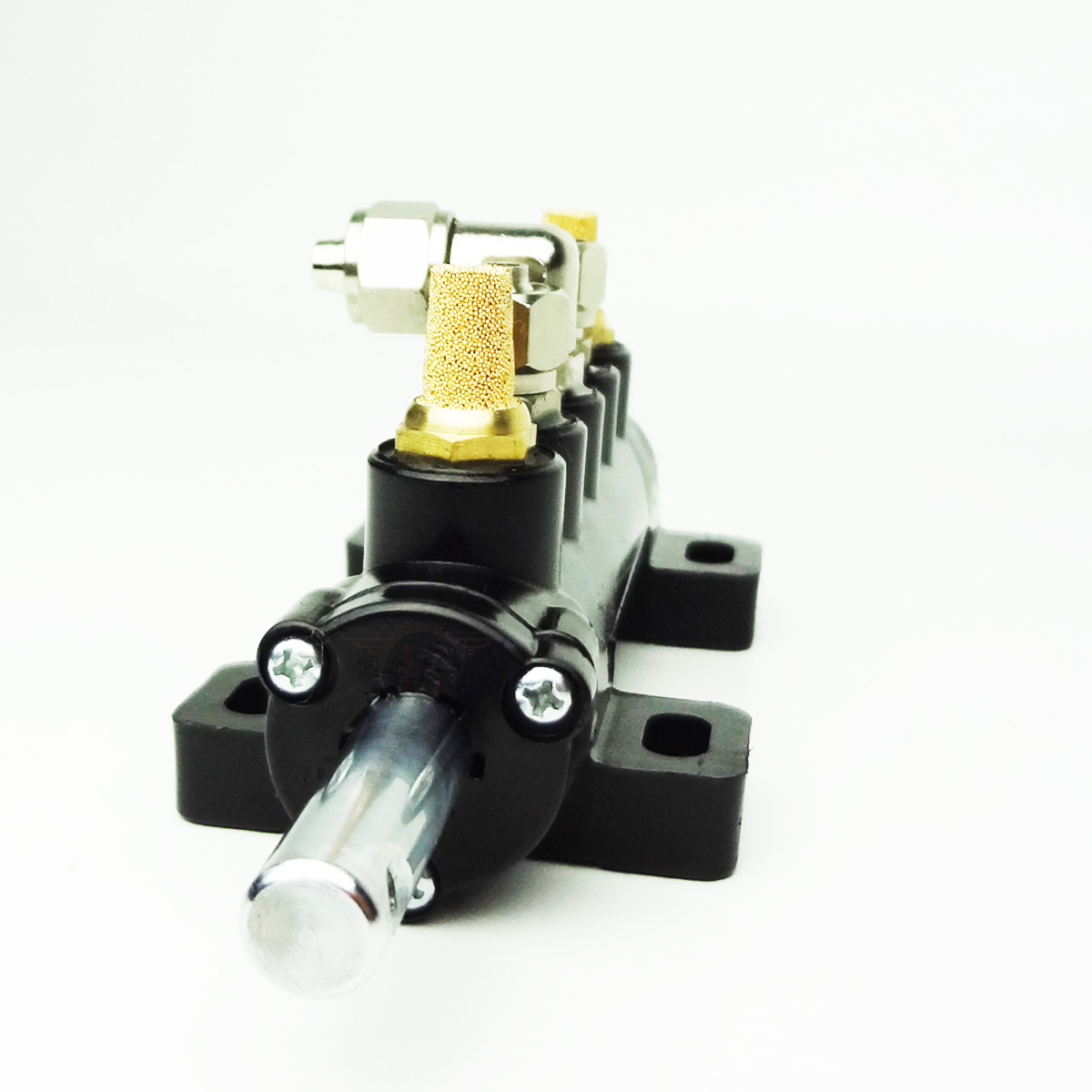

- Component: Foot-controlled air control valve – 5 ports, 4-mounting-leg configuration

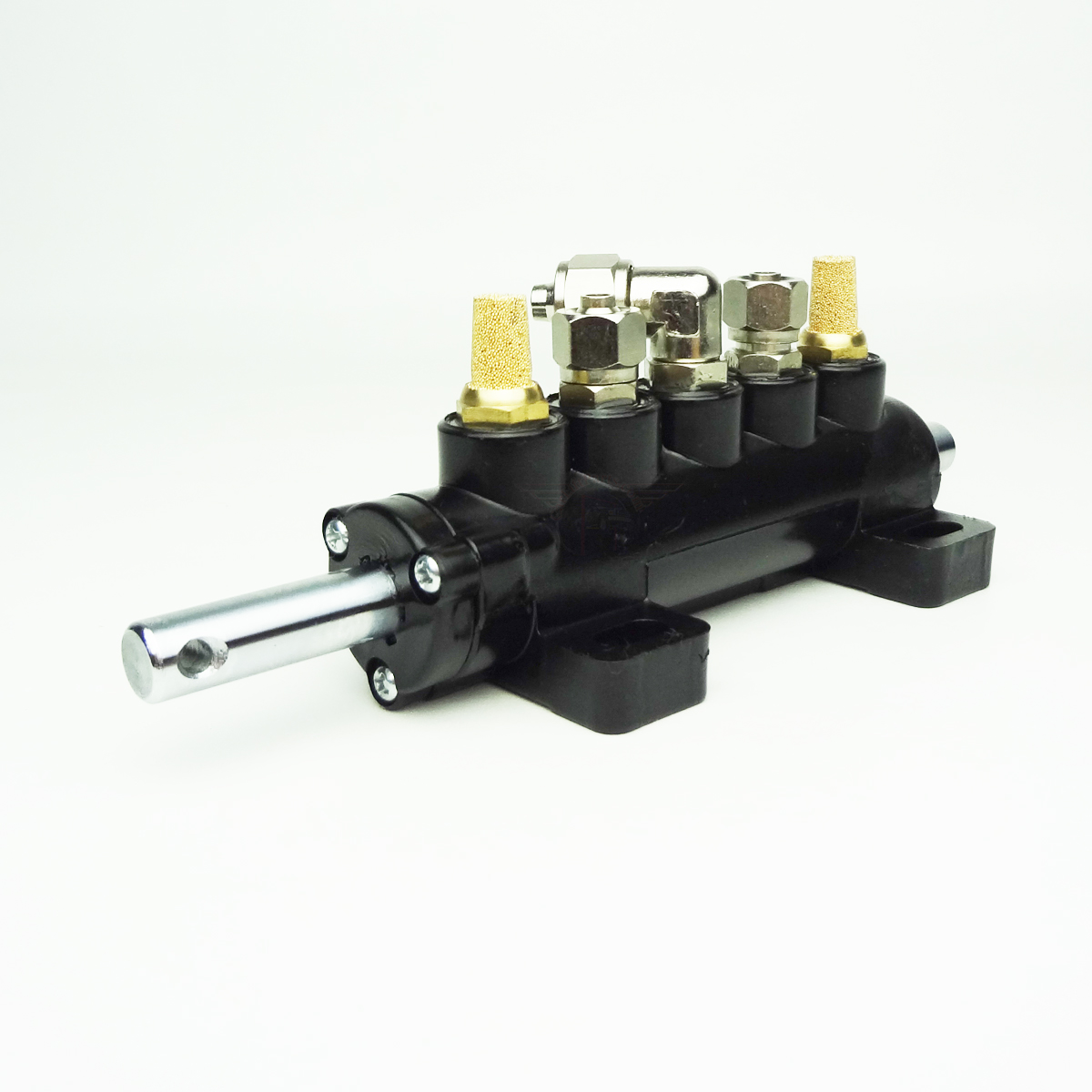

- Ports: 5 ports; comes with 2 straight fittings and 1 elbow fitting installed

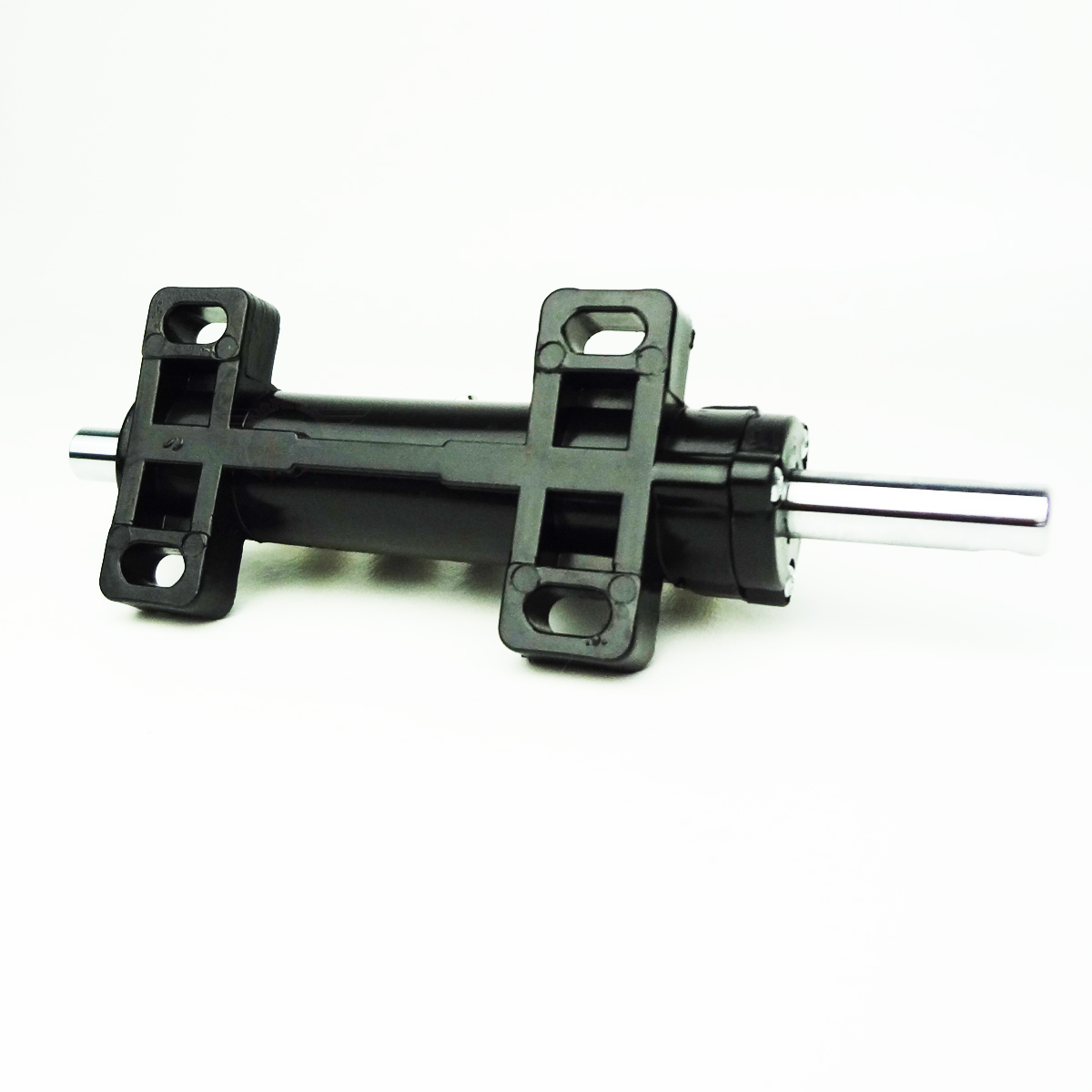

- Mounting: 4 mounting legs (one at each corner), slotted holes for adjustment
- Listed Application: COATS tire changers (bead breaker, clamping jaw, and tilt pedal circuits)
Compatible Makes / Verified Fitment Models
- COATS 9010A
- COATS 9010E
- COATS 9024A
- COATS 9024E
- COATS 9024 E-PAX
Replacement / Cross-Reference Numbers
- COATS 2006297, 82006297
- COATS 2002444, 82002444
- COATS 2002530, 2002531
- COATS 9003-02312
Fitment & Ordering Notes
This valve has 4 mounting legs at each corner and slotted mounting holes for minor adjustment. Compare the valve appearance and mounting pattern to your existing valve before purchasing. This valve may also fit other manufacturers’ tire changers with the same valve configuration. If 3 straight fittings or a T-fitting are needed instead of the included 2 straight + 1 elbow, contact the store before ordering. COATS is a registered trademark of Hennessy Industries, Inc. This is an aftermarket alternative and is not produced by Hennessy Industries, Inc.
