Direct Lift 30500-8000-3-1 Cable Sheave Bracket B / Safety Latch Bracket - Slave Side, Pro 10 & Pro 9D

Description

Direct Lift 30500-8000-3-1 Cable Sheave Bracket B / Safety Latch Bracket – Slave Side, Pro 10 & Pro 9D

Service a worn, stretched, frayed, or damaged lift cable with the 30500-8000-3-1 Cable Sheave Bracket B / Safety Latch Bracket – Slave Side, Pro 10 & Pro 9D, listed for use on compatible equipment. Correct cable fitment is important to proper lift operation, so match the part number and listed application to your Direct Lift equipment before ordering.

Product Information

• Brand / Equipment: Direct Lift
• Manufacturer / Reference Part Number: 30500-8000-3-1
• Store SKU: HAN80003
• Component: Cable Sheave Bracket B / Safety Latch Bracket – Slave Side, Pro 10 & Pro 9D

Fitment & Ordering Notes

Automotive lift manufacturers may use different parts across model years, production runs, or equipment revisions. Before ordering, compare the reference part number and the model/application information in this listing with the identification tag, parts manual, or original component on your lift. If your equipment uses a different part number, verify interchange before installation.

Additional Existing Product / Fitment Information

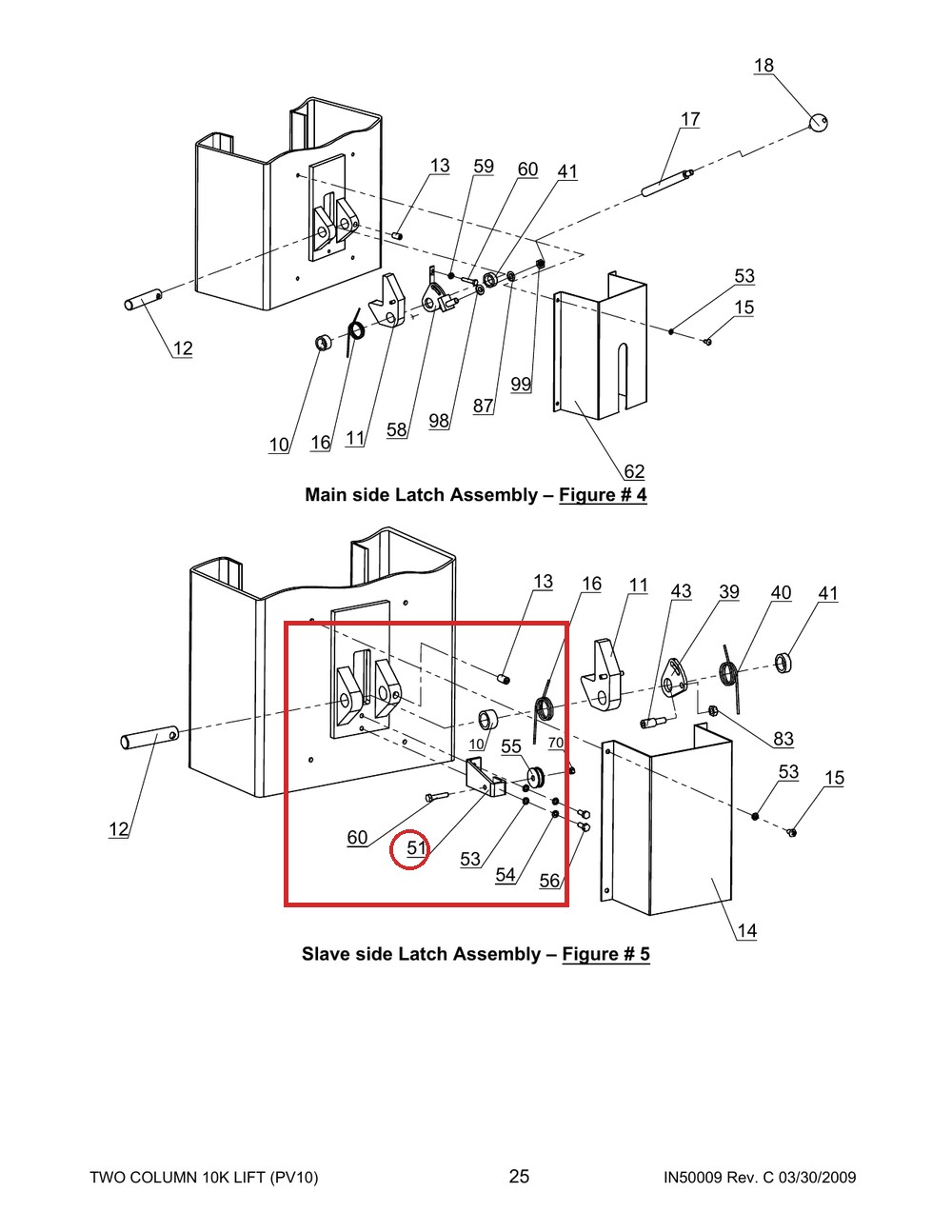

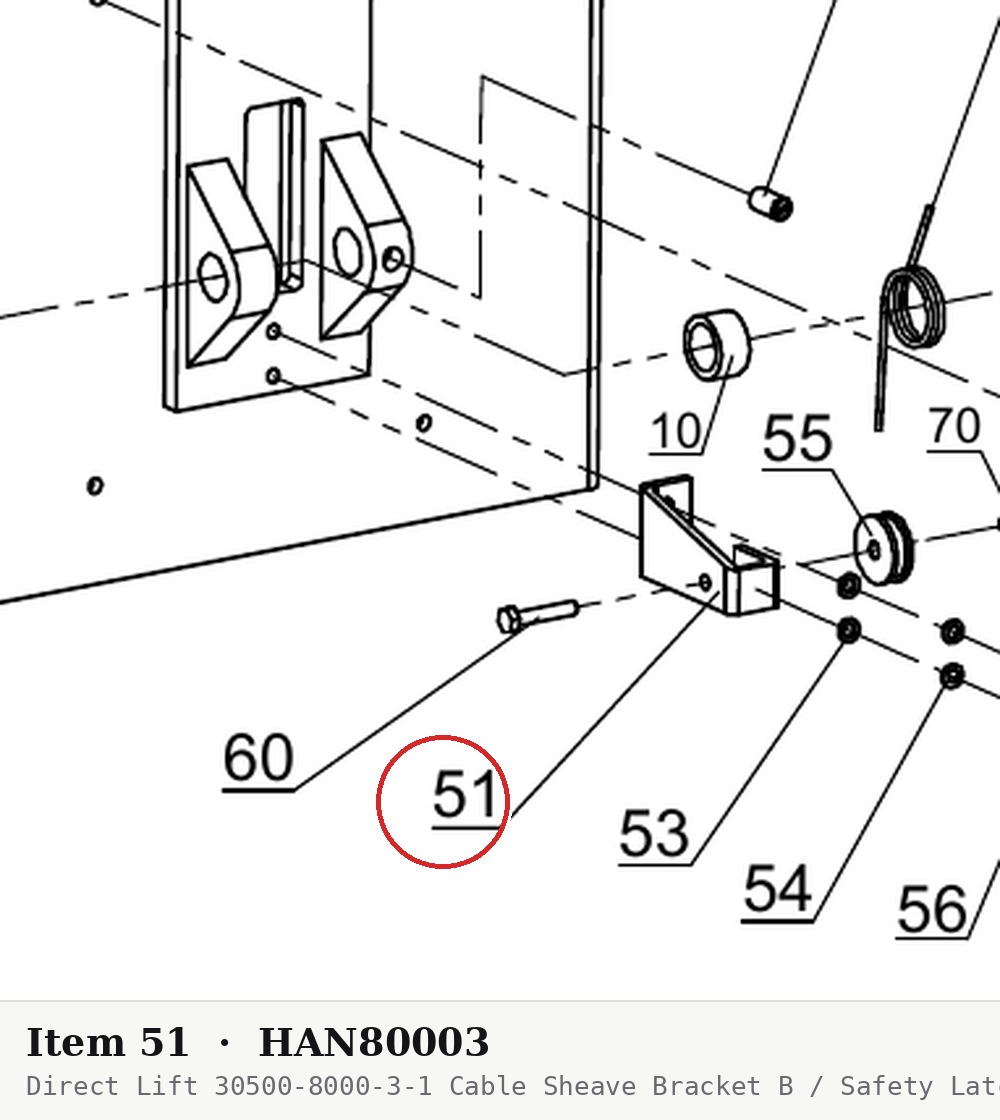

In the drawing images above this is part number 51 in the PARTS BREAKDOWN 2-COLUMN 10K drawing and part number 1.12 in the PARTS BREAKDOWN PRO9D 9K 2-COLUMN drawing and part number 51 in the PRO10 – PROv10 – PV10 new style, r drawing.

Fits the following lift models — part number 30500-8000-3-1 appears in the parts breakdown of each of these lifts: Direct Lift 10K Two-Column, PRO-9D 9K Two-Column, PRO-10 / PROV10 / PV10 (new style), PROV10 (early); PRO-9D.

This bracket mounts the cable pulley at the slave-side safety latch assembly. It guides the latch release cable around the mechanism so the slave-side lock disengages in time with the main side when the lift is lowered.

OEM-style replacement for the factory slave-side sheave/latch bracket on the listed models. The A-side bracket is 30500-8000-2-1, and the I12 uses the 30500-8000-3-1G version of this bracket.
