Direct Lift B51-3*26 Spring Pin 3mm x 26mm for Direct Lift DL9 2-Post Lift

Description

Direct Lift B51-3*26 Spring Pin 3mm x 26mm for Direct Lift DL9 2-Post Lift

Replace missing, worn, or damaged lift hardware with the B51-3*26 Spring Pin 3mm x 26mm, listed for use on Direct Lift DL9 2-Post Lift. This hardware is used when servicing the specified Direct Lift assembly. Match the part number, size or description, and listed application before ordering.

Product Information

• Brand / Equipment: Direct Lift
• Manufacturer / Reference Part Number: B51-3*26
• Store SKU: DITB513
• Component: Spring Pin 3mm x 26mm
• Listed Application: Direct Lift DL9 2-Post Lift

Fitment & Ordering Notes

Automotive lift manufacturers may use different parts across model years, production runs, or equipment revisions. Before ordering, compare the reference part number and the model/application information in this listing with the identification tag, parts manual, or original component on your lift. If your equipment uses a different part number, verify interchange before installation.

Additional Existing Product / Fitment Information

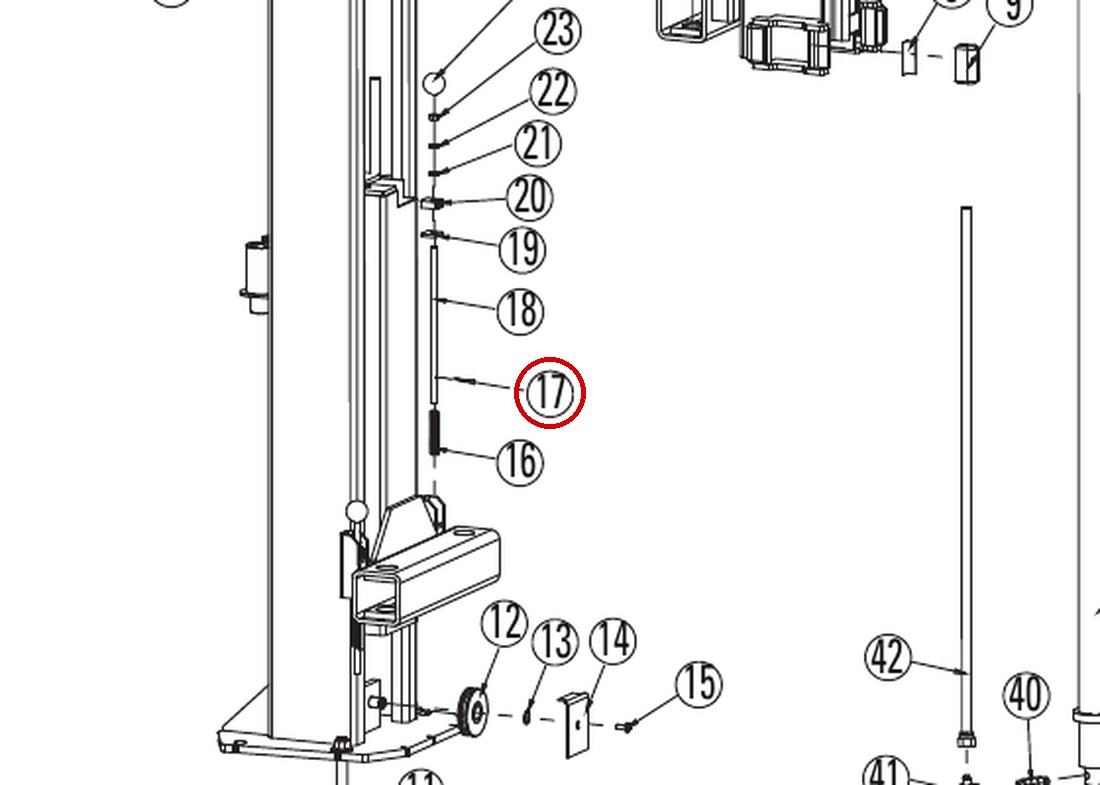

This is part number 17 in the drawing image above.

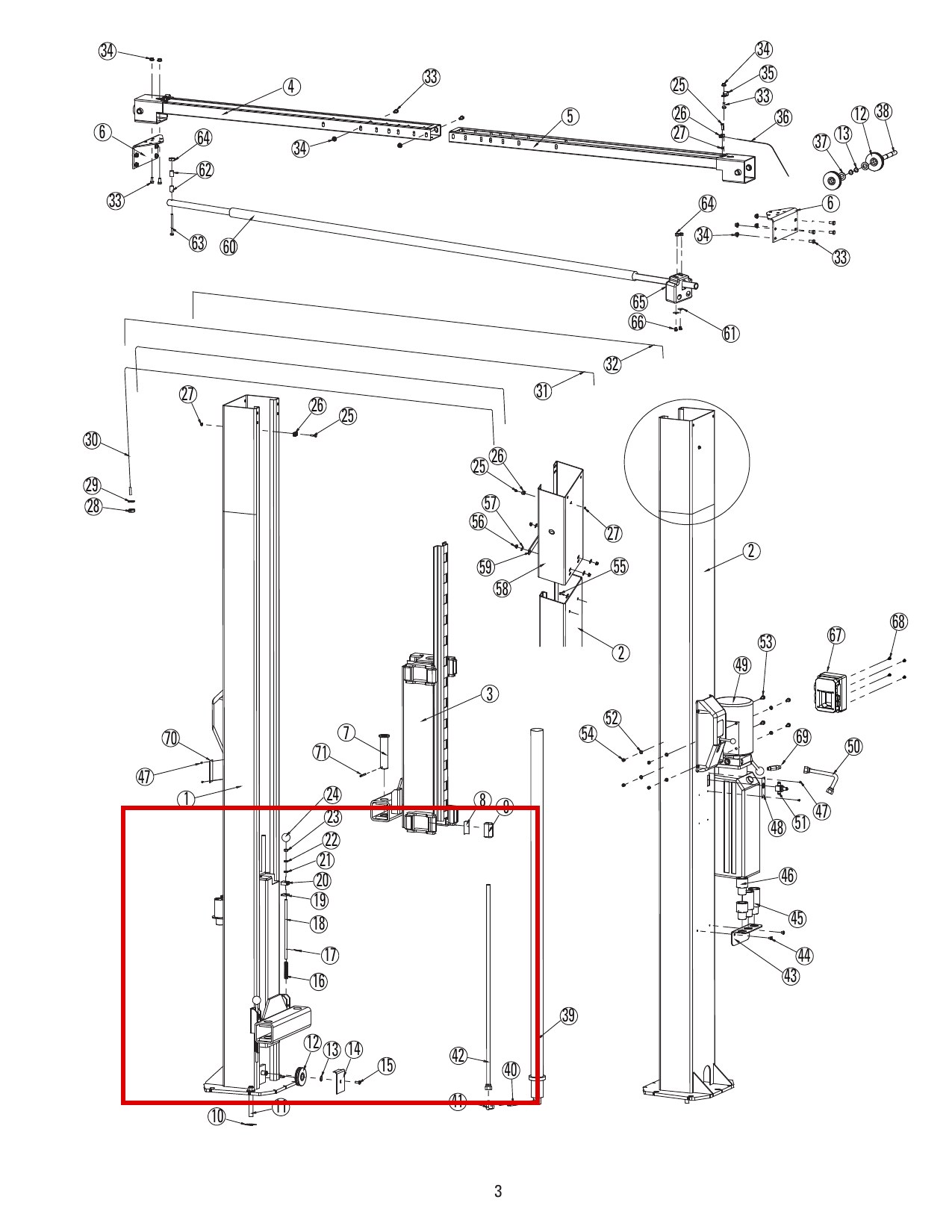

Fits the Direct Lift DL9 2-post lift, shown in Drawing 1 (Main Lift Assembly, page 3) of the DL9 parts breakdown.

This 3mm diameter x 26mm long spring pin (roll pin) is a slotted, spring-tension pin that compresses on installation and holds itself in the bore by outward spring force. On the DL9 it retains components within the main lift assembly.

Direct replacement for the spring pin called out in the DL9 parts diagram. Confirm your callout against Drawing 1 on page 3 of the breakdown before ordering.

Fits these lifts:

• Direct Lift — DL9 (9,000 lb two-post); HR8000 (8,000 lb floor-plate two-post)
• Hanmecson (VSG) — DL9
