Direct Lift B51-6×40 Roll Pin 6mm x 40mm for I12, 10K 2-Post & Pro 9F Floor Plate Lifts

Description

Direct Lift B51-6×40 Roll Pin 6mm x 40mm for I12, 10K 2-Post & Pro 9F Floor Plate Lifts

Replace missing, worn, or damaged lift hardware with the B51-6×40 Roll Pin 6mm x 40mm, listed for use on I12, 10K 2-Post & Pro 9F Floor Plate Lifts. This hardware is used when servicing the specified Direct Lift assembly. Match the part number, size or description, and listed application before ordering.

Product Information

• Brand / Equipment: Direct Lift
• Manufacturer / Reference Part Number: B51-6×40
• Store SKU: DITB516
• Component: Roll Pin 6mm x 40mm
• Listed Application: I12, 10K 2-Post & Pro 9F Floor Plate Lifts

Fitment & Ordering Notes

Automotive lift manufacturers may use different parts across model years, production runs, or equipment revisions. Before ordering, compare the reference part number and the model/application information in this listing with the identification tag, parts manual, or original component on your lift. If your equipment uses a different part number, verify interchange before installation.

Additional Existing Product / Fitment Information

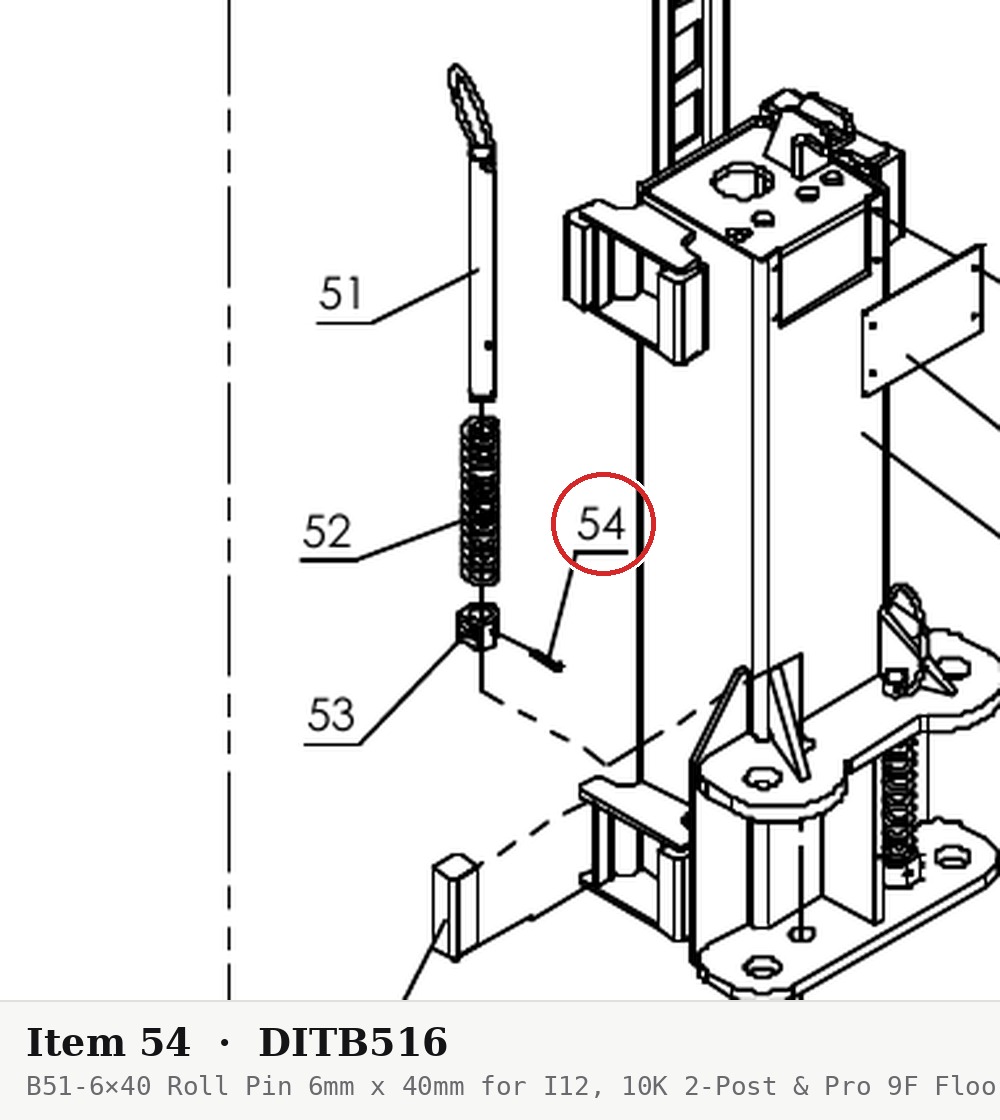

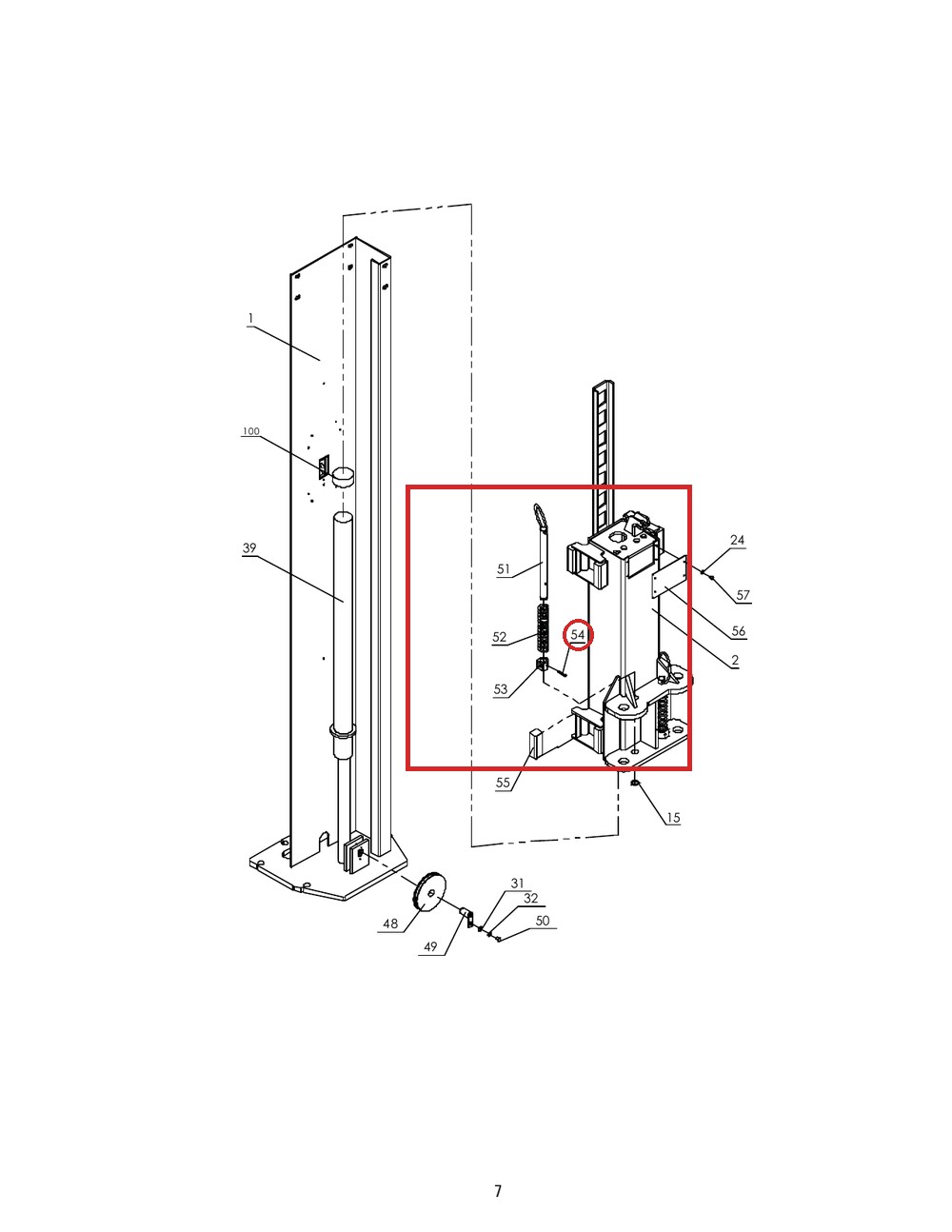

In the drawing images above this is part number 54 in the I12-Parts drawing and part number 71 in the PARTS BREAKDOWN 2-COLUMN 10K drawing and part number 32 in the PARTS BREAKDOWN PRO9F 9K FLOOR PLA drawing.

Fits the following lift models — part number B51-6×40 appears in the parts breakdown of each of these lifts: Direct Lift I12, 10K Two-Column, PRO-9F 9K Floor Plate, PRO-10 / PROV10 / PV10 (new style), PROV12 / PRO-12, PV12, PRO-9F.

This 6mm x 40mm roll pin is shown in the Column & Carriage Components diagram (Figure 8) on the I12 and in Drawing 2 (Carriage / Arm-Lock / Cylinder & Chain Detail, page 24) on the 2-post models. It retains hardware within the carriage, arm-lock, and chain detail areas of the lift columns.

Direct replacement for the OEM pin callout in these breakdowns. Verify your figure and item number before ordering, as carriage assemblies use multiple pin sizes.

Cross-check part number: Direct Lift B51-6×40. This is a Direct Lift replacement part.
