Direct Lift B52-3x60 Cotter Pin 3mm x 60mm for PP8+ Long 8K 4-Post Lift Cylinder & Cable

Description

Direct Lift B52-3×60 Cotter Pin 3mm x 60mm for PP8+ Long 8K 4-Post Lift Cylinder & Cable

Replace missing, worn, or damaged lift hardware with the B52-3×60 Cotter Pin 3mm x 60mm, listed for use on PP8+ Long 8K 4-Post Lift Cylinder & Cable. This hardware is used when servicing the specified Direct Lift assembly. Match the part number, size or description, and listed application before ordering.

Product Information

• Brand / Equipment: Direct Lift
• Manufacturer / Reference Part Number: B52-3×60
• Store SKU: DIT3X60
• Component: Cotter Pin 3mm x 60mm
• Listed Application: PP8+ Long 8K 4-Post Lift Cylinder & Cable

Fitment & Ordering Notes

Automotive lift manufacturers may use different parts across model years, production runs, or equipment revisions. Before ordering, compare the reference part number and the model/application information in this listing with the identification tag, parts manual, or original component on your lift. If your equipment uses a different part number, verify interchange before installation.

Additional Existing Product / Fitment Information

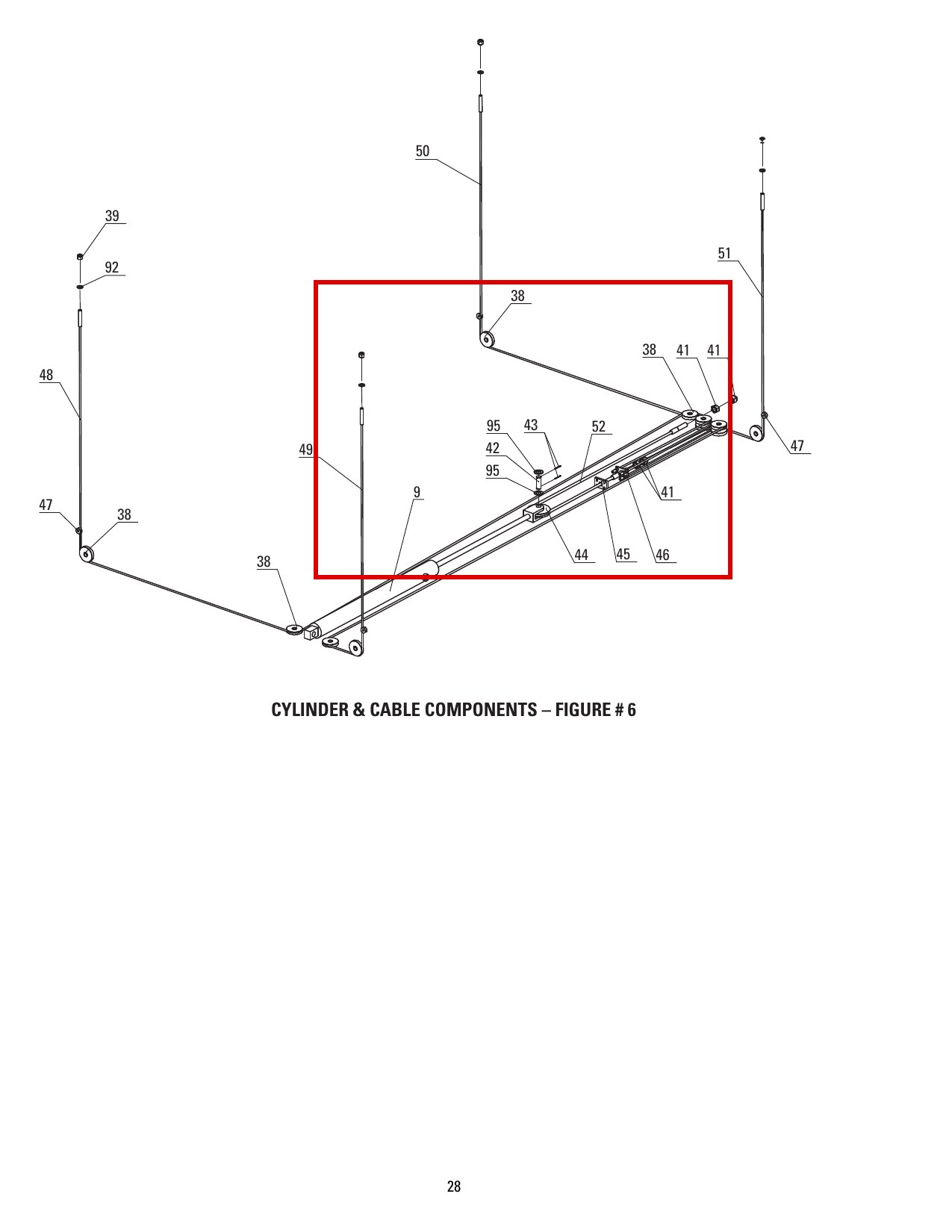

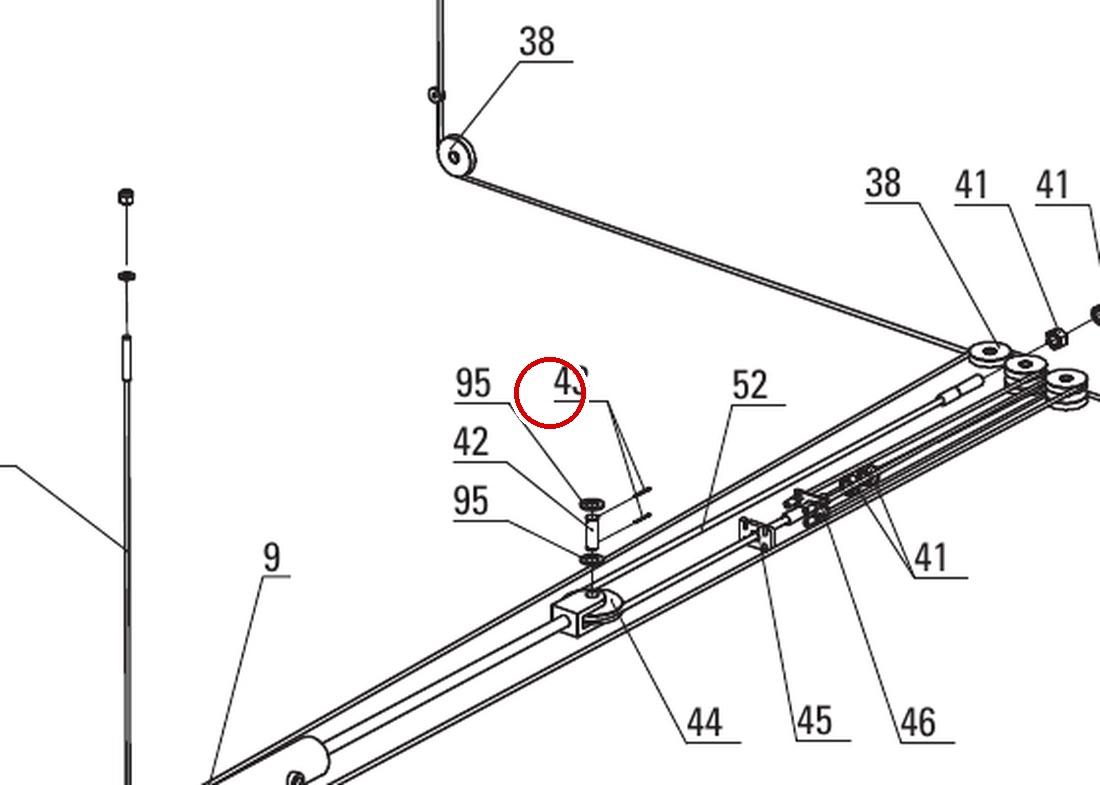

This is part number 43 in the drawing image above.

Fits the Direct Lift PP8+ Long 8,000 lb 4-post lift.

This 3mm x 60mm cotter pin is shown in the Cylinder & Cable Components diagram (Figure 6) of the PP8+ Long parts breakdown. It secures pins and hardware in the hydraulic cylinder and lifting cable path, critical retention points that keep the cable and cylinder connections locked during operation.

OEM replacement from the Light Duty Direct / HI Parts family. Always fit a new cotter pin when servicing cable or cylinder hardware. Confirm the Figure 6 callout in your breakdown before ordering.

Fits these lifts:

• Direct Lift — PP8+ Long (8,000 lb four-post)
