Direct Lift H4P-1100 Cross Beam Assembly, Driving Side for PRO 14F 14000 4-Post Lift

Description

Direct Lift H4P-1100 Cross Beam Assembly, Driving Side for PRO 14F 14000 4-Post Lift

The H4P-1100 Cross Beam Assembly, Driving Side is listed for use on PRO 14F 14000 4-Post Lift and is intended for service or repair of compatible Direct Lift equipment. Match the reference part number, component description, and listed application to your original lift part before ordering.

Product Information

• Brand / Equipment: Direct Lift
• Manufacturer / Reference Part Number: H4P-1100
• Store SKU: DITP1100
• Component: Cross Beam Assembly, Driving Side
• Listed Application: PRO 14F 14000 4-Post Lift

Fitment & Ordering Notes

Automotive lift manufacturers may use different parts across model years, production runs, or equipment revisions. Before ordering, compare the reference part number and the model/application information in this listing with the identification tag, parts manual, or original component on your lift. If your equipment uses a different part number, verify interchange before installation.

Additional Existing Product / Fitment Information

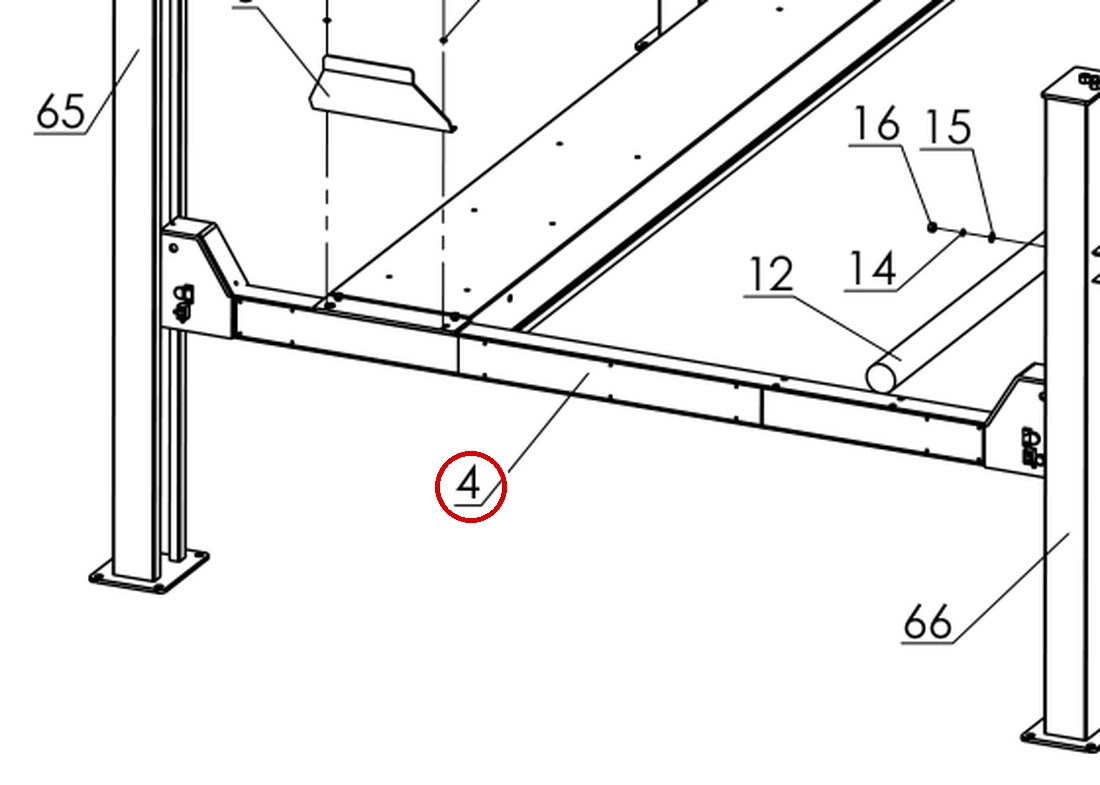

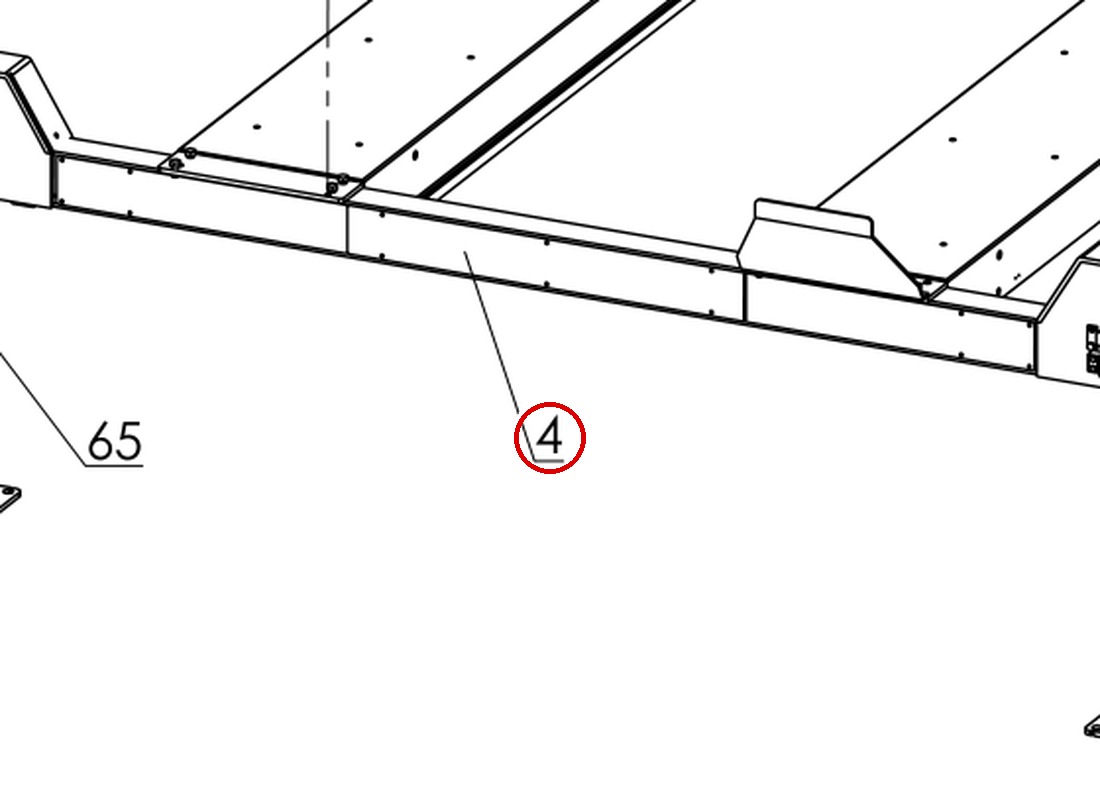

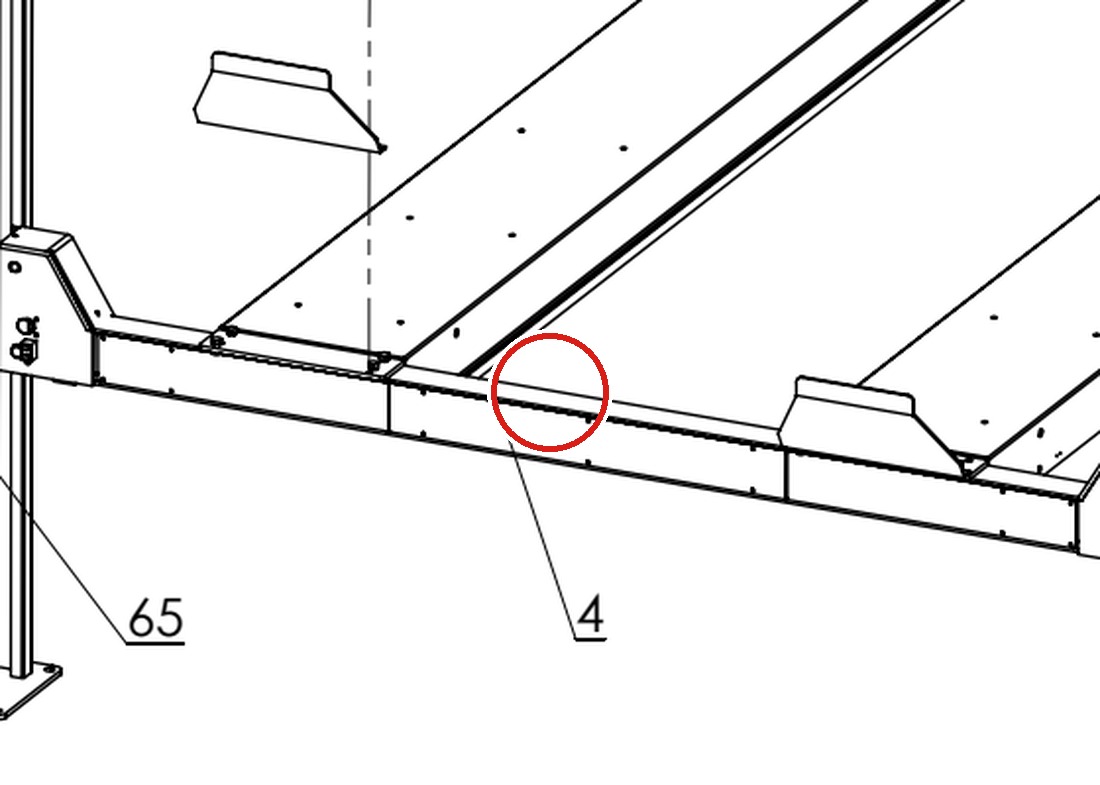

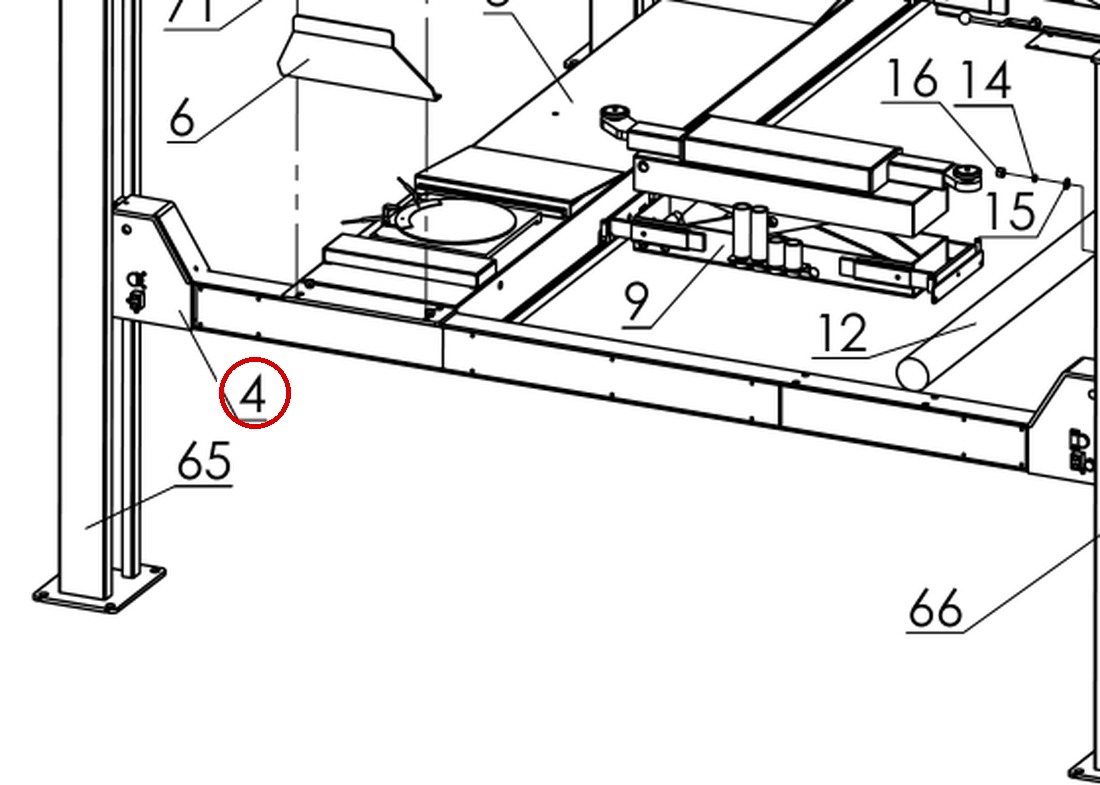

This is part number 4 in the drawing image above.

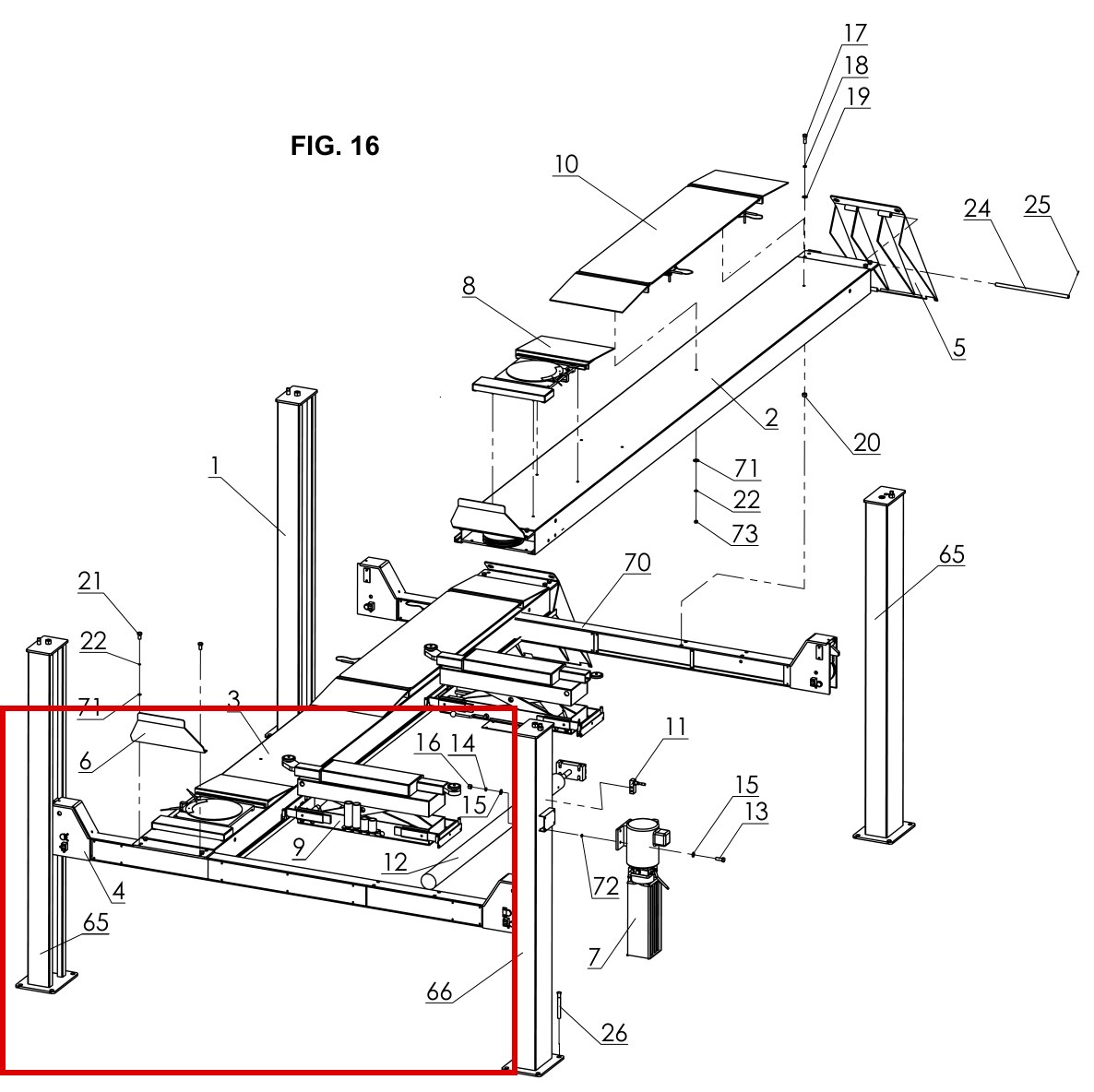

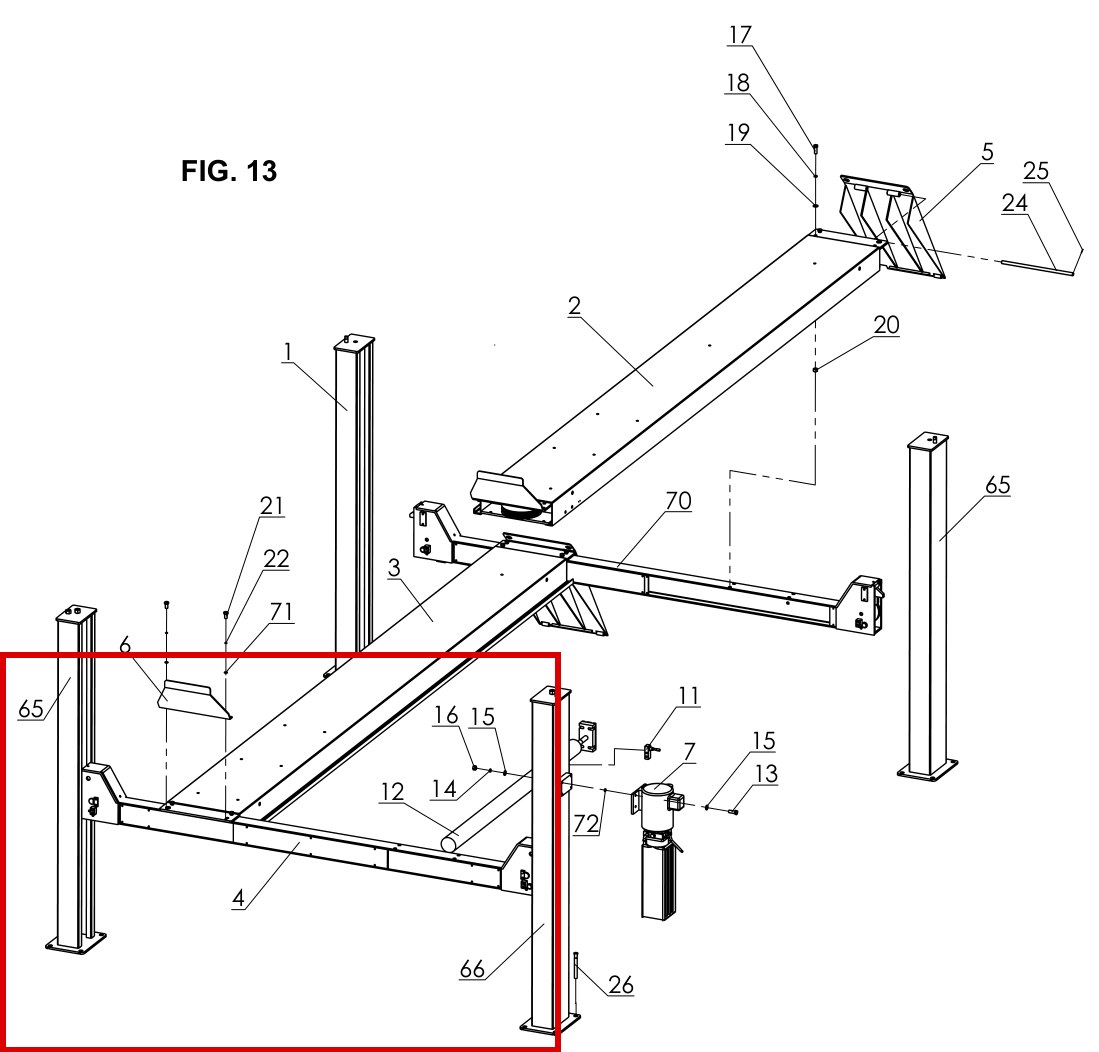

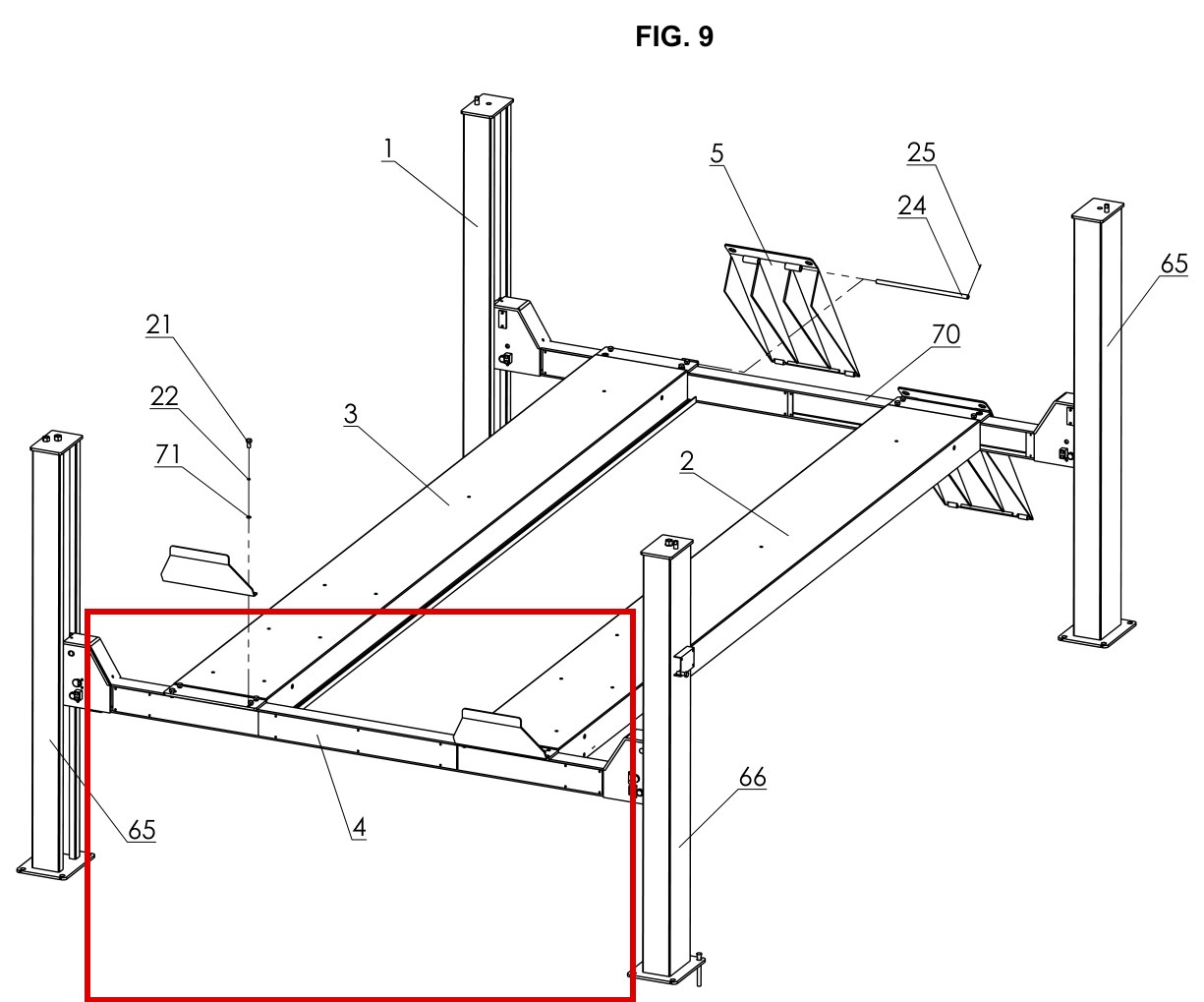

This is the complete driving-side cross beam assembly for the PRO 14F 14,000 lb four-post lift, referenced in FIG. 9, FIG. 13, and FIG. 16 of the parts manual.

The driving-side cross beam is the powered end of the lift’s beam pair, carrying the sheave, latch, and cable hardware on the side where lifting force is applied. Supplied as a full assembly, it is the correct repair when the beam structure itself is damaged rather than an individual latch or sheave component.

OEM-style replacement for the PRO 14F. Note the matching slave-side assembly is H4P-1200; confirm which side you need against the figure references before ordering.

Cross-check part number: Direct Lift H4P-1100. This is a Direct Lift replacement part.
