Direct Lift H4P-6002 Air Hose for Pro 14F 14,000 lb 4-Post Lift

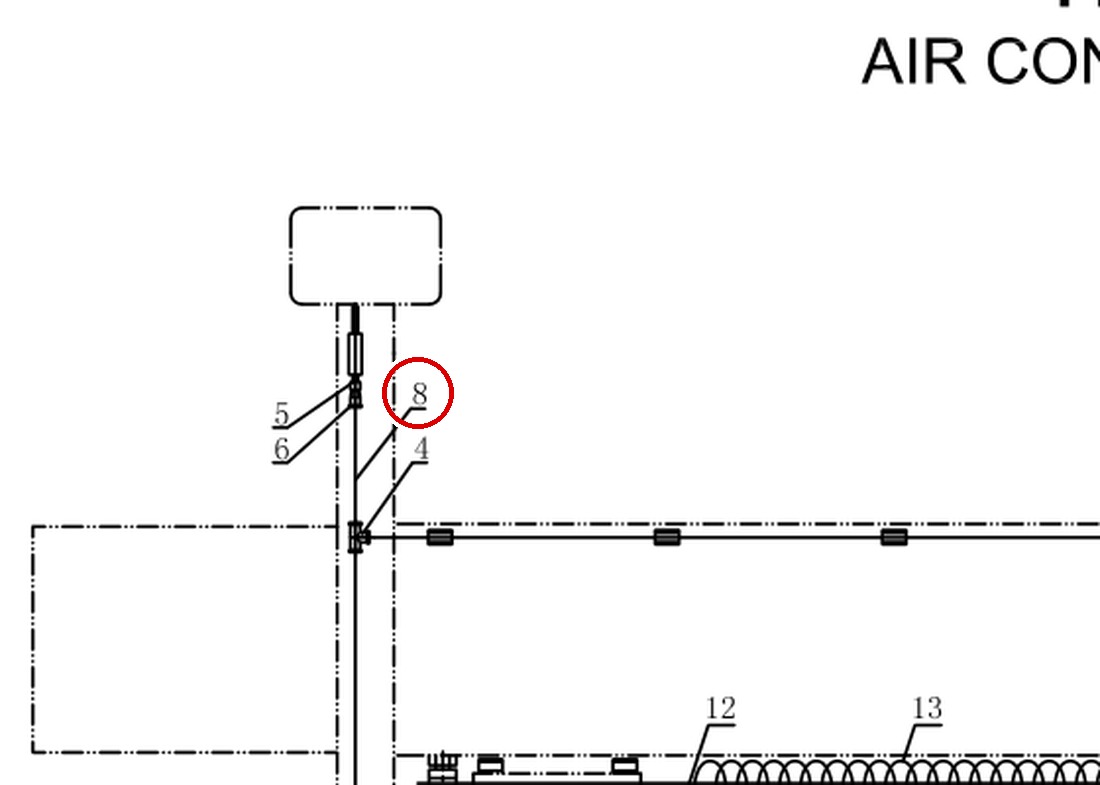

DITP6002 Air Connections Fig 17 item 8-a

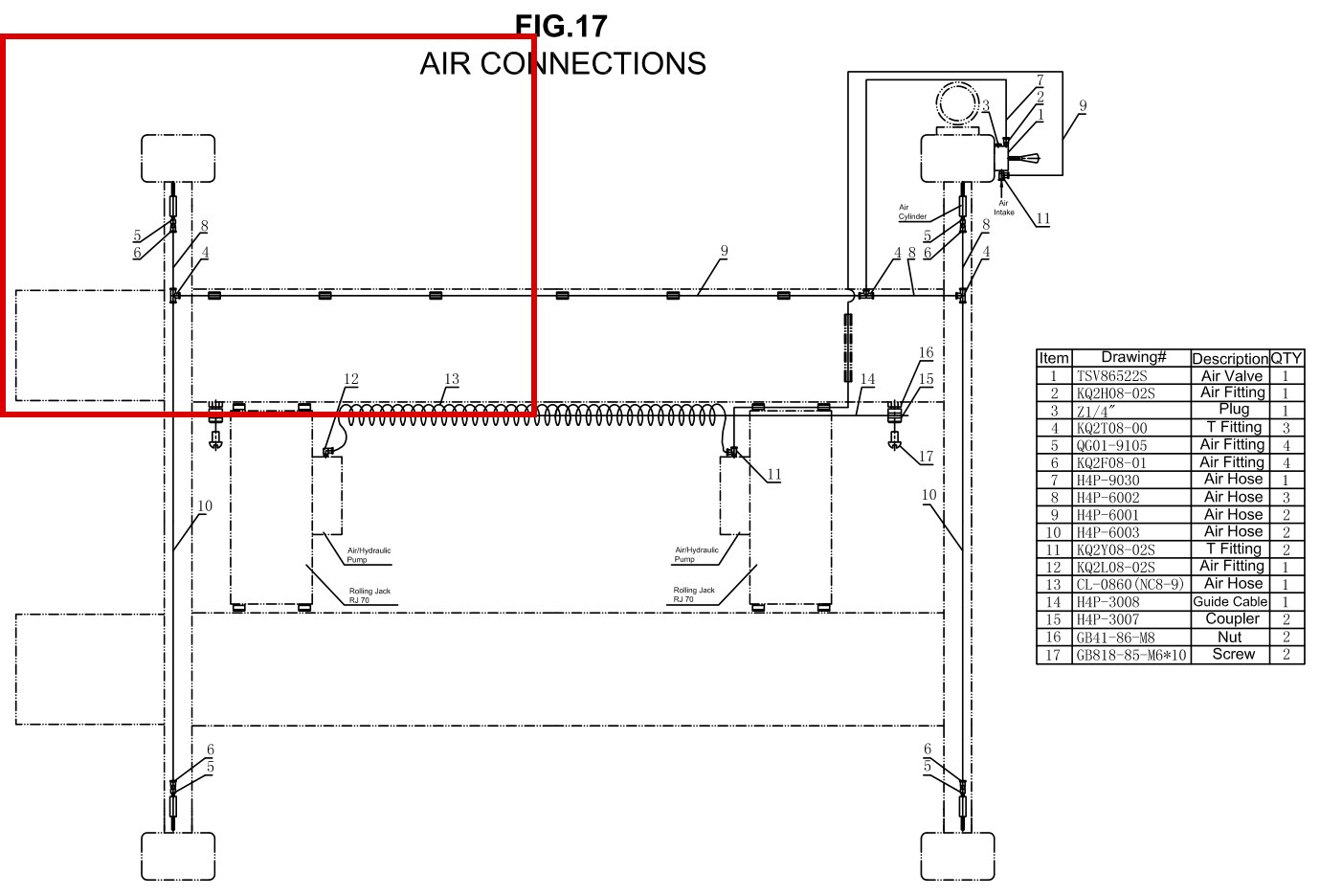

DITP6002 Air Connections Fig 17 item 8-a (location)

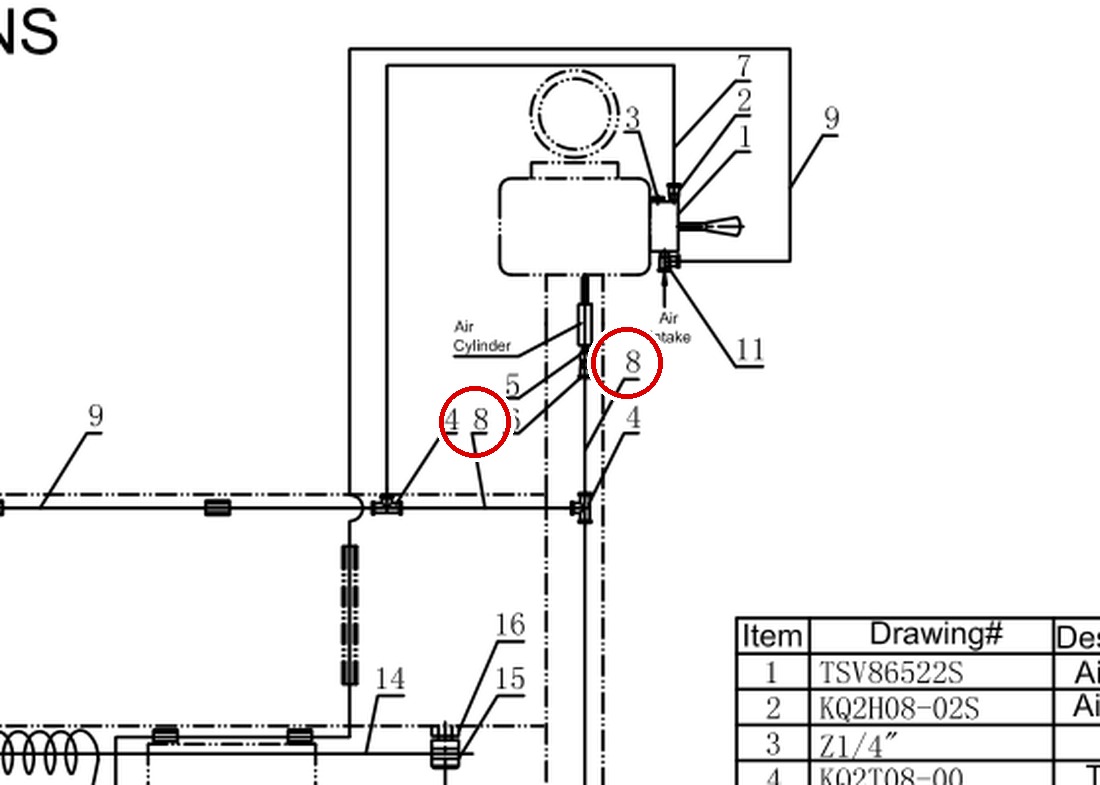

DITP6002 Air Connections Fig 17 item 8-b

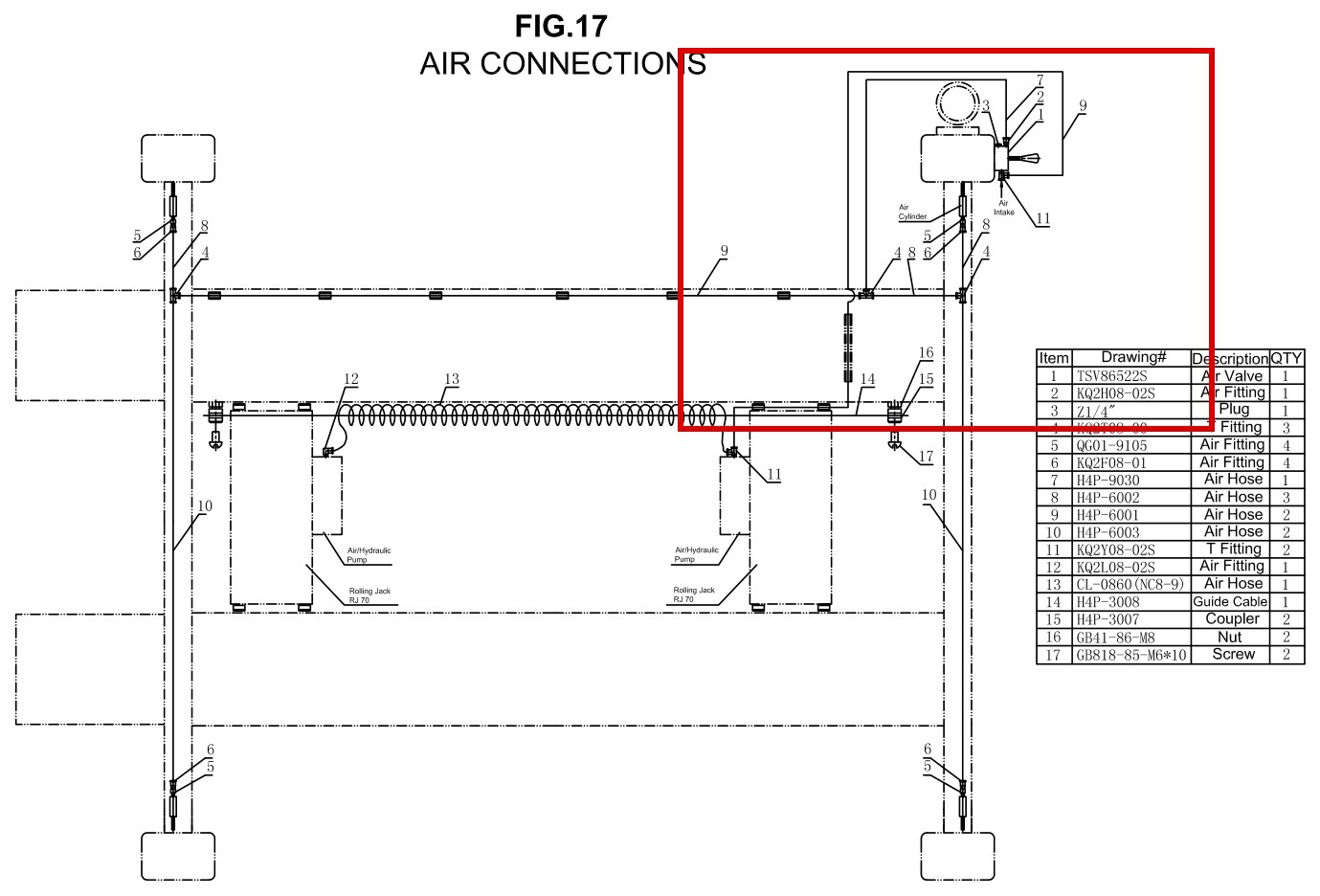

DITP6002 Air Connections Fig 17 item 8-b (location)

$58.13

Availability: In Stock

SKU: DITP6002

Direct Lift H4P-6002 — Air Hose for Pro 14F 14,000 lb 4-Post Lift. Use the part number and listed lift application to confirm compatibility before ordering.

Air hose for the Direct Lift Pro 14F 14,000 lb four-post lift air connections, from FIG. 17 of the parts breakdown.

Availability may vary depending on vendor stock.

Description

Direct Lift H4P-6002 Air Hose for Pro 14F 14,000 lb 4-Post Lift

The H4P-6002 Air Hose is listed for use on Pro 14F 14,000 lb 4-Post Lift and is intended for service or repair of compatible Direct Lift equipment. Match the reference part number, component description, and listed application to your original lift part before ordering.

Product Information

Brand / Equipment: Direct Lift
Manufacturer / Reference Part Number: H4P-6002
Store SKU: DITP6002
Component: Air Hose
Listed Application: Pro 14F 14,000 lb 4-Post Lift

Fitment & Ordering Notes

Automotive lift manufacturers may use different parts across model years, production runs, or equipment revisions. Before ordering, compare the reference part number and the model/application information in this listing with the identification tag, parts manual, or original component on your lift. If your equipment uses a different part number, verify interchange before installation.

Additional Existing Product / Fitment Information

This is part number 8 in the drawing image above.

Fits Direct Lift Pro 14F 14,000 lb.

The H4P-6002 air hose is shown in FIG. 17 (Air Connections) of the Pro 14F parts breakdown. It routes shop air through the lift’s air system that actuates the safety lock release, allowing the mechanical locks to be pulled clear when lowering the lift. Air leaks in this circuit typically show up as locks that will not release evenly at all four corners.

Direct OEM-style replacement. The Pro 14F uses several air hoses of different lengths (H4P-6001, H4P-6002, H4P-6003), so verify the position in FIG. 17 to order the correct one.
