Forward Lift 40275 M5 x 10 Phillips Head Machine Screw Plated for DL9, DP10 & I10 Two-Post Lifts

Description

Forward Lift 40275 M5 x 10 Phillips Head Machine Screw Plated for DL9, DP10 & I10 Two-Post Lifts

Replace missing, worn, or damaged lift hardware with the 40275 M5 x 10 Phillips Head Machine Screw Plated, listed for use on DL9, DP10 & I10 Two-Post Lifts. This hardware is used when servicing the specified Forward Lift assembly. Match the part number, size or description, and listed application before ordering.

Product Information

• Brand / Equipment: Forward Lift
• Manufacturer / Reference Part Number: 40275
• Store SKU: FOD0275
• Component: M5 x 10 Phillips Head Machine Screw Plated
• Listed Application: DL9, DP10 & I10 Two-Post Lifts

Fitment & Ordering Notes

Automotive lift manufacturers may use different parts across model years, production runs, or equipment revisions. Before ordering, compare the reference part number and the model/application information in this listing with the identification tag, parts manual, or original component on your lift. If your equipment uses a different part number, verify interchange before installation.

Additional Existing Product / Fitment Information

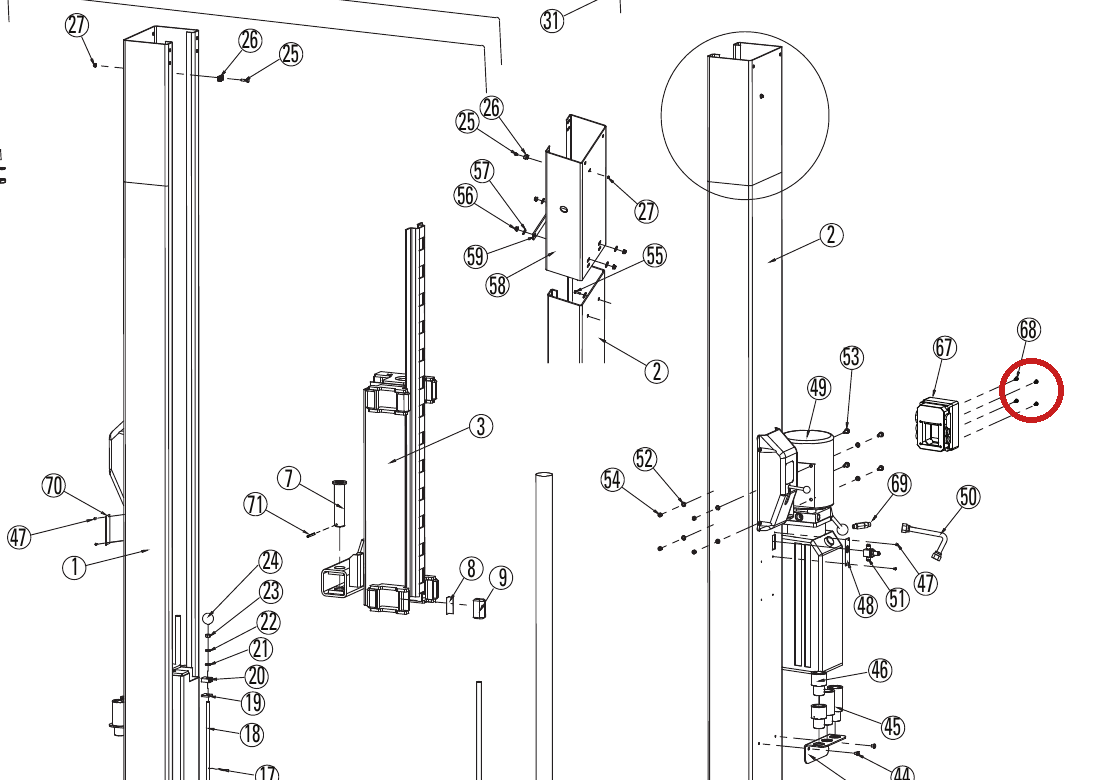

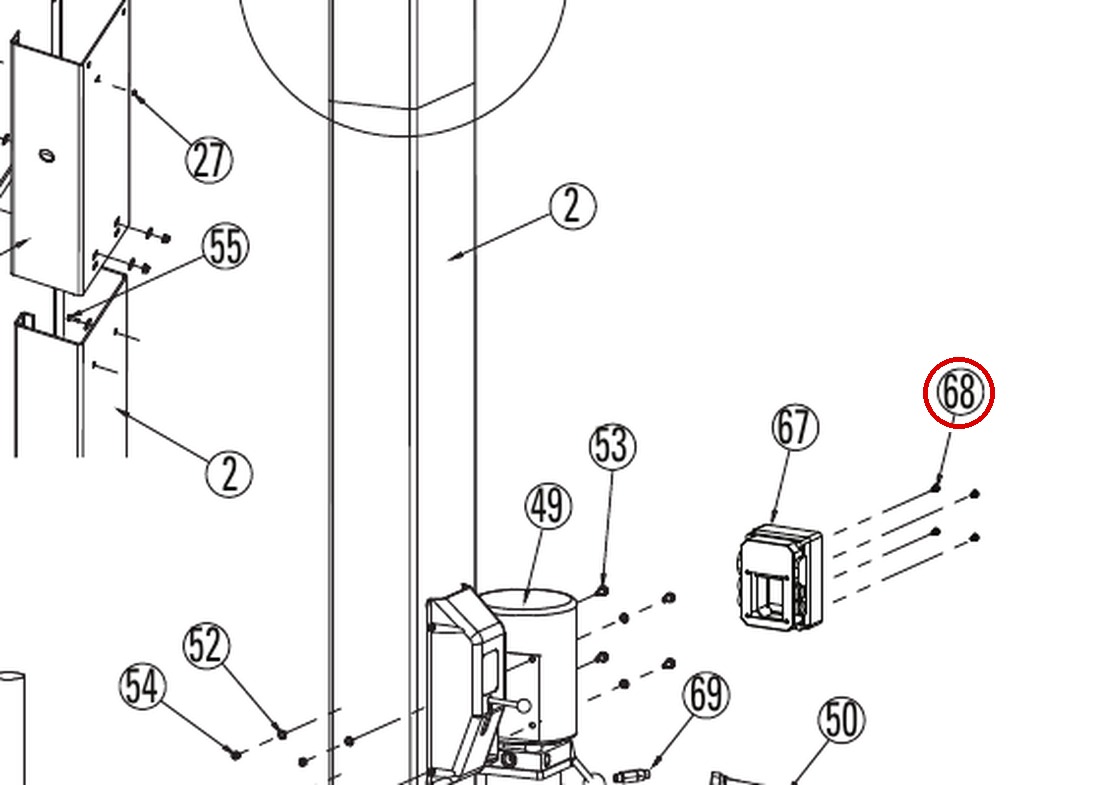

In the drawing images above this is part number 68 in the DL9 parts drawing and part number 72 in the DP10-Parts new style w lock covers drawing and part number 73 in the I10N000M drawing.

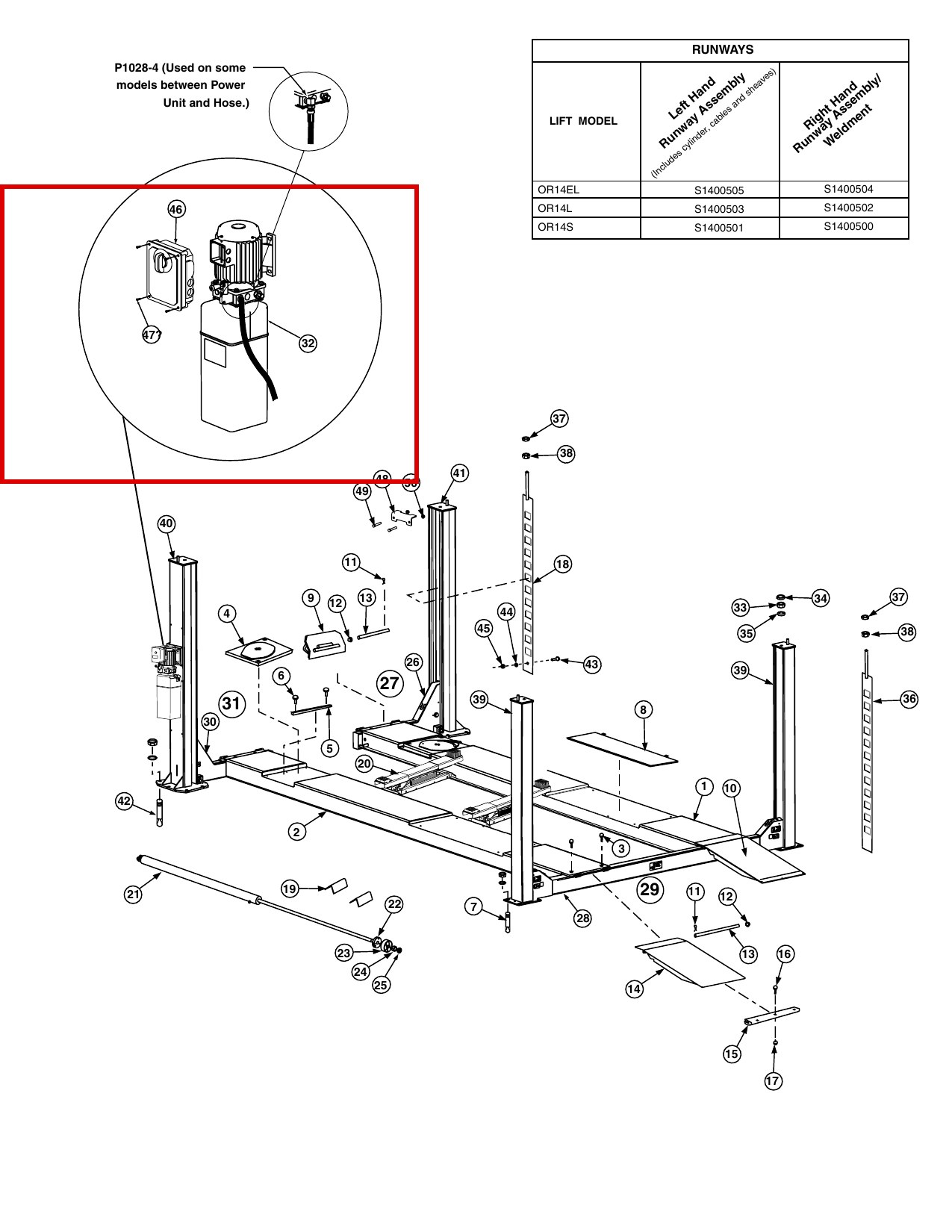

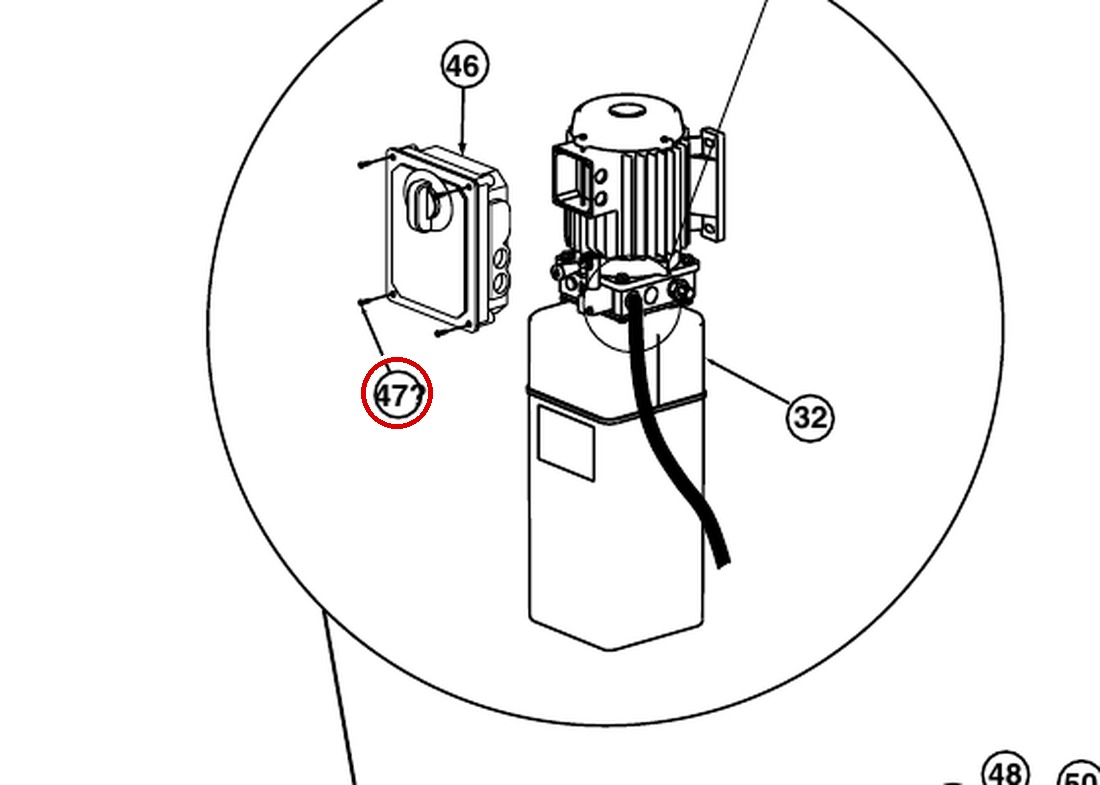

Fits the following lift models — part number 40275 appears in the parts breakdown of each of these lifts: Rotary Lift DL9, DP10 (new style with lock covers), I10N000M, 12K Four-Post Open-Front, OR14 14K Four-Post; Direct Lift I12.

The Rotary Lift 40275 is an M5 x 10mm Phillips head machine screw (PHMS), plated, from Rotary’s two-post parts family.

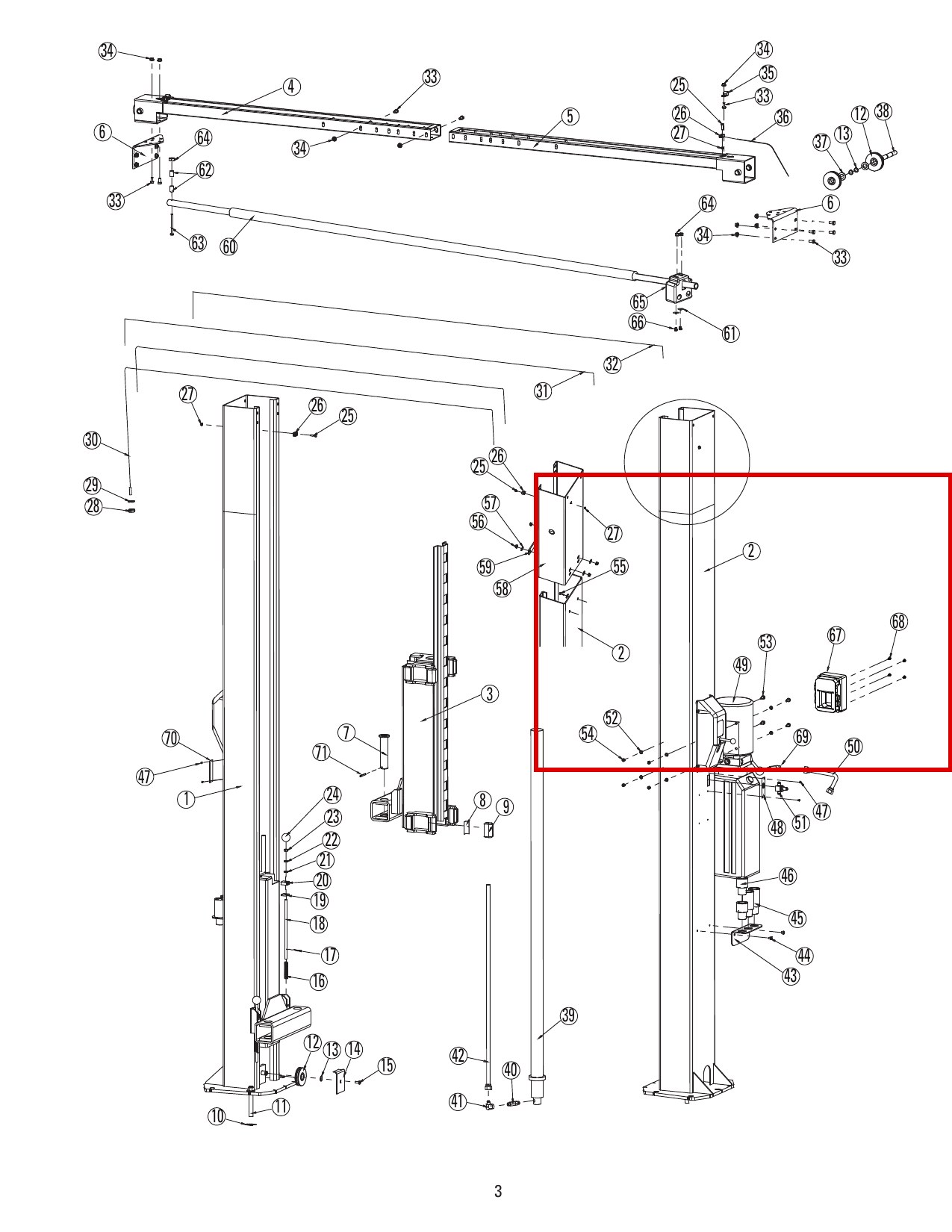

It is called out in the DL9 breakdown (Drawing 1, Main Lift Assembly, page 3, and Drawing 7 covering the overhead switch bar and 3-phase control on page 10), the DP10 new-style breakdown, and the I10N000M breakdown (columns, overhead, carriage and power unit). Some callouts note it is used on 3-phase configurations only.

OEM-spec metric replacement screw. Confirm your lift’s phase configuration and drawing callout before ordering.

Cross-check part number: Forward Lift 40275. This is a Forward Lift replacement part.

Fits these lifts:

• Direct Lift — DL9 (9,000 lb two-post); I12 (12,000 lb two-post)
• Hanmecson (VSG) — DL9
• Forward Lift — DP10 (new style with lock covers); I10 (I10N000M)
