Forward Lift 991480 Overhead Switch Bar Spacer for I10 / INT 10 & All 2-Post Lifts Since 2002

Description

Forward Lift 991480 Overhead Switch Bar Spacer for I10 / INT 10 & All 2-Post Lifts Since 2002

Repair the applicable lift control or electrical system with the 991480 Overhead Switch Bar Spacer, listed for use on I10 / INT 10 & All 2-Post Lifts Since 2002. Because electrical components can vary by model and production revision, verify the part number and listed Forward Lift application before ordering.

Product Information

• Brand / Equipment: Forward Lift
• Manufacturer / Reference Part Number: 991480
• Store SKU: ROY1480
• Component: Overhead Switch Bar Spacer
• Listed Application: I10 / INT 10 & All 2-Post Lifts Since 2002

Fitment & Ordering Notes

Automotive lift manufacturers may use different parts across model years, production runs, or equipment revisions. Before ordering, compare the reference part number and the model/application information in this listing with the identification tag, parts manual, or original component on your lift. If your equipment uses a different part number, verify interchange before installation.

Additional Existing Product / Fitment Information

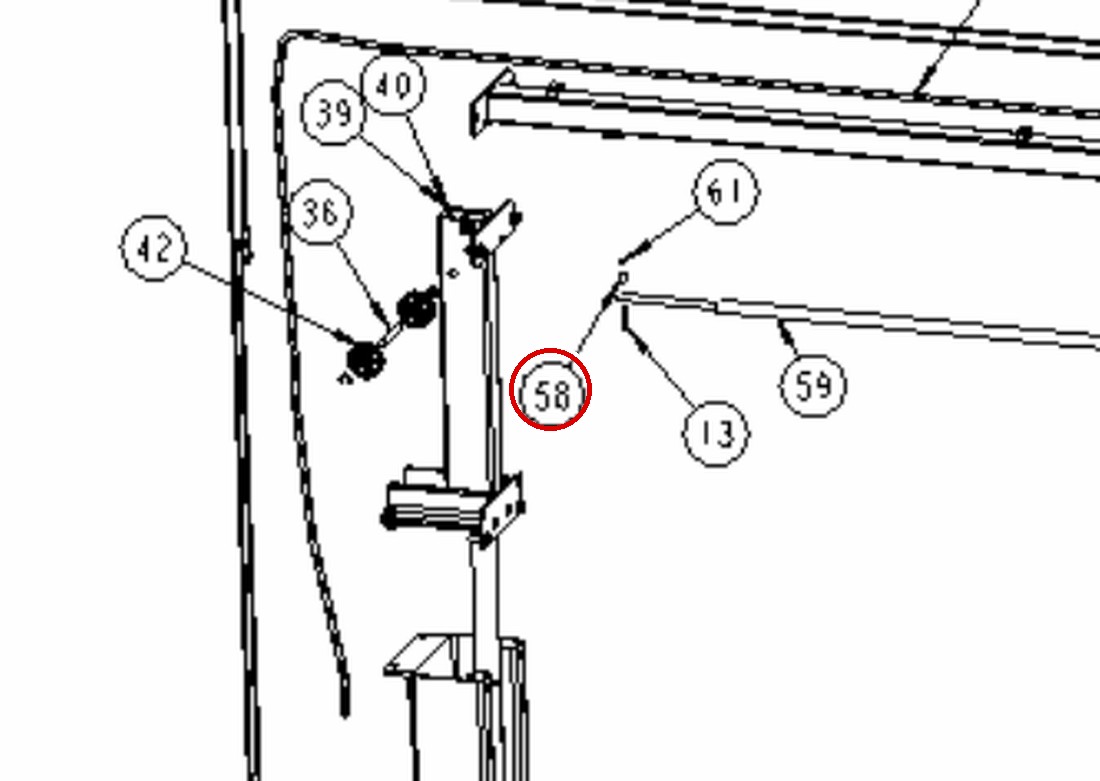

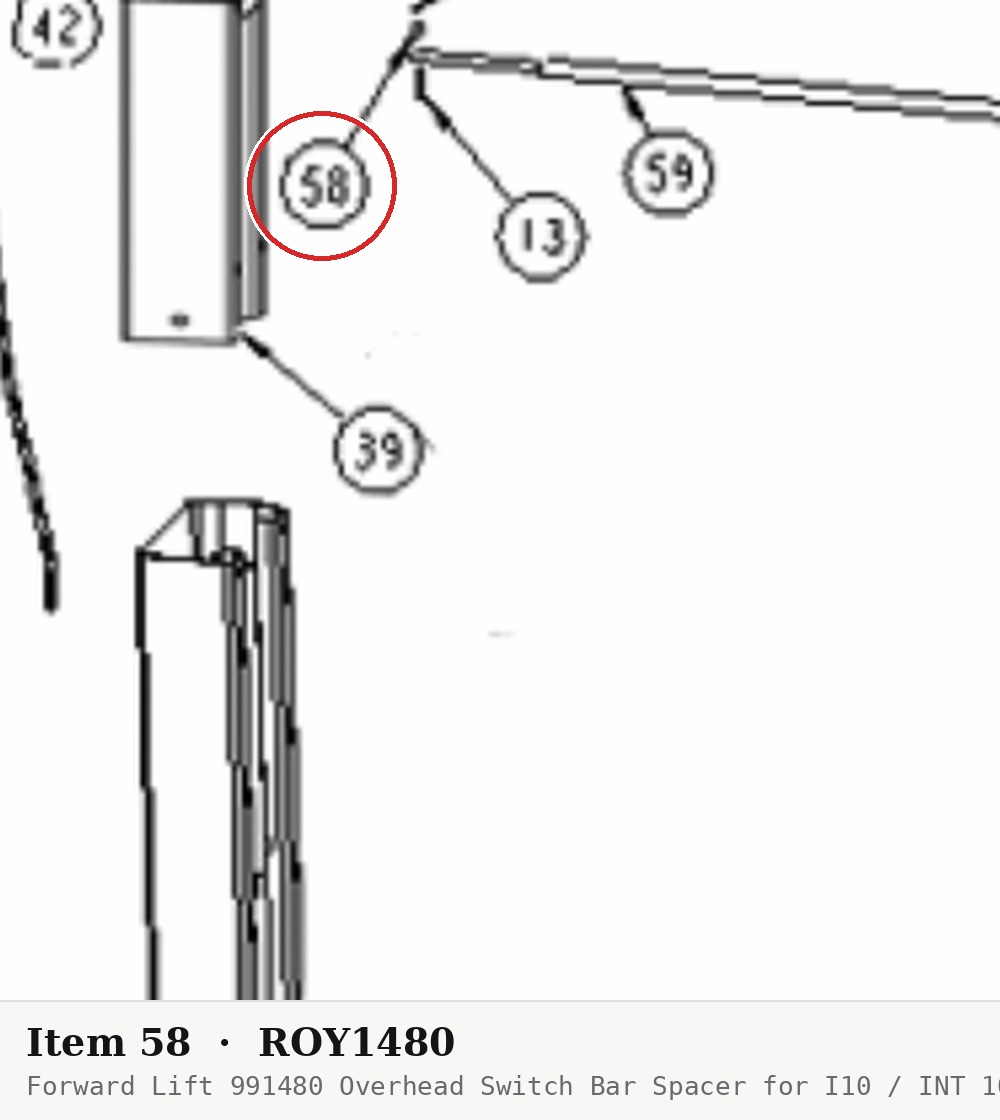

In the drawing images above this is part number 58 in the I10 drawing and part number 58 in the I10111000 drawing and part number 58 in the INT 10 drawing.

Fits the following lift models — part number 991480 appears in the parts breakdown of each of these lifts: Forward Lift I10, I10 (111000), INT10, INT9, DP9A-S, DP10 10K Two-Post, DP12-2 / DP15-2 12K.

This spacer positions the overhead switch bar correctly relative to the shutoff switch, ensuring the bar can travel and actuate the switch when a vehicle contacts it. Worn or missing spacers can cause the switch bar to bind or fail to trip the overhead cutoff, compromising the lift’s overhead safety system.

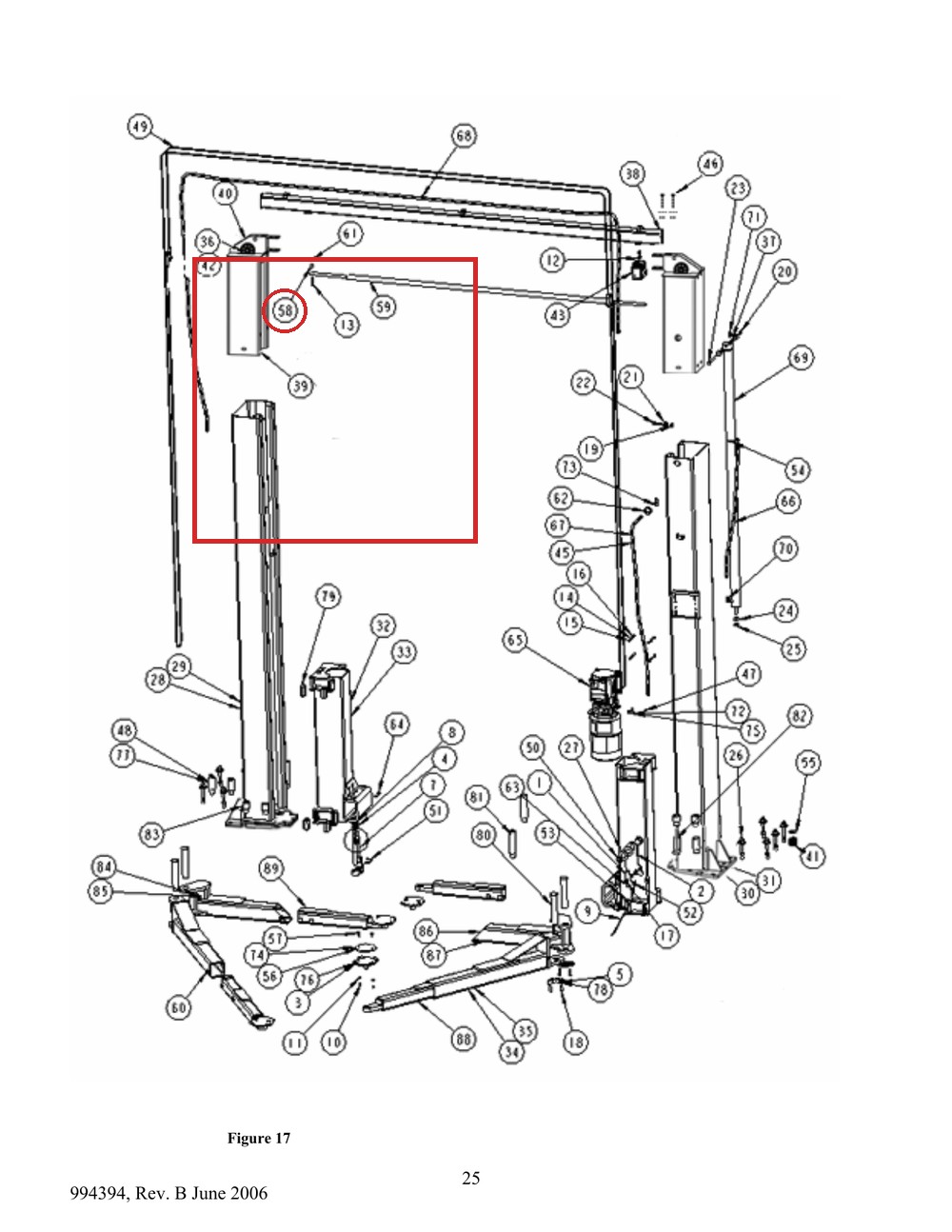

OEM replacement Forward part, listed in the catalog as fitting all 2-post models since 2002. Verify against Figure 16/17 of your parts breakdown before ordering.

Cross-check part number: Forward Lift 991480. This is a Forward Lift replacement part.
