Forward Lift FA7366 3-Phase Switch Box / Control Box for CR18, CRA14 and DL9 Lifts

Description

Forward Lift FA7366 3-Phase Switch Box / Control Box for CR18, CRA14 and DL9 Lifts

Repair the applicable lift control or electrical system with the FA7366 3-Phase Switch Box / Control Box, listed for use on CR18, CRA14 and DL9 Lifts. Because electrical components can vary by model and production revision, verify the part number and listed Forward Lift application before ordering.

Product Information

• Brand / Equipment: Forward Lift
• Manufacturer / Reference Part Number: FA7366
• Store SKU: FOD7366
• Component: 3-Phase Switch Box / Control Box
• Listed Application: CR18, CRA14 and DL9 Lifts

Fitment & Ordering Notes

Automotive lift manufacturers may use different parts across model years, production runs, or equipment revisions. Before ordering, compare the reference part number and the model/application information in this listing with the identification tag, parts manual, or original component on your lift. If your equipment uses a different part number, verify interchange before installation.

Additional Existing Product / Fitment Information

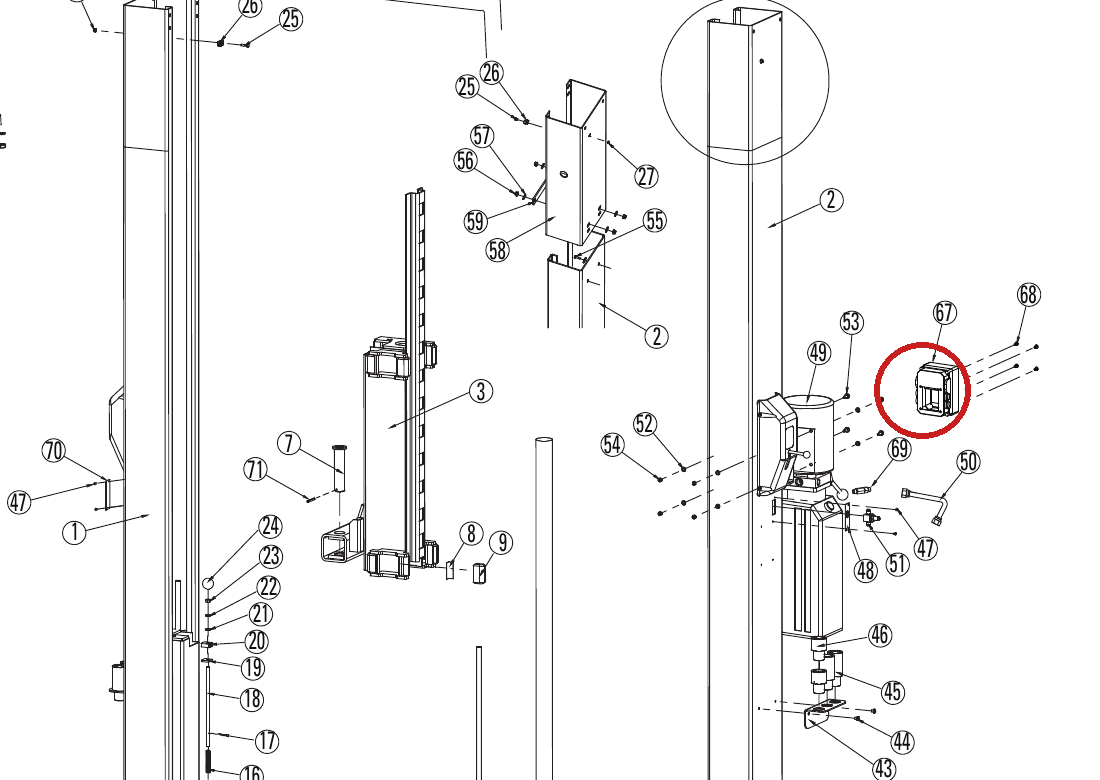

In the drawing images above this is part number 36 in the CR18-Parts drawing and part number 29 in the CRA14_PARTS-BREAKDOWN drawing and part number 67 in the DL9 parts drawing.

Fits the following lift models — part number FA7366 appears in the parts breakdown of each of these lifts: Rotary Lift CR18, DL9, DP10 (new style with lock covers), I10N000M; Forward Lift CRA14, CR14 (newer); Direct Lift I12.

CONTROL_3PH (only 3 phase use) | Fits CR18, CRA14 and DL9 lifts.

This control box is the 3-phase switching assembly used on the CR18 (Main Lift Assembly), CRA14 (overhead switch bar and 3-phase control) and DL9 (Main Assembly) lifts. It is used only on 3-phase installations and contains the drum switch and capacitor box components that operate the lift motor. Per the parts breakdown, the assembly includes the capacitor box (FA7147-1), capacitor box cover plate (FA7366-1) and drum switch.

OEM replacement control box. Confirm your lift is a 3-phase configuration and match the part number to your model’s parts breakdown before ordering. On newer models this assembly has been superseded by the FA9147 push button control box.

Cross-check part number: Forward Lift FA7366. This is a Forward Lift replacement part.

Fits these lifts:

• Direct Lift — DL9 (9,000 lb two-post); I12 (12,000 lb two-post)
• Hanmecson (VSG) — DL9
• Forward Lift — CR18 (four-post); CRA14; DP10 (new style with lock covers); I10 (I10N000M)
