Rotary 41388 Machine Bushing 1-1/2" OD x .765" ID x .045" - DL9, DP10 & I10 Locking Latch Detail

Description

Rotary 41388 Machine Bushing 1-1/2" OD x .765" ID x .045" – DL9, DP10 & I10 Locking Latch Detail

The 41388 Machine Bushing 1-1/2" OD x .765" ID x .045" – DL9, DP10 & I10 Locking Latch Detail is listed for use on compatible equipment and is intended for service or repair of compatible Rotary Lift equipment. Match the reference part number, component description, and listed application to your original lift part before ordering.

Product Information

• Brand / Equipment: Rotary Lift
• Manufacturer / Reference Part Number: 41388
• Store SKU: ROY1388
• Component: Machine Bushing 1-1/2" OD x .765" ID x .045" – DL9, DP10 & I10 Locking Latch Detail

Fitment & Ordering Notes

Automotive lift manufacturers may use different parts across model years, production runs, or equipment revisions. Before ordering, compare the reference part number and the model/application information in this listing with the identification tag, parts manual, or original component on your lift. If your equipment uses a different part number, verify interchange before installation.

Additional Existing Product / Fitment Information

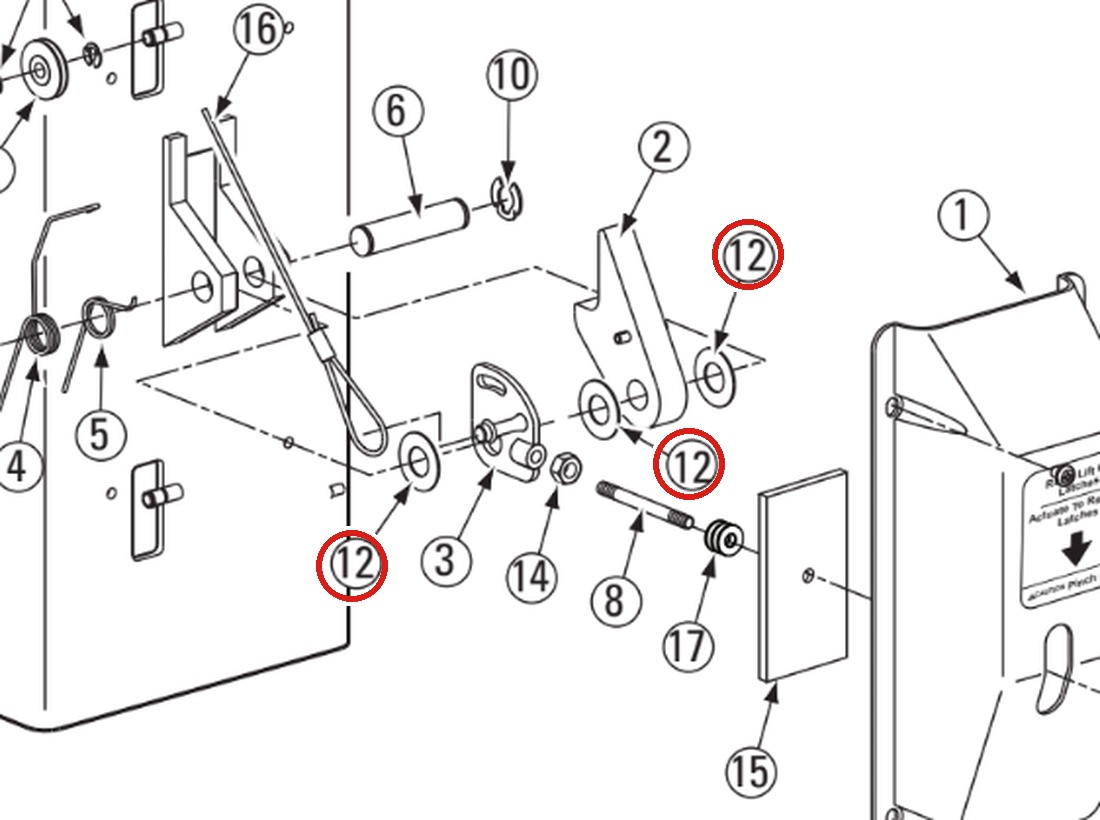

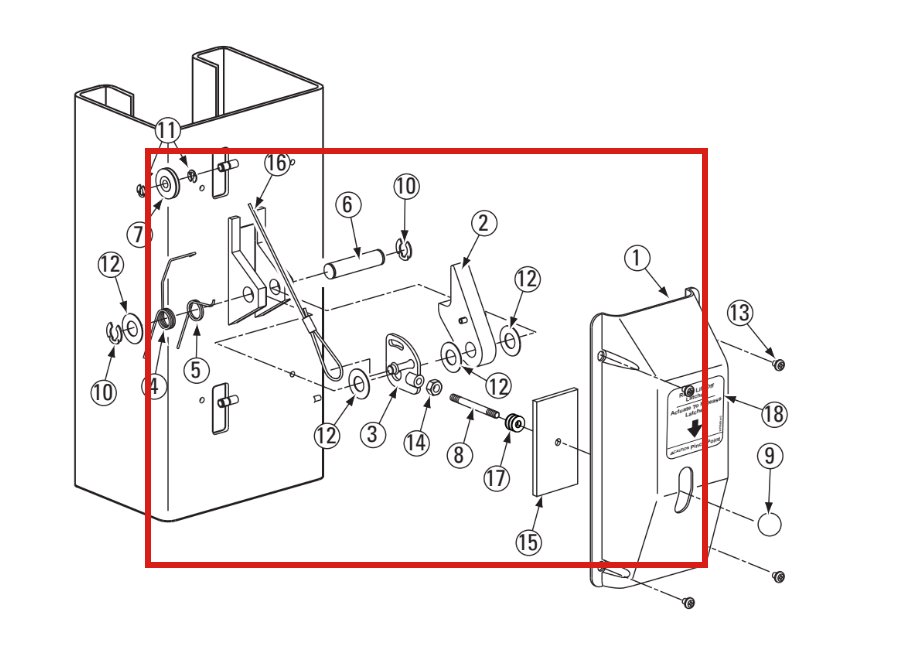

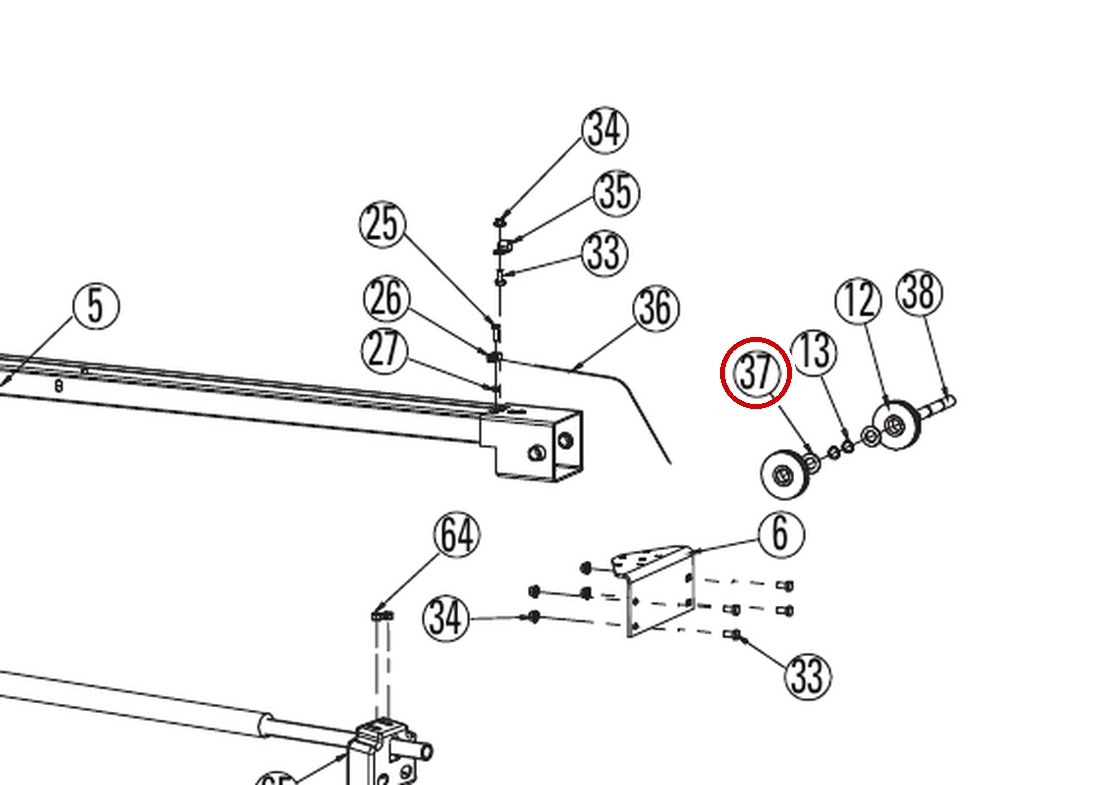

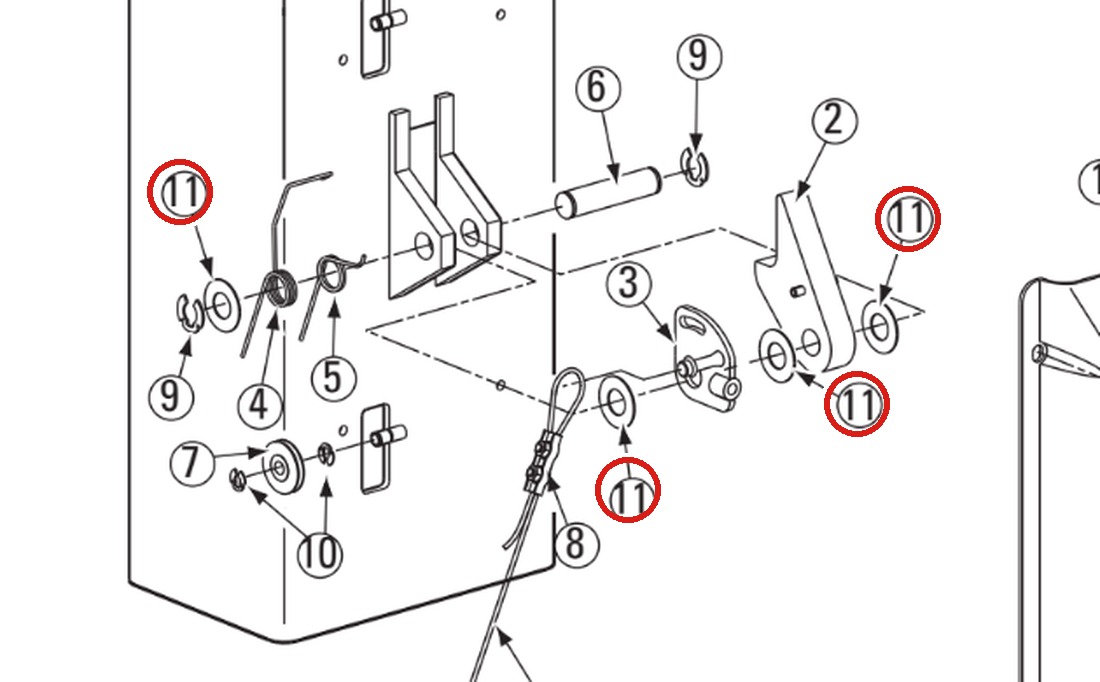

In the drawing images above this is part number 37, 12 and 11 in the DL9 parts drawing and part number 31, 12 and 11 in the DP10-Parts new style w lock covers drawing and part number 31, 12 and 11 in the I10N000M drawing.

Fits the following lift models — part number 41388 appears in the parts breakdown of each of these lifts: Rotary Lift DL9, DP10 (new style with lock covers), I10N000M, I12 Pro, TL07; F12 / I12.

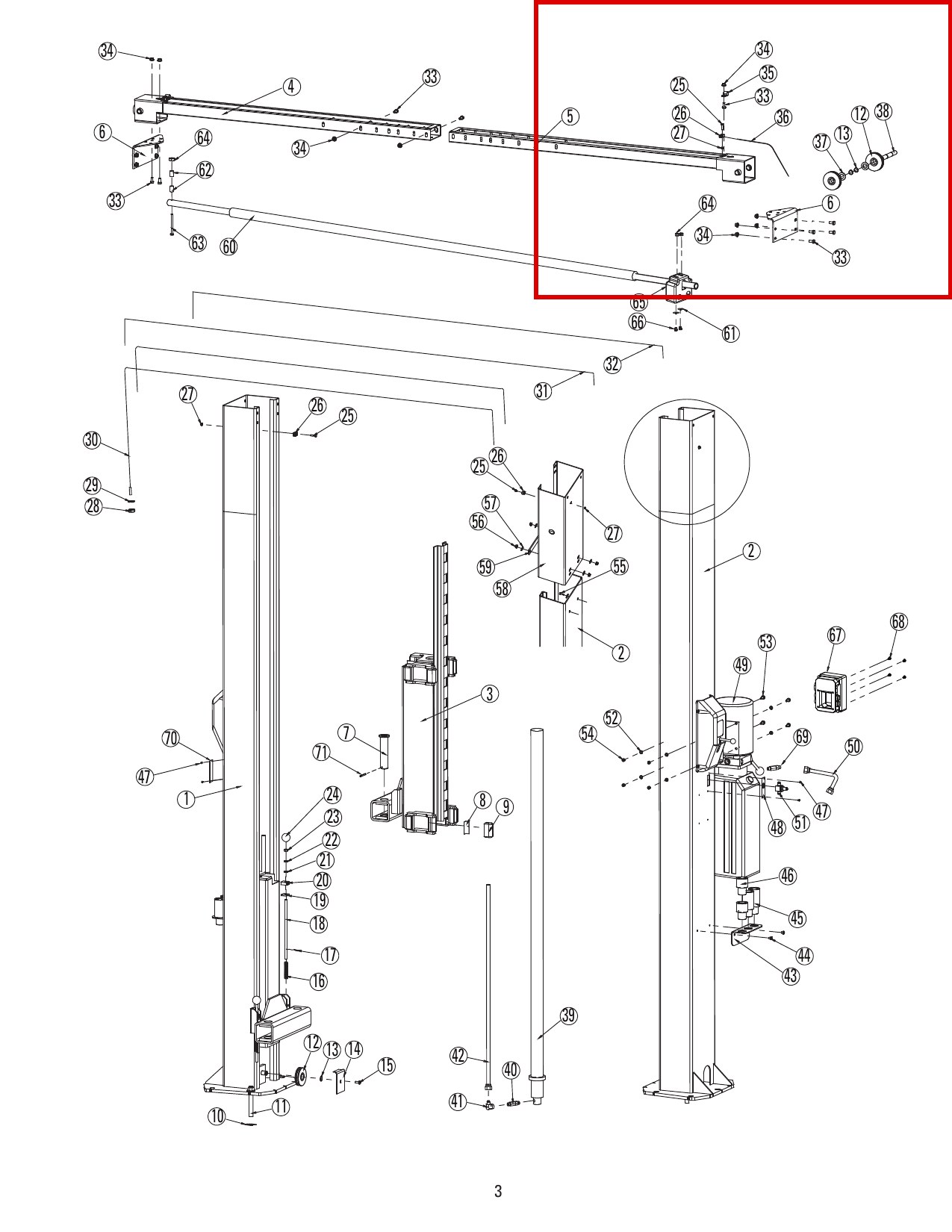

Rotary light-duty two-post replacement part fitting the DL9, DP10 (new style with lock covers), and I10N000M, shown in the Locking Latch Detail (left column) and Main Lift Assembly drawings.

This thin machine bushing acts as a spacer/wear washer on the locking latch shaft, taking up end play and giving the latch a smooth wear surface so the safety lock engages cleanly on the left column.

OEM-compatible replacement for part number 41388 (alternate-sourced to OEM spec). Confirm shaft size (approx. 3/4″) and your parts breakdown item before ordering.

Fits these lifts:

• Direct Lift — DL9 (9,000 lb two-post)
• Hanmecson (VSG) — DL9
• Forward Lift — DP10 (new style with lock covers); I10 (I10N000M); I12PRO (12,000 lb two-post); F12 / I12 (12,000 lb two-post); TLO7 (300 series two-post)
• Rotary Lift — interchange P/N 41388
