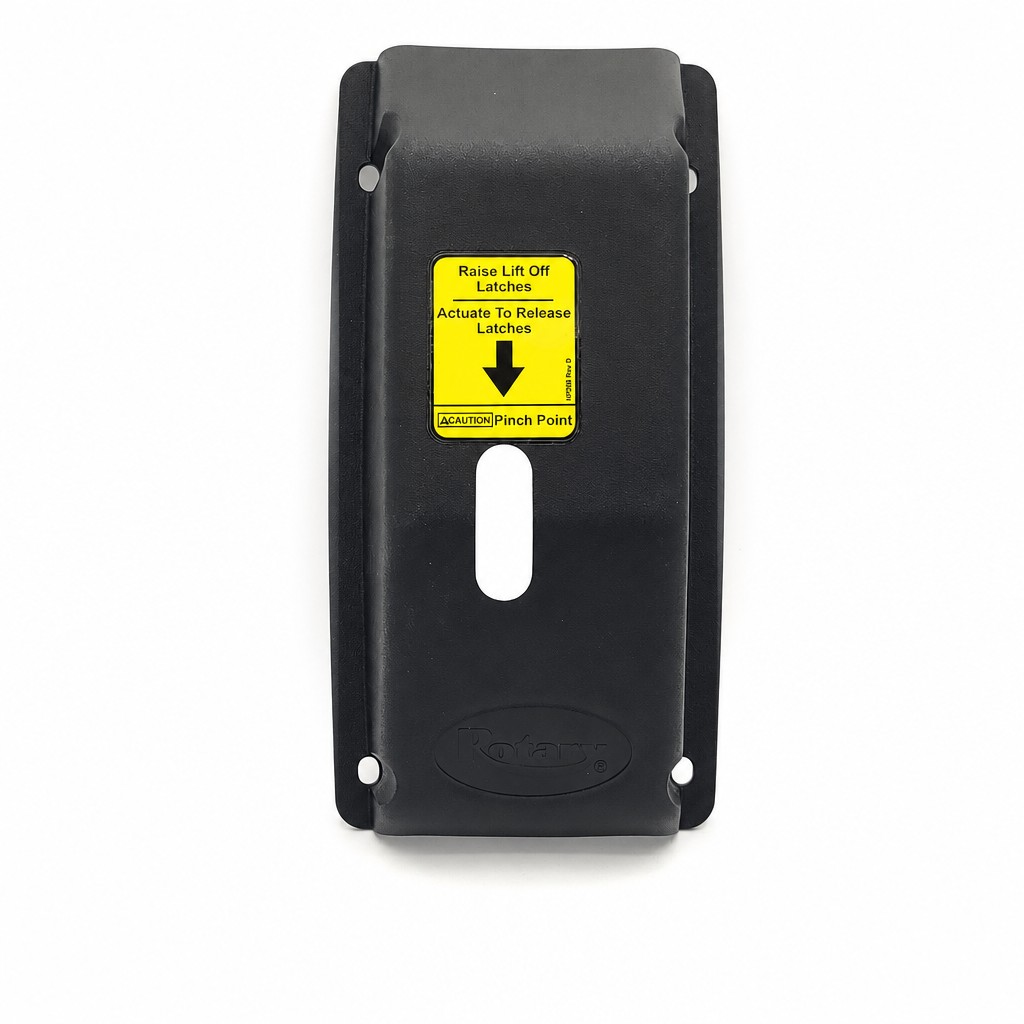

Rotary Lift NP266 Latch Release Decal / Latch Nameplate - DL9, DP10 & I10 Two-Post Lifts

Description

Rotary Lift NP266 Latch Release Decal / Latch Nameplate – DL9, DP10 & I10 Two-Post Lifts

Repair or service the applicable lift assembly with the NP266 Latch Release Decal / Latch Nameplate – DL9, DP10 & I10 Two-Post Lifts, listed for use on compatible equipment. Use the reference part number and listed Rotary Lift application to compare against the original component before ordering.

Product Information

• Brand / Equipment: Rotary Lift
• Manufacturer / Reference Part Number: NP266
• Store SKU: ROYP266
• Component: Latch Release Decal / Latch Nameplate – DL9, DP10 & I10 Two-Post Lifts

Fitment & Ordering Notes

Automotive lift manufacturers may use different parts across model years, production runs, or equipment revisions. Before ordering, compare the reference part number and the model/application information in this listing with the identification tag, parts manual, or original component on your lift. If your equipment uses a different part number, verify interchange before installation.

Additional Existing Product / Fitment Information

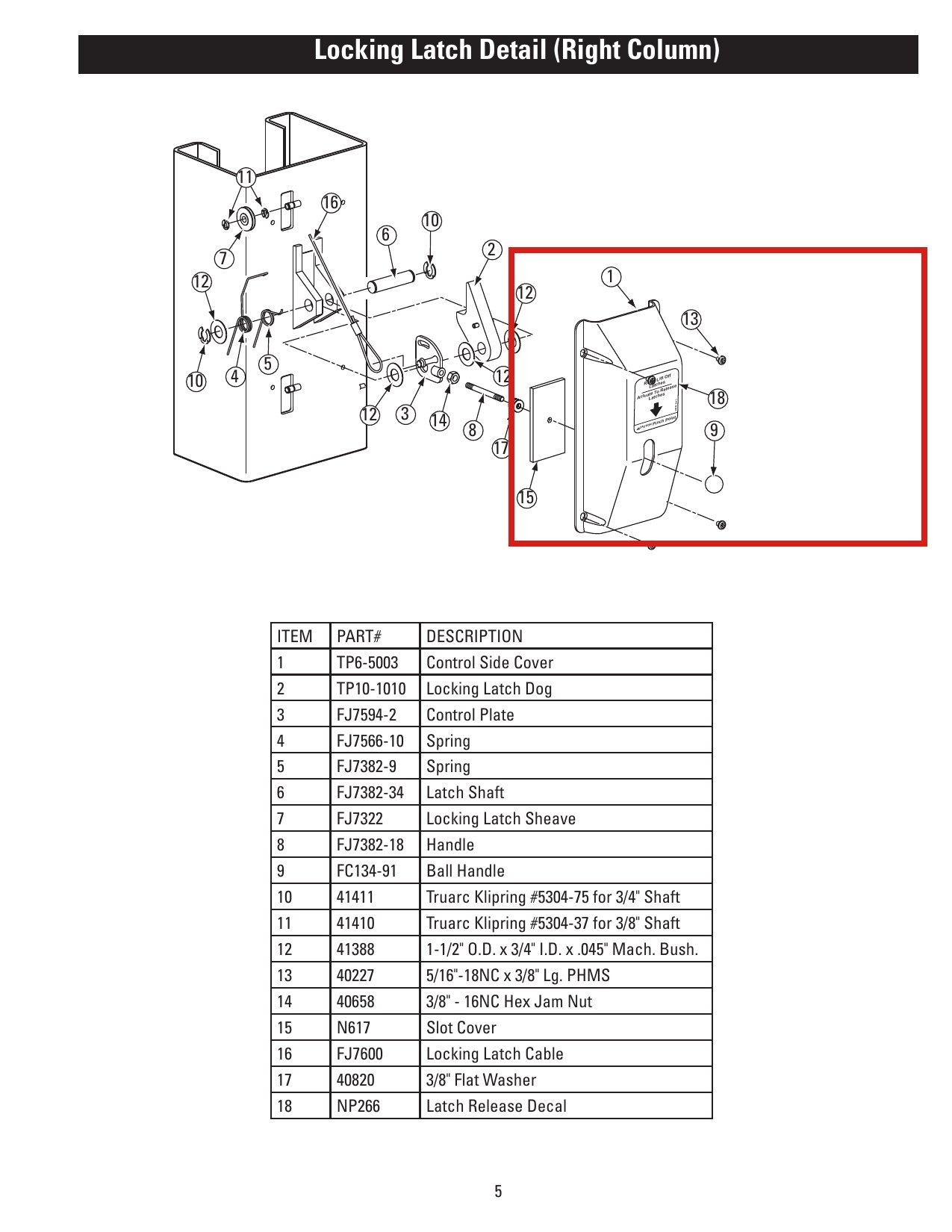

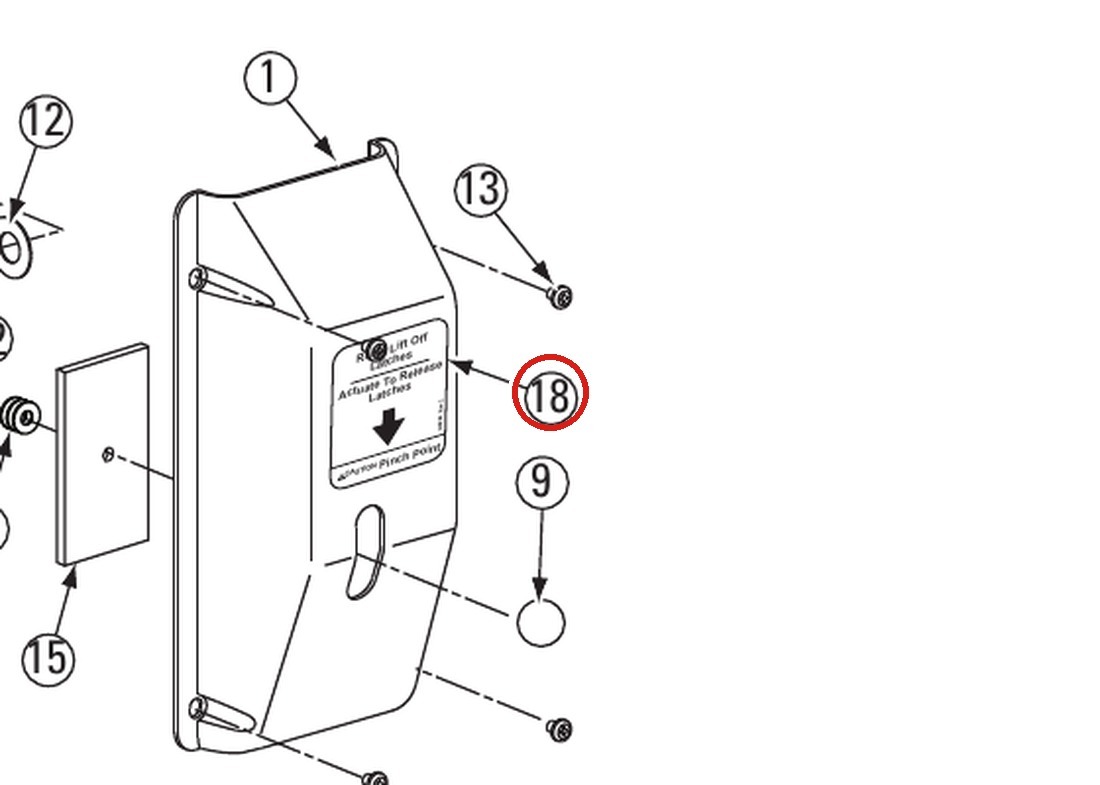

This is part number 18 in the drawing image above.

Fits the following lift models — part number NP266 appears in the parts breakdown of each of these lifts: Rotary Lift DL9, DP10 (new style with lock covers), I10N000M, I12 Pro.

The Rotary Lift NP266 is the Latch Release Decal, cataloged as the Latch Nameplate, for Rotary DL9, DP10 (new style with lock covers), and I10N000M two-post lifts. It is shown in the Locking Latch Detail (Right Column) sections of the factory parts breakdowns and is also included in kit GP1010.

The decal labels the latch release on the right column, giving operators the required identification and instruction at the lock release point. Replace it whenever the existing decal is worn, painted over, or illegible, as legible safety labeling is part of keeping a lift inspection-ready.

OEM replacement nameplate. If you are refreshing all lift labels at once, note this decal comes included in the GP1010 kit.

Fits these lifts:

• Direct Lift — DL9 (9,000 lb two-post)
• Hanmecson (VSG) — DL9
• Forward Lift — DP10 (new style with lock covers); I10 (I10N000M); I12PRO (12,000 lb two-post)
• Rotary Lift — interchange P/N NP266
