Rotary Lift TP9-1100A L.H. Column Weldment for DL9 Two-Post Lift

Description

Rotary Lift TP9-1100A L.H. Column Weldment for DL9 Two-Post Lift

Repair or service the applicable lift assembly with the TP9-1100A L.H. Column Weldment, listed for use on DL9 Two-Post Lift. Use the reference part number and listed Rotary Lift application to compare against the original component before ordering.

Product Information

• Brand / Equipment: Rotary Lift
• Manufacturer / Reference Part Number: TP9-1100A
• Store SKU: ROY100A
• Component: L.H. Column Weldment
• Listed Application: DL9 Two-Post Lift

Fitment & Ordering Notes

Automotive lift manufacturers may use different parts across model years, production runs, or equipment revisions. Before ordering, compare the reference part number and the model/application information in this listing with the identification tag, parts manual, or original component on your lift. If your equipment uses a different part number, verify interchange before installation.

Additional Existing Product / Fitment Information

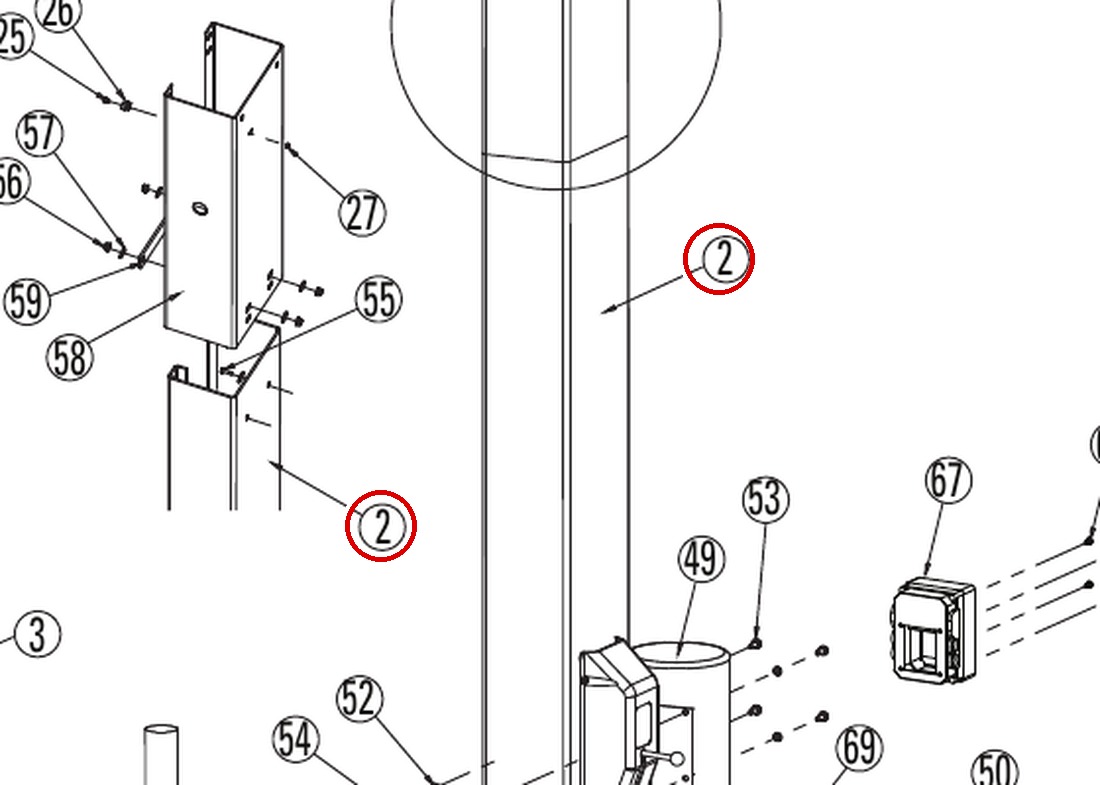

This is part number 2 in the drawing image above.

Fits the DL9 two-post lift. Shown in Drawing 1 (Main Lift Assembly, page 3) of the factory parts breakdown.

This is the complete left-hand column structure of the DL9, the vertical weldment that guides the carriage and carries locking hardware on the offside of the lift. As with all load-bearing columns, damage from impact, anchor pull-out, or corrosion requires replacement of the complete weldment.

Direct replacement for the LH column called out in the DL9 factory parts breakdown. The matching right-hand column is TP9-1000A. Verify against the main lift assembly drawing before ordering.

Cross-check part number: Rotary TP9-1100A. This is a Rotary replacement part.

Fits these lifts:

• Direct Lift — DL9 (9,000 lb two-post)
• Hanmecson (VSG) — DL9
• Rotary Lift — interchange P/N TP9-1100A
