Rotary N413 Overhead Limit Switch with Housing for SPO and SPOA 2-Post Lifts

Description

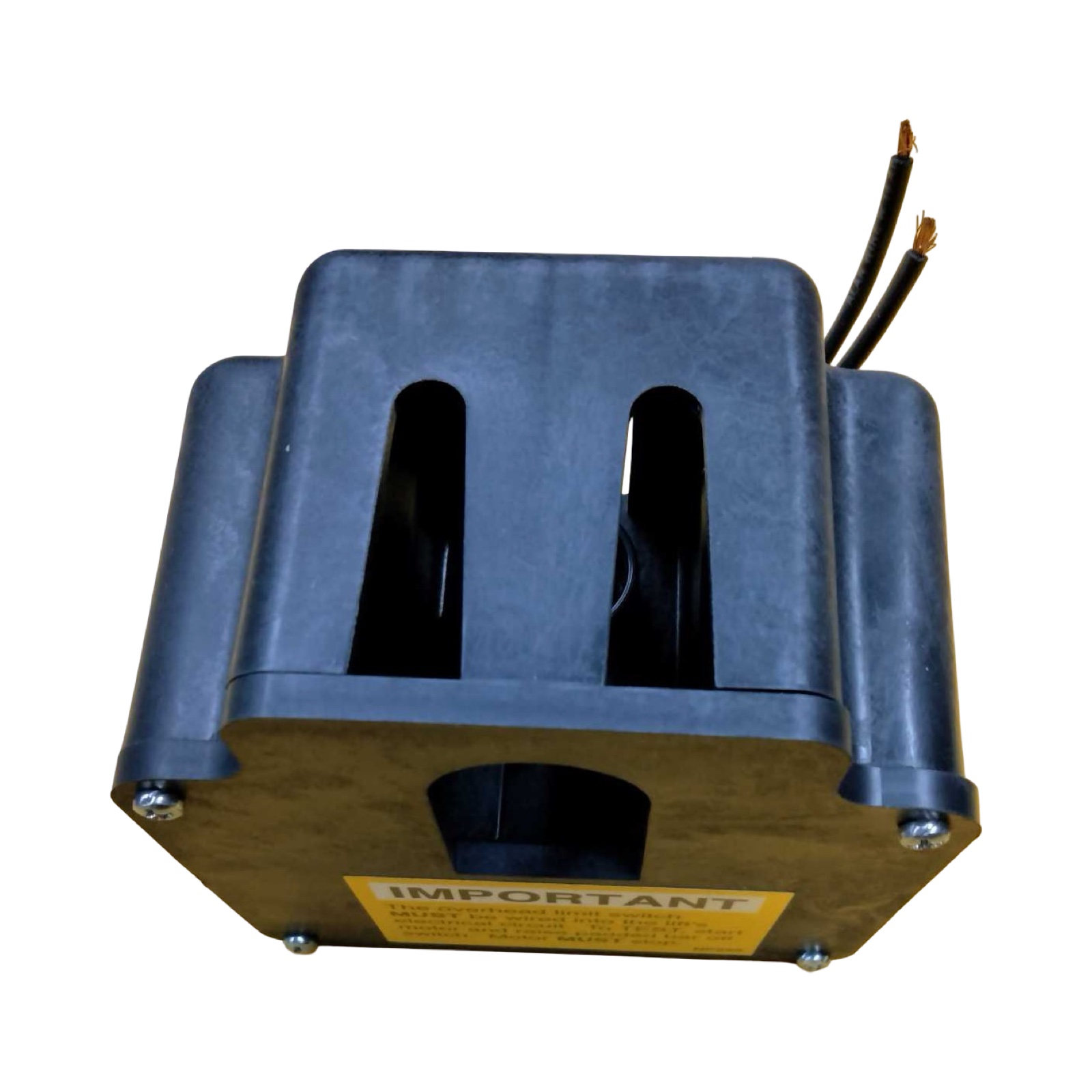

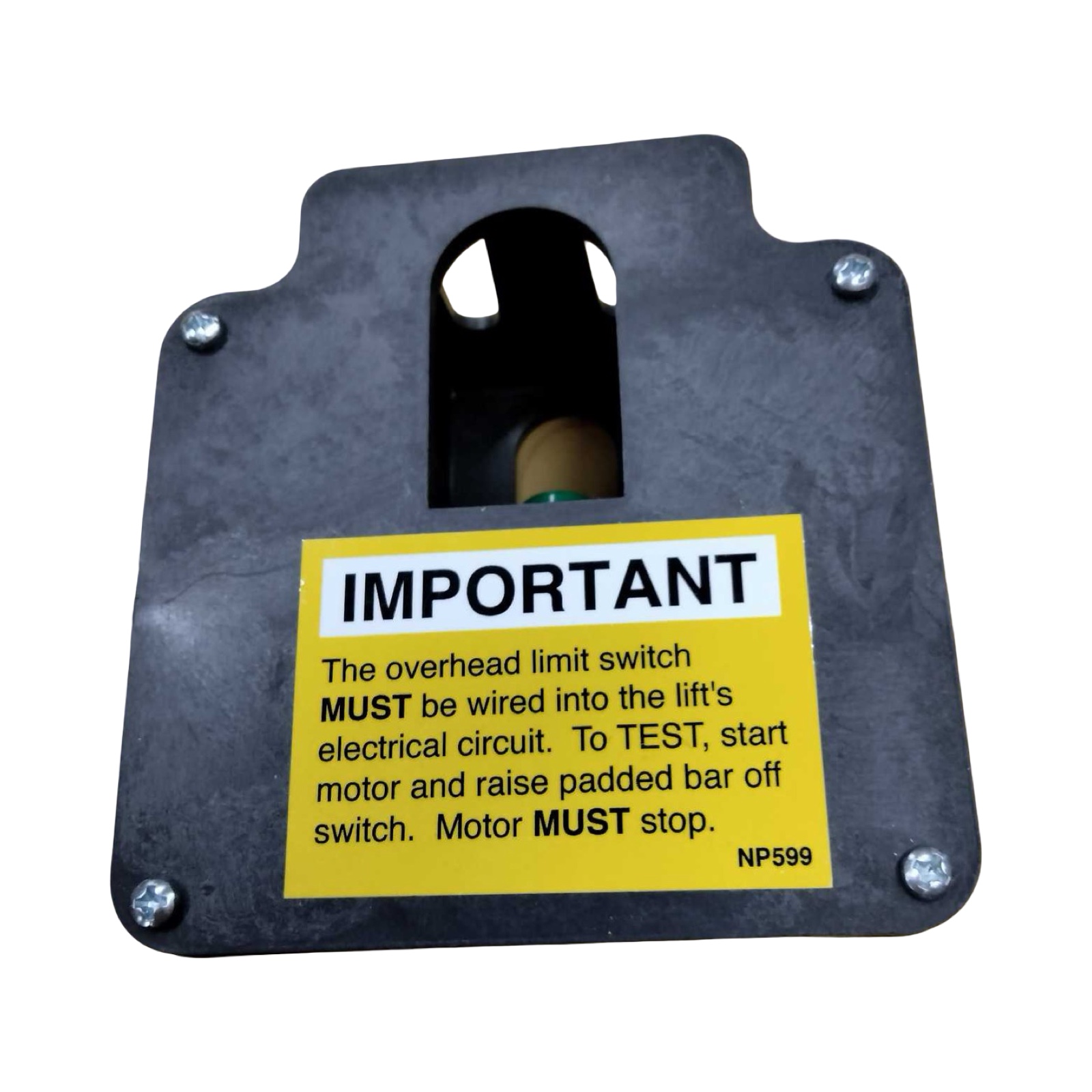

Rotary N413 Overhead Limit Switch Assembly with Housing for SPO and SPOA 2-Post Lifts

Restore safe, accurate lift stopping control with this Rotary N413 Limit Switch Assembly with Housing. This OEM-style upper limit / shutoff switch assembly is used on Rotary automotive lifts to detect full-rise travel and signal the lift to stop at the correct height. It helps prevent over-travel, protecting cables, cylinders, carriages, and vehicles. The N413 switch assembly is a normally open switch that stops the motor when actuated by the overhead bar. The protective housing shields the switch from debris, moisture, and accidental impact. A worn or failed limit switch can cause no shutoff at full height, inconsistent stopping, or unsafe over-travel. Verify part number and switch style on your lift before ordering.

Product Information

• Brand / Equipment: Rotary Lifts and compatible 2-post lifts
• Manufacturer / Reference Part Number: N413
• Store SKU: royn413
• Component: Limit Switch Assembly with Housing
• Includes: Switch and protective housing (OEM style)
• Function: Stops lift at full rise and prevents over-travel
• Location: Bottom of overhead cross bar / upper travel limit position
• Listed Application: Rotary 2-post lifts SPO and SPOA series

Compatible Makes / Verified Fitment Models

• Rotary Lift: SPOA7, SPO7, SPOA9, SPO9, SPOA10, SPO10, SPO12, SPO18 (SPO and SPOA interchange)
• Direct Lift: DL9 (9,000 lb two-post)
• Hanmecson (VSG): DL9
• Forward Lift: DP10 (new style with lock covers), I10 (I10N000M), I12PRO (12,000 lb two-post), F12 / I12 (12,000 lb two-post), TLO7 (300 series two-post)

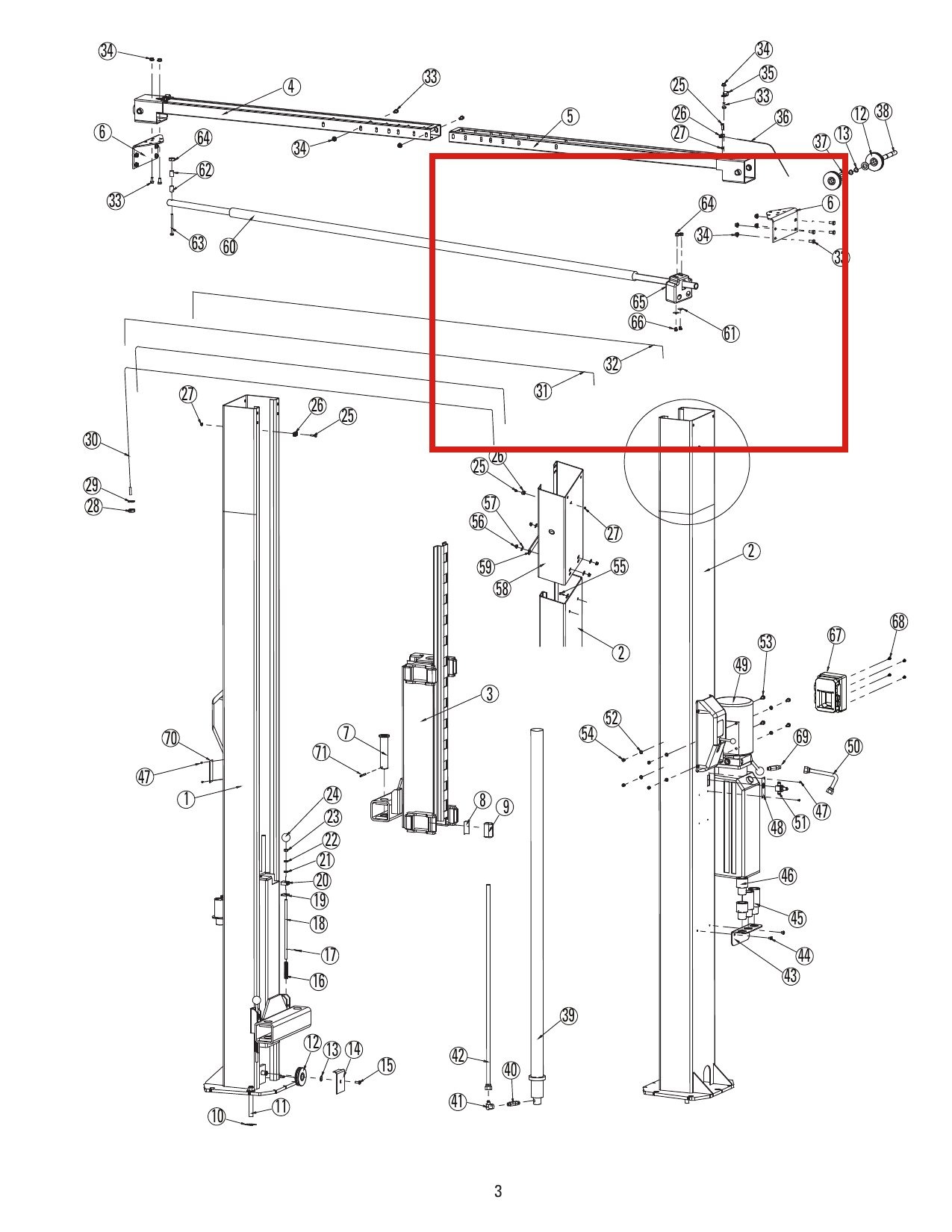

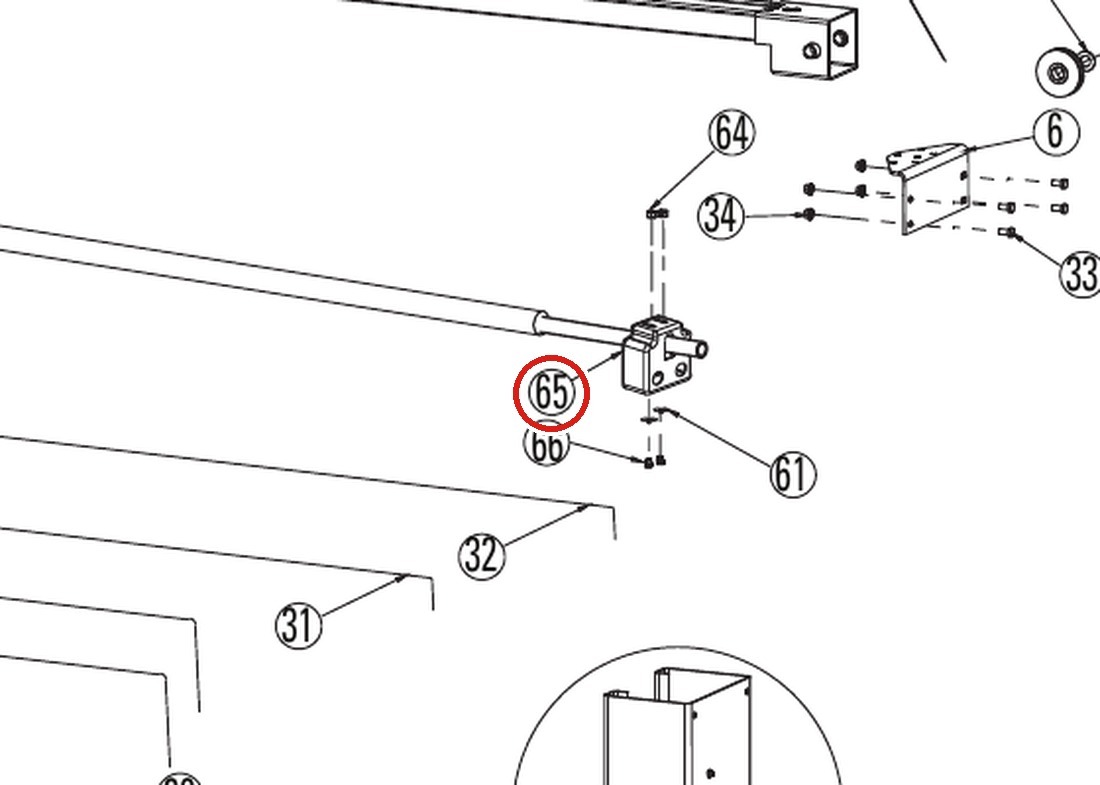

Parts Diagram and Manual Reference

This part appears in the following diagrams:

• DL9 parts – Drawing 1 (Main Lift Assembly, page 3)
• DP10-Parts new style w lock covers – Main Lift Assembly (page 2-3 parts list)
• I10N000M – Main Lift Assembly (Columns, Overhead, Carriage and Power Unit)
• I12pro parts – Main Parts List / Main Exploded Assembly (pages 2-3)
• parts breakdown-F12-I12 – Main Lift Assembly (2-Post 12,000 lbs.)
• TL07 – TLO7 Parts List

Fitment and Ordering Notes

Always verify part number and switch style on your lift before ordering. Uses existing mounting and wiring for direct replacement. If your lift has a different limit switch style, consult the parts diagram for your specific model.
