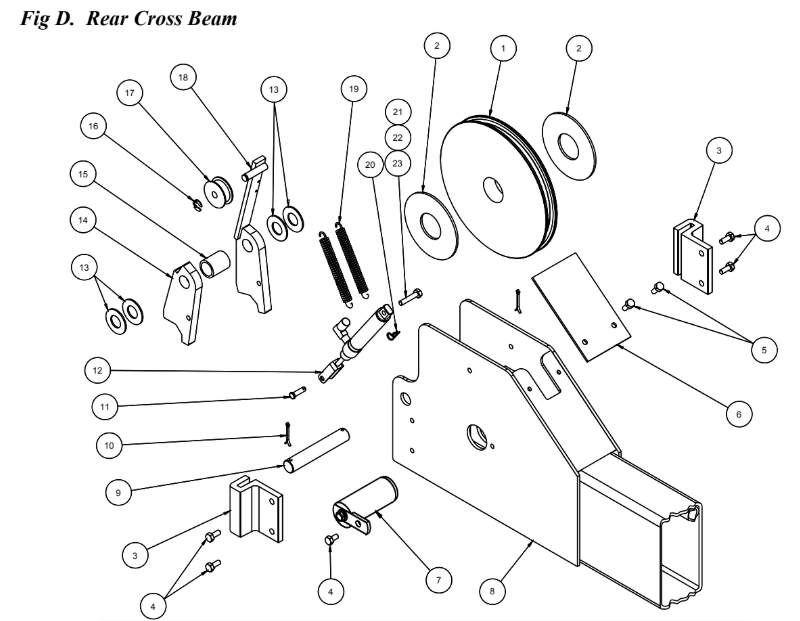

LF440 Rear Cross Beam

Drawing Number

Parts Description

23 Available Parts

Unnamed part

—

Unavailable online – please call for availability.

M8 x 16mm Lg HEX Locking Flange Head Cap Screw

$0.79

1/4-20NC x 1/2" Lg. Self Tapping Screw

$0.45

Unnamed part

—

Unavailable online – please call for availability.

3/4" Washer - (1.5 O.D. x . 13 Thick Nominal)

$3.29

Unnamed part

—

Unavailable online – please call for availability.

Unnamed part

—

Unavailable online – please call for availability.

Unnamed part

—

Unavailable online – please call for availability.

1/4-28NF x 1 1/16" Lg. HEX Head Bolt

$8.24

Shop specialized parts breakdowns for the Challenger LF440 4-post lift rear cross beam and overhead assemblies. This category includes rear cross beams, overhead channels, weldments, support structures, mounting hardware, sheaves/pulleys, cable routing components, and all related reinforcement parts.

Organized by the factory diagrams for the LF440 model, these components maintain structural integrity, proper cable alignment, and reliable lift performance. Perfect for repairs, replacements, or maintenance of the rear cross beam system on your Challenger LF440 hoist.

Don’t See What You Need?

Give us a call: 866-902-6060

LF440 Rear Cross Beam

Drawing Number

Parts Description

Unnamed part

1/8" Thick Bearing

Slide Block

M8 x 16mm Lg HEX Locking Flange Head Cap Screw

1/4-20NC x 1/2" Lg. Self Tapping Screw

Rubber Sheave Guard (Rear)

Sheave Pin (Cross Beam)

Unnamed part

Lock Pivot Pin

1/8" x 1 1/2" Lg. Cotter Pin

Clevis Pin

Air Cylinder Assembly

3/4" Washer - (1.5 O.D. x . 13 Thick Nominal)

Unnamed part

Unnamed part

Retaining Ring

Roller

Unnamed part

Extension Spring

Hair Pin Cotter Pin

1/4-28NF x 1 1/16" Lg. HEX Head Bolt

1/4-28NF HEX Nut

1/4-28NF HEX Jam Nut
