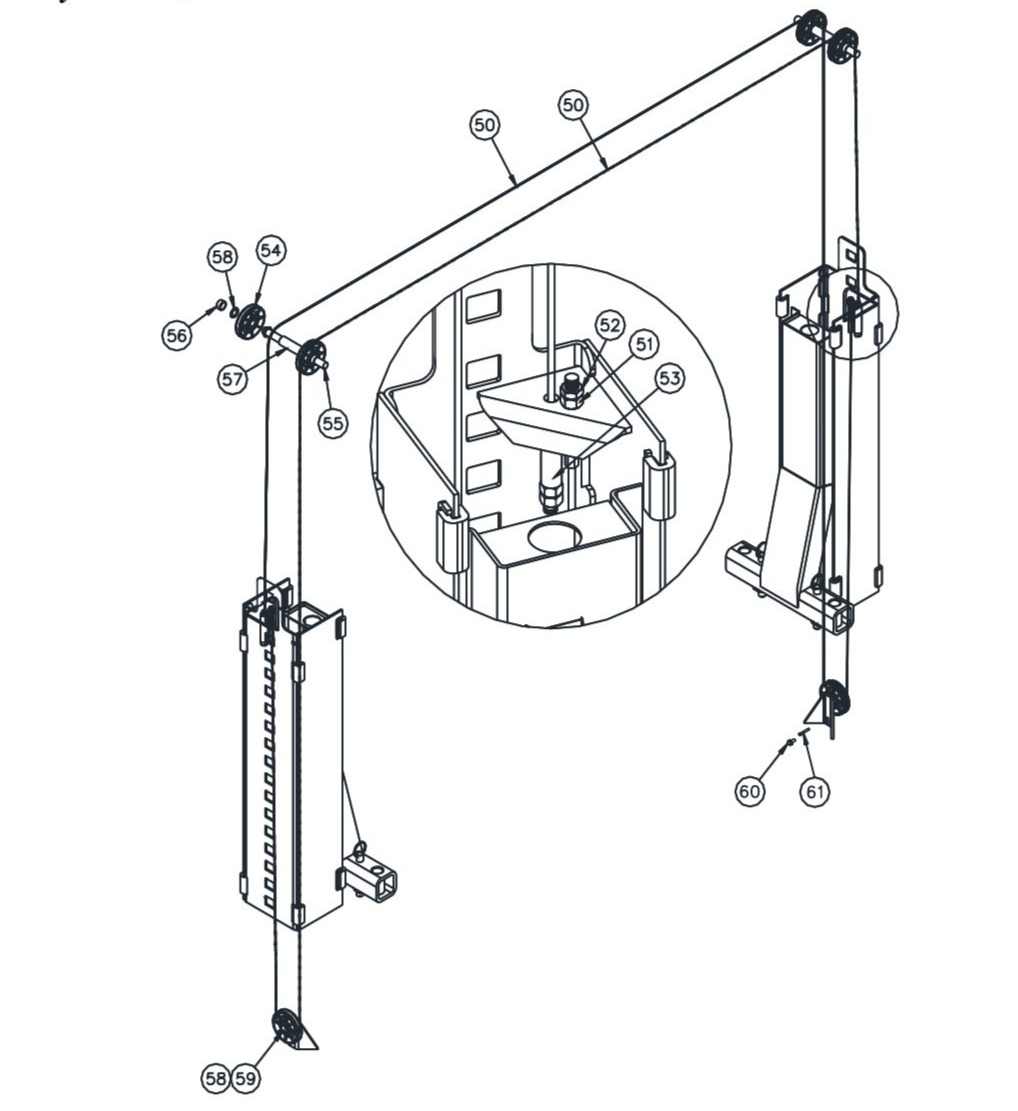

Cl10 v3 Cables and Pulley System

Drawing Number

Cl10 v3 Cables and Pulley System

Parts Description

16 Available Parts

50

Synchronizer Cable - CL10

Synchronizer Cable - CL10

$105.55

50

Synchronizer Cable - CL10-2

Synchronizer Cable - CL10-2

$105.55

50

Synchronizer Cable - CL10-3

Synchronizer Cable - CL10-3

$105.55

51

5/8-11NC HEX Nut

5/8-11NC HEX Nut

$5.56

52

5/8-11NC HEX Jam Nut

5/8-11NC HEX Jam Nut

$1.59

53

Cable Spacer (4 1/2" Long)

Cable Spacer (4 1/2" Long)

$16.05

54

Sheave Assembly (5" DIA. x 5/16" GROOVE)

Sheave Assembly (5" DIA. x 5/16" GROOVE)

$23.00

55

Sheave Pin

Sheave Pin

$38.00

56

Short Sheave Spacer (Line)

Short Sheave Spacer (Line)

$6.00

56

Short Sheave Spacer (hose)

Short Sheave Spacer (hose)

$4.94

57

Long Sheave Spacer (Line)

Long Sheave Spacer (Line)

$23.12

57

Long Sheave Spacer (Hose)

Long Sheave Spacer (Hose)

$6.28

58

1" I.D. Spacer Washer

1" I.D. Spacer Washer

$1.29

59

1" EXT. Retaining Ring

1" EXT. Retaining Ring

$2.21

60

3/8-16 x 3/4" Lock. HEX FLG. Head, C.S.

3/8-16 x 3/4" Lock. HEX FLG. Head, C.S.

$1.50

61

1/4 DIA. x 1 3/4" Lg Clevis Pin

1/4 DIA. x 1 3/4" Lg Clevis Pin

$1.30
