E12 Lock Release

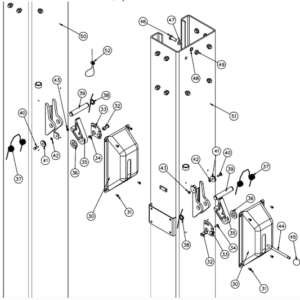

Drawing Number

E12 Lock Release

Parts Description

23 Available Parts

30

Unnamed part

Unnamed part

—

Unavailable online – please call for availability.

31

M5 x 10 Phillips Pan Head Screw

M5 x 10 Phillips Pan Head Screw

$0.79

32

Lock Release Wire Pin

Lock Release Wire Pin

$4.37

33

Lock Release Cam

Lock Release Cam

$3.17

34

M6-14mm Bolt

M6-14mm Bolt

$0.42

35

Lock Pawl

Lock Pawl

$19.60

36

M20 Washer

M20 Washer

$0.42

37

Lock Release Spring #1

Lock Release Spring #1

$4.37

38

Lock Release Spring #2

Lock Release Spring #2

$2.38

39

Lock Release Shaft

Lock Release Shaft

$2.38

40

Lock Release Sheave Pin, M6

Lock Release Sheave Pin, M6

$1.59

41

Lock Release Sheave

Lock Release Sheave

$3.58

42

M6 Washer

M6 Washer

$0.40

43

M6 Nut

M6 Nut

$0.40

44

Lock Release Handle Shaft

Lock Release Handle Shaft

$4.37

45

Unnamed part

Unnamed part

—

Unavailable online – please call for availability.

46

M12 x 30mm Bolt

M12 x 30mm Bolt

$3.17

47

M12 Washer

M12 Washer

$2.01

48

M12 Lock Washer

M12 Lock Washer

$2.01

49

M12 Nut

M12 Nut

$1.19

50

Unnamed part

Unnamed part

—

Unavailable online – please call for availability.

51

Unnamed part

Unnamed part

—

Unavailable online – please call for availability.

52

Unnamed part

Unnamed part

—

Unavailable online – please call for availability.

Don’t See What You Need?

Give us a call: 866-902-6060
