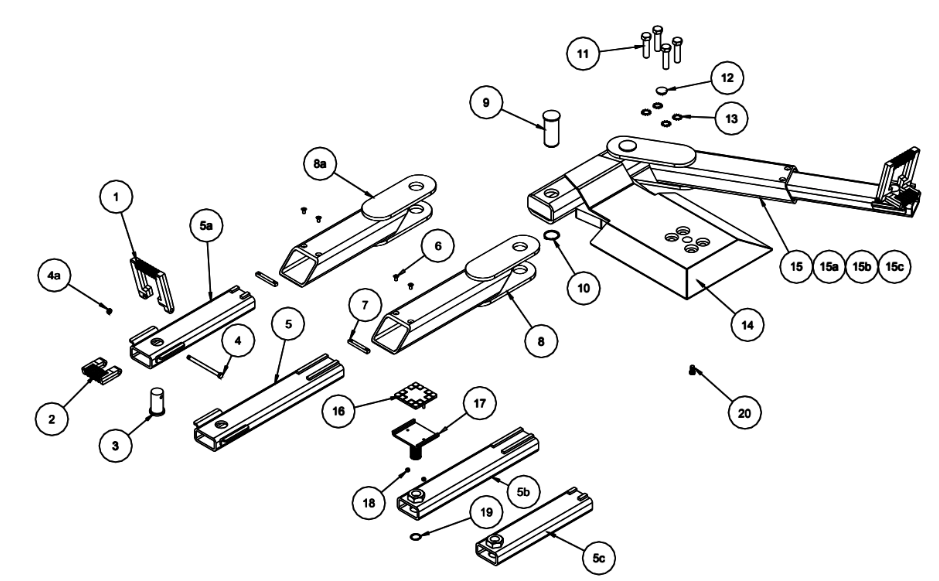

CS1020WV, CS1220, CS1520 Arm Assembly

Drawing Number

Parts Description

28 Available Parts

Unnamed part

—

Unavailable online – please call for availability.

Unnamed part

—

Unavailable online – please call for availability.

Unnamed part

—

Unavailable online – please call for availability.

Unnamed part

—

Unavailable online – please call for availability.

Unnamed part

—

Unavailable online – please call for availability.

Unnamed part

—

Unavailable online – please call for availability.

Unnamed part

—

Unavailable online – please call for availability.

Unnamed part

—

Unavailable online – please call for availability.

Unnamed part

—

Unavailable online – please call for availability.

M8 x 16 Phillips Countersunk Screw

$2.63

Stop Bar, Plated

$16.39

Unnamed part

—

Unavailable online – please call for availability.

Unnamed part

—

Unavailable online – please call for availability.

Unnamed part

—

Unavailable online – please call for availability.

1-7/8 Snap Ring

$3.29

3/4-10 x 3 HEX Head Cap Screw

$8.77

1-1/4" Finishing Plug

$6.93

3/4" Ext. Tooth Lock Washer

$9.82

Bolster

$1,312.59

Unnamed part

—

Unavailable online – please call for availability.

15a

Unnamed part

—

Unavailable online – please call for availability.

15b

Unnamed part

—

Unavailable online – please call for availability.

15c

Unnamed part

—

Unavailable online – please call for availability.

Unnamed part

—

Unavailable online – please call for availability.

Foot Pad Weld

$76.01

M6 keps Nut

$0.40

Retaining Ring

$5.51

M12 x 1.75 x 20mm, HHCS, Gr. 8.8, ZINC PLT'D

$176.03

CS1020WV, CS1220, CS1520 Arm Assembly

Drawing Number

Parts Description

Unnamed part

Unnamed part

Unnamed part

Unnamed part

Unnamed part

Unnamed part

Unnamed part

Unnamed part

Unnamed part

M8 x 16 Phillips Countersunk Screw

Stop Bar, Plated

Unnamed part

Unnamed part

Unnamed part

1-7/8 Snap Ring

3/4-10 x 3 HEX Head Cap Screw

1-1/4" Finishing Plug

3/4" Ext. Tooth Lock Washer

Bolster

Unnamed part

Unnamed part

Unnamed part

Unnamed part

Unnamed part

Foot Pad Weld

M6 keps Nut

Retaining Ring

M12 x 1.75 x 20mm, HHCS, Gr. 8.8, ZINC PLT'D
