EV1020-EV1220-EV1520 Synchronizing Rail

Drawing Number

Parts Description

13 Available Parts

Unnamed part

—

Unavailable online – please call for availability.

Unnamed part

—

Unavailable online – please call for availability.

1/8 Male NPT x 1/4 Female NPT, Brass Street Elbow

$23.41

Shop specialized parts breakdowns for the Challenger EV1020, EV1220, and EV1520 series 2-post lift Synchronizing Rail. This category includes synchronizing rails, related hardware, bearings, and all components involved in the rail synchronization system.

Organized by the factory diagrams for these EV-series models, these replacements ensure proper synchronization and smooth operation. Ideal for servicing or replacing synchronizing rail components on your Challenger EV1020/EV1220/EV1520 lift.

Don’t See What You Need?

Give us a call: 866-902-6060

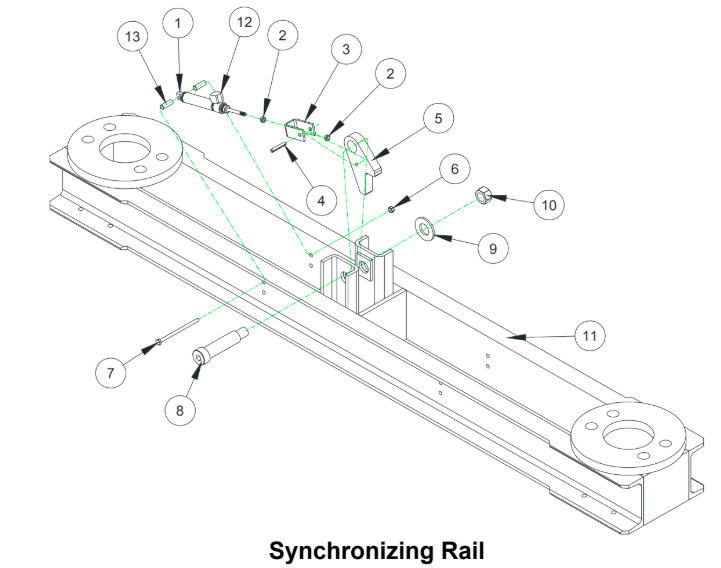

EV1020-EV1220-EV1520 Synchronizing Rail

Drawing Number

Parts Description

Unnamed part

1/4 - 28 Hex Jam Nut

Air Cylinder Clevis

1/4 x 1 1/2 Roll Pin

Locking Pawl

1/4-20 Nylon Locknut

Unnamed part

1 x 2 1/2 Shoulder Bolt

1" Flat Washer

3/4 - 10 Nylon Locknut

Synchronizing Rail Weld

1/8 Male NPT x 1/4 Female NPT, Brass Street Elbow

1/4" ID x 2 1/4 Spacer
