Challlenger Lift 4 Post Hoist Chain Roller Bearing Cross Beam- 24012 & 24012ew

$103.89

4 Post Challenger Car Lift Chain Roller Bearing Sheave for Old Style Chain Lift

Found on Challenger Lift Model  24012, 24012w, 24012ew & others

Measures 2.75″ Outside diameter x .75″ Inside Diameter ( replaces 2-3/8 roller reference in breakdown)

Challenger Lift 423-01-0011

Heavy Duty Style Roller Bearing Roller for Long Life

See Below for Product details and Fitment information

Product Description

This is a cross rail chain roller kit for Many Challenger 4 post lifts with lifting chains & 12-15k lb lifting capacity . This roller goes in the crossbeam of the lift (metal beam at front and rear that the runways sit on and chains run through) and can also be used on overhead beam on some models. It measures 2.75″ outside diameter and 3/4″ inside diameter / pin hole. It replaces  2-3/8 roller and is an upgrade for rollers with bronze center bearing as it has sealed roller bearings and is maintenance free.This is a heavy-duty roller that we use in all our customers lifts. On 12k & 18K lb capacity lifts there are 4 of these rollers in each corner of the lift cross rail and possibly 2 more on overhead beam. Typically when these go bad it cause the lift to hop when raising and lowering and the bushing get wore out and cause other problems such as pin damage and chains snapping. Make sure you check all rollers if one has failed.

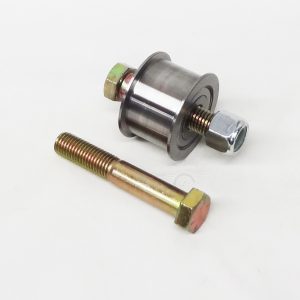

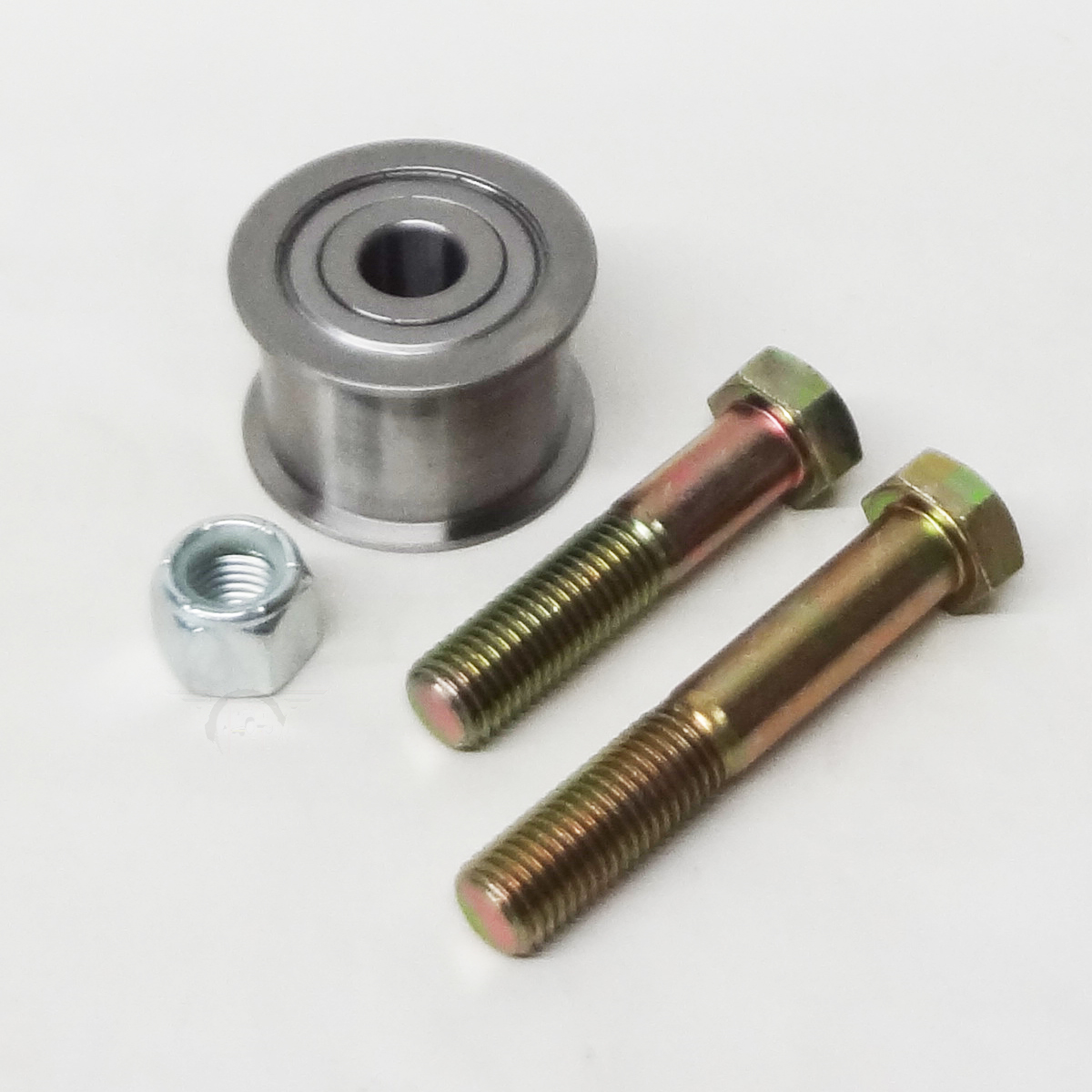

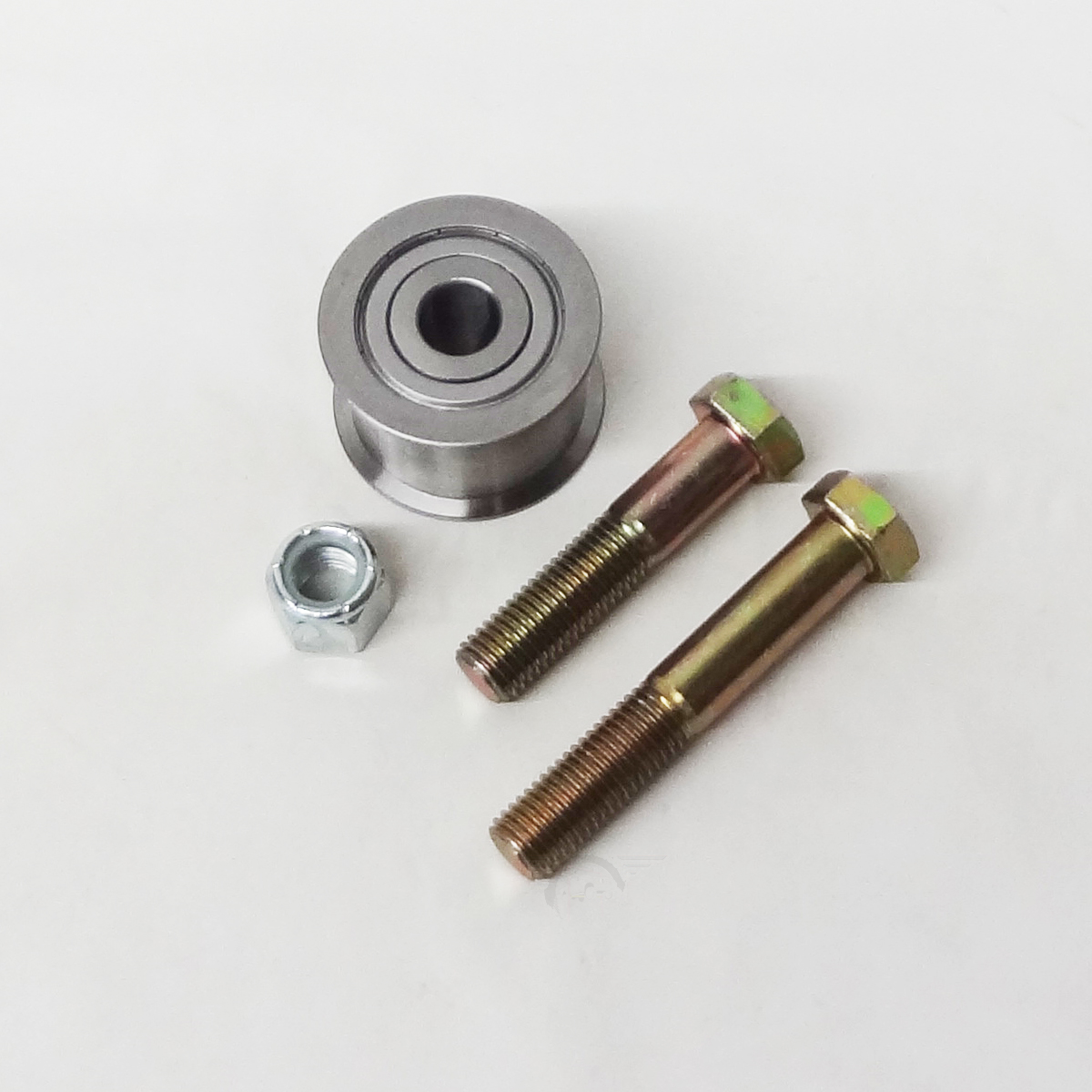

KIT INCLUDES 1 HD cross rail roller and 1 replacement bolt and lock nut

Challenger Lifts 423-01-0011

Fits Challenger lift models:

  • 24012, 24012w, 24012ew

4 Post Challenger Car Lift Chain Roller Bearing Sheave for Old Style Chain Lift

Brand: Challenger Lift Parts

MAY FIT MANY OTHER LIFTS AS WELL. PLEASE MEASURE YOUR ROLLER OR CALL US IF YOU ARE UNSURE OF FITMENT



Call us at 866-902-6060 if you have any questions about this product or any other auto equipment questions.



Additional information

Weight 60 oz
Dimensions 1.5 × 6 × 4 in
