This is a motor electrical micro switch made for MANY Challenger Automotive lift power units. It controls the hydraulic motor and is the Up / Raise button for many lifts. It came in many OEM application on motors in Challenger Lift, Quality Lift, and many more. It was used in motors built by SPX & Fenner Hydraulics , and used in other brand motors as well. Please see below for OEM part # reference.
Challenger Lift Motor SWITCH
Challenger Lift- part # 2001917

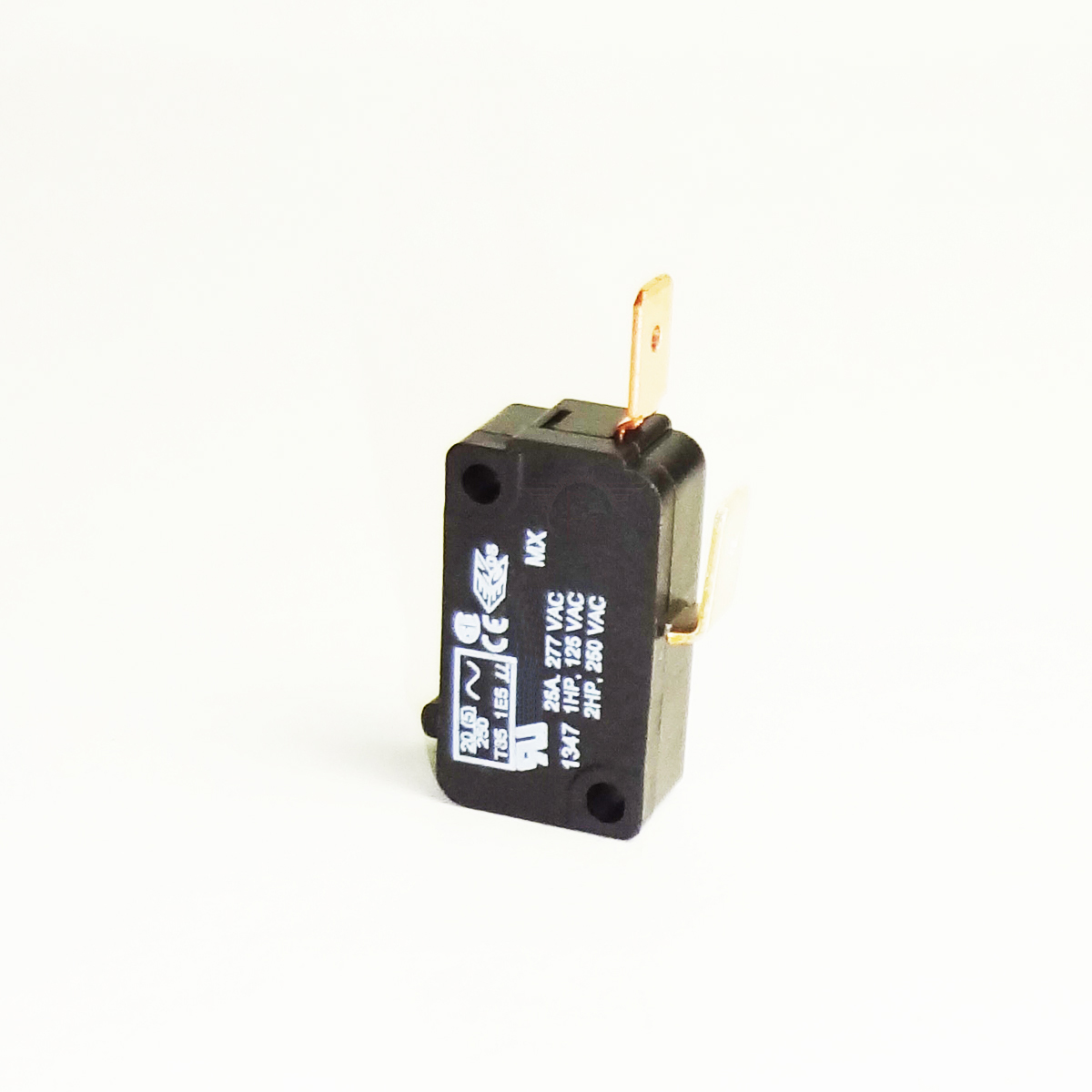

This Switch has a max rating of 270vac is rated for 25amps and is usually found on 208-230vac motors

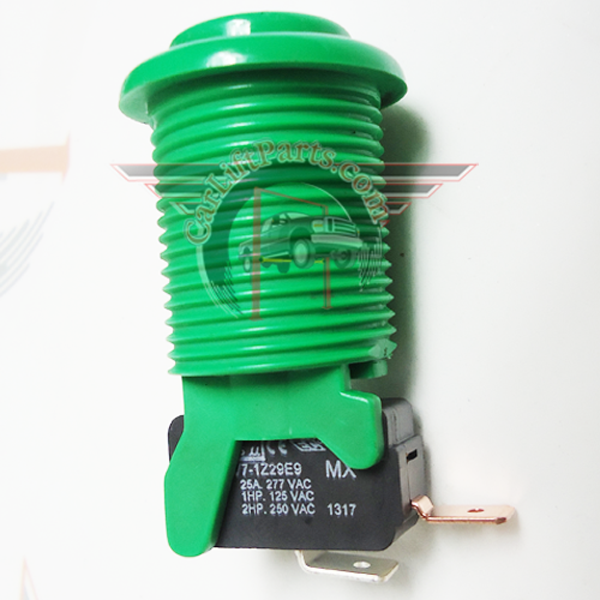

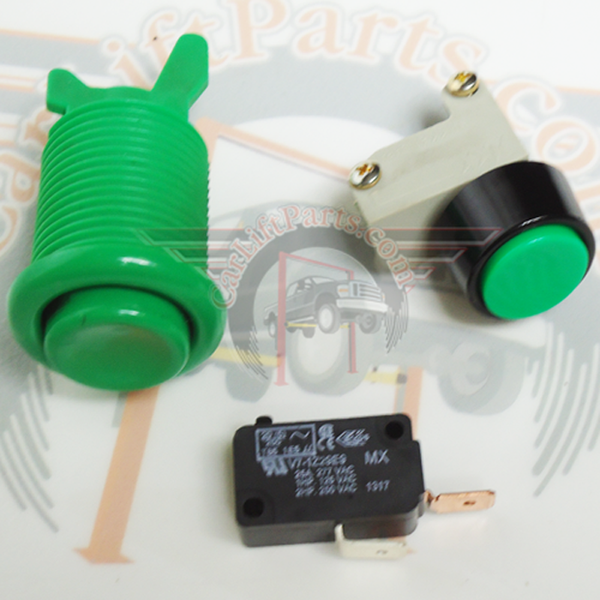

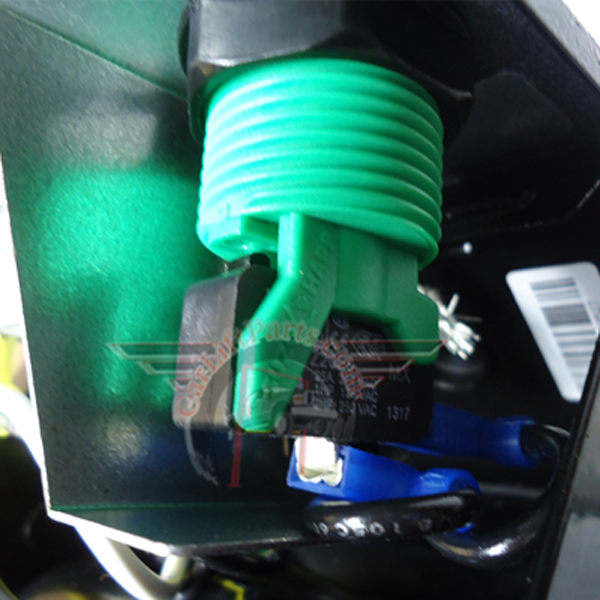

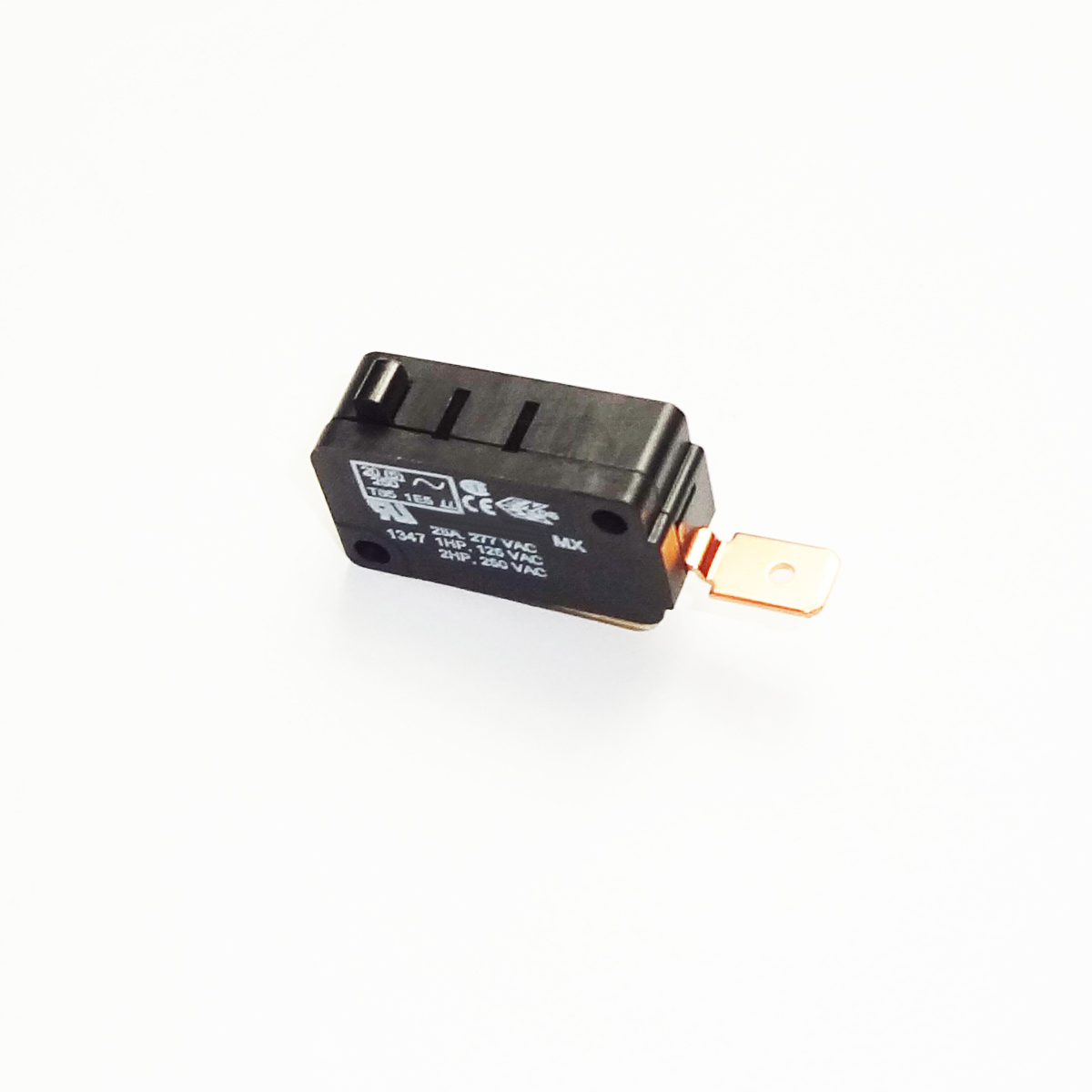

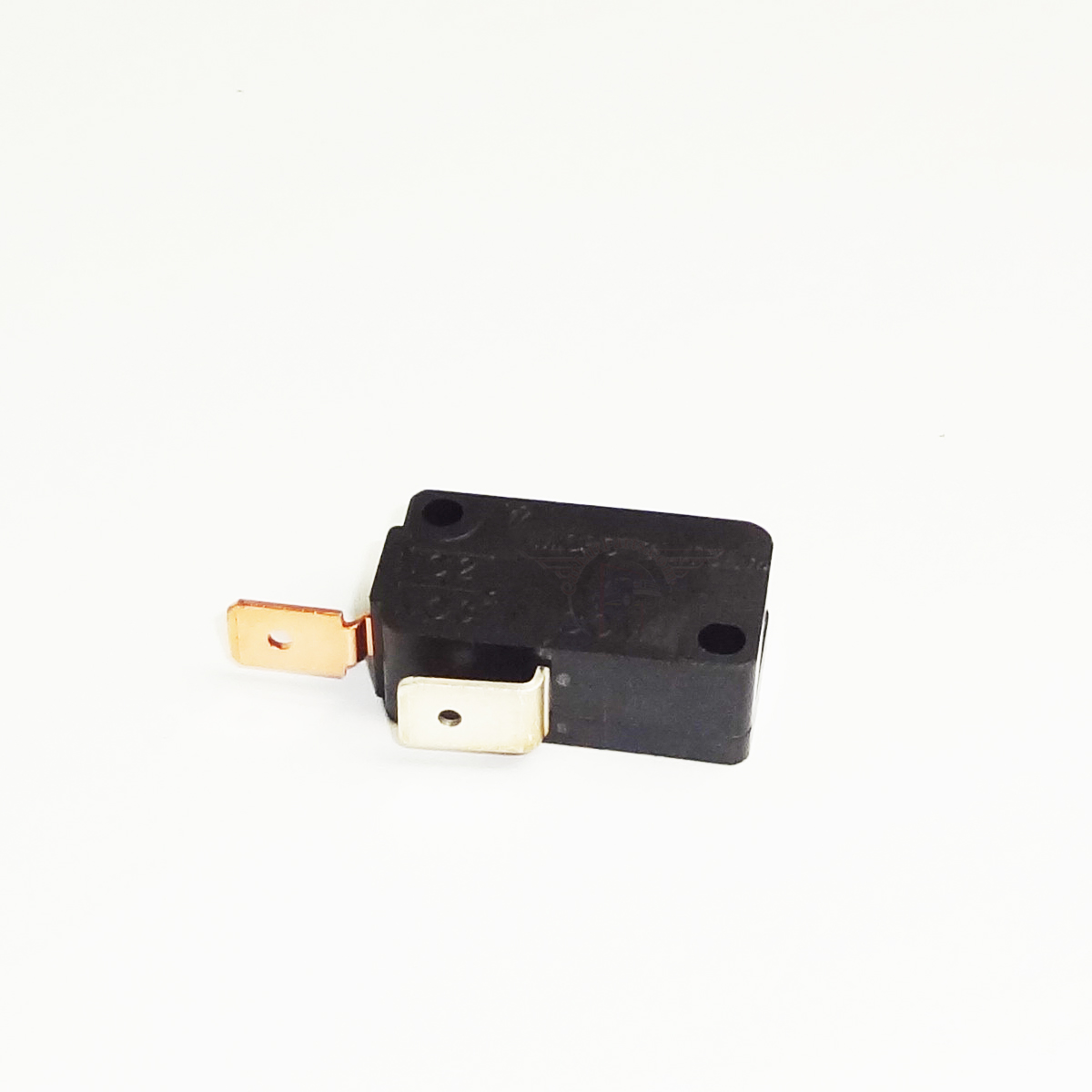

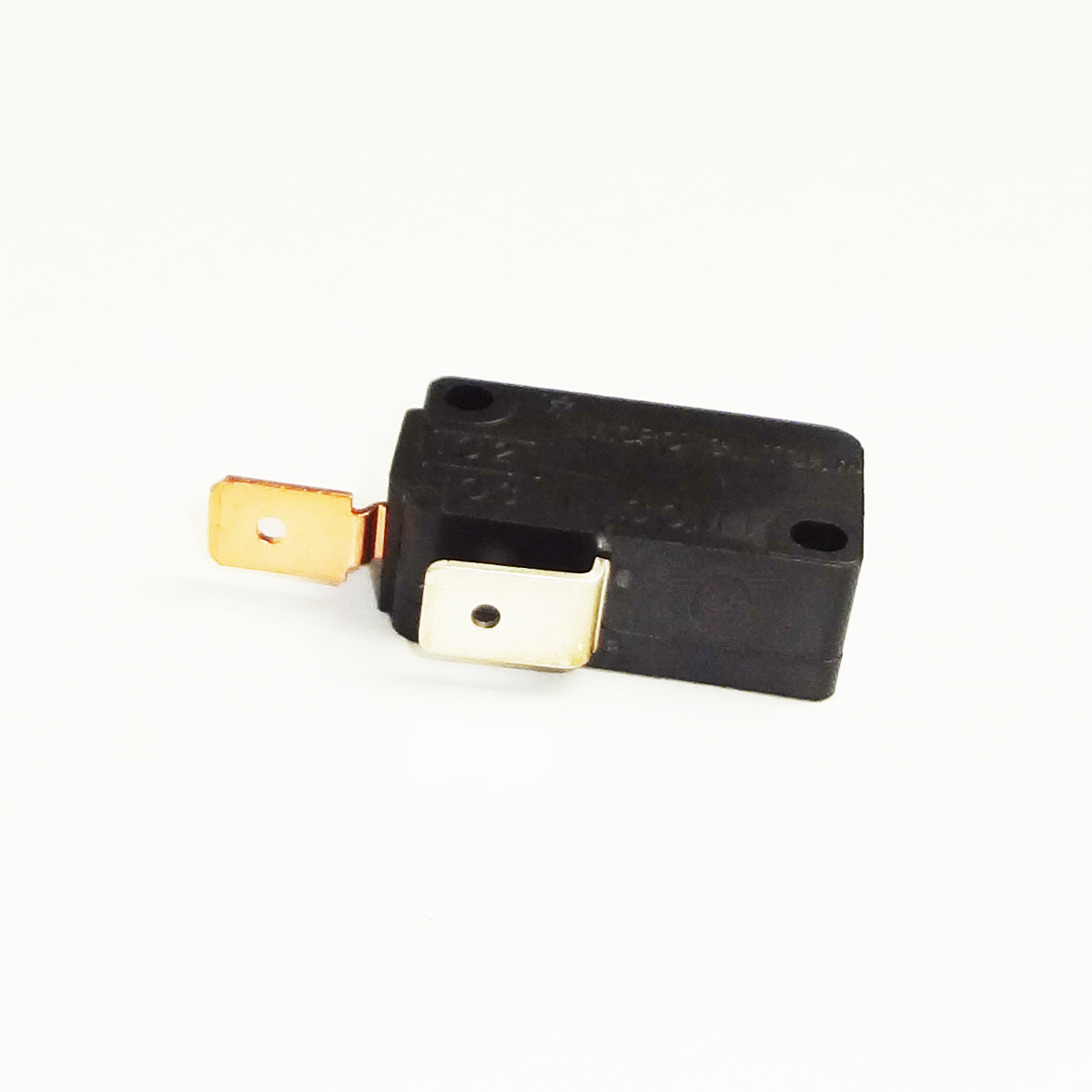

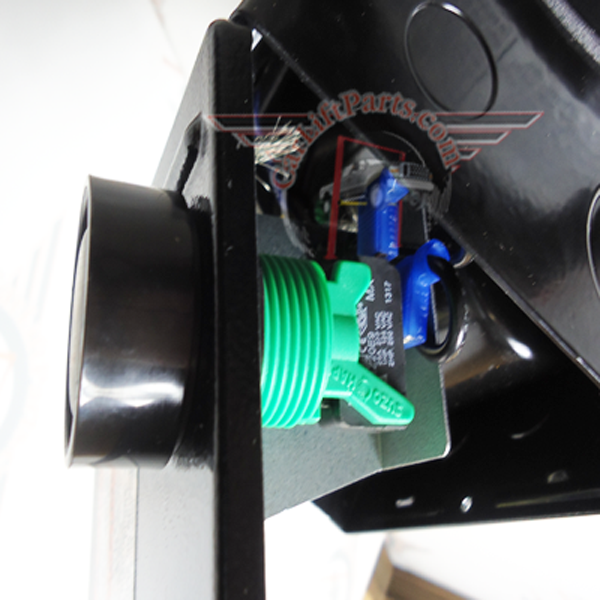

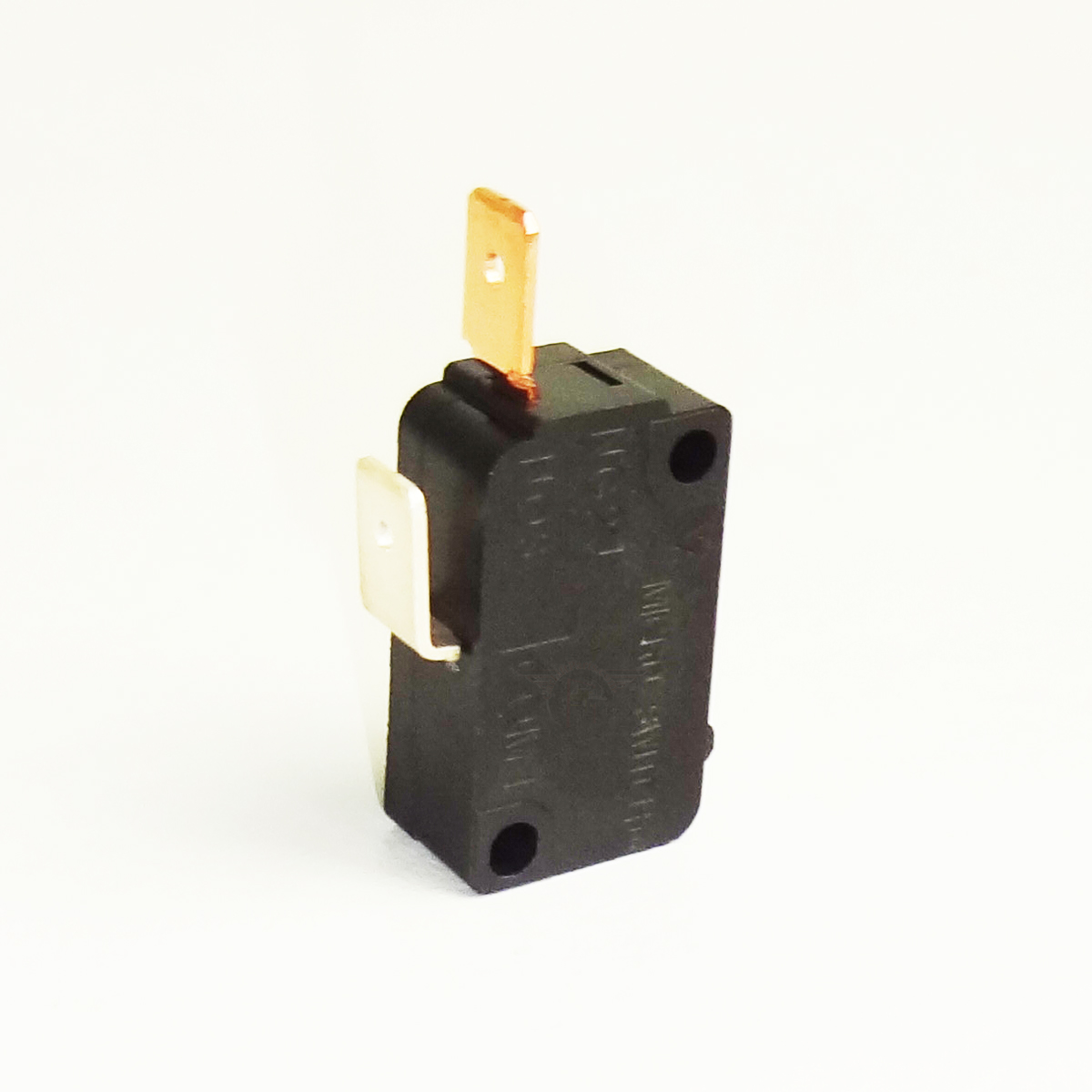

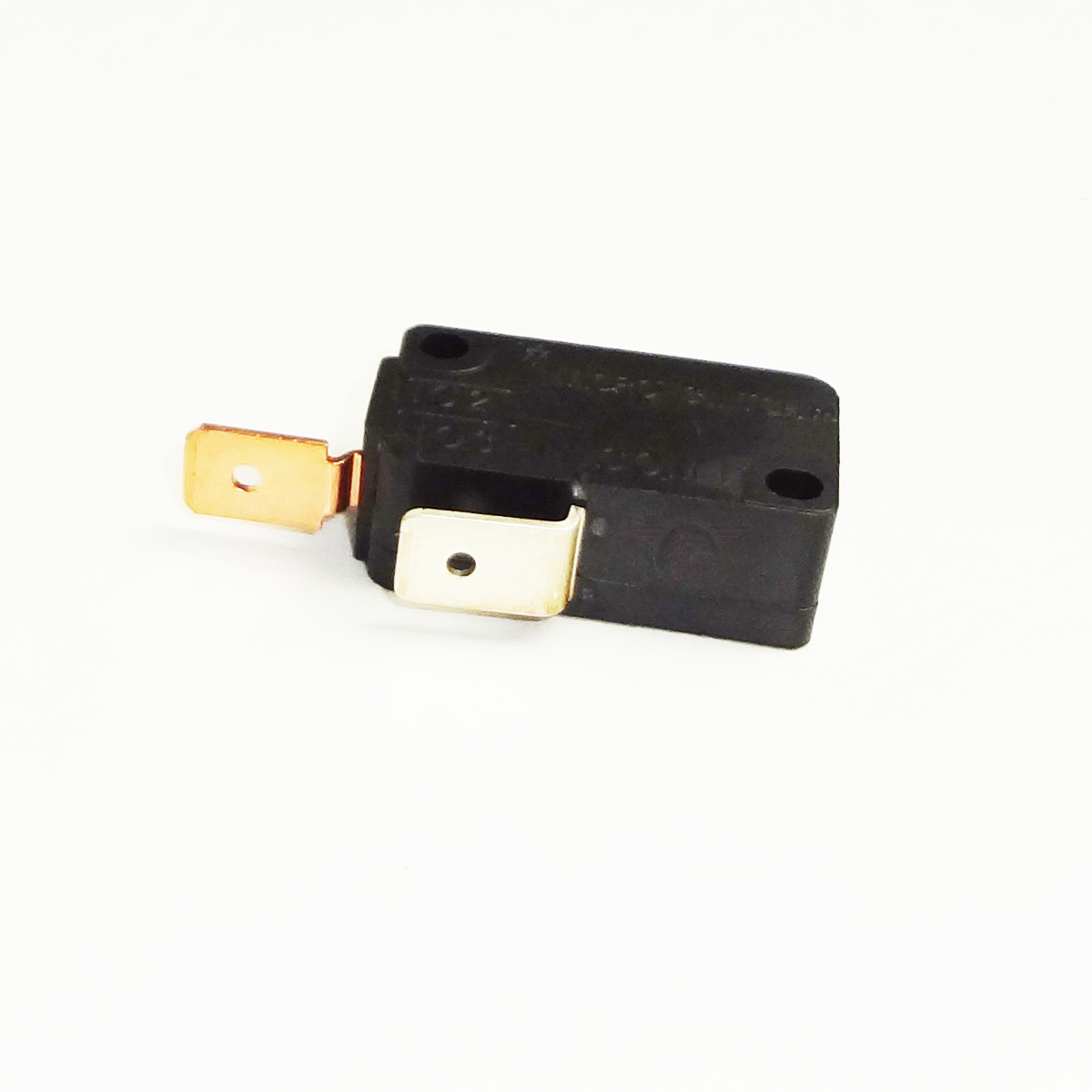

It has 2 male spade connectors sticking out of the side and bottom and has a small plastic button on the top of it which is what actuates the switch. There are 2 holes diagonally from each other in the corner of the switch for mounting into the housing. These are mounted in a switch housing which is what you are actually pressing when raising the lift. These switch housing are many times green in color and are threaded for mounting in the face plate of the power unit. This listing is for the switch only and unless your housing is damaged this will make your lift function again. We did picture the switch housing for reference purposes in last set pictures . The housing is not included in this listing but is available.
Most of the time when these switches fail, they either burn out at the terminal or can stick on and continually run the motor. Your old switch can be tested with a simple continuity test to identify if the switch is the cause of your problems. This switch is Normally open and closes the circuit when pressed.
Up Button car lift Raise Power unit Micro switch Challenger Lift Motor SwitchBrand: ChallengerModel: 39000 E10, Q10, VS10, 12000, 15000, Q10000, CL9 , CL10, CL10V3, AC21NS, 40EAO, 40EFX, 40XFX, 4015, and many more.Challenger # 2001917, bh-7004-36
Power Source: 208-230vac or 110vac
Any questions or concerns please don’t hesitate to call us at (866)-902-6060
