Description

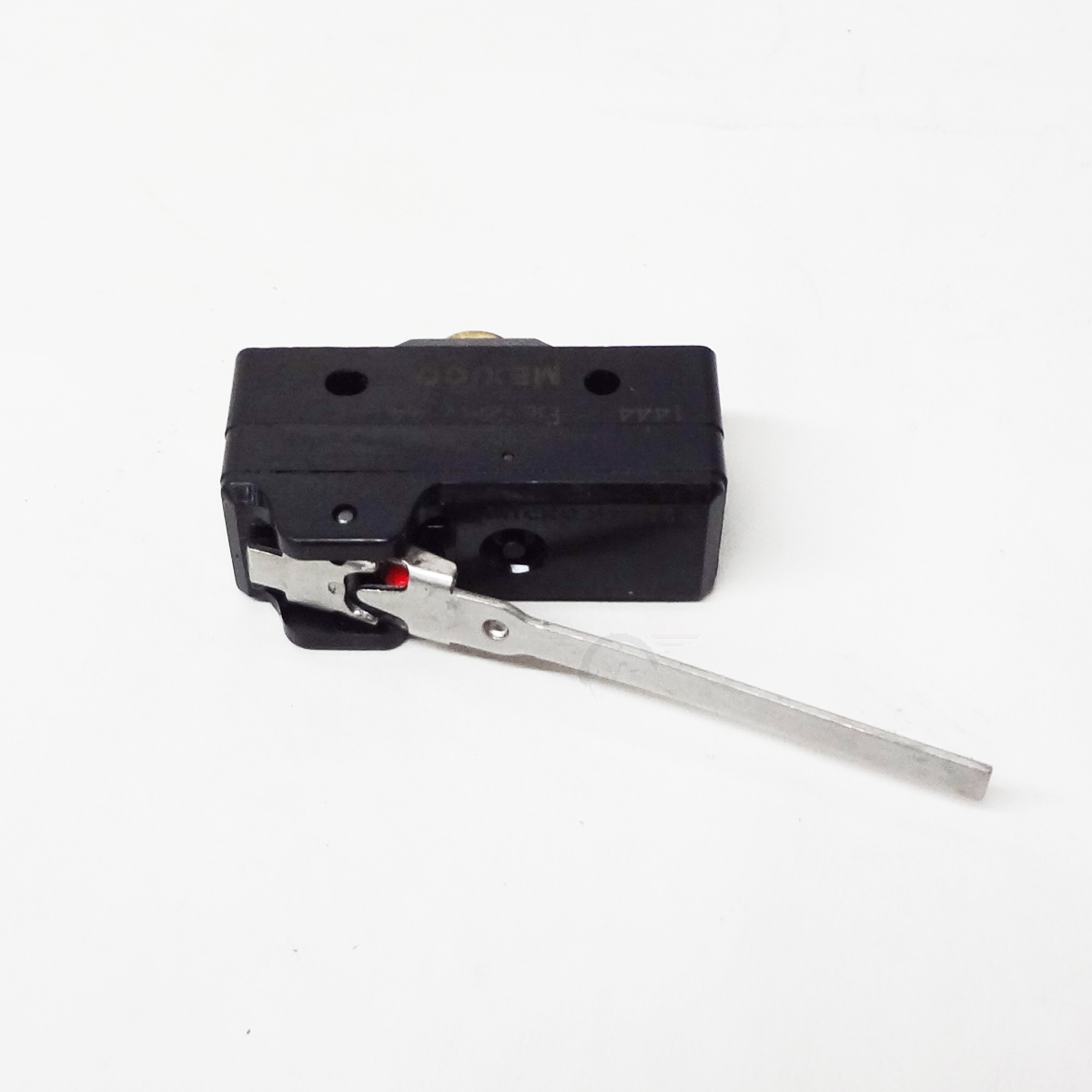

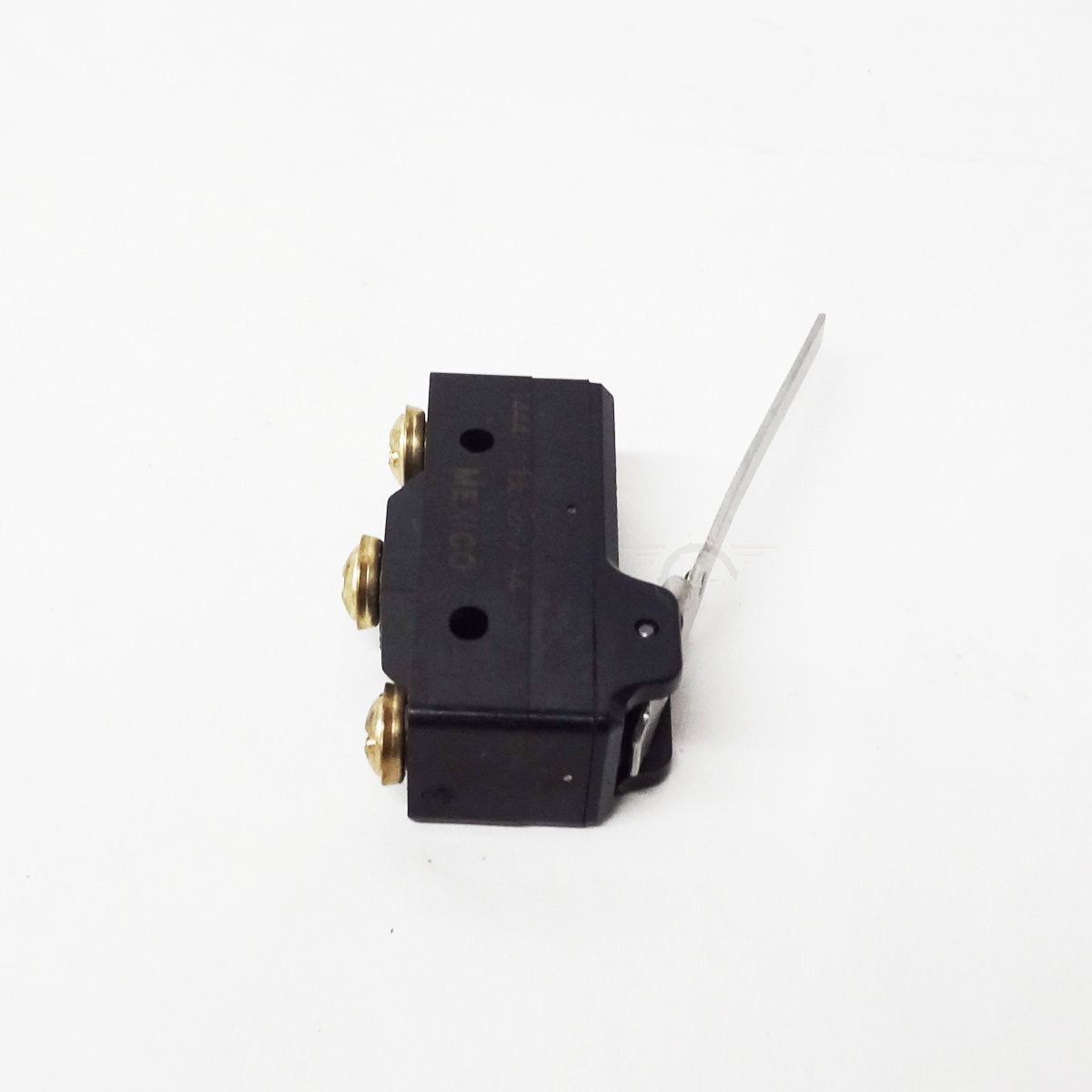

BendPak 5525110 Overhead Limit Switch for 2-Post Car Lifts
The overhead limit switch (also called a stop bar button or kill switch) is located at the top of the overhead beam on 2-post lifts. It protects the vehicle and the lift by cutting power to the hydraulic motor when the carriage approaches the beam. The switch is triggered by a trip wire or a limit bar inside its housing. Replace the switch if the lift fails to stop at the top of its travel or if the switch body is cracked or corroded.
Product Information
- Brand / Equipment: BendPak / Ranger / Dannmar 2-Post Lifts
- Manufacturer / Reference Part Numbers: 5525110, 5525150, 5346819
- Store SKU: BEK6819
- Component: Overhead Limit Switch / Stop Bar Button / Micro Switch (1 switch per listing)
- Rating: 25 amp
- Listed Application: BendPak, Ranger, and Dannmar 2-Post Lifts (almost all models)
Compatible Makes / Verified Fitment Models
- BendPak 2-Post Lifts (almost all models with overhead limit switch)
- Ranger 2-Post Lifts (with overhead stop bar)
- Dannmar 2-Post Lifts (with overhead stop bar)
Replacement / Cross-Reference Numbers
- BendPak OEM Part Numbers: 5525110, 5525150, 5346819
- Store SKU: BEK6819
Fitment & Ordering Notes
Fits BendPak-made 2-post lifts with an overhead beam limit switch. This includes lifts built under the BendPak, Ranger, and Dannmar brands. Verify that your lift has an overhead stop bar mechanism before ordering. If you are unsure of compatibility, call 866-902-6060.
