Challenger Lift 39103 Hydraulic Line Union Tee for 39000 / CL12
Replace a leaking, cracked, abraded, or damaged line with the 39103 Hydraulic Line Union Tee. Confirm the hose length, fittings, routing, and model configuration before ordering. Listed applications include 39000, CL12, CL10, CL10A, CL12A, CL12A-DPC.
Product Details
- Brand / Equipment: Challenger Lift
- Manufacturer / Reference Part Number: 39103
- Store SKU: CHR9103
- Component: Hydraulic Line Union Tee
Compatible / Referenced Equipment Models
- 39000: Challenger two-post lift series
- CL12: 12,000 lb two-post lift
- CL10: 10,000 lb Versymmetric two-post lift
- CL10A: 10,000 lb adjustable-width Versymmetric two-post lift
- CL12A: 12,000 lb adjustable-width two-post lift
- CL12A-DPC: 12,000 lb dual-pendant-control two-post lift
Parts Diagram & Manual Reference

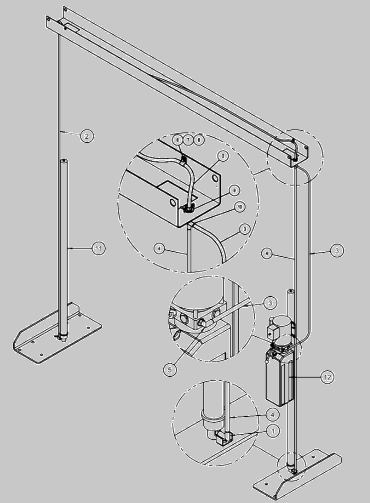

- Challenger Lift 39103 Union Tee, Fits Challenger Lift 39000 #10 in the drawing and other models CL12 # 50 in the breakdown On Challenger 39000 it is located right below the overhead on the power side and it is where the power unit hose, the offside cylinder hose, and the power side cylinder hose come together Lead times may vary depending on Vendor Stock Challenger Lift 39103 Union Tee, Fits Challenger Lift 39000 #10 in the drawing and other models CL12 # 50 in the breakdown Lead times may vary depending on Vendor Stock
- Official Challenger CL10 parts breakdown (Fig C. Hydraulics) identifies this as Item #41 with the description 37 Degree UNION TEE on page 16.
- Official Challenger CL10A parts breakdown (PARTS BREAKDOWN (continued)) identifies this as Item #41 with the description 37 Degree UNION TEE on page 17.
- Official Challenger CL12A parts breakdown (Fig C. Hydraulics) identifies this as Item #50 with the description TEE FITTING on page 20.
- Official Challenger CL12A-DPC parts breakdown (Fig C. Hydraulics) identifies this as Item #50 with the description TEE FITTING on page 22.
Original Product & Fitment Information
Challenger Lift 39103 Union Tee,
Fits Challenger Lift
39000 #10 in the drawing and other models
CL12 # 50 in the breakdown
On Challenger 39000 it is located right below the overhead on the power side and it is where the power unit hose, the offside cylinder hose, and the power side cylinder hose come together
Lead times may vary depending on Vendor Stock
Challenger Lift 39103 Union Tee,
Fits Challenger Lift
39000 #10 in the drawing and other models
CL12 # 50 in the breakdown
Lead times may vary depending on Vendor Stock
Verified Part-Number Fitment
The exact part number 39103 appears in verified Challenger parts documentation for the applications below:
- CL10 — Item #41, page 17: 37 Degree UNION TEE
- CL10A — Item #41, page 17: 37 Degree UNION TEE
- CL12A — Item #50, page 20: TEE FITTING
- CL12ADPC — Item #50, page 22: TEE FITTING
- CL16-0-3S / CL16-2-3S — Item #53, page 20: HYD. TEE
- CL20-0 / CL20-2 — Item #53, page 20: HYD. TEE
- EV1020 / EV1020-QC / EV1220 / EV1220-QC — Item #13, page 25: #6 JIC Union Tee
- EW1020 / EW1020-QC / EW1220 / EW1220-QC — Item #13, page 27: #6 JIC Union Tee
- SRM10 — Item #1, page 13: #6 JIC Male Branch Tee
Compatible Makes & Models
Compatible makes / equipment brands:
- Challenger
Verified fitment models include:
- 39000
- CL12
- CL10
- CL10A
- CL12A
- CL12A-DPC
- CL12-LC
- CL16-0-3S
- CL16-2-3S
- CL20-0
- CL20-2
- EV1020
- EV1020-QC
- EV1220
- EV1220-QC
- EW1020
- EW1020-QC
- EW1220
- EW1220-QC
- SRM10
Fitment can vary by production date, serial range, lift configuration, and equipment revision. Match the manufacturer/reference part number and your specific model before ordering.
Fitment & Ordering Notes
Challenger Lift components can vary by model, serial-number range, production date, lift height, side or orientation, color, power-unit configuration, and equipment revision. Before ordering, compare the manufacturer part number, specifications, diagram callout, model information, and original component. A similar appearance alone does not confirm interchangeability.
