Description

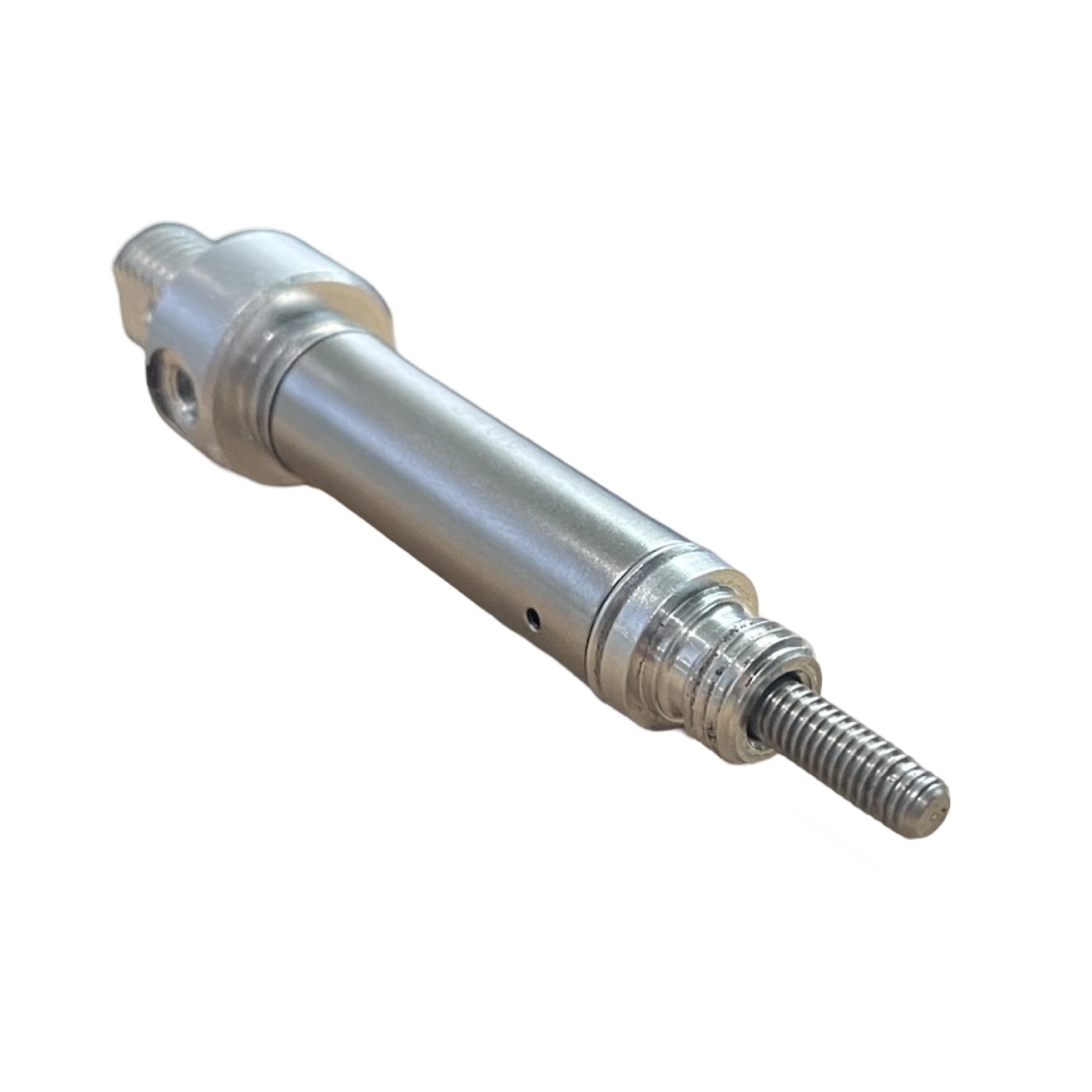

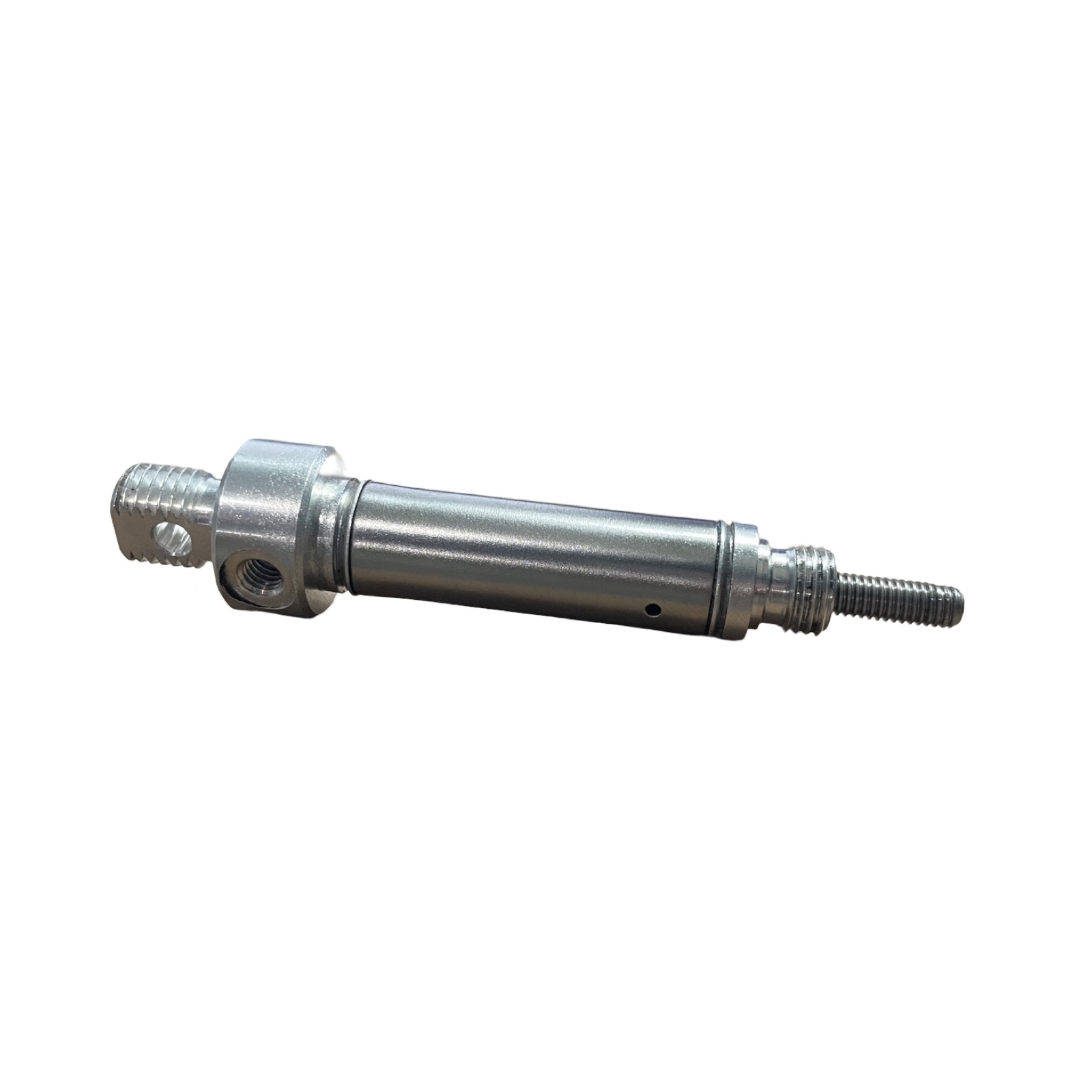

Replacement Air Lock Release Cylinder Actuator for Challenger and Ammco 2-Post Car Lifts – OEM Ref 37026
The air lock release cylinder (actuator) is the pneumatic component that physically retracts the safety lock pawls in each column of your 2-post lift, allowing the carriage to descend. When this cylinder fails, the safety locks will not release even when the air valve is pressed, leaving the lift stuck at height. Common signs of a failing air lock cylinder include air leaking around the cylinder body or rod seal, locks that release sluggishly or only on one side, or an actuator rod that moves but does not fully retract the pawl. Before ordering, verify the port size, stroke, and mounting configuration match your existing cylinder. This actuator replaces Challenger / VBM part 37026 (alternate reference 37025) and is for the air cylinder body only – the clevis rod end, pin, and air fitting are sold separately and can typically be reused from the original unit.
Product Information
- Brand / Equipment: Challenger Lift (VBM Lift Corp.), Ammco, Magnum
- Manufacturer / Reference Part Number: 37026
- Alternate OEM Reference: 37025
- Store SKU: CHR7026
- Component: Air Lock Release Cylinder / Actuator (air cylinder body only)
- Bore: 7/16 in.
- Stroke: 1/2 in.
- Quantity per Lift: 2 (one per column)
- Listed Application: 2-Post Surface-Mounted Car Lift Air Lock Release System

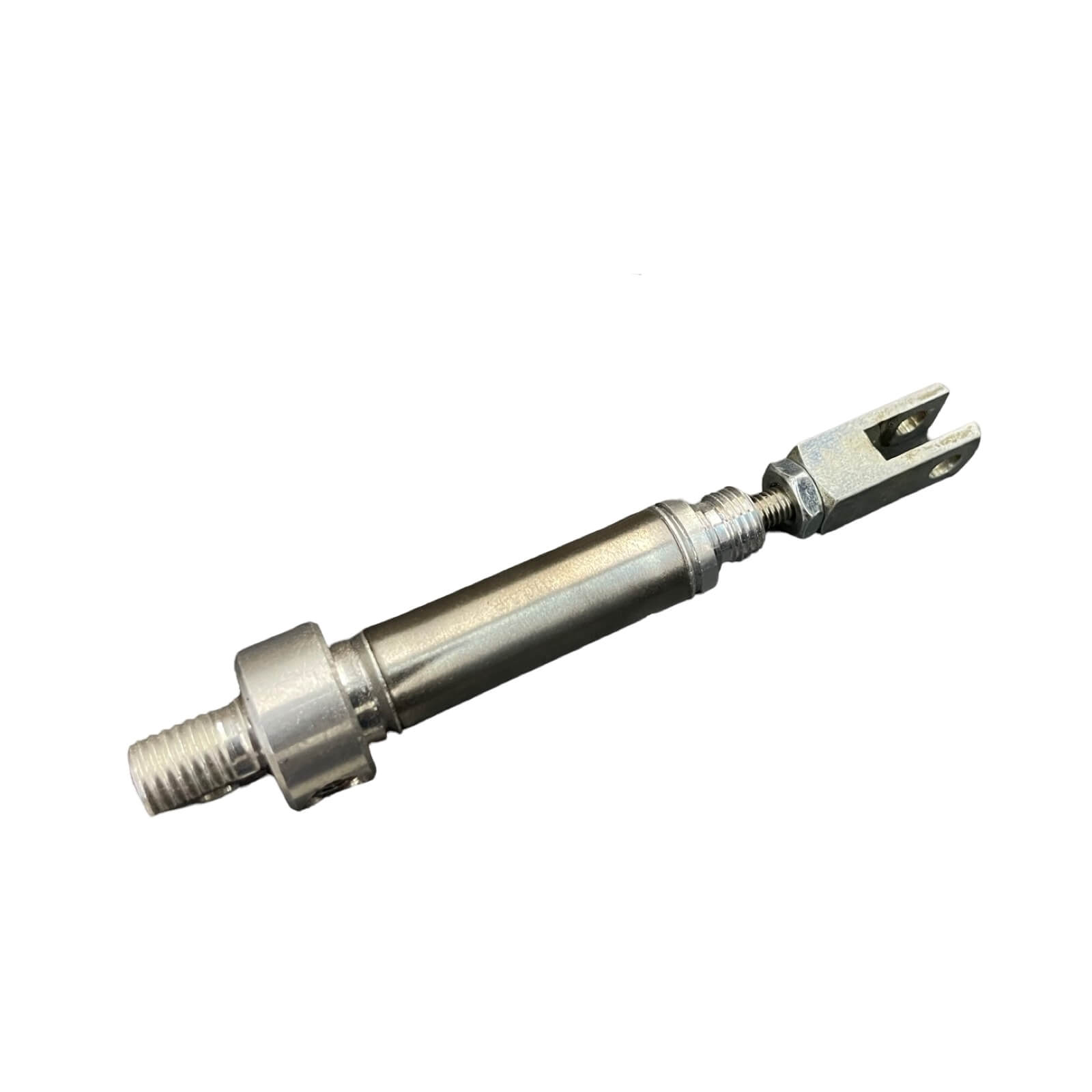

- Note: Clevis rod end, clevis pin, and air fitting are sold separately (see CHR7029 for clevis end and pin kit)
Compatible Makes / Verified Fitment Models
- Challenger Lift: 37000, 38000, 39000, 70000, 71000, 12000, 15000, 18000
- Ammco Lift: B2700, B2900, B29000
- Magnum Lift: OE-9, OE-12000, OE-15000, OE-18000
Replacement / Cross-Reference Numbers
- Challenger / VBM OEM: 37026
- Alternate OEM Reference: 37025 (air cylinder assembly)
- Aftermarket / Store SKU: CHR7026
- Additional Cross-Reference: ALP-7229-29, 4B37026
Fitment and Ordering Notes
- This listing is for the air cylinder (actuator) body only. The clevis rod end, clevis pin, and air line fitting are not included and are sold separately.
- Each 2-post lift requires two cylinders, one installed in each column.
- Verify your lift model number matches the fitment list above before ordering.
- It is recommended to periodically inspect and fill the air line lubricator/oiler to extend the service life of all air-operated lock release components.
- Not sure about fitment or need additional Challenger lift parts? Call us at 866-902-6060 before ordering.
