Direct Lift 30400-5023 Leaf Chain Pin for 2-Column 8K, BP9 & HR8000 Lifts

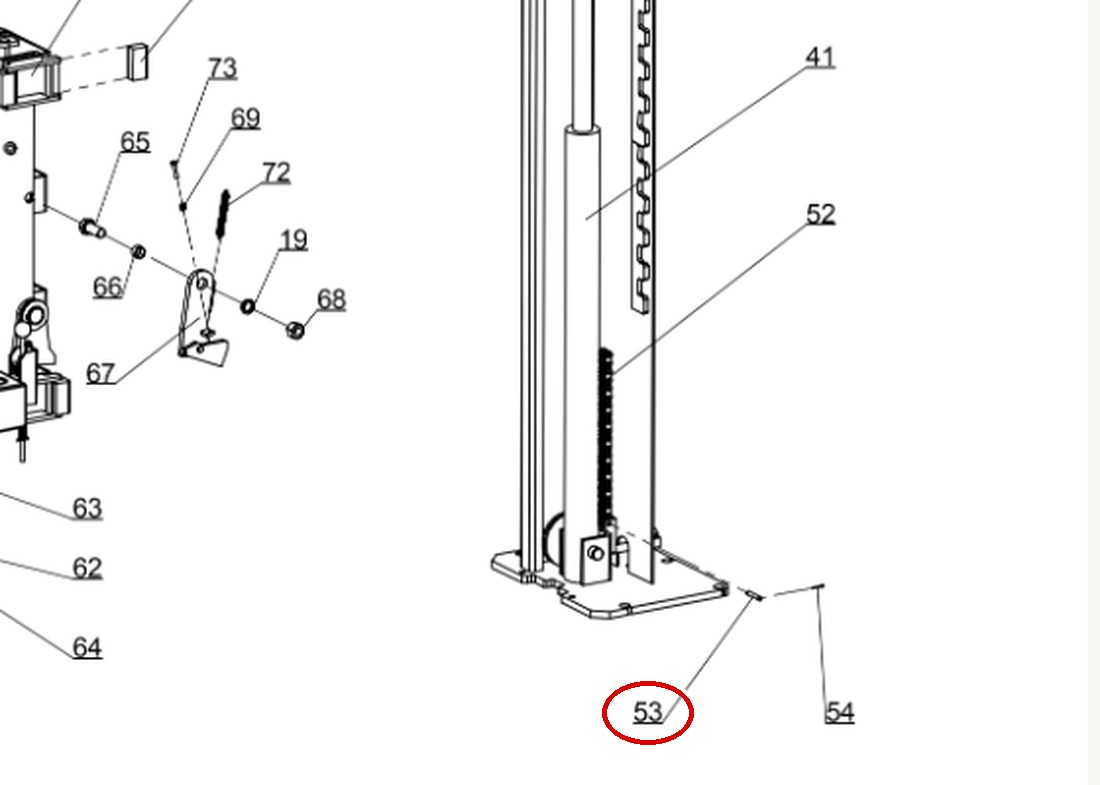

Direct Lift HR8000 Hydraulic Cylinder item 53 DIT5023

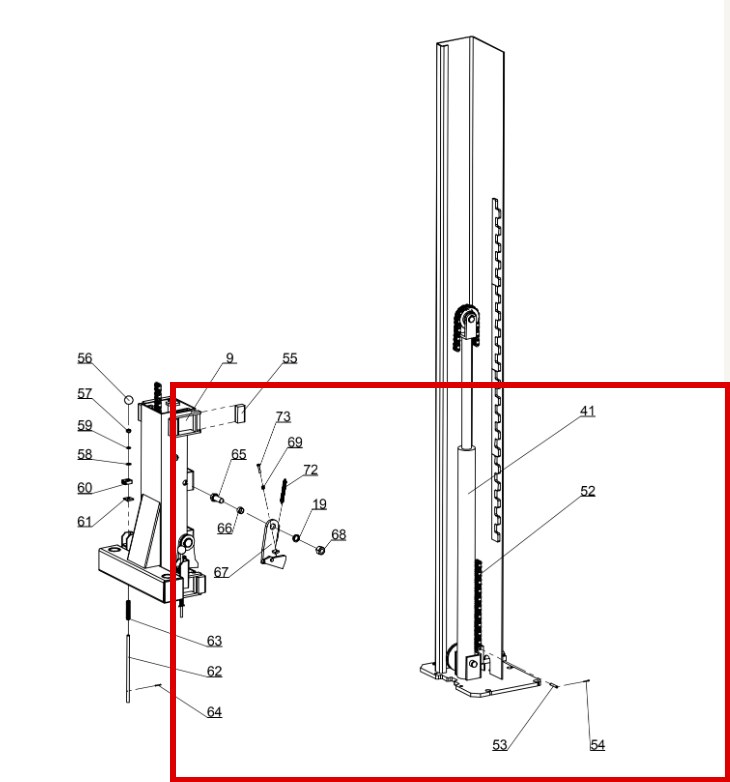

Direct Lift HR8000 Hydraulic Cylinder item 53 DIT5023 (location)

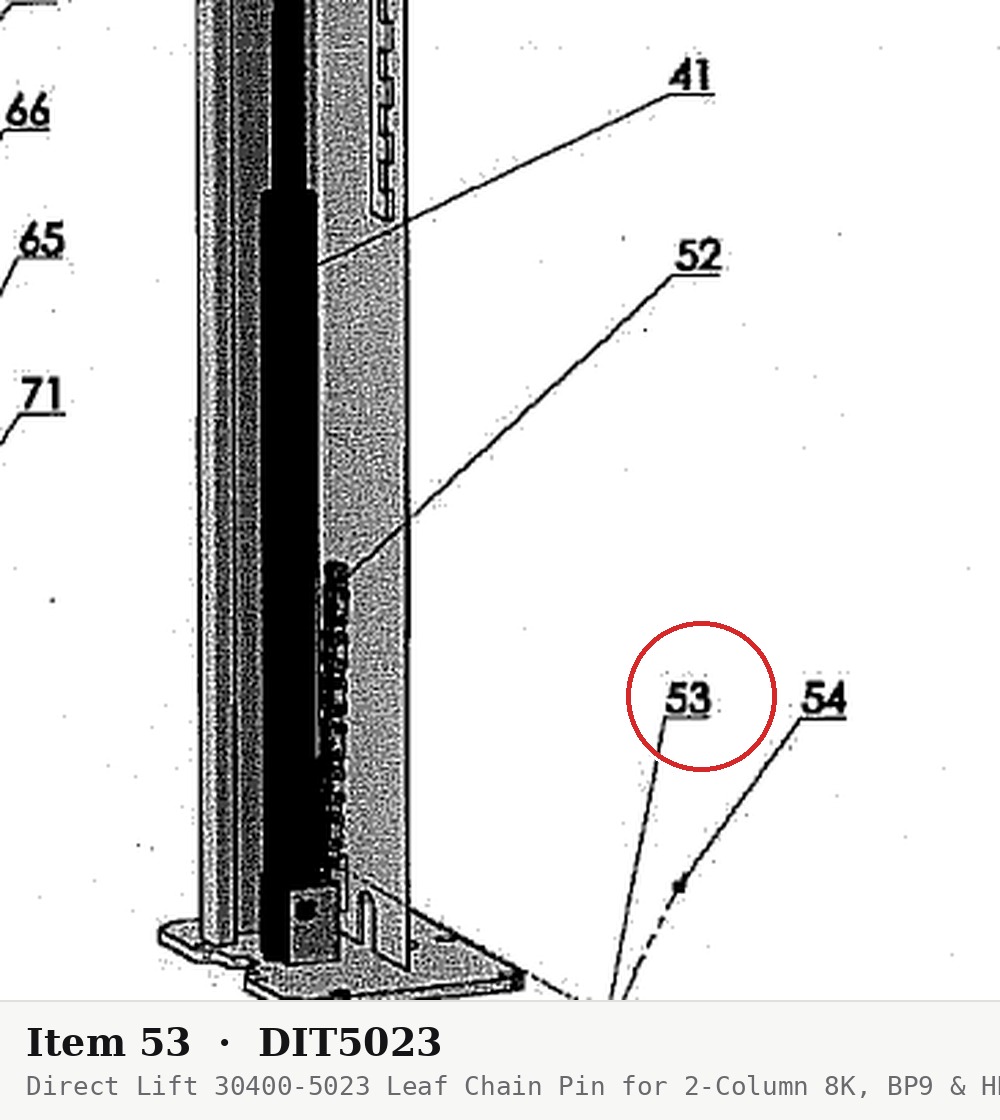

Direct Lift 30400-5023 Leaf Chain Pin for 2-Column 8K, BP9 & HR8000 Lifts - parts drawing detail

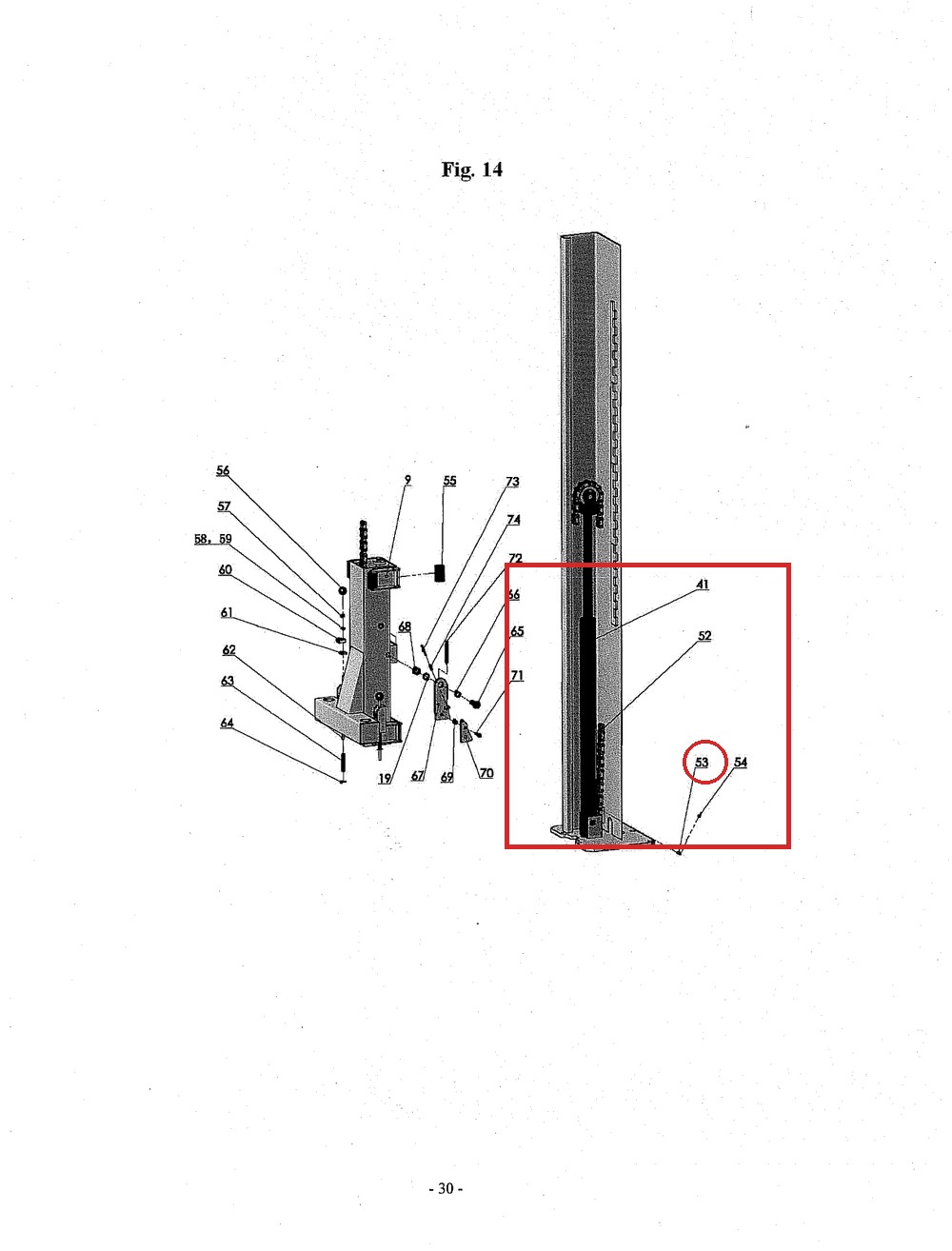

Direct Lift 30400-5023 Leaf Chain Pin for 2-Column 8K, BP9 & HR8000 Lifts - full parts breakdown drawing

$14.53

Availability: In Stock

SKU: DIT5023

Direct Lift 30400-5023 — Leaf Chain Pin for 2-Column 8K, BP9 & HR8000 Lifts. Use the part number and listed lift application to confirm compatibility before ordering.

OEM Direct Lift leaf chain pin (part 30400-5023) for 2-column 8K, BP9 floor plate and HR8000 lift chain assemblies.

Availability may vary depending on vendor stock.

Description

Direct Lift 30400-5023 Leaf Chain Pin for 2-Column 8K, BP9 & HR8000 Lifts

Replace missing, worn, or damaged lift hardware with the 30400-5023 Leaf Chain Pin, listed for use on 2-Column 8K, BP9 & HR8000 Lifts. This hardware is used when servicing the specified Direct Lift assembly. Match the part number, size or description, and listed application before ordering.

Product Information

Brand / Equipment: Direct Lift
Manufacturer / Reference Part Number: 30400-5023
Store SKU: DIT5023
Component: Leaf Chain Pin
Listed Application: 2-Column 8K, BP9 & HR8000 Lifts

Fitment & Ordering Notes

Automotive lift manufacturers may use different parts across model years, production runs, or equipment revisions. Before ordering, compare the reference part number and the model/application information in this listing with the identification tag, parts manual, or original component on your lift. If your equipment uses a different part number, verify interchange before installation.

Additional Existing Product / Fitment Information

In the drawing images above this is part number 53 in the PARTS BREAKDOWN 2-COLUMN 8K AUTOMO drawing and part number 22 in the PARTS BREAKDOWN BP9 FLOOR PLATE AU drawing and part number 53 in the PARTS BREAKDOWN HR8000 8K FLOOR PL drawing.

Fits the following lift models — part number 30400-5023 appears in the parts breakdown of each of these lifts: Direct Lift 8K Two-Column Automotive, BP9 Floor Plate, HR-8000 8K Floor Plate, OH-8000 8K Overhead, PRO-9 / PRO-9F 9K Two-Column, PRO-9F 9K Floor Plate, HR-8000, PRO-9F.

This pin anchors the leaf chain in the lifting chain assembly of Direct Lift two-column lifts. It appears in the carriage/cylinder and chain detail drawings (Drawing 1 and Drawing 2, pages 24-26) of the 2-Column 8K, BP9 and HR8000 parts breakdowns.

Genuine OEM replacement part for Direct Lift equipment. As part of the load-carrying chain system, inspect and replace pins showing wear during chain service. Verify fitment against your parts breakdown callout before ordering.
