Description
Direct Lift 30500-5001(B)-09 Shaft, Carriage Lock / Latch Assembly for PROV12 / PRO12 TP / PV12
Repair or service the applicable lift assembly with the 30500-5001(B)-09 Shaft, Carriage Lock / Latch Assembly, listed for use on PROV12 / PRO12 TP / PV12. Use the reference part number and listed Direct Lift application to compare against the original component before ordering.
Product Information
- Brand / Equipment: Direct Lift
- Manufacturer / Reference Part Number: 30500-5001(B)-09
- Store SKU: DIT05001
- Component: Shaft, Carriage Lock / Latch Assembly
- Listed Application: PROV12 / PRO12 TP / PV12
Fitment & Ordering Notes
Automotive lift manufacturers may use different parts across model years, production runs, or equipment revisions. Before ordering, compare the reference part number and the model/application information in this listing with the identification tag, parts manual, or original component on your lift. If your equipment uses a different part number, verify interchange before installation.
Additional Existing Product / Fitment Information

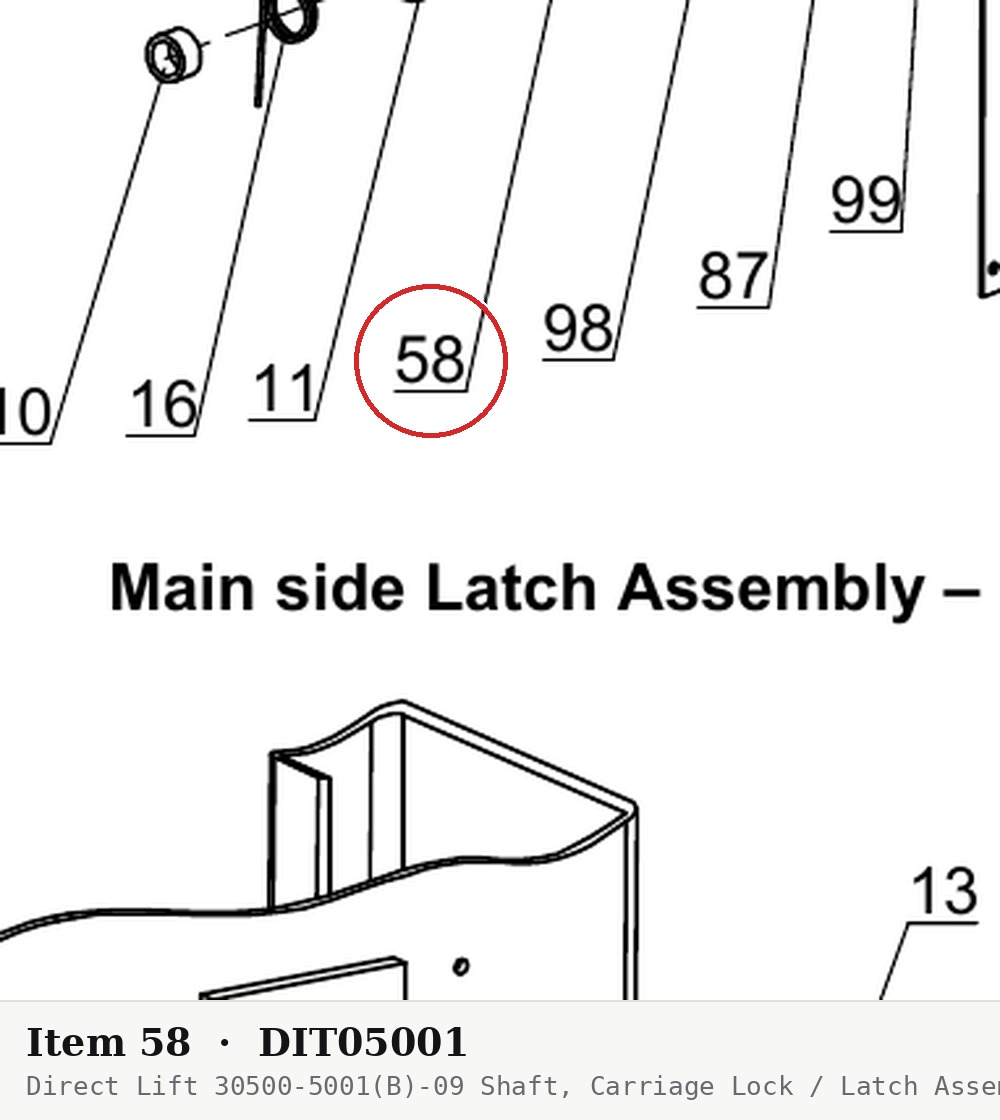

This is part number 58 in the drawing image above.
Fits the following lift models — part number 30500-5001 ( B ) -09 appears in the parts breakdown of each of these lifts: Direct Lift PROV12 / PRO-12, PV12.

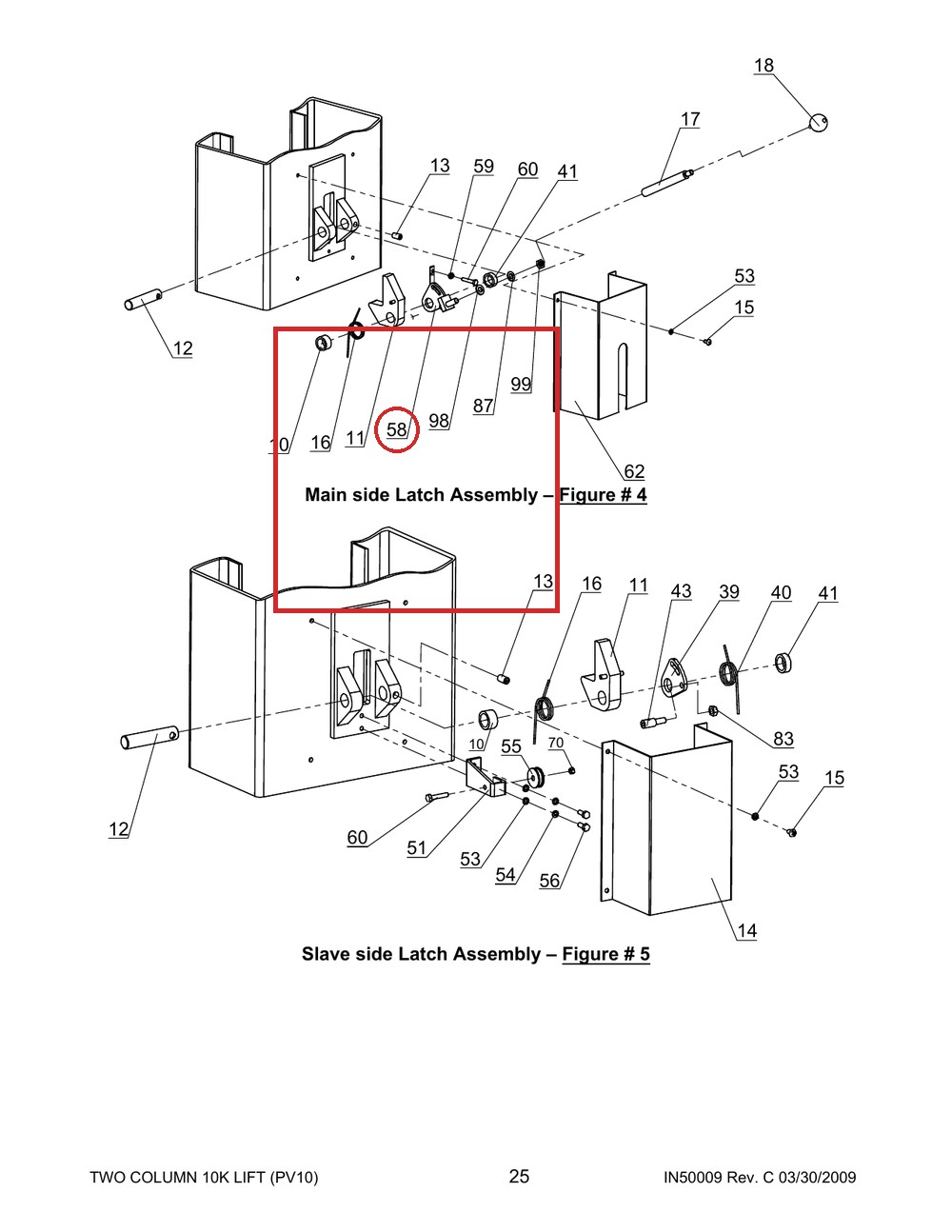

This shaft is the pivot on which the carriage lock / safety latch rotates. It is used in both the slave-side latch assembly (Drawing 1) and the master-side carriage lock/operating-handle assembly (Drawing 3).
Direct replacement for the original factory shaft. A worn or scored latch shaft can cause sticky lock engagement; replace along with the latch spring and spacers when servicing the safety system.
