Direct Lift B14-3/4x140 Anchor Bolt for HR8000 / OH8000 Two Post Lift

Description

Direct Lift B14-3/4×140 Anchor Bolt for HR8000 / OH8000 Two Post Lift

The concrete anchor bolt secures the Direct Lift HR8000 floor plate and OH8000 overhead two post lift columns to the shop floor. Replace when bolts show corrosion, thread damage, or fail to maintain specified torque. Ensure concrete meets minimum thickness and compressive strength before installation.

Product Information

• Brand / Equipment: Direct Lift
• Manufacturer / Reference Part Number: B14-3/4×140
• Component: Concrete Anchor Bolt
• Diameter: 3/4 in. (0.75 in.)
• Length: 140 mm (approx. 5-1/2 in.)
• Quantity per Lift: 10

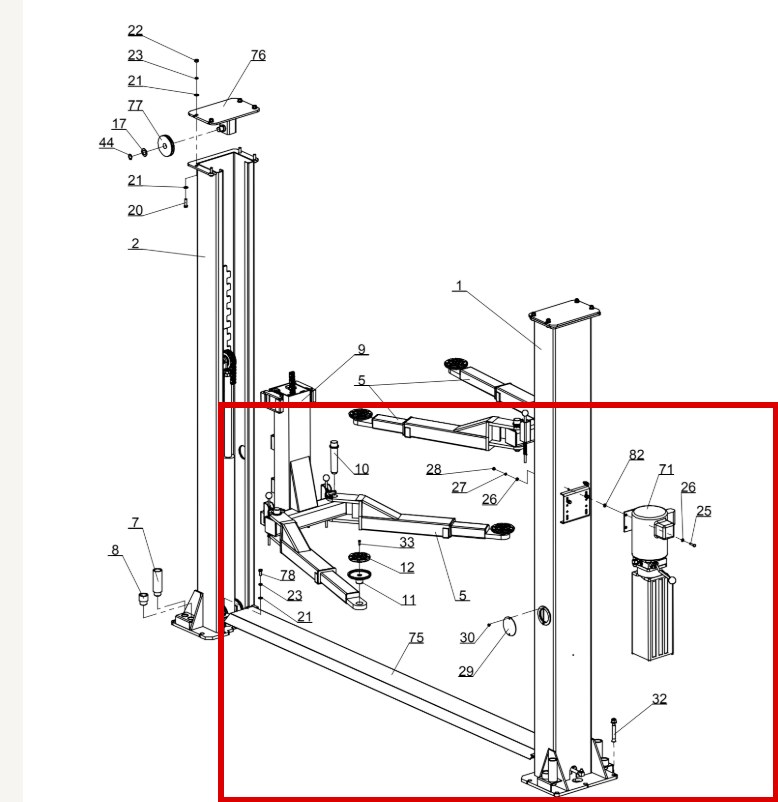

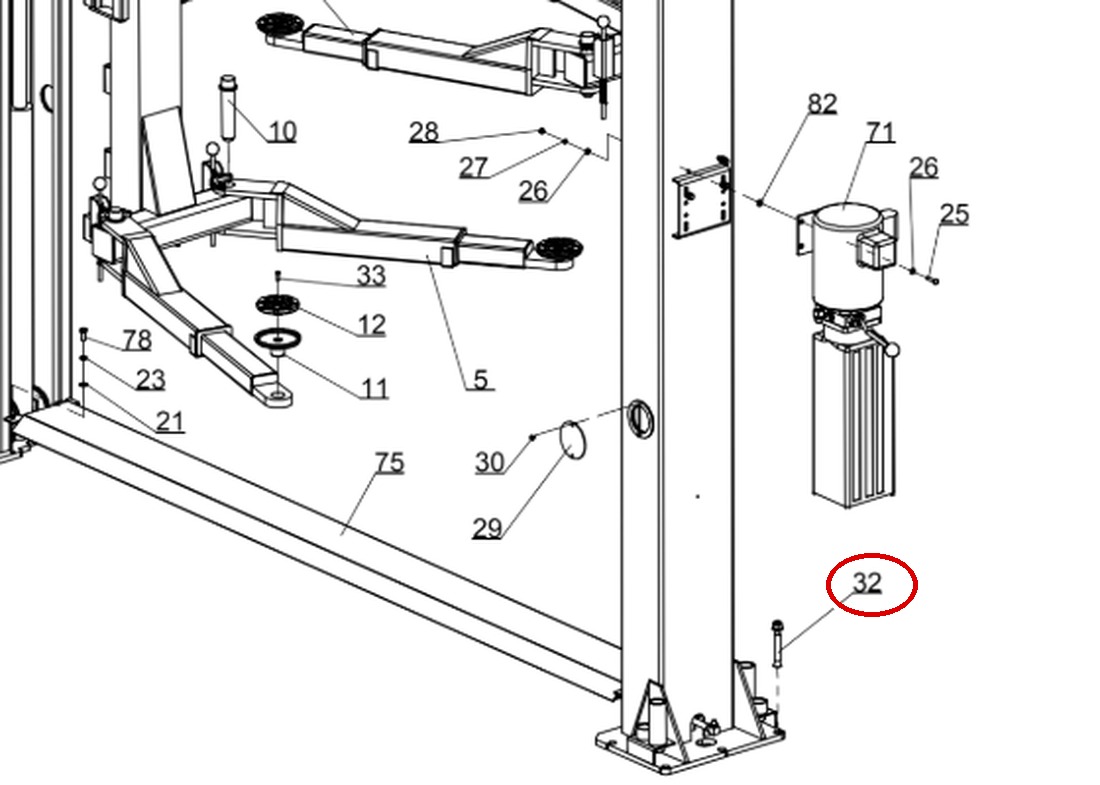

• Listed Application: Direct Lift HR8000 floor plate lift columns and OH8000 overhead two post lift columns

Compatible Makes / Verified Fitment Models

• Direct Lift HR8000 Two Post Floor Plate Lift (qty 10)
• Direct Lift OH8000 Two Post Overhead Lift (qty 10)

Fitment & Ordering Notes

Contact us to confirm model and serial number fitment before ordering. Follow the lift installation manual for drilling requirements, hole depth, and torque specifications. The 3/4 in. x 140 mm (approx.
