Direct Lift B40-10 10mm Lock Washer for CR14, DL9 & I12 Lifts (Caster Kit)

Description

Direct Lift B40-10 10mm Lock Washer for CR14, DL9 & I12 Lifts (Caster Kit)

Replace missing, worn, or damaged lift hardware with the B40-10 10mm Lock Washer, listed for use on CR14, DL9 & I12 Lifts (Caster Kit). This hardware is used when servicing the specified Direct Lift assembly. Match the part number, size or description, and listed application before ordering.

Product Information

• Brand / Equipment: Direct Lift
• Manufacturer / Reference Part Number: B40-10
• Store SKU: DIT4010
• Component: 10mm Lock Washer
• Listed Application: CR14, DL9 & I12 Lifts (Caster Kit)

Fitment & Ordering Notes

Automotive lift manufacturers may use different parts across model years, production runs, or equipment revisions. Before ordering, compare the reference part number and the model/application information in this listing with the identification tag, parts manual, or original component on your lift. If your equipment uses a different part number, verify interchange before installation.

Additional Existing Product / Fitment Information

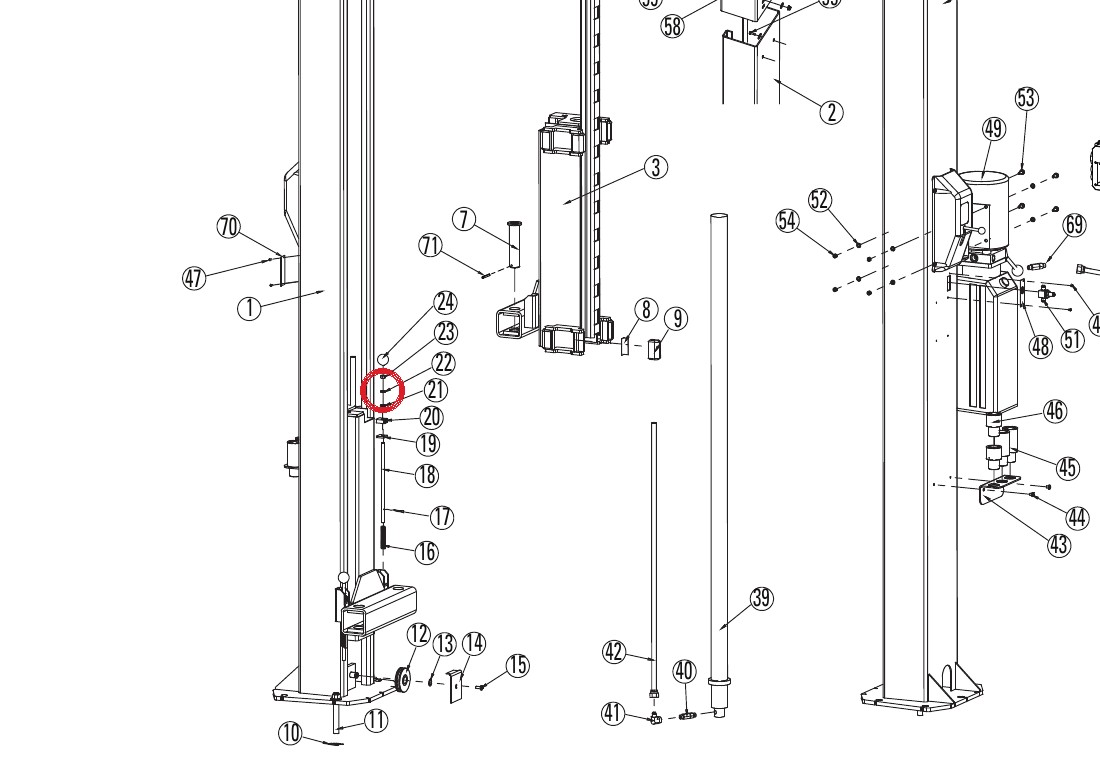

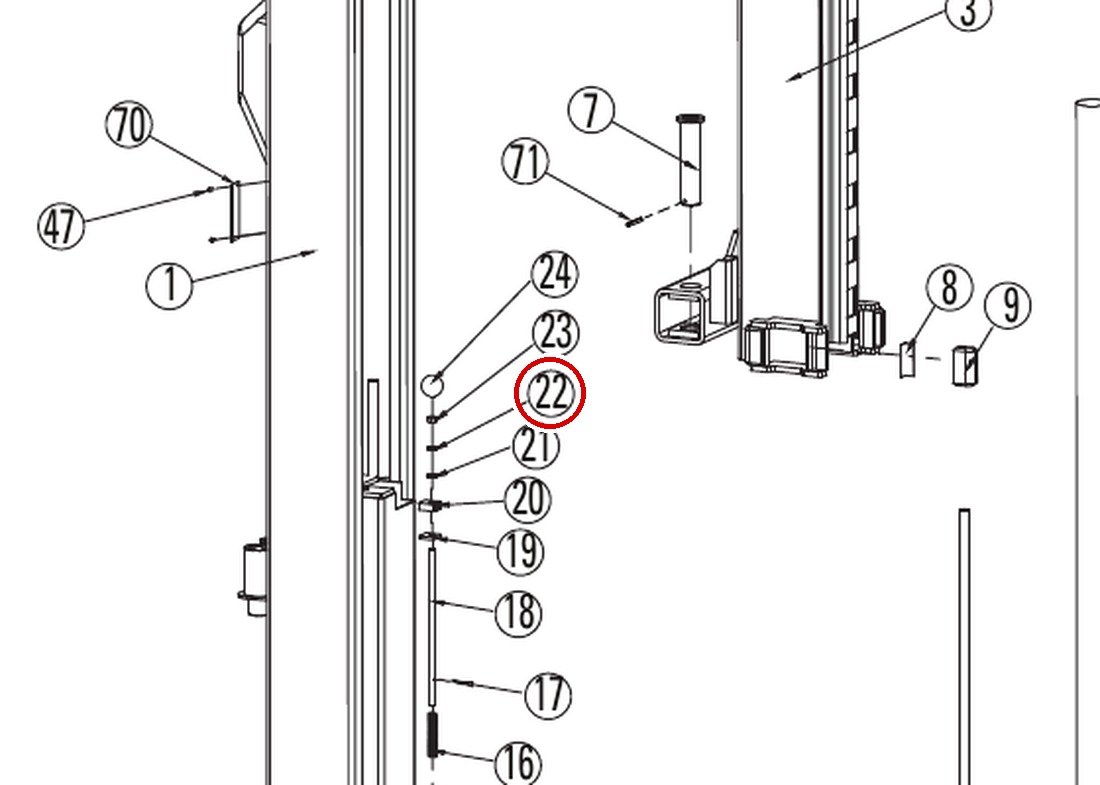

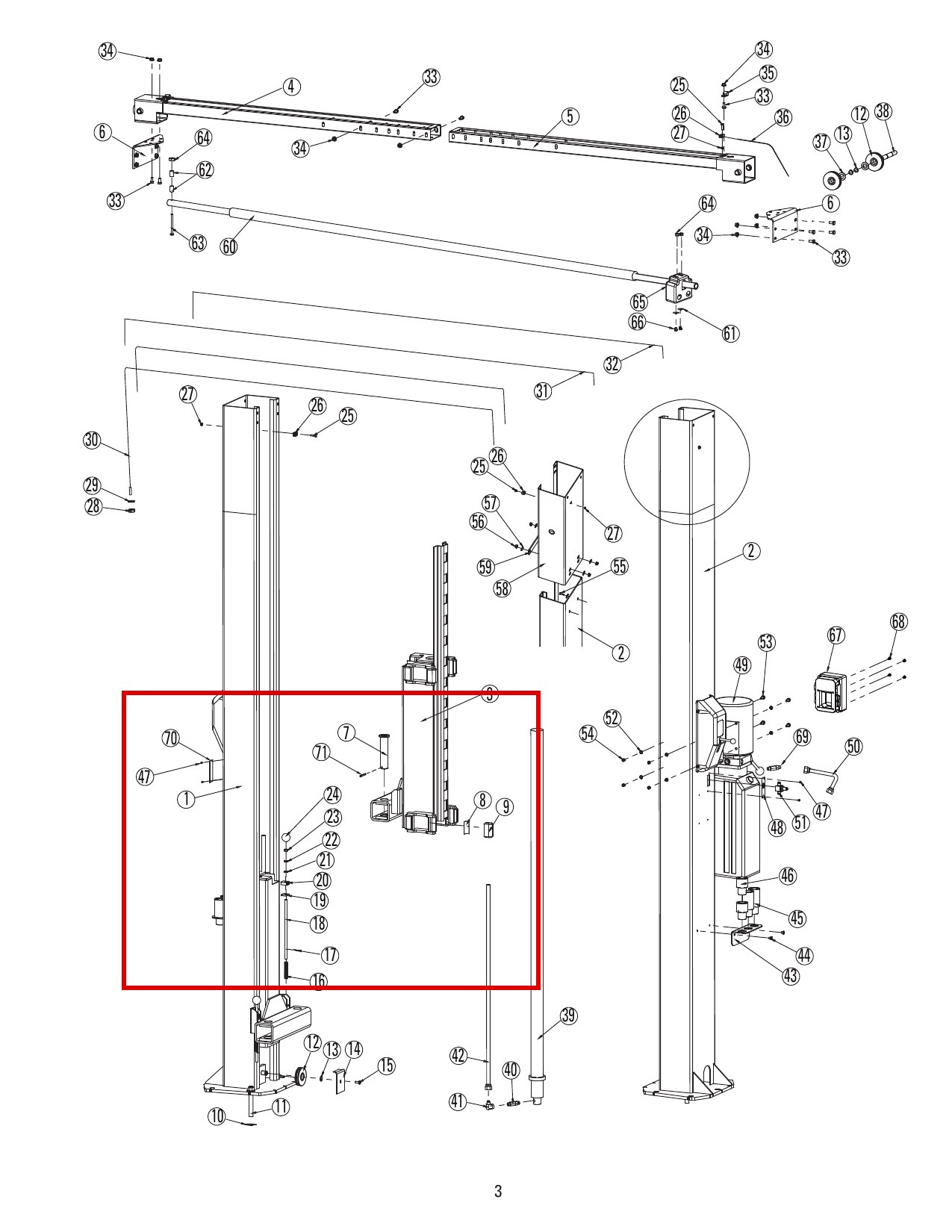

In the drawing images above this is part number 7 in the CRA14_PARTS-BREAKDOWN drawing and part number 22 in the DL9 parts drawing and part number 6 in the I12-Parts drawing.

Fits the following lift models — part number B40-10 appears in the parts breakdown of each of these lifts: Forward Lift CRA14, CR14 (newer); Rotary Lift DL9; Direct Lift I12, 10K Two-Column, 8K Two-Column Automotive, 8K Four-Post Parking, 9K Parking (wide version), HR-8000 8K Floor Plate, OH-8000 8K Overhead, PP8+ 8K Four-Post, PP9+ 9K Four-Post, PRO-9D 9K Two-Column, PRO-10 / PROV10 / PV10 (new style), PRO-14F (newer, 3-bolt lock), PROV12 / PRO-12, PV12, HR-8000, PRO-14F 14K, PROV10 (early); PRO-9D.

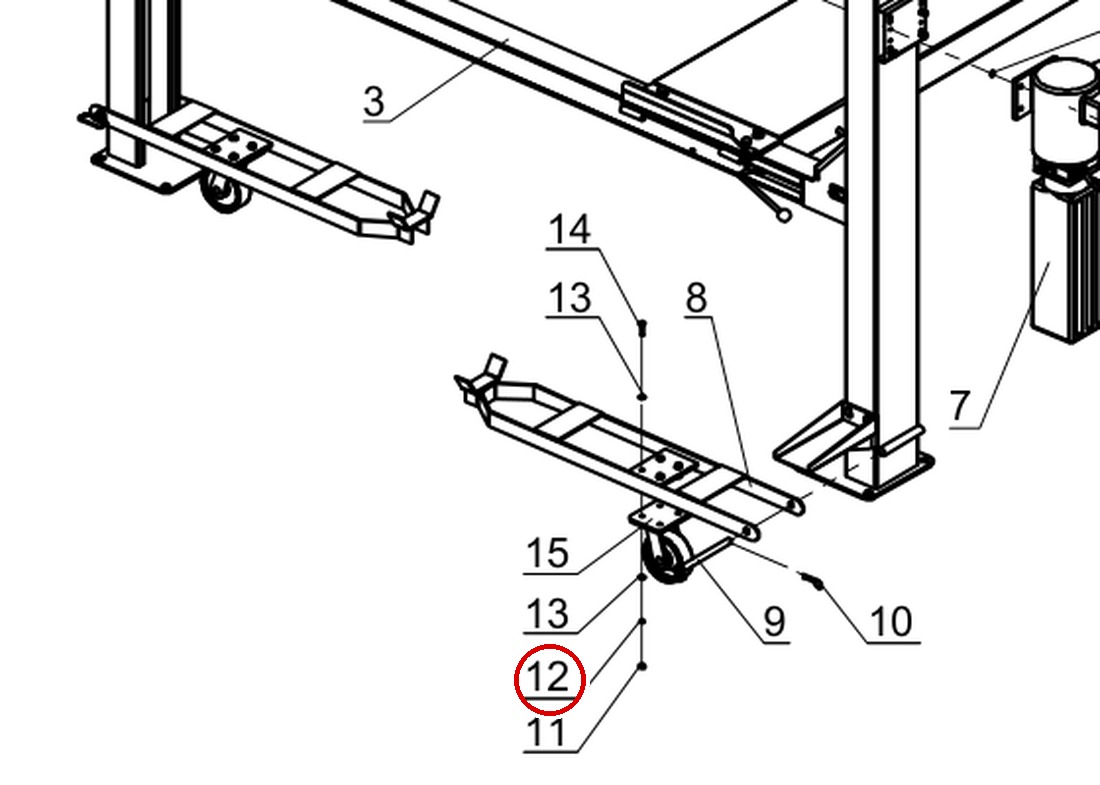

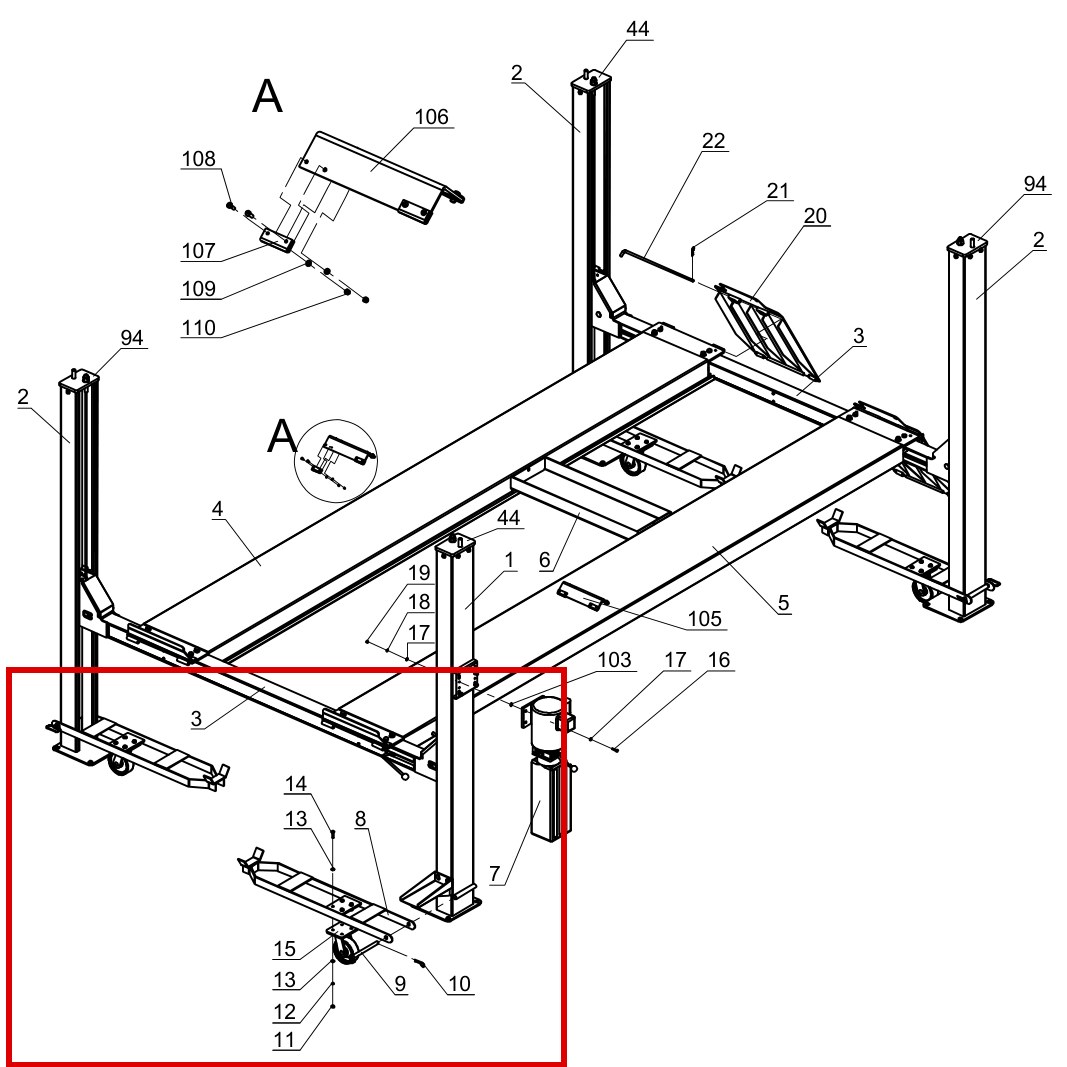

This 10mm spring lock washer is called out in the Caster Kit Assembly and Caster Kit Installation drawings, plus PP8P accessories. It preserves bolt preload on caster and accessory mounting hardware so the fasteners stay tight while the lift is rolled and repositioned.

Direct OEM-style replacement for the factory B40-10 washer. Match your model and kit drawing to confirm fitment.

Fits these lifts:

• Direct Lift — DL9 (9,000 lb two-post); DP8 (8,000 lb four-post parking); HR8000 (8,000 lb floor-plate two-post); I12 (12,000 lb two-post); PP8+ (8,000 lb four-post)
• Hanmecson (VSG) — DL9
• Forward Lift — CRA14
