Direct Lift B51-3x26 Roll Pin 3mm x 26mm for HR8000 8K Lift (Fastenal #40533)

Description

Direct Lift B51-3×26 Roll Pin 3mm x 26mm for HR8000 8K Lift (Fastenal #40533)

Replace missing, worn, or damaged lift hardware with the B51-3×26 Roll Pin 3mm x 26mm, listed for use on HR8000 8K Lift (Fastenal #40533). This hardware is used when servicing the specified Direct Lift assembly. Match the part number, size or description, and listed application before ordering.

Product Information

• Brand / Equipment: Direct Lift
• Manufacturer / Reference Part Number: B51-3×26
• Store SKU: DIT3X26
• Component: Roll Pin 3mm x 26mm
• Listed Application: HR8000 8K Lift (Fastenal #40533)

Fitment & Ordering Notes

Automotive lift manufacturers may use different parts across model years, production runs, or equipment revisions. Before ordering, compare the reference part number and the model/application information in this listing with the identification tag, parts manual, or original component on your lift. If your equipment uses a different part number, verify interchange before installation.

Additional Existing Product / Fitment Information

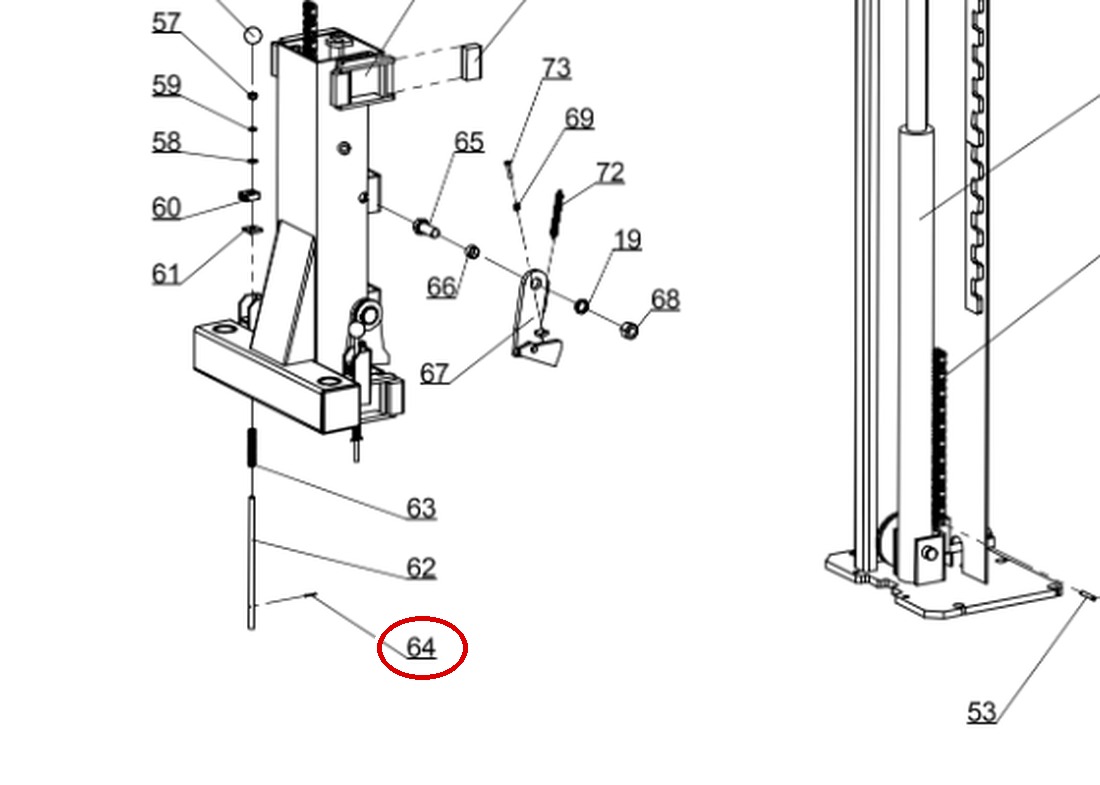

This is part number 64 in the drawing image above.

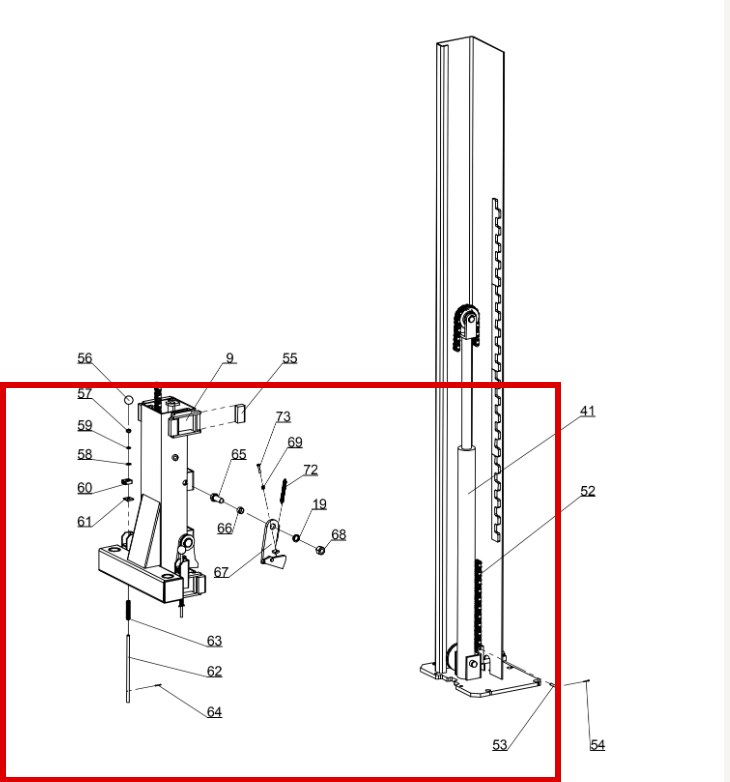

Fits the Direct Lift HR8000 8,000 lb lift, shown in Drawing 3 of the HR8000 parts breakdown.

This 3mm x 26mm roll pin (raw/spring pin) is a slotted spring-tension pin that self-retains in its bore. On the HR8000 it secures components in the assembly detailed in Drawing 3 of the parts diagram.

OEM replacement from the Light Duty Direct / HI Parts family, cross-referenced to Fastenal part 40533. Confirm against Drawing 3 of your HR8000 breakdown before ordering.
