Direct Lift B51-6X20 Spring Pin 6mm x 20mm for DL9, DP10 & I10 Lifts

Description

Direct Lift B51-6X20 Spring Pin 6mm x 20mm for DL9, DP10 & I10 Lifts

Replace missing, worn, or damaged lift hardware with the B51-6X20 Spring Pin 6mm x 20mm, listed for use on DL9, DP10 & I10 Lifts. This hardware is used when servicing the specified Direct Lift assembly. Match the part number, size or description, and listed application before ordering.

Product Information

• Brand / Equipment: Direct Lift
• Manufacturer / Reference Part Number: B51-6X20
• Store SKU: DIT16X20
• Component: Spring Pin 6mm x 20mm
• Listed Application: DL9, DP10 & I10 Lifts

Fitment & Ordering Notes

Automotive lift manufacturers may use different parts across model years, production runs, or equipment revisions. Before ordering, compare the reference part number and the model/application information in this listing with the identification tag, parts manual, or original component on your lift. If your equipment uses a different part number, verify interchange before installation.

Additional Existing Product / Fitment Information

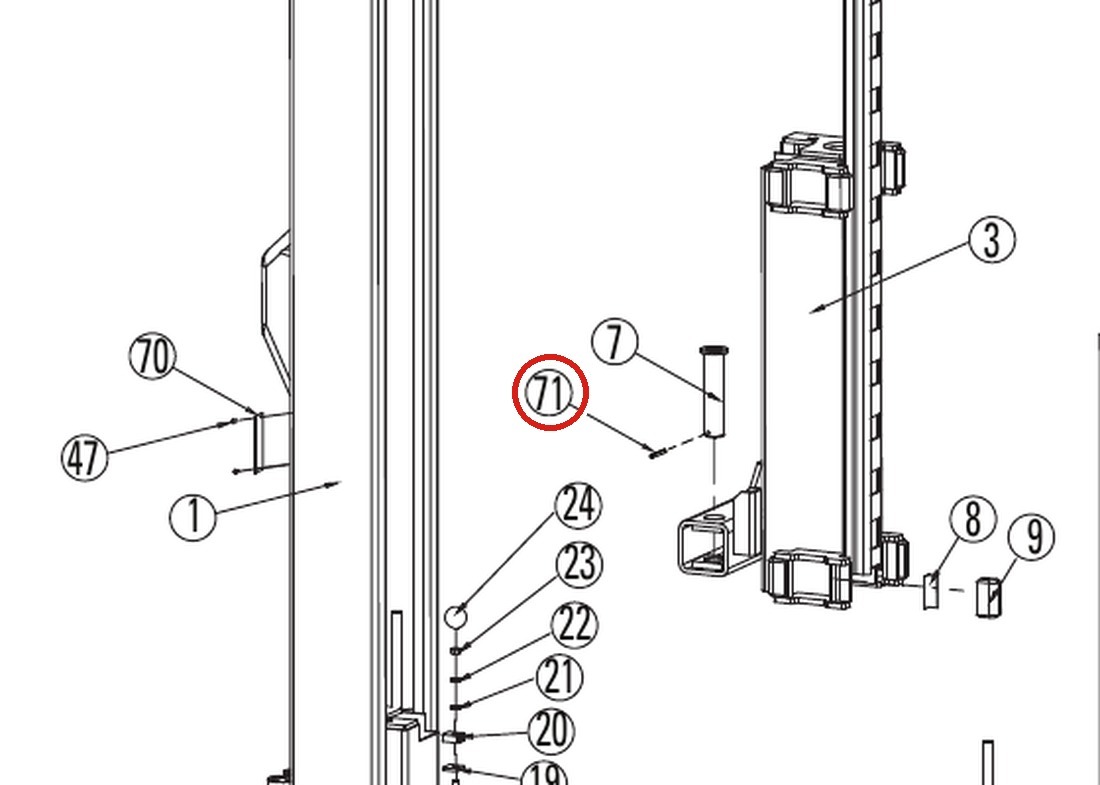

In the drawing images above this is part number 71 in the DL9 parts drawing and part number 74 in the DP10-Parts new style w lock covers drawing and part number 75 in the I10N000M drawing.

Fits the following lift models — part number B51-6X20 appears in the parts breakdown of each of these lifts: Rotary Lift DL9, DP10 (new style with lock covers), I10N000M; Direct Lift HR-8000.

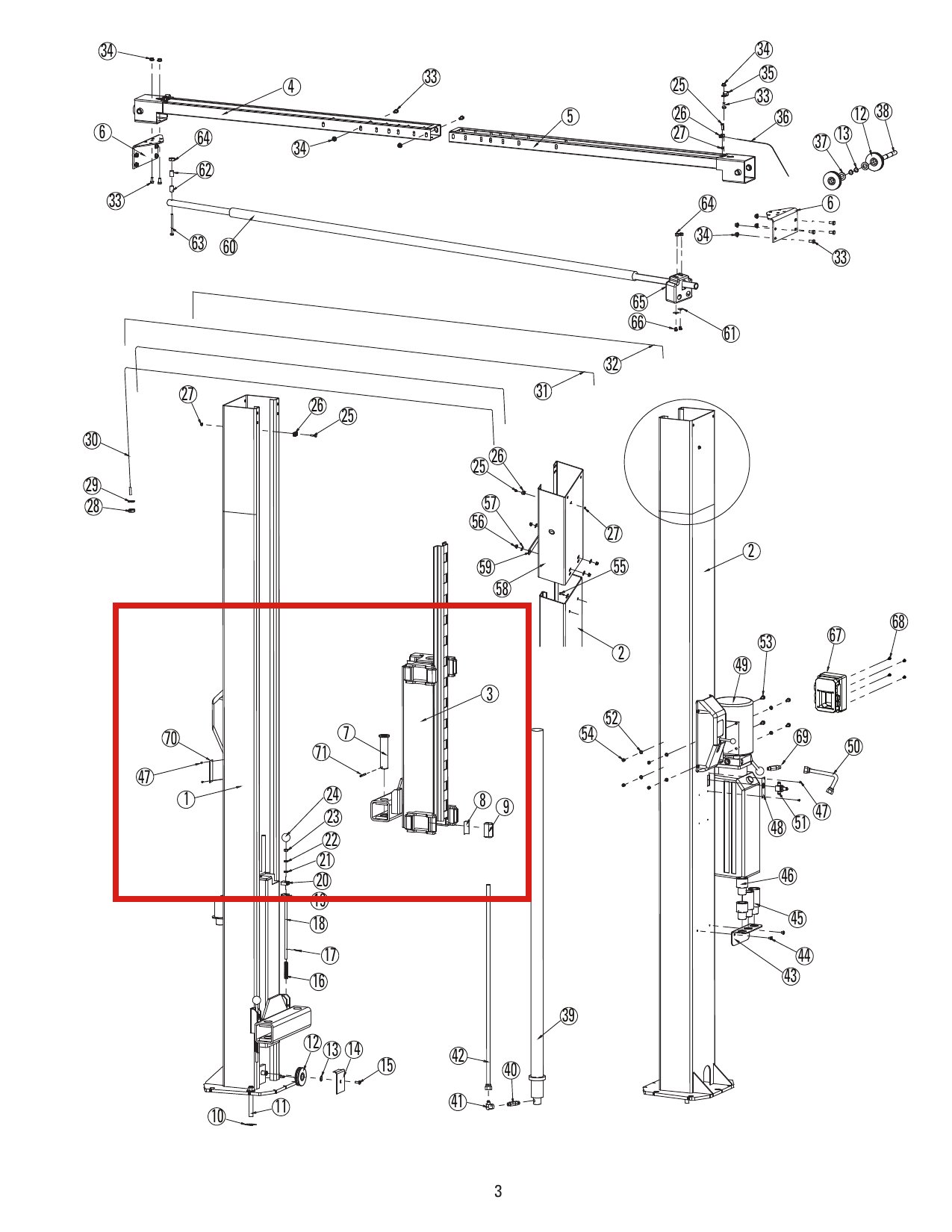

This 6mm x 20mm spring pin appears in the main lift assemblies of these models: Drawing 1 (Main Lift Assembly, page 3) on the DL9, Drawing 2 on the DP10, and the Main Lift Assembly (Columns, Overhead, Carriage & Power Unit) on the I10. It is a self-retaining spring-tension pin used to secure components in the column and carriage hardware.

OEM replacement from the Light Duty Direct / HI Parts family. Check your model’s main lift assembly drawing to confirm the callout before ordering.

Fits these lifts:

• Direct Lift — DL9 (9,000 lb two-post); HR8000 (8,000 lb floor-plate two-post)
• Hanmecson (VSG) — DL9
• Forward Lift — DP10 (new style with lock covers); I10 (I10N000M)
