Direct Lift DP8-2001 Latch Cover A / Pulley Cover for 7K / 8K / PP8+ Four-Post Lifts

Description

Direct Lift DP8-2001 Latch Cover A / Pulley Cover for 7K / 8K / PP8+ Four-Post Lifts

Keep the lift cable and movement system operating correctly with the DP8-2001 Latch Cover A / Pulley Cover, listed for use on 7K / 8K / PP8+ Four-Post Lifts. Use this part when servicing the corresponding Direct Lift assembly and verify the reference part number and application before ordering.

Product Information

• Brand / Equipment: Direct Lift
• Manufacturer / Reference Part Number: DP8-2001
• Store SKU: DIT82001
• Component: Latch Cover A / Pulley Cover
• Listed Application: 7K / 8K / PP8+ Four-Post Lifts

Fitment & Ordering Notes

Automotive lift manufacturers may use different parts across model years, production runs, or equipment revisions. Before ordering, compare the reference part number and the model/application information in this listing with the identification tag, parts manual, or original component on your lift. If your equipment uses a different part number, verify interchange before installation.

Additional Existing Product / Fitment Information

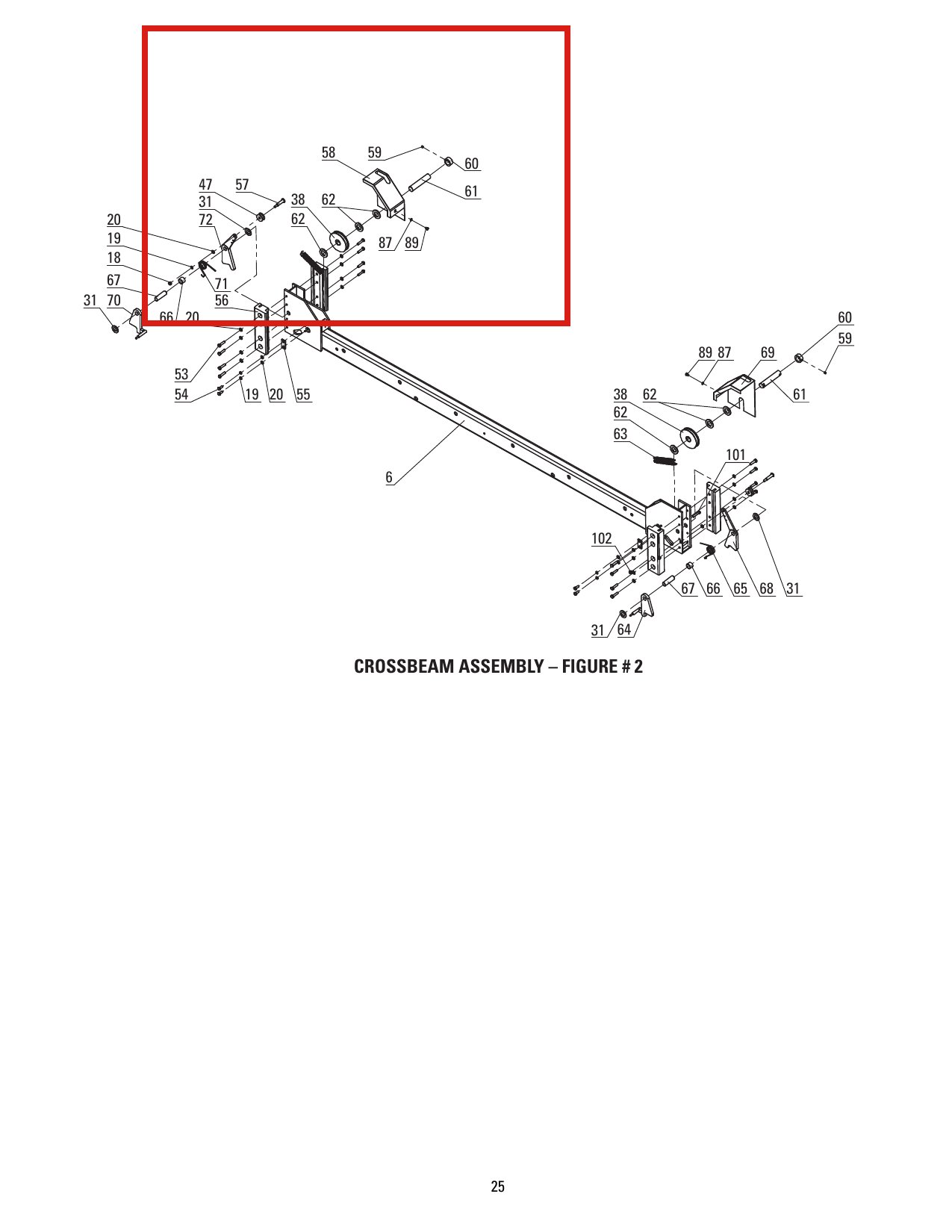

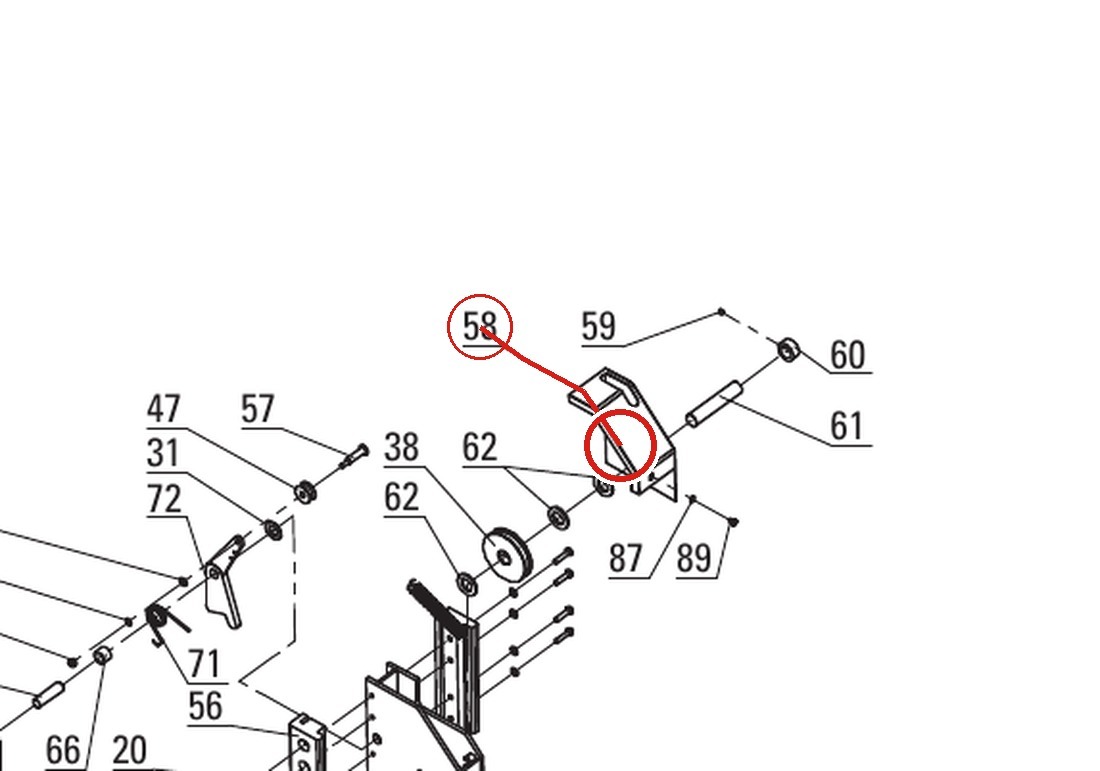

This is part number 58 in the drawing image above.

Fits the following lift models — part number DP8-2001 appears in the parts breakdown of each of these lifts: Direct Lift 7K Four-Post Parking, 8K Four-Post Parking, PP8+ 8K Four-Post, PP8+ Long 8K Four-Post, PP8S 8K Four-Post.

Latch Cover A shields the latch and pulley hardware on the crossbeam assembly, keeping fingers and debris away from the moving lock mechanism and cable pulleys. Covers cracked during service or lost during reassembly should be replaced to keep the mechanism protected.

Genuine Direct Lift replacement part from the Light Duty-Direct line. The crossbeam uses A and B covers; verify position against Figure #2 (Latch Cover B is DP8-2002).

Fits these lifts:

• Direct Lift — PP8+ Long (8,000 lb four-post); 7K four-post parking lift; DP8 (8,000 lb four-post parking); PP8+ (8,000 lb four-post)
