Direct Lift H4P-3002 Bracket for CR14 & Pro 14F Power Unit / Hydraulic Assembly

Description

Direct Lift H4P-3002 Bracket for CR14 & Pro 14F Power Unit / Hydraulic Assembly

Repair or service the applicable lift assembly with the H4P-3002 Bracket, listed for use on CR14 & Pro 14F Power Unit / Hydraulic Assembly. Use the reference part number and listed Direct Lift application to compare against the original component before ordering.

Product Information

• Brand / Equipment: Direct Lift
• Manufacturer / Reference Part Number: H4P-3002
• Store SKU: DITP3002
• Component: Bracket
• Listed Application: CR14 & Pro 14F Power Unit / Hydraulic Assembly

Fitment & Ordering Notes

Automotive lift manufacturers may use different parts across model years, production runs, or equipment revisions. Before ordering, compare the reference part number and the model/application information in this listing with the identification tag, parts manual, or original component on your lift. If your equipment uses a different part number, verify interchange before installation.

Additional Existing Product / Fitment Information

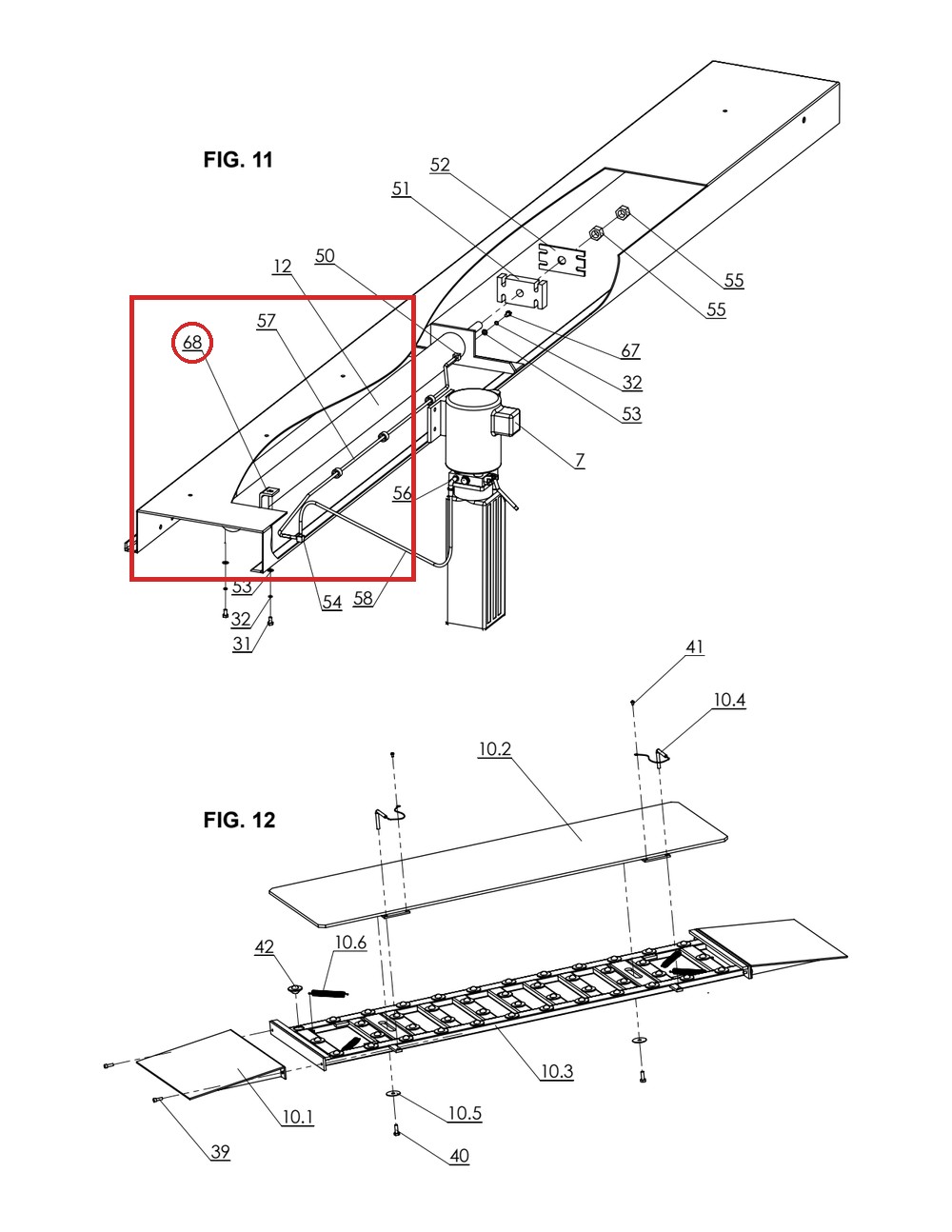

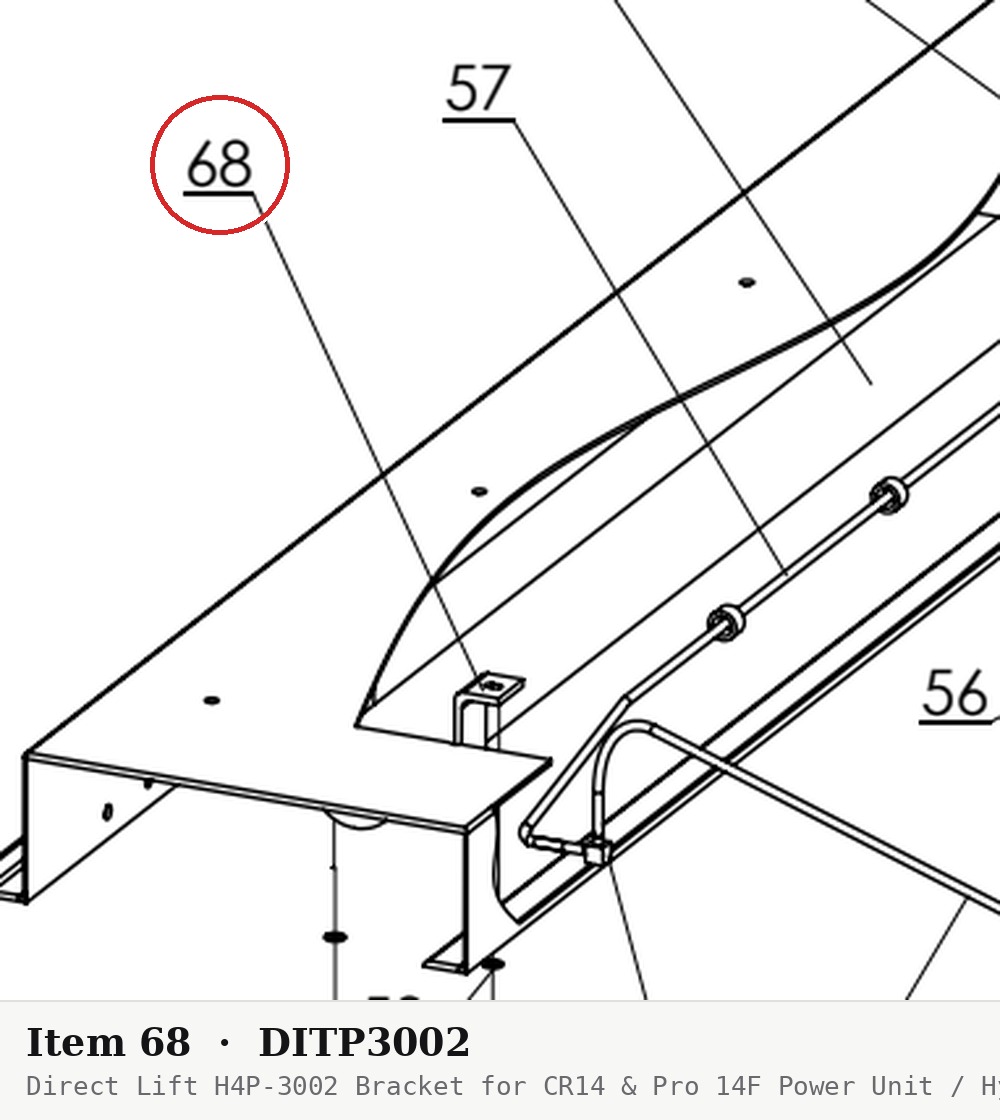

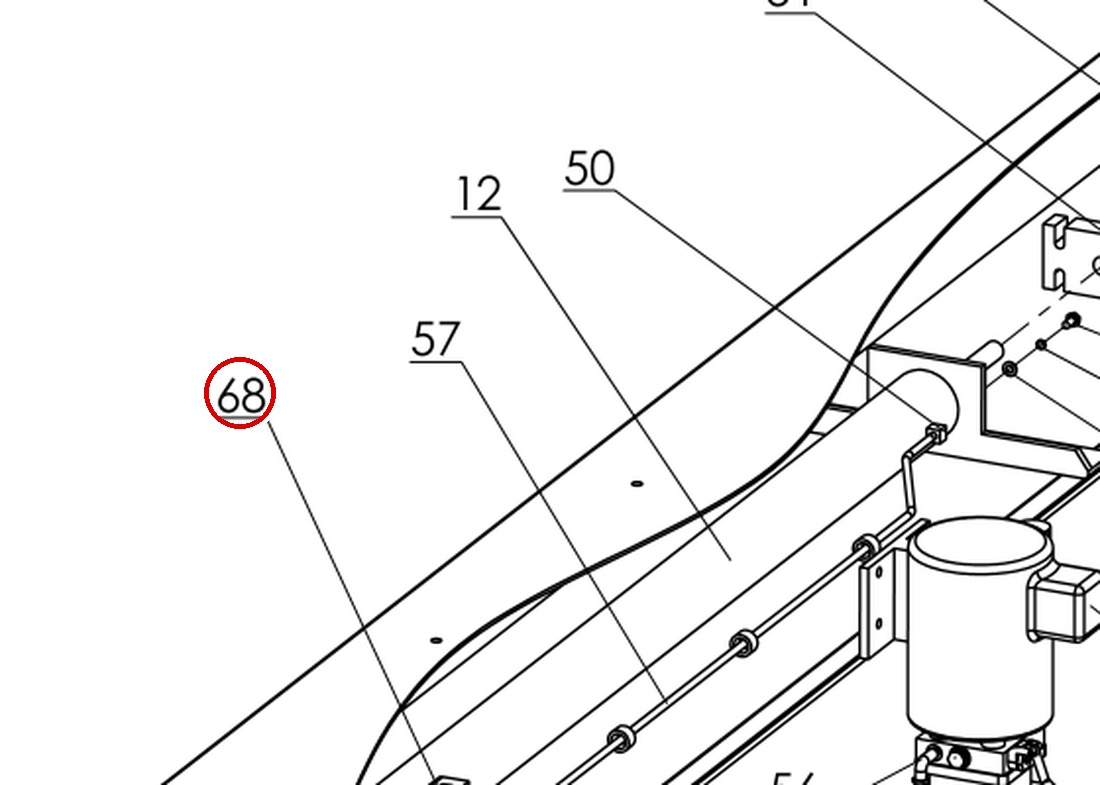

This is part number 68 in the drawing image above.

Fits the following lift models — part number H4P-3002 appears in the parts breakdown of each of these lifts: Direct Lift CR14 14000 (serial 00N), PRO-14F (newer, 3-bolt lock), PRO-14F 14K.

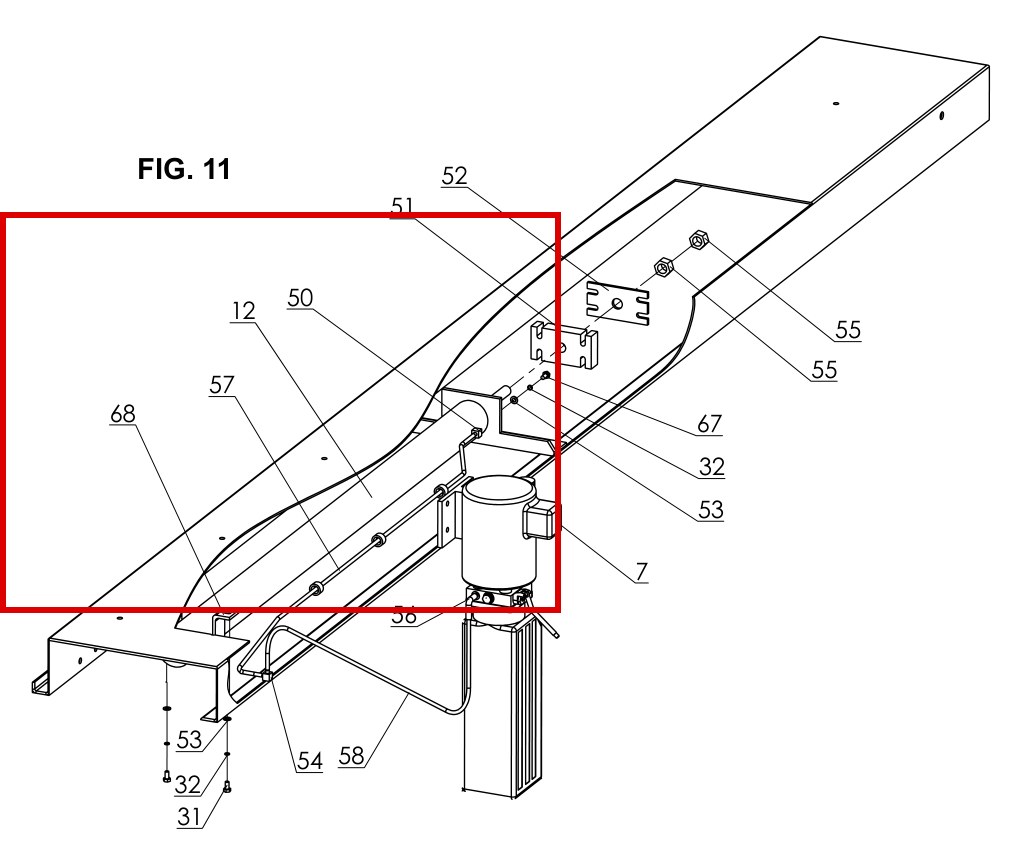

The H4P-3002 bracket appears in Drawing 3 (power unit / cross beam hydraulics), Drawing 5 (Power Unit Mounting & Hydraulic Hose Assembly, p.42) and FIG. 11 of the parts breakdowns. It is used in the power unit mounting and hydraulic routing area of the cross beam, supporting components in the hydraulic assembly.

OEM-style replacement bracket. Use the drawing references above with your lift’s parts breakdown to confirm this is the bracket location you need.
