Direct Lift H4P-9005 Scissor Shaft for RJ70 Rolling Jack – Pro 14F 4-Post Lift
The H4P-9005 Scissor Shaft is listed for use on RJ70 Rolling Jack – Pro 14F 4-Post Lift and is intended for service or repair of compatible Direct Lift equipment. Match the reference part number, component description, and listed application to your original lift part before ordering.
Product Information
- Brand / Equipment: Direct Lift
- Manufacturer / Reference Part Number: H4P-9005
- Store SKU: DIT9005
- Component: Scissor Shaft
- Listed Application: RJ70 Rolling Jack – Pro 14F 4-Post Lift
Fitment & Ordering Notes
Automotive lift manufacturers may use different parts across model years, production runs, or equipment revisions. Before ordering, compare the reference part number and the model/application information in this listing with the identification tag, parts manual, or original component on your lift. If your equipment uses a different part number, verify interchange before installation.
Additional Existing Product / Fitment Information

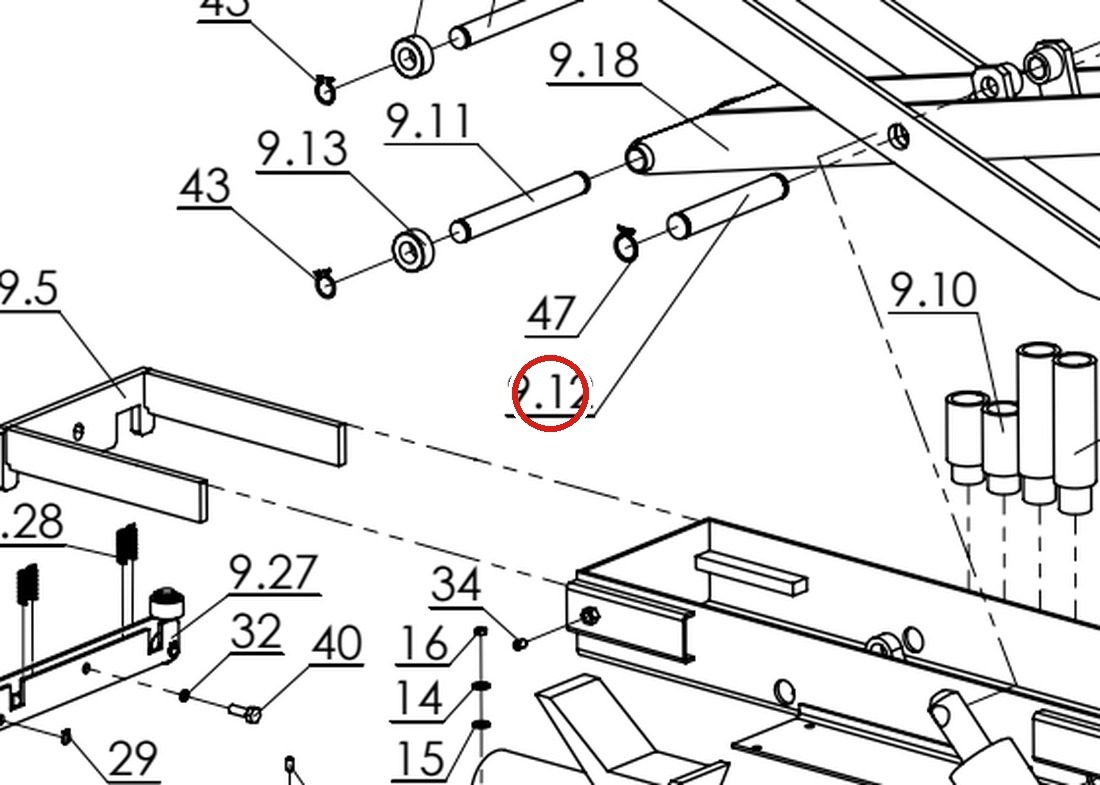

This is part number 9.12 in the drawing image above.
Fits the following lift models — part number H4P-9005 appears in the parts breakdown of each of these lifts: Direct Lift PRO-14F (newer, 3-bolt lock), PRO-14F 14K.

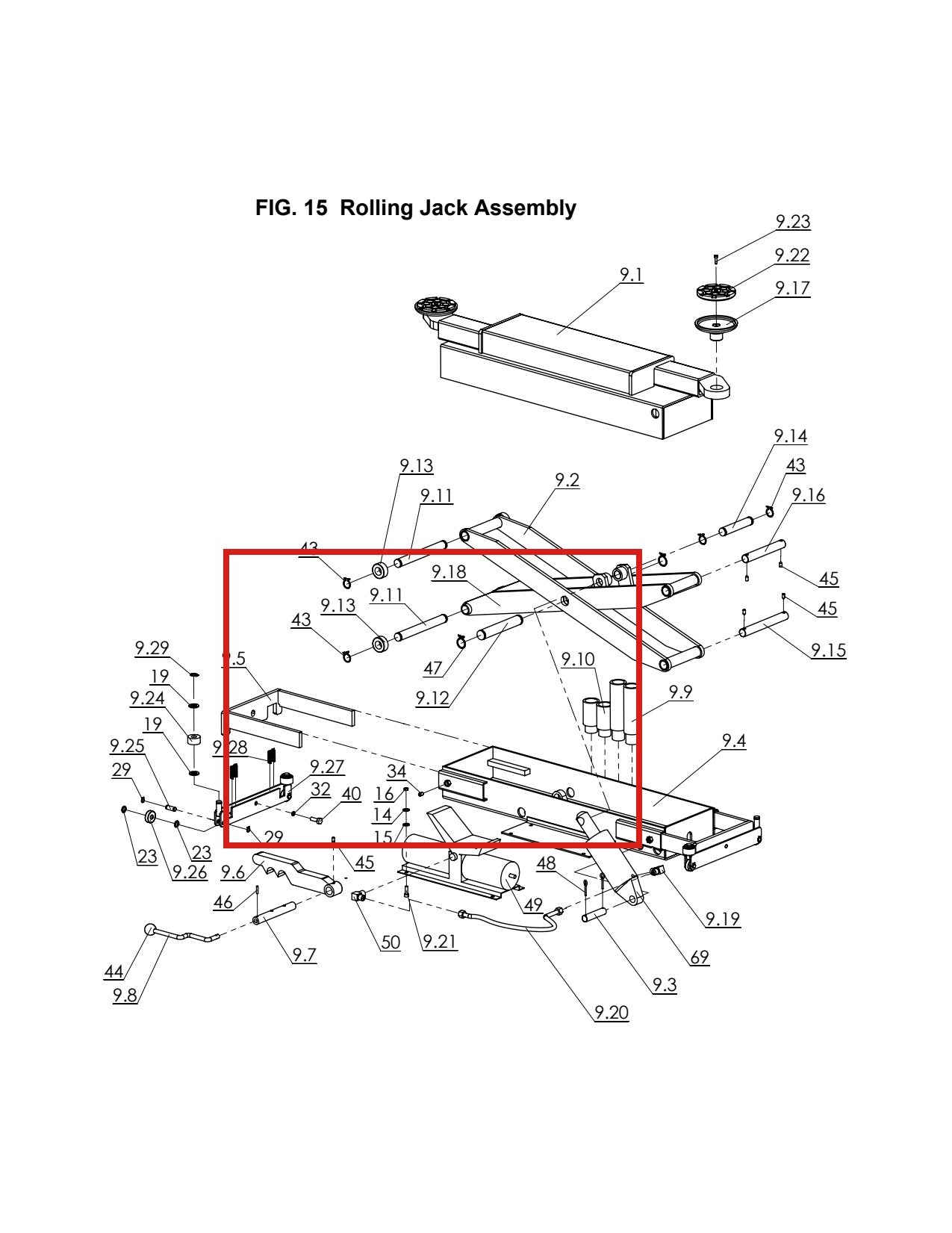

Item: H4P-9005 Shaft, Scissor | Fits the RJ70 rolling jack used on Direct Lift Pro 14F 14,000 lb four-post lifts, including newer PRO14F units with the 3-bolt lock configuration. Shown in FIG. 15 (Rolling Jack Assembly).
The scissor shaft is a pivot shaft in the rolling jack’s scissor mechanism, allowing the inner and outer scissor arms to hinge as the jack raises and lowers. Worn pivot shafts create play in the mechanism and uneven lifting, so replace them when you see wear or elongation at the pivot points.
OEM-style Direct Lift replacement. Related pivots include the H4P-9008 short scissor shaft and H4P-9009 long scissor shaft; check FIG. 15 to identify which position you need.
