Direct Lift H4P-9500 Safety Lock for RJ70 Rolling Jack – Pro 14F 4-Post Lift

Description

Direct Lift H4P-9500 Safety Lock for RJ70 Rolling Jack – Pro 14F 4-Post Lift

The H4P-9500 Safety Lock is listed for use on RJ70 Rolling Jack – Pro 14F 4-Post Lift and is intended for service or repair of compatible Direct Lift equipment. Match the reference part number, component description, and listed application to your original lift part before ordering.

Product Information

• Brand / Equipment: Direct Lift
• Manufacturer / Reference Part Number: H4P-9500
• Store SKU: DIT9500
• Component: Safety Lock
• Listed Application: RJ70 Rolling Jack – Pro 14F 4-Post Lift

Fitment & Ordering Notes

Automotive lift manufacturers may use different parts across model years, production runs, or equipment revisions. Before ordering, compare the reference part number and the model/application information in this listing with the identification tag, parts manual, or original component on your lift. If your equipment uses a different part number, verify interchange before installation.

Additional Existing Product / Fitment Information

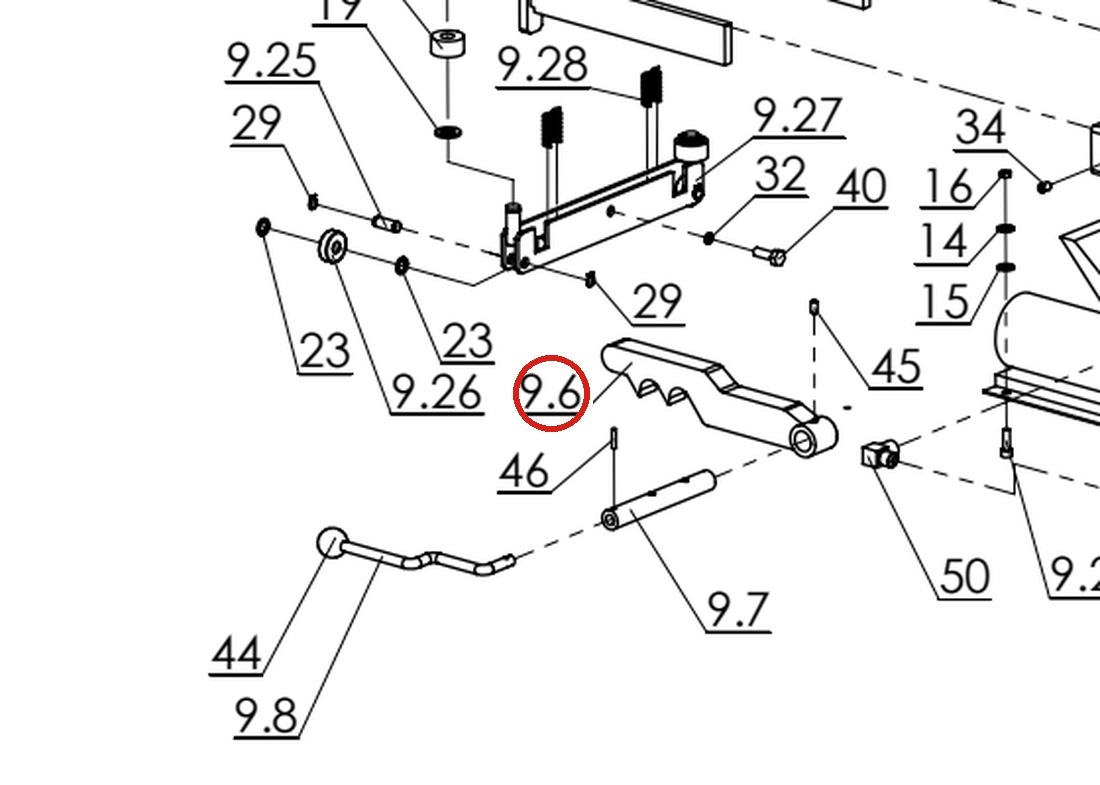

This is part number 9.6 in the drawing image above.

Fits the following lift models — part number H4P-9500 appears in the parts breakdown of each of these lifts: Direct Lift PRO-14F (newer, 3-bolt lock), PRO-14F 14K.

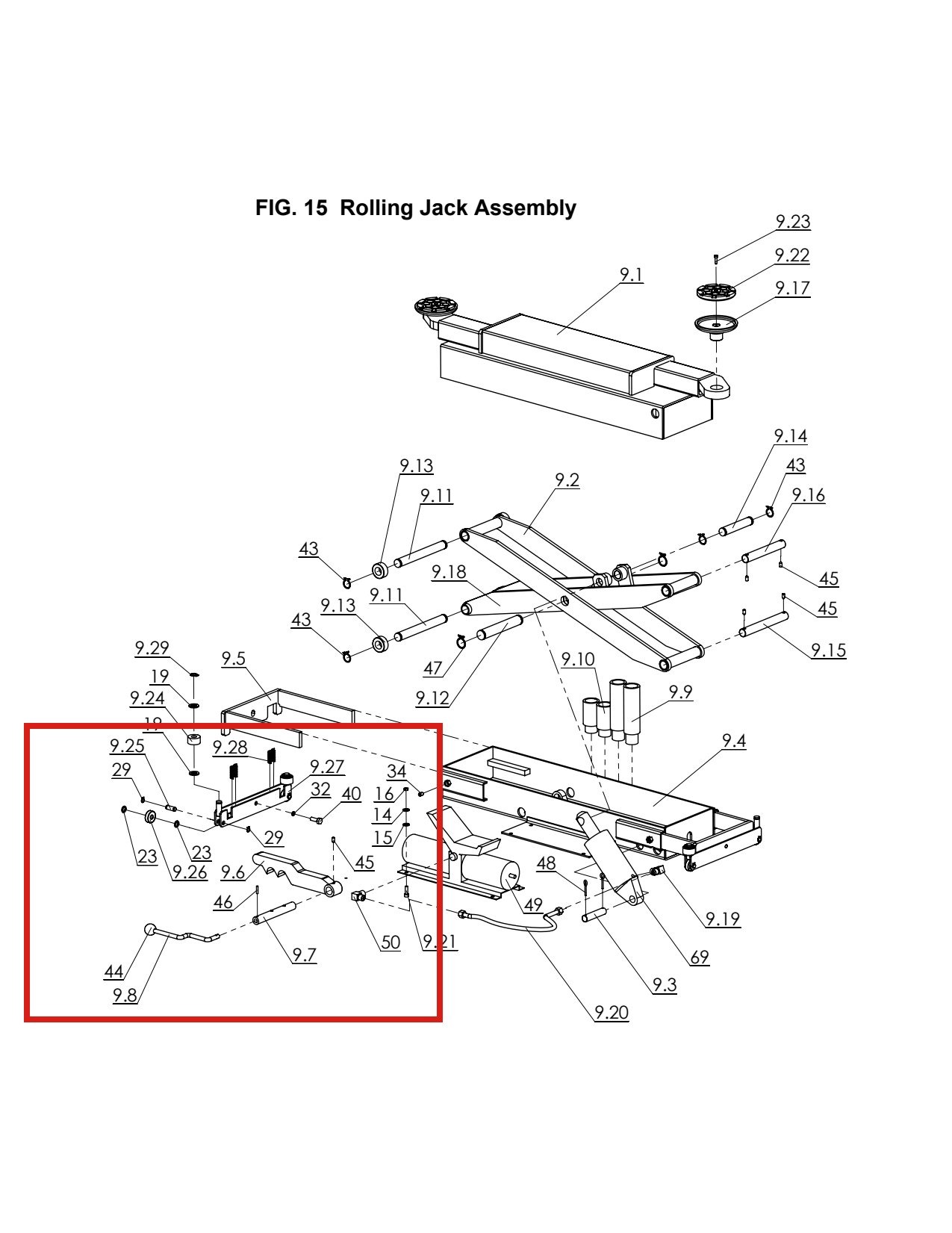

Item: H4P-9500 Safety Lock | Fits the RJ70 rolling jack used on Direct Lift Pro 14F 14,000 lb four-post lifts, including newer PRO14F units with the 3-bolt lock configuration. Shown in FIG. 15 (Rolling Jack Assembly).

The safety lock mechanically holds the rolling jack at height so the raised axle is not supported by hydraulic pressure alone. This is a safety-critical component: replace it immediately if it is worn, damaged, or failing to engage positively, and inspect the mating H4P-9003 lock shaft and H4P-9004 lock handle at the same time.

OEM-style Direct Lift replacement from the HI Parts line. Verify against FIG. 15 in your Pro 14F manual before ordering.
